Summary of Contents for ViewSonic N3000w
- Page 1 N3000w LCD TV Display User Guide Guía Del Usuario Guide De L’utilisateur ユーザーズ ガイド 使用指南 30” (29.5” Viewable) Wide Screen LCD TV...
-
Page 2: Table Of Contents
OSD H-POS / OSD V-POS / OSD Timeout / Language / INFO / Reset. Other Information Specifications ...26 Troubleshooting / Tips & Tricks ...27 Customer Support ...29 Limited Warranty ...30 Appendix Safety Guidelines ...31 Compliance Information for U.S.A..32 CE Conformity for Europe ...32 ...18 ...24 ...17 ...19 ...20 ...21 ..25 ViewSonic N3000w... -
Page 3: Product Registration
Purchase Date: Product disposal at end of product life ViewSonic is concerned about the preservation of our environment. Please dispose of this product properly at the end of its useful life. Your local waste disposal company may provide information about proper disposal. -
Page 4: Important Product Safety Instructions
• Do not place heavy objects on the product, video cable, or power cord • If smoke, abnormal noise, or strange odor is present, immediately switch the product off and call your dealer or ViewSonic. It is dangerous to continue using the product ViewSonic N3000w... -
Page 5: Product Cleaning
ViewSonic does not recommend the use of any ammonia or alcohol-based cleaners on the product screen or case. Some chemical cleaners have been reported to damage the screen and/ or product case. ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners. -
Page 6: Getting Started
• User Guide NOTE: Your product may also include, the ViewSonic Wizard CD. The ViewSonic Wizard CD includes the User Guide PDF files and INF/ICM display optimization files. The INF file insures compatibility with Windows operating systems, and the ICM file (Image Color Matching) insures accurate on-screen colors. -

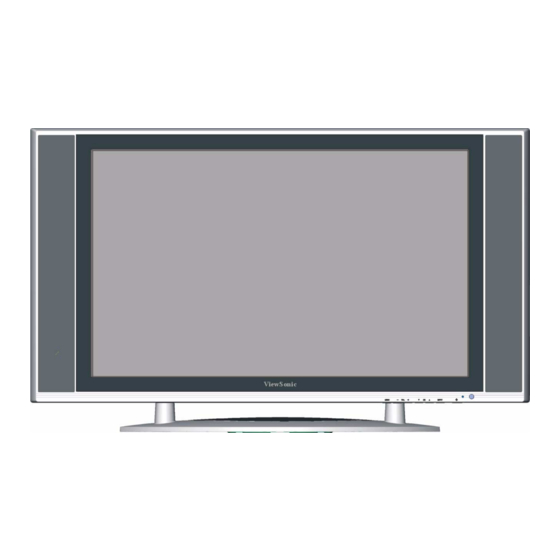

Page 7: Front View Of The Product
OSD Menu. Channel up/down when source is at TV or select a control while in OSD Menu. Select Active Video Input Power ON/OFF Remote Control Infrared Sensor (Do not block) Speaker Front panel controls are shown in detail below ViewSonic N3000w... -
Page 8: Side View Of The Product
Connect the Composite Video (Yellow) to external video device such as VCR, DVD and Video game B/C. Audio input (Right / Left) Connect the external audio to this jack; (Audio (R/L) inputs are supporting either S-Video or AV input.) D. Headphone ViewSonic N3000w... - Page 9 AV-2 Q. S-Video input Connect the S-Video to external video device such as VCR, DVD and Video game R. AV Video input Connect the Composite Video (Yellow) to external video device such as VCR, DVD and Video game ViewSonic N3000w...
-
Page 10: Audio Output
NOTE: SVHS and COMPOSITE Inputs SHARE their respective Audio Inputs. In Normal applications, only one source may have an active Audio Input at a time. AUDIO OUTPUT N. Audio output (Right / Left) Provide the external audio output T. Subwoofer output Provide the external subwoofer output ViewSonic N3000w... -
Page 11: Remote Controls
17. AN -/+ Change TV Sub-Screen Channel. 18. POP Display Main & Sub picture 19. PIP Display Main & Sub picture 20. VOLUME -/+ Volume Up/Down adjustment 21. CHANNEL -/+ TV Channel Up/Down adjustment 22. ENTER Execute a command ViewSonic N3000w... - Page 12 25. CC Turn Close caption On/Off 26. DVI Source selected PC DVI mode 27. AUDIO Multi-sound selection: Mono/Stereo/SAP 28. ZOOM Normal, Zoom1,Zoom2 29. RGB Source selected PC VGA mode 30. SLEEP Set time to turn OFF the unit ViewSonic N3000w...
-
Page 13: Installation
Keep the battery away from children and pets. • When the remote control will not to be used for an extended period, remove the batteries. • In case of misoperation, discard the old batteries and replace with new batteries. ViewSonic N3000w... - Page 14 DVI CONNECTION: Connect the supplied Digital DVI cable from your PC DVI OUT port to the product DVI IN port. AUDIO CONNECTION: Connect the supplied stereo mini cable from the PC’s AUDIO OUT port to the AUDIO IN port on the product. Earphone Audio Out RGB Out RGB In DVI Out ViewSonic N3000w...
- Page 15 3. Connect AV, Y Pb/Cb Pr/Cr, S-Video, Antenna/Cable to Video Devices Connect Video/Audio cables from compatible devices to the back panel of product. ViewSonic N3000w...
-
Page 16: Turn Power On
7. If connecting to Antenna, Cable or other RF source on TV1/TV2 Inputs: See p21, to configure and allow the N3000w to receive all available channels. NOTE: If connecting a PC (RGB/DVI): 1) For the best picture quality set your product timing mode to VESA 1280x768 at 60Hz, refer to the graphic card’s user guide, for questions on how to set this timing mode. -
Page 17: Osd Functions
To display the OSD main menu, press Menu button on the front control keys or the MENU key on the remote control. Use arrow keys to highlight the desired OSD sub-menu. Main Menu To select a sub-menu, press SOURCE on the front control keys or the ENTER key on the remote control. ViewSonic N3000w... -
Page 18: Picture: Brightness / Contrast / Color / Tint / Sharpness /Color Temp
PICTURE: Function Name Brightness Brightness Adjustment Contrast Contrast Adjustment Color Color Adjustment Tint Tint Adjustment Sharpness Sharpness Adjustment Color Temp Color Temp Adjustment (Cool, Normal, User) for PC Mode PICTURE Explanation ViewSonic N3000w... -
Page 19: Function Name
MTS Selection NOTE: This function is dependent on type of broadcast being received. AUDIO Explanation RGB uses 3.5mm jack Input exclusively, YCbCr share Audio with DVI Variable: Sound level will change with Volume. Fixed: Sound level remains constant. ViewSonic N3000w... -
Page 20: Wide Mode Pip Aspect /Pip H-Pos / Pip V-Pos / Pip Size
POP: Displays selected Sub Screen next to the Main Screen. Wide Mode Aspect --> Wide-->1:1 PIP Aspect Aspect --> Wide PIP H-POS Sub Screen display H-Position adjustment PIP V-POS Sub Screen display V-Position adjustment PIP Size Sub Screen display Size adjustment SOURCE Explanation ViewSonic N3000w... -
Page 21: Graphic: Auto Adjust / H.position / V.position / Phase / H.size/ Resolution
Horizontal Position on the image adjustment V. Position Vertical Position on the image adjustment Phase Phase adjustment H. Size Clock adjustment Resolution Display Source Resolution and Frequency NOTE: The GRAPHIC menu is only available when RGB or DVI source is selected. GRAPHIC Explanation ViewSonic N3000w... -
Page 22: Tv: Input / Caption Mode /Auto Scan / Add/Del Channels /Parental Controls
Note: Parental Control is broadcaster dependent. Contact broadcaster for availability of content containing parental control information. Note: If Parental Control password is “LOST”, it may be reset. See Troubleshooting / Tips & Tricks p27. Explanation Parental Controls Verify OK ViewSonic N3000w... - Page 23 ViewSonic N3000w...
- Page 24 Function Name Password Edit Change Password. NOTE: There is no Default password, just hit “ENTER” on the Remote Control. ViewSonic is not responsible for parental control password security. TV Rating B: Block U: Unblock <<< AGE >>> TV Y: All Children...
-
Page 25: Clock: Date / Time / Timer1 / Timer2 / Sleep Timer
Time Display present time Timer1 Set the time and duration to automatically turn on. Timer2 Set the time and duration to automatically turn on. Sleep Timer Set Time to turn OFF the unit (OFF-->10min-->20min-->30min-->40min-->50min-->60min--> 70min- ->80min-->90min-->100min-->110min-->120min) Clock Explanation ViewSonic N3000w... -
Page 26: Setup: Osd H-Pos / Osd V-Pos / Osd Timeout / Language / Info / Reset
Function Name OSD H-POS OSD Horizontal Position adjustment OSD V-POS OSD Vertical Position adjustment OSD Timeout Set Time to turn OFF the OSD Language OSD language INFO Display Input Source, Type and Signal Reset Restore factory defaults Explanation ViewSonic N3000w... -
Page 27: Other Information Specifications
5% to 90% (no condensation) To 36,000 860 mm (W) x 524 mm (H) x 203 mm (D) 37.5 lb (17.0kgs) / 48.5 lb (22.0kgs) FCC-B, UL / c-UL, DOC-B, NOM, CE, MPRII, CCC, BSMI,C-Tick 185W (Blue LED)- <3W (Orange LED)- ViewSonic N3000w... -
Page 28: Troubleshooting / Tips & Tricks
Loose or broken pins in the cable connector could cause an improper connection • Connect the product to another computer • If you have an older graphics card, contact ViewSonic® for a non-DDC adapter Control buttons do not work • Press only one button at a time Snow appears on screen •... -
Page 29: Remote Control Does Not Work
• Letterboxed (or “Widescreen”) versions of DVD movies are most commonly formatted for standard 4:3 Televisions. The N3000w has the capability of expanding this content so the entire screen is filled at the expense of image accuracy. To use this function, press the “ZOOM”... -
Page 30: Customer Support
F: 65 273 1566 T: 886 2 2246 3456 F: 886 2 8242 3668 T: 886 2 2246 3456 F: 886 2 8242 3668 T: 0120-341-329 F: +886 (2) 8242-3668 Email service.us@viewsonic.com service.ca@viewsonic.com service.eu@viewsoniceurope.com service.eu@viewsoniceurope.com service@au.viewsonic.com service@sg.viewsonic.com service@sd.viewsonic.com service@sd.iewsonic.com service@jp.viewsonic.com ViewSonic N3000w... -
Page 31: Limited Warranty
How long the warranty is effective: ViewSonic N3000w is warranted for one (1) year for all parts including the light source and one (1) year for all labor from the date of the first consumer purchase. -
Page 32: Appendix
Britain...BASE/BS Japan ...Electric Appliance Control Act Figure 2 Size of Conductors in Cord 18 AWG 16 AWG 14 AWG 18 AWG 17 AWG Maximum Current Rating of Unit 10 Amps 12 Amps 12 Amps 10 Amps 12 Amps ViewSonic N3000w... -
Page 33: Compliance Information For U.s.a
CE Conformity for Europe The device complies with the requirements of the EEC directive 89/336/EEC as amended by 92/ 21/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic compatibility,” and 73/23/EEC as amended by 93/68/EEC Art. 13 with regard to “Safety.” ViewSonic N3000w... - Page 34 ® ViewSonic Corporation...
