These instructions include the following models:
MP56015 150W
MP56030 300W
MP56050 500W
MP56080 800W
MP56100 1000W
MP56150 1500W
Power inverter 12 volt DC to 230V AC Modified Sine Wave
Please read these instructions carefully and keep for future reference.
A more detailed instruction leaflet is available on our website:
www.maypole.ltd.uk
www.maypole.ltd.uk
DDDDDDDDDDD
ww
MAMMMMMMMMM
w.maypole.ltd.uk
pole.ltd.uk

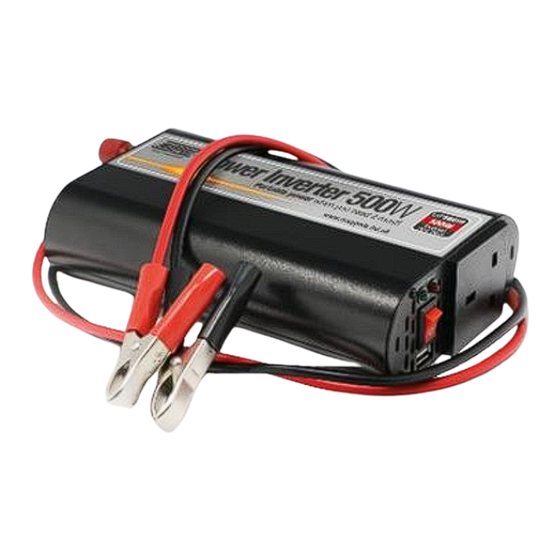

High Frequency Power Inverters
MP56050
INSTRUCTION MANUA L
1
12V DC / 230V AC / 5V USB / BS socket
12V DC / 230V AC / 5V USB / BS socket
12V DC / 230V AC / 5V USB / BS socket
12V DC / 230V AC / 5V USB / BS socket
12V DC / 230V AC / 5V USB / Twin BS sockets
12V DC / 230V AC / 5V USB / Twin BS sockets
MP56150
Advertisement
Table of Contents
Summary of Contents for MayPole MP56015
- Page 1 High Frequency Power Inverters MP56050 MP56150 These instructions include the following models: MP56015 150W 12V DC / 230V AC / 5V USB / BS socket MP56030 300W 12V DC / 230V AC / 5V USB / BS socket MP56050 500W...
- Page 2 60℃ under extended high power operation. Ensure that at least 5 cm of air space is maintained on all sides of the inverter. During operation, keep away from materials that may be affected by high temperature. www.maypole.ltd.uk DDDDDDDDDDD MAMMMMMMMMM w.maypole.ltd.uk...
- Page 3 To establish the power supply required (in amps), divide the rating of the connected appliances (in Watts) by the supply voltage (12). • eg. Electric drill 230V 360W would be 360 / 12 = 30 Amps supply will be required www.maypole.ltd.uk DDDDDDDDDDD MAMMMMMMMMM w.maypole.ltd.uk pole.ltd.uk...
- Page 4 With a suitable connecting lead, this supply may be used for charging or powering devices, these may include a digital camera, tablet or mobile phone (Note: Some phones require a data connection and may not charge from a standard USB power supply). www.maypole.ltd.uk DDDDDDDDDDD MAMMMMMMMMM w.maypole.ltd.uk...
- Page 5 After cooling down for approx. 15 minutes, the unit can be switched on again. Disposal The unit contains hazardous constituents that should be disposed of at local authority registered waste recycling center or a waste electrical equipment collection point. Do not dispose of with general household waste. www.maypole.ltd.uk DDDDDDDDDDD MAMMMMMMMMM w.maypole.ltd.uk pole.ltd.uk...
- Page 6 We declare that this product conforms to the following standards 2014/35/EU (LVD), 2014/30/EU (EMC), 93/68 EEC (CE) Marking, 2011/65/EU (ROHS) EN60950-1 (General product safety) EN61000-3-2, EN61000-3-3, EN55014-1, EN55014-2 (EMC) EN61558-1:2005+A1:2009 EN61558-2-16:2009+A1:2013 Technical Manager Maypole Ltd June 2017 Email: sales@maypoleltd.co.uk Web: www.maypole.ltd.uk www.maypole.ltd.uk DDDDDDDDDDD MAMMMMMMMMM w.maypole.ltd.uk...
