Installation Guide: C2-9009 (Lithium-Ion Battery)
Important Before You Start: THIS IS AN ACCESSORY "QUICK SET-UP" GUIDE ONLY
Please refer to the Dabir Operation / Service Technical Manual for full System set-up and usage instructions. Failure to carefully
read and follow all instructions and safety information may result in decreased product performance or injury.

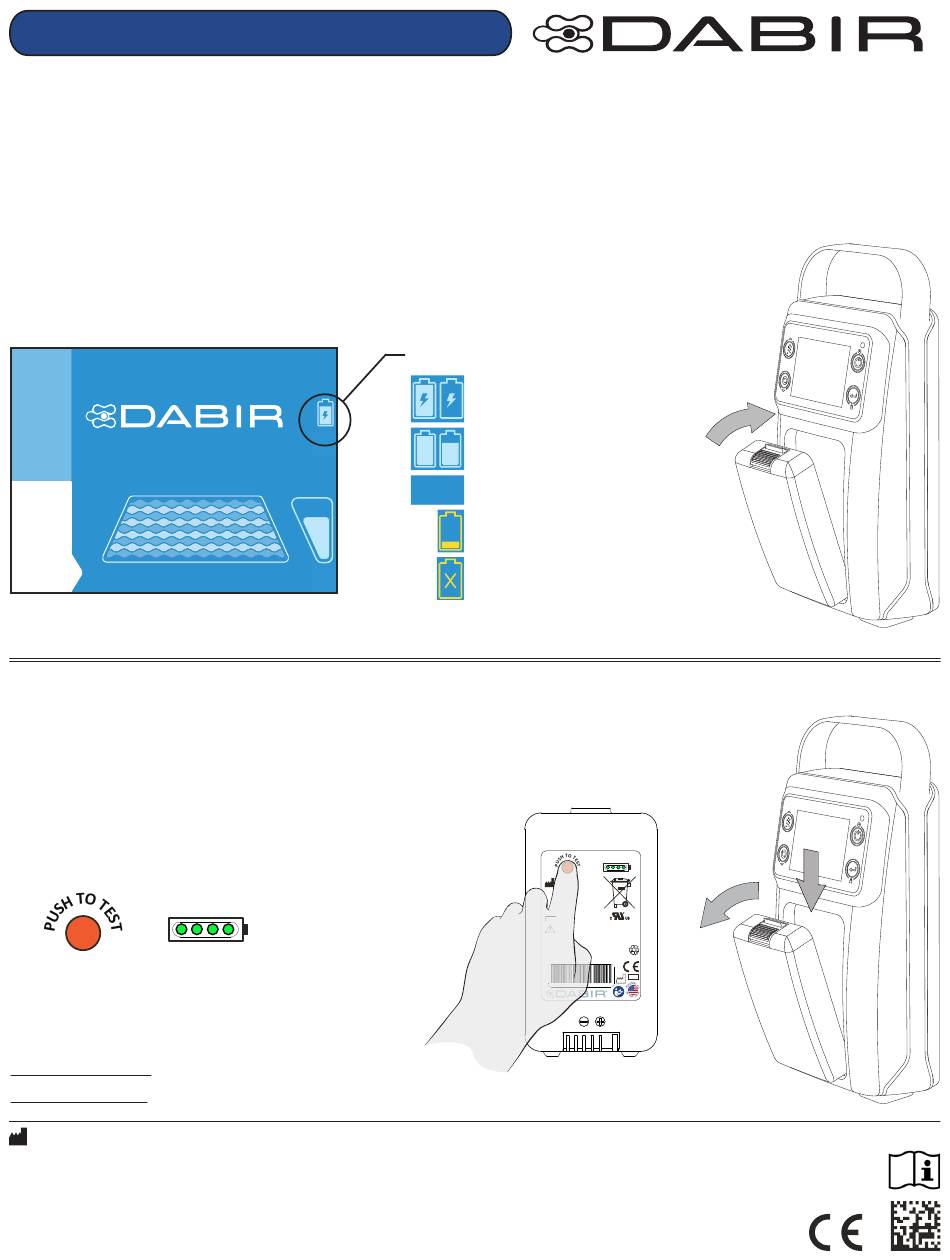

Battery Insertion:

1. Remove battery from packaging.
2. Insert bottom of Battery into the Controller pocket, then pivot top of battery inwards until
an audible "CLICK" occurs, confirming proper connection.
3. The Battery icon will appear on the LCD when properly connected. If icon is not present,
Battery is NOT properly connected and Step 2 MUST be repeated.
HIGH
CYCLE
933
SPEED
HRS
LOW
MICROPRESSURE
NOTE: The Battery will automatically charge when AC power is supplied to Controller.

Battery Removal:

NOTE: Controller MUST be connected to AC power source to maintain therapy after Battery removal.
4. To remove Battery from Controller, grip sides of Battery and press Orange button downward.
5. Rotate Battery outward and remove as shown.

Checking Battery Charge Level:

6. Activate Charge Level LEDs by pressing "PUSH TO TEST".
CHARGE LEVEL
Charge Level
Dabir Surfaces Inc.
7447 West Wilson Ave.,
NOTE:
Harwood Heights, IL 60706, USA
(Phone) 1-888-559-3641
It is the responsibility of the user to properly clean
www.dabir-surfaces.com
and disinfect the System prior to patient use.
Rechargeable Li-ion Ba�ery Pack
Cleaning Procedure: www.dabir-surfaces.com/IFU
Ra�ng: 21.6 V, 3.45 Ah, 74.52 Wh
C2-9009
6INR19/66-1
MN
Approved Cleaners: www.dabir-surfaces.com/cleaners
CAUTION / MISE EN GARDE:
Risk of fire and burns. Do not open, crush, heat above
Corporate Headquarters, Sales & Manufacturing:
60°C or incinerate. Follow manufacturer's instruc�ons.
Dabir Surfaces, Inc.
Risque d'incendie et de brûlures. Ne pas ouvrir,
écraser, chauffer au-delà de 60°C ou incinérer.
Sales Inquiries:
Suivez les instruc�ons du fabricant.
Technical Support:
Authorized European Representative:
PATENT:
DOC# R02-0006-00121-AA
010085000871913421ABC123
85%
75%
85%
SURFACE
85%
933
933
HRS
HRS
E465956
7447 West Wilson Ave., Harwood Heights, IL 60706, USA, www.dabir-surfaces.com
sales@dabir-surfaces.com, Tel: +1(888)559-3641
Li-Ion
support@dabir-surfaces.com, Tel: +1(888)559-3642
Emergo Europe, Prinsessegracht 20, 2514 AP The Hague, The Netherlands
www.dabir-surfaces.com/patents
SN
Step 3: Battery Icon Check
= Connected & Charging
85%
= Connected & Discharging
85%
= Battery Life
= Low Charge (Yellow)
85%
= Battery Defective
