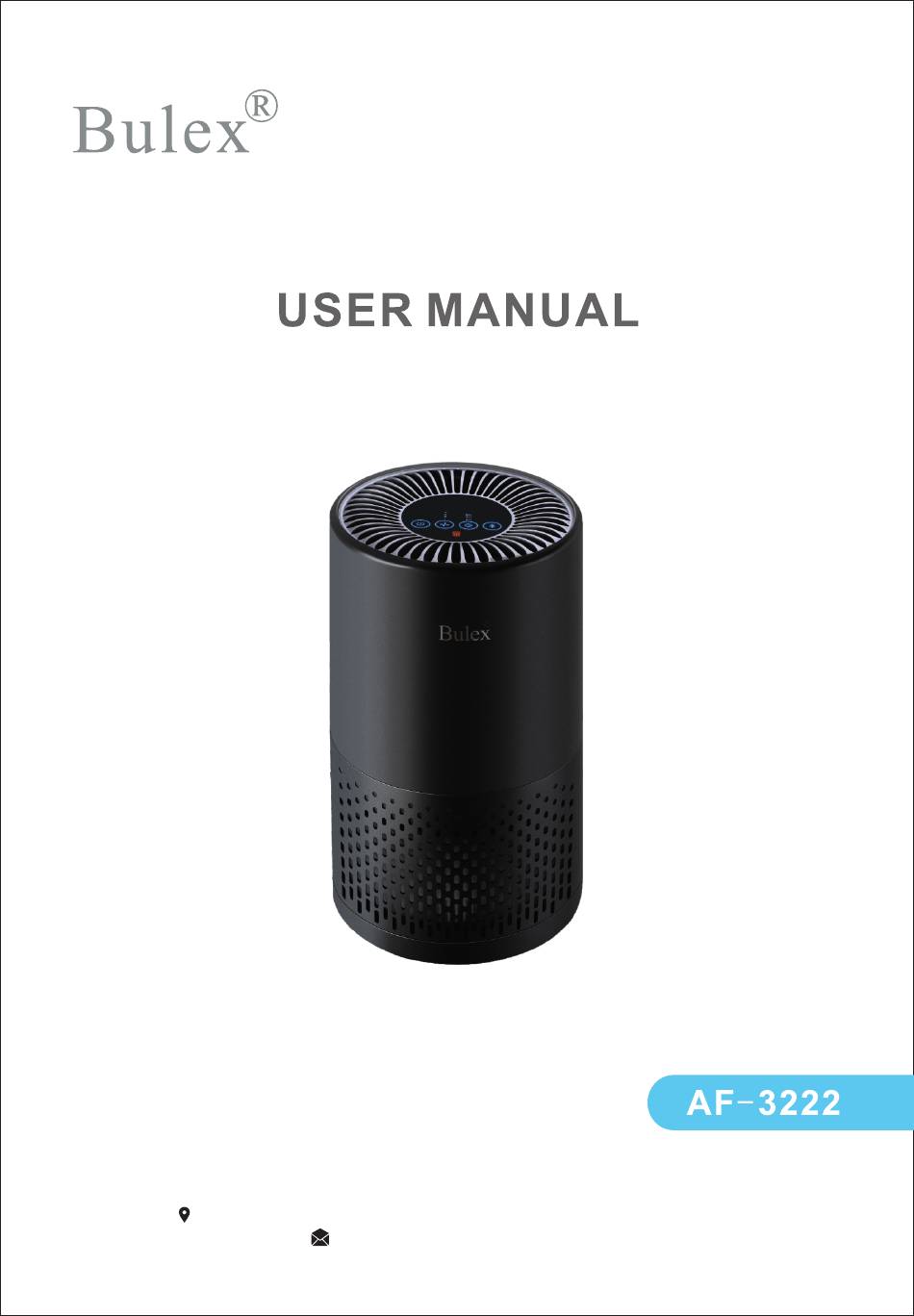

- Page 1 CANDO INTELLIGENT TECHNOLOGY LIMITED FLAT Flat 1506 15/f Lucky Ctr No 165-171 Wan Chai Rd Wan Chai Hong Kong bulex-services@candohk.cn...
-
Page 2: Table Of Contents
IMPORTANT SAFEGUARDS Technical Specifications Your Air Purifier Product Overview Control Panel Overview Filers Getting Started Using the Air Purifier Cleaning Replacing the Filters Storage WARRANTY CUSTOMER SUPPORT Troubleshooting... -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS READ AND SAVE THESE SAFETY INSTRUCTIONS BEFORE USING THIS AIR PURIFIER When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: •Read all instructions before operating the appliance. •... - Page 4 • The marked electrical rating of the cord must be as great as the rating of the appliance. • Do not operate any appliance with a damaged cord or plug. • Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings.
- Page 5 • Make sure all filters are properly installed before you switch on the appliance. • Only use the original Bulex filters specially intended for this appliance. Do not use any other filters. • Do not use the filter as fuel or for similar purposes.
-
Page 6: Technical Specifications
Dimensions: 210(L)x210(W)x345(H)mm 8.27(L)x8.27(W)x13.58(H)inch Weight: 5.57lb (2.53kg) Filter: HEPA CADR: ≥80cfm/136m3/h Applicable Area:11.83m3(Normal size) Your Air Purifier Congratulations on your purchase, and welcome to Bulex! To achieve optimal performance of the device, read this user manual carefully before starting to use. -
Page 7: Product Overview
Product Over view Air Outlet Control Panel Main Unit Air Inlet Bottom Cover Control Panel Over view On/Off Fan Speed Timer Night Light Button Button Button Button Filter Reset Button... -
Page 8: Filers
Filter Pre Filter HEPA Filter Active Carbon Filter Degerming Filter Clip Multiple levels of cleaning include a combination HEPA filter that captures allergens, and an Activated Carbon filter to remove odors. Degerming filter enhances the killing of bacteria.. PRE-FILTER: Captures initial dust and allergen particles. ACTIVATED CARBON FILTER: Absorbs formaldehyde, benzene and other noxious gases. -
Page 9: Getting Started
Getting started BEFORE OPERATING THE AIR PURIFIER: 1. Carefully take out your air purifier from the box and remove all packaging materials. 2. Place the unit on a firm, level and flat surface. 3. Before using it for the first time, please open the bottom cover and take out the filters, remove the wrapping bag of the filters, then insert the filters and close the cover (See chapter`Replacing the filters`). - Page 10 • All indicator lights will go off after 3 seconds in sleep mode. • You can turn on the indicator lights manually by touching any button. Setting the timer With the timer, you can have the air purifier operate for a set number of hours. When the set time has elapsed, the air purifier will automatically switch off.
-
Page 11: Cleaning
• When the air is heavily polluted, you can replace the filters even the filter reset indicator light may not be on. Touch and hold the filter reset button for 3 seconds to reset filter lifetime counter manually after replacing the filter. •Always switch off and unplug the air purifier before replacing the filters. - Page 12 (2)Remove the bottom cover. (1)Switch off the air purifier and unplug it. Hold the unit firm and rotate the bottom cover counterclockwise to unlock and open it. (3)Take out the used filter according to the filter reset (4)Remove all packaging material indicator light status.
-
Page 13: Storage
• Store the air purifier and filters in a cool, dry location. WARRANTY Bulex comes with an industry-leading 1 Year Warranty that begins on the date of purchase. The warranty applies to the whole unit including the components. It does not apply to damage resulting from failure to follow the instructions, accidents, abuse, alterations, or disassembly by unauthorized individuals. -
Page 14: Troubleshooting
Troubleshooting This chapter summarizes the most common problems you could encounter with the air purifier. If you are unable to solve the problem with the information below, send email to bulex-services@candohk.cn for assistance.
