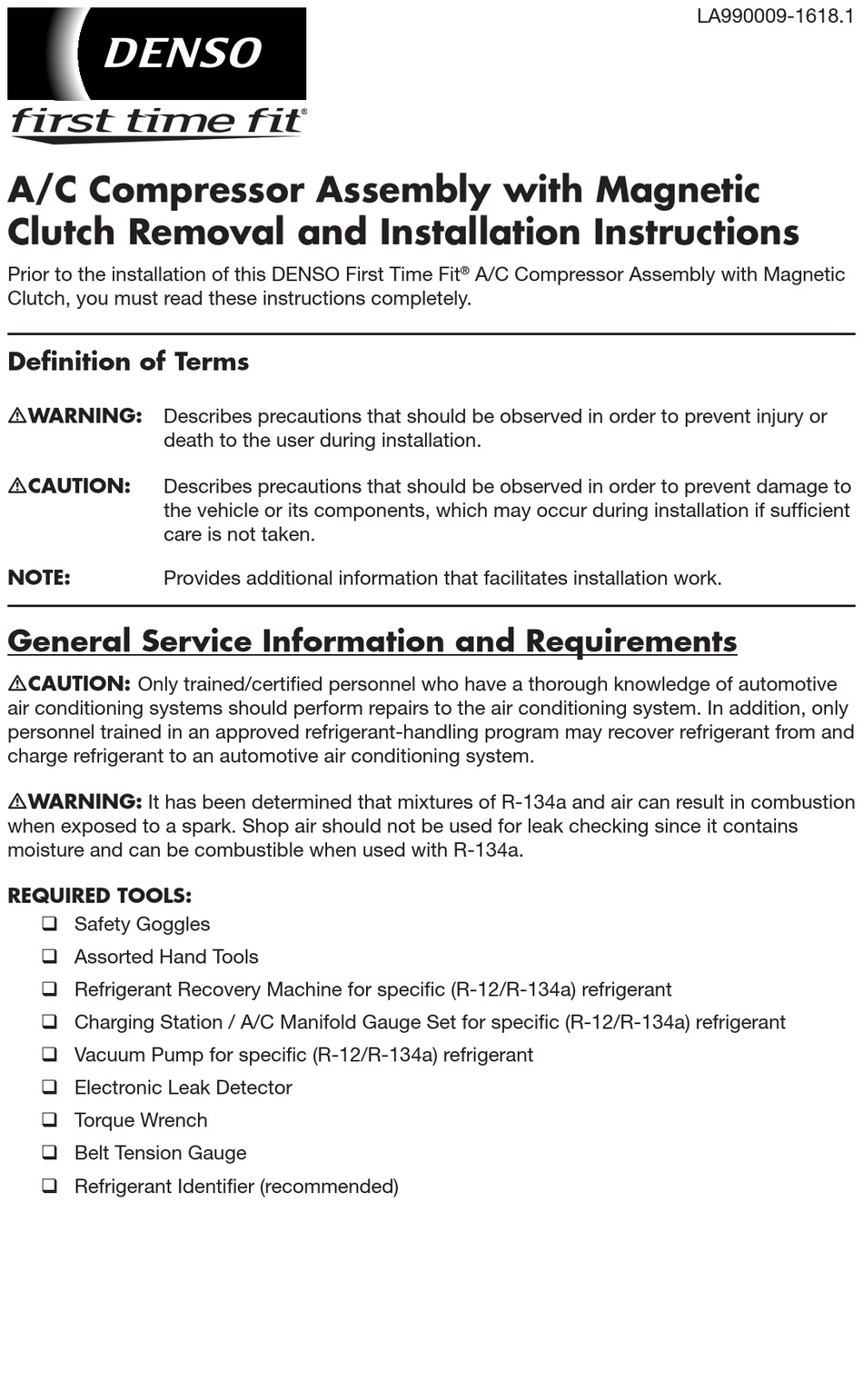

Denso DNP-471-8162 Removal And Installation Instructions

A/C Compressor Assembly with Magnetic
Clutch Removal and Installation Instructions
Prior to the installation of this DENSO First Time Fit
Clutch, you must read these instructions completely.
Definition of Terms
DWARNING: Describes precautions that should be observed in order to prevent injury or
death to the user during installation.
DCAUTION: Describes precautions that should be observed in order to prevent damage to
the vehicle or its components, which may occur during installation if sufficient
care is not taken.
NOTE:
Provides additional information that facilitates installation work.
General Service Information and Requirements
DCAUTION: Only trained/certified personnel who have a thorough knowledge of automotive
air conditioning systems should perform repairs to the air conditioning system. In addition, only
personnel trained in an approved refrigerant-handling program may recover refrigerant from and
charge refrigerant to an automotive air conditioning system.
DWARNING: It has been determined that mixtures of R-134a and air can result in combustion
when exposed to a spark. Shop air should not be used for leak checking since it contains
moisture and can be combustible when used with R-134a.
REQUIRED TOOLS:
‰ Safety Goggles
‰ Assorted Hand Tools
‰ Refrigerant Recovery Machine for specific (R-12/R-134a) refrigerant
‰ Charging Station / A/C Manifold Gauge Set for specific (R-12/R-134a) refrigerant
‰ Vacuum Pump for specific (R-12/R-134a) refrigerant
‰ Electronic Leak Detector
‰ Torque Wrench
‰ Belt Tension Gauge
‰ Refrigerant Identifier (recommended)
A/C Compressor Assembly with Magnetic
®
LA990009-1618.1
