Summary of Contents for CMX EVAC-500
- Page 1 MANUAL INSTALLATION AND OPERATION Digital Voice Alarm & Evacuation System EVAC-500/EVAC-240 EVAC-500RT/EVAC-240RT EVAC-500FM EVAC-500TM EVAC-500RM EVAC-12KD EVAC-500SFT...
-
Page 2: Table Of Contents
EVAC-500 Voice Alarm & Evacuation System Operation Manual CONTENTS About the Manual-----------------------------------------------------------------------------------------------------------------------2 System Overview& Features & System Capacity ..................3 Host and Extension Host EVAC-500/EVAC-500RT ................4-11 1.1. Front Panel ............................4-7 1.2. Rear Panel ............................7-9 1.3. Dipswitch Setting of Host and Extension Host------------------------------------------------------------------------10 1.4. -
Page 3: About The Manual
EVAC-500 Voice Alarm & Evacuation System Operation Manual About the Manual Purpose: Provide installation, configuration and operation EVAC-500 voice alarm & evacuation system. Target reader: Professional technician after training of voice alarm & evacuation system. Terminology Host-EVAC-500 or EVAC-240, Extension host- EVAC-500RT or EVAC-240RT, Remote Microphone-EVAC-500RM, Touch screen remote Controller- EVAC-500TM, Fireman’s Microphone- EVAC-500FM, Keypad——... -
Page 4: System Overview& Features & System Capacity
EVAC-500 Voice Alarm & Evacuation System Operation Manual System Overview The EVAC-500 voice evacuation system is EN54-16 certified public address & voice evacuation system. The all in one voice alarm & evacuation controller built-in remote PC software, zone paging controller, all main signal line monitoring, amplifier changeover, speaker line supervision, power supply monitoring and power amplifier, voice recorder, SD card, emergency microphone and fire alarm interface. -
Page 5: Host And Extension Host Evac-500/Evac-500Rt

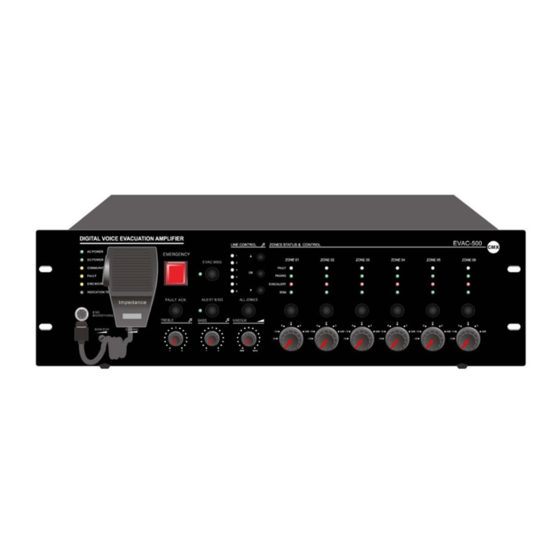

1. Host & Extension Host EVAC-500/EVAC-240 & EVAC-500/EVAC-240RT EVAC-500 & EVAC-240 is the core of voice alarm system, built with 500W/240W digital amplifier, enable to manual or auto broadcast the emergency message, also fireman’s microphone evacuation is also possible under emergency, system capacity up to 120 zones with paging and background music functions, monitoring includes amplifier failure, speaker line failure, emergency message and emergency microphone supervision. - Page 6 Input a reset signal to the emergency control input terminal on the rear panel of the EVAC-500 which has been assigned a reset function. These events history could be recorded and inquired in the software history record.
- Page 7 EVAC-500 Voice Alarm & Evacuation System Operation Manual output to other host; The host line audio can controlled by EVAC - 500 SFT or EVAC - RM/RME and EVAC-500FM/EVAC-500TP. Note：The choice of the current user can see through the EVAC - 500 SFT interface，To change the different audio output，Only through use to choose from the panel.
-
Page 8: Rear Panel
2. Do make sure the 24V DC could meet the minimum working current of the host. For example, full loading of EVAC-500 at 500W, the lead-acid battery shall supply the current higher than 27A, battery capacity higher than 27Ah and working time shall be full loading*27Ah*1.2 hours. - Page 9 DHCP function. This function is mainly used to upgrade new features to use in the future, the current system before unplug "; Support PC software directly connection to EVAC-500，automatic identify cross and straight cable. All communication cable shall be meet TIE/EIA-568B standards including connection to extension and remote paging microphone.
- Page 10 EVAC-500 Voice Alarm & Evacuation System Operation Manual 8- Evacuation Message SD Card. The emergency message memory card is real time monitored, tested memory capacity of 32G, never plug out this card during work, otherwise the event record and program will be lost. The root of emergency message as below picture, there is each one Alert and EVAC default messages, edit, add or delete or replace these messages are possible done by professional technician, these messages will be real time supervised.
-
Page 11: Dipswitch Setting Of Host And Extension Host
EVAC-500 Voice Alarm & Evacuation System Operation Manual 1.3. Dipswitch Setting of Host & Extension Host 1.3.1. Host Configuration Dipswitch (UP means “ENABLE” and DOWN means “DISABLED”) 1 - “Supervision Enable” means to on/off the system all supervision or monitoring functions, we suggest to disable or off it during test or before full system wiring, please on this dipswitch after full wiring and software program. -
Page 12: Technical Specifications
EVAC-500 Voice Alarm & Evacuation System Operation Manual 1.4. Technical Specifications Model EVAC-500/EVAC-240 EVAC-500RT/EVAC-240RT Description Host Extension Host AC Electrical Part Power Supply AC220V-250V, 50/60Hz Power Consumption 650W Max Current <3A Fuse 250V/5A, low speed type DC Electrical Part Power Supply 24V DC, 20V-27.5V... -
Page 13: Fireman's Microphone Evac-500Fm
With lock and key to ensure access permission. Description: The EVAC-500FM fireman’s microphone is EN54-16 certified and designed exclusively for EVAC-500 public address & voice evacuation system. The fireman’s microphone is a surface mounted cabinet containing a first help and echo cancelling microphone, state indicator, pre-recorded message announcement and live announcement. -
Page 14: Front Panel And Rear Panel
EVAC-500 Voice Alarm & Evacuation System Operation Manual 2.1. Front Panel and Rear Panel: 13 / 42... - Page 15 Input a reset signal to the emergency control input terminal on the rear panel of the EVAC-500 which has been assigned a reset function. These events history could be recorded and inquired in the software history record.
-
Page 16: Technical Specifications
EVAC-500 Voice Alarm & Evacuation System Operation Manual 9— Lock with Key 10 & 11— Cable Outlet 12—ID Configuration Dipswitch. Upward means enable and downward means disable. 1 to 5 PIN means ID of binary system. 6 PIN upward means normal paging mode and downward means PPT paging mode. -
Page 17: Touch Screen Remote Microphone Evac-500Tm
Green LED indicates the microphone and zone active status. The remote microphone is 24VDC powered by the EVAC-500 controller. The voice evacuation system is strictly follow the Construction products Regulation（EU）No 305/2011: EN54-16:2008 Voice Alarm Control and Indicating Equipment. -
Page 18: Front Panel And Rear Panel
EVAC-500 Voice Alarm & Evacuation System Operation Manual 3.1. Front and Rear Panels 1—HD display 2— Power indicator 3— All Zone Select all zone for paging methods: 1. Users can choose all zone button on the LCD display 2. The user can select the all zone button 4—Talk button... -
Page 19: Technical Specifications
EVAC-500 Voice Alarm & Evacuation System Operation Manual 6— Two RJ45 Communication Port with Host There are two RJ45 communication ports, one for host and the other port is for next remote microphone hand-in-hand connection or loop connection back to the host for redundancy connection. For these two RJ45 ports, there is no distinction between the primary and the secondary port. -
Page 20: System Connection Diagram Example
Power supply from EVAC-500 controller. Description: The EVAC-500RM remote microphone or call station is EN54-16 certified and designed exclusively for EVAC-500 public address & voice evacuation system. The remote microphone is used for business and commercial live announcement to selected zones or all zones. The remote microphone is designed of 12 zone buttons with busy &... -
Page 21: Front Panel And Rear Panel
EVAC-500 Voice Alarm & Evacuation System Operation Manual active status. The remote microphone is 24VDC powered by the EVAC-500 controller. The voice evacuation system is strictly follow the Construction products Regulation（EU）No 305/2011: EN54-16:2008 Voice Alarm Control and Indicating Equipment. 4.1. - Page 22 EVAC-500 Voice Alarm & Evacuation System Operation Manual Description: Paging mode” Select all keys that are configured as Paging mode, as shown in the following figure: “BGM play” ——: If the corresponding key is configured as "BGM play" - this key is disabled: as shown below: 6—Talk On/Off Button...
-
Page 23: Technical Specifications
Pic two Note： 1. If the EVAC-500FM, EVAC-500RM, EVAC-500TM or EVAC-500RT can not communicate with the host (EVAC-500) normally, enable the EVAC-500RM terminating resistor, That is, unplug the "8" bit, prohibit the working of EVAC-500FM or through the touch interface to open the EVAC-500TP terminal matching resistor, by this way the system connection can be non-loop;... -
Page 24: System Connection Diagram Example
EVAC-500 Voice Alarm & Evacuation System Operation Manual 4.3. System Connection Example: 5. Overall System Operation Guidance Bill of Equipments: EVAC-500； EVAC-500RT； EVAC-500FM； EVAC-500TM； EVAC-500RM/EVAC-12KD； EVAC-500SFT In order to describe the convenience of the following description contains all the equipment, the actual use of the user, the user may only configure the necessary equipment, but this does not affect your understanding of the entire system;... -
Page 25: Auto Emergency Broadcast
EVAC-500 Voice Alarm & Evacuation System Operation Manual to make the manual emergency broadcast in the condition of message indicator light on and zone EVAC indicator light on. Press again the emergency button or remote reset input to terminate the emergency broadcast. - Page 26 EVAC-500 Voice Alarm & Evacuation System Operation Manual 25 / 42...
-
Page 27: Via Software Bgm Broadcast
EVAC-500 Voice Alarm & Evacuation System Operation Manual "1" -> "2" (configure the system to allow the number of remote MIC: the value of EVAC-500TP, EVAC-RM and EVAC-500FM sum). -> "3" (configure the type of MIC, EVAC-500TP and EVAC-RM "TYPE" select "Business paging"). - Page 28 EVAC-500 Voice Alarm & Evacuation System Operation Manual In this picture: “1”——select the hierarchical configuration, “2”——Give the grouping an alias, "double click the corresponding group name, and you can enter -- up to 12 characters." “3”——set the partition that is currently included in the grouping, double-click will pop up the window on the right, that is, select grouping by the function key in "4", and the grouping of the same device can exist in...
-
Page 29: Via Software Microphone Broadcast
EVAC-500 Voice Alarm & Evacuation System Operation Manual prevent the accident, please do not place in the SD card and EVAC has nothing to do with the file “4”——When the selected group is selected (including through "5"), click the corresponding line audio to output the audio of the host to the corresponding partition. -
Page 30: System Software Evac-500Sft
EVAC-500 Voice Alarm & Evacuation System Operation Manual 6. EVAC-500SFT System Software 6.1. Icon Introduction: Save and synchronize to the EVAC-500 host, each revision should click on this OK button. Save but not synchronized to the EVAC-500 host. Give up the action. -
Page 31: Computer Configuration
Keep the PC and Host EVAC-500 in the same network Gateway. Only after change the PC’s IP address same gateway as the voice alarm controller default IP address, then the software can communicate with the controller. -
Page 32: Software Operation
2. Wrong log in more than 3 times, the system will auto exit from the login interface. Synchronize. The first connection of EVAC-500SF and EVAC-500 synchronization will be as below, after that will display the main page. Picture1 for the following... -
Page 33: Introcution Of Menu Bar & Tool Instruction
EVAC-500 Voice Alarm & Evacuation System Operation Manual Main Page of Software as the picture above: The top is system menu and toolbar. Left is program item, middle is system status and right part is emergency status, emergency message & line inputs. Bottom is system status and time. -
Page 34: Control Menu
3. “LOG” is for checking data record of system device and module. 4. “OTHER” is for modify the user’s login password, correct the time of EVAC-500 host and modify the speaker impedance error of EVAC-500 system, the percentage more larger means accuracy is more lower. - Page 35 EVAC-500 Voice Alarm & Evacuation System Operation Manual message can not be off (zone can be open or off) under the emergency mode. ② You can check Yellow LED by click ”State” then double click the item you need to check...
- Page 36 EVAC-500 Voice Alarm & Evacuation System Operation Manual prohibition of <no operation or prohibited loop detection, default all enabled>; (1). “ID” Item lists the number of current host access microphones - please configure them with actual devices； (2). “NAME” The virtual name that corresponds to the microphone is not practical and is automatically allocated by system；...
-
Page 37: Fire Alarm Rules Configuration
EVAC-500 Voice Alarm & Evacuation System Operation Manual （1） “Paging -01 group -01： “Paging-01” Indicates that the currently listed group information is a microphone at address 01. “group-01” It's group 01, but it can also be 02 or 03. The range is: 01 ~ 12. - Page 38 EVAC-500 Voice Alarm & Evacuation System Operation Manual "All zone" means that once the fire alarm is input from the "Trigger Inputs" of the host or the extended host, wait for " " to set the delay time, output the EVAC voice information to all the partitions of the system,...
-
Page 39: Zone Group Configuraiton
EVAC-500 Voice Alarm & Evacuation System Operation Manual wait for " " to set the delay time and output the EVAC voice message to the corresponding area of the current contact and press the right Play mode Select the playback mode "Specify the time to play" and the number of times to play the "the number of times to play"... -
Page 40: Priority Configuration
EVAC-500 Voice Alarm & Evacuation System Operation Manual ② Left part is current zone list, choose and add to the right means add the zone in current group, you can double click corresponding zone or though “Shift” and “Ctrl” button to continuous choose or discontinuous choose, also can add or delete though the middle operating button;... -
Page 41: Others
EVAC-500 Voice Alarm & Evacuation System Operation Manual Description： ① “ID” no sense； ② “CALENDAR” Means data of the module； ③ “LOG TYPE” means LOG type（ use for search when there are many record, can have quick checking） ； ④ “DETAILED” Means details of current log；... -
Page 42: Proof Host Time
EVAC-500 Voice Alarm & Evacuation System Operation Manual ② “PASSWORD”——Means password of the current login user. Double click to enter edit state. ③ After edition, please click Application, otherwise your settings can not be completed. 6.3.9.2. Proof Host Time Click “EVAC system timing” as below: Description：... -
Page 43: System Maintenance Notice
EVAC-500 Voice Alarm & Evacuation System Operation Manual 7. System Maintenance Notice: Don't put the system device installed in direct sunlight or near the heating element, because the device may fade deformation, or stop working by the high temperature into protection state.
