Vanguard VGUBG-1050SS Installation Instructions

Bull bar for rdx/crv

Advertisement

PARTS LIST:

1 Sport Bar
1 Driver Mounting Bracket (A)
1 Passenger Mounting Bracket (B)

PROCEDURE:

1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ
INSTRUCTIONS CAREFULLY.
2. Remove plastic shroud and place it on a working area. Using a hack saw; carefully cut the
driver side marked area shown in Figure 5.
3. Reposition factory plastic shroud with fasteners removed in step 2.
4. Position Passenger Side Mounting Bracket as shown in Figure 2 and secure it with factory bolt
removed in step 5. Do not tighten at this time.
5. Repeat step4 4 for driver side.
6. Mount Sport Bar on the inner side of Mounting Brackets (Figure 4). Use the included (4)
12-1.75mm x 35mm Hex Head Bolts, (4) 12mm Nylock Nuts, and (8) 12mm Flat Washers to
attach Sport Bar to both mounting brackets.
7. Once the Sport Bar is fully mounted on vehicle, level and adjust Sport Bar; then tighten all
hardware at this time.
8. Do periodic inspections to the installation to make sure that all hardware is secure and tight.
INSTALLATION INSTRUCTIONS
PART#0454/1050/1175/0666
BULL BAR FOR RDX/CRV
4 12-1.75mm x 35mm Hex Head Bolt
4 12mm Nylock Nuts
8 12mm Flat Washer
Remove these factory bolts
Figure 1
(B)
(A)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VGUBG-1050SS and is the answer not in the manual?

Questions and answers

Summary of Contents for Vanguard VGUBG-1050SS

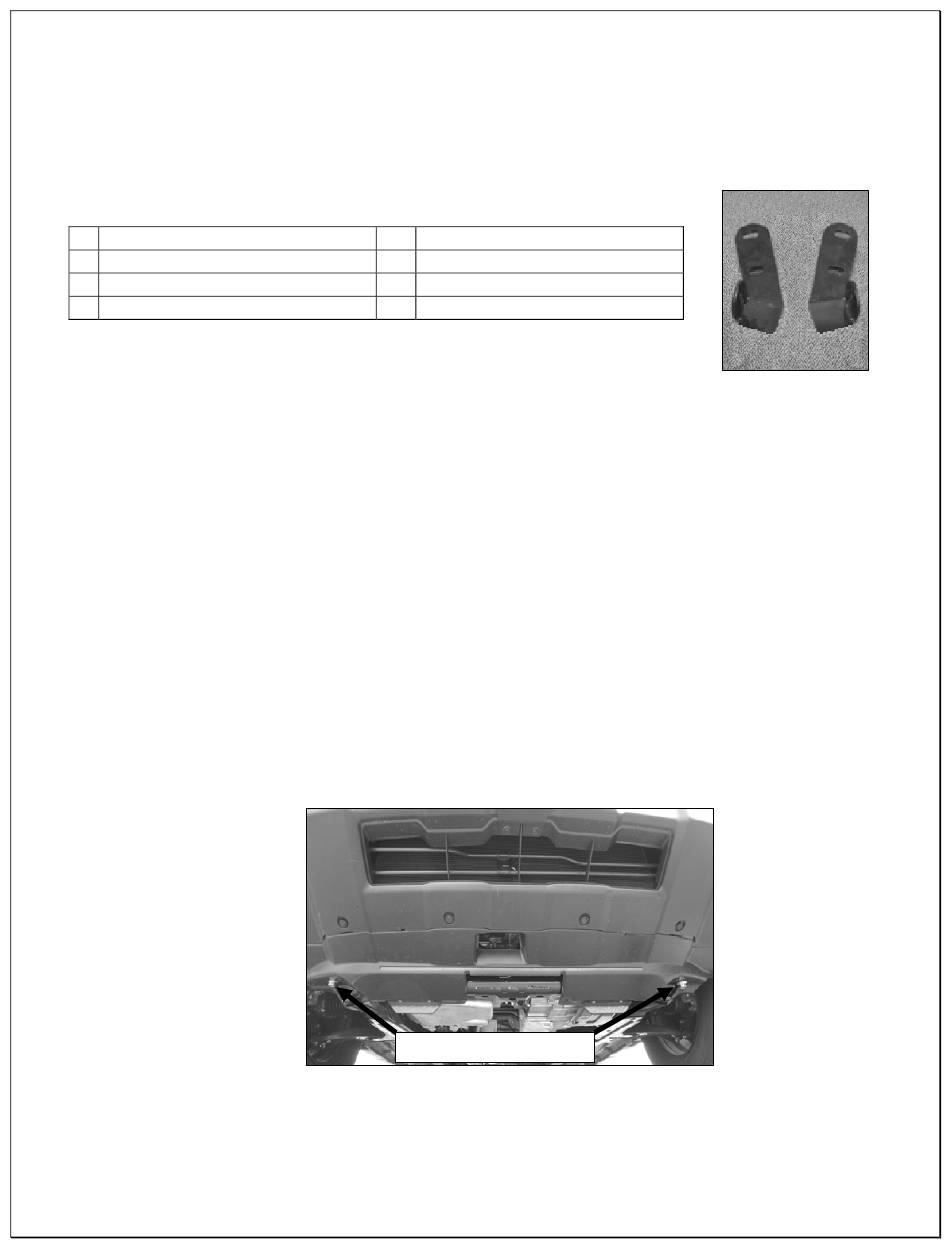

  • Page 1 INSTALLATION INSTRUCTIONS PART#0454/1050/1175/0666 BULL BAR FOR RDX/CRV PARTS LIST: 4 12-1.75mm x 35mm Hex Head Bolt 1 Sport Bar 4 12mm Nylock Nuts 1 Driver Mounting Bracket (A) 8 12mm Flat Washer 1 Passenger Mounting Bracket (B) PROCEDURE: 1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY.
