Edge-Core XGS-PON vOLT Quick Start Manual

Quick Start Guide
16-Port XGS-PON vOLT
ASXvOLT16
1.
16-port XGS-PON vOLT, ASXvOLT16
2.
Rack Mounting Kit—2 front-post brackets, 2 rear-post
brackets, 20 screws, and 2 ear-locking screws
3.
Power Cord (included with AC PSUs only)
4.
Ground Wire (included with DC PSUs only)
Caution:
The vOLT includes plug-in power supply (PSU)
and fan tray modules that are installed into its chassis. All
installed modules must have a matching airflow direction.
That is, if the installed power modules have a front-to-back
(F2B) airflow direction, all the installed fan tray modules
must also have a F2B airflow direction.
Note:
The vOLT has the Open Network Install Environment
(ONIE) software installer pre-loaded on the unit, but no
vOLT software image. Information about compatible
software can be found at www.edge-core.com.
Note:
The drawings in this document are for illustration
only and may not match your particular model.

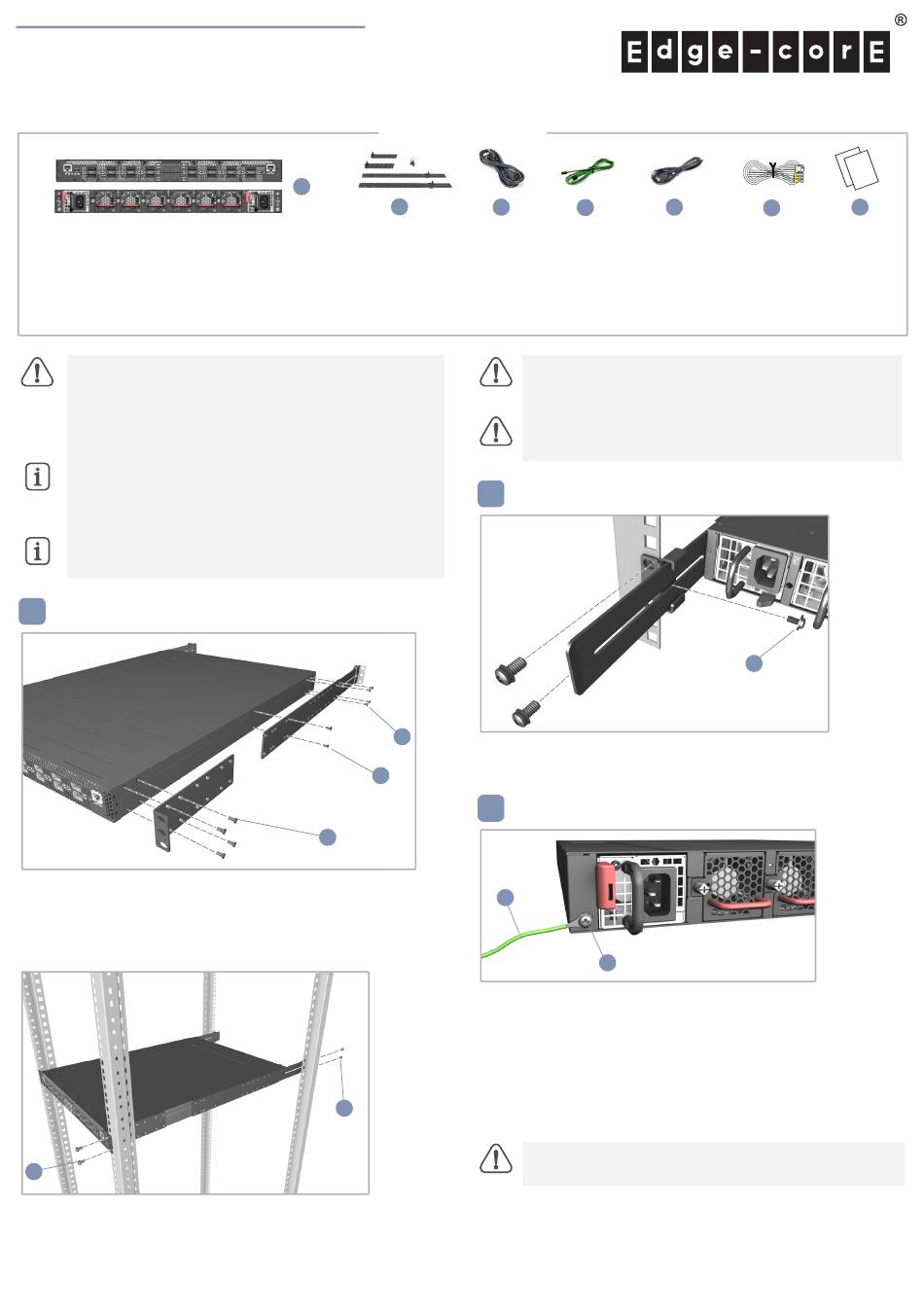

Attach the Brackets
1
1.
Attach each of the front- and rear-post brackets to the vOLT
using four of the included bracket screws.
2.
Use an additional two screws to secure each of the rear-post
brackets at the mid-point on the sides of the vOLT.
3
3.
Use the screws and cage nuts supplied with the rack to secure
the vOLT in the rack. (You can adjust the rear-post bracket ears
to fit different rack depths from 56 cm to 75 cm.)
www.edge-core.com
Package Contents
1
2
1
2
1
3
– 1 –
3 4
5.
Console Cable—RJ-45 to DB-9
6.
DC Power Cable (included with 48 VDC PSU only)
7.
Documentation—Quick Start Guide (this document) and
Safety and Regulatory Information
Caution:
Installing the vOLT in a rack requires two people.
One person should position the vOLT in the rack, while the
other person secures it using the rack screws.
装置の吸排気に必要な領域を マニ ュ アル上に規定 し て
い る 。
Lock the Rear-Post Bracket Ears
2
1.
Lock the position of the rear-post bracket ears using the included
position-locking screws.
Ground the vOLT
3
1
2
1.
Ensure the rack is properly grounded and in compliance with
ETSI ETS 300 253. Verify that there is a good electrical
connection to the grounding point on the rack (no paint or
isolating surface treatment).
2.
Attach the grounding wire (#14 AWG) to the grounding point
on the vOLT rear panel. Then connect the other end of the wire
to rack ground.
Caution:
The earth connection must not be removed unless
all supply connections have been disconnected.
5 6
1
E092017-CS-R01
15020000xxxxA
7
