LaserLine Flatwork Ironer Series Instruction Manual

Gas heated
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
    
GL16
Gas Heated
Flatwork Ironer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Flatwork Ironer Series and is the answer not in the manual?

Questions and answers

Kevin rodenbaugh
March 31, 2025

Figure guard alarm

User image 67ea8d5d042b3
0
2 comments:
Kevin rodenbaugh
March 31, 2025

@Kevin rodenbaugh Machine won't run figure guard alarm

0
Mr. Anderson
March 31, 2025

The figure guard alarm on the LaserLine Flatwork Ironer Series indicates that the red safety finger guard, which covers the moving parts at the front of the unit, has been triggered. This safety feature physically restricts access to prevent injury and signals a potential safety breach.

This answer is automatically generated

0
Kevin rodenbaugh
March 31, 2025

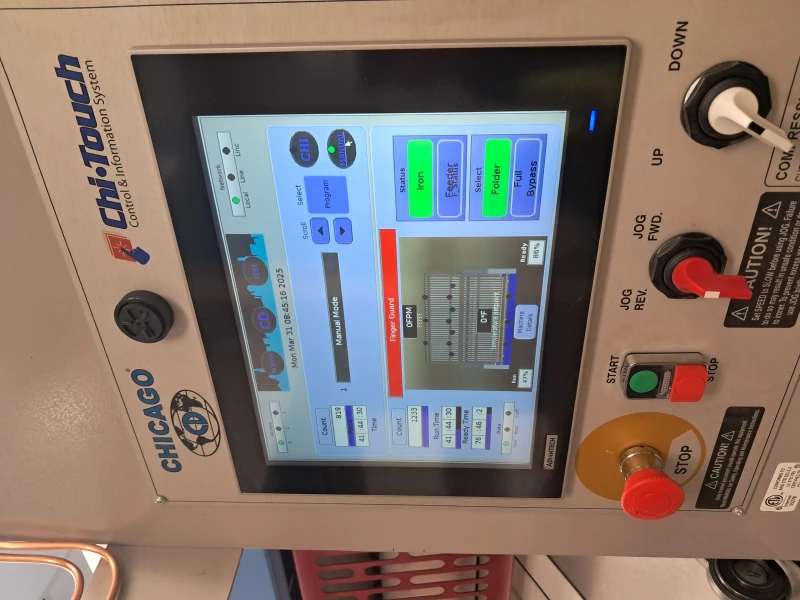

Finger guard alarm machine won't run
