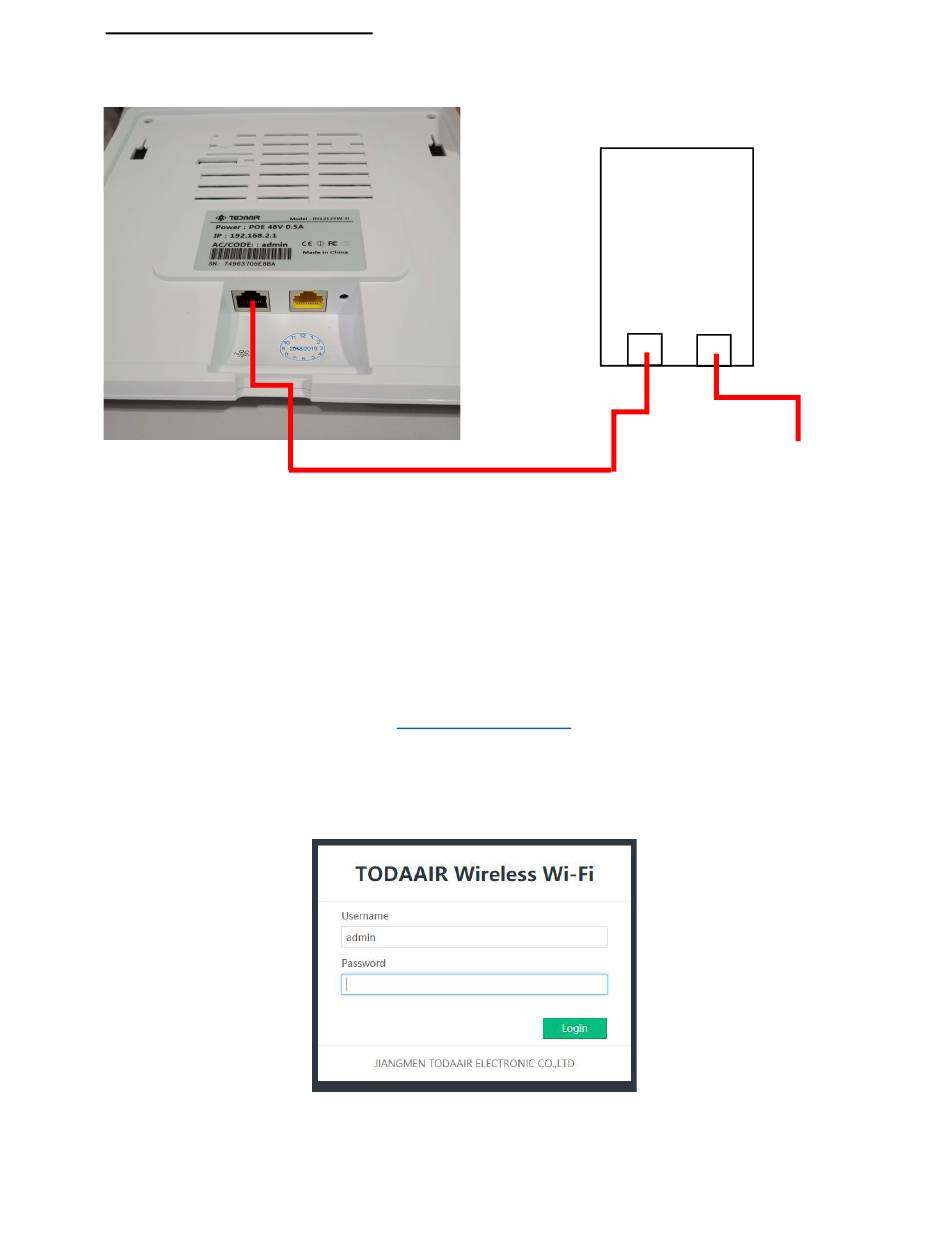

To Setup In1212YW-H
Lan Cable Connection Method
1)
Please set your laptop / PC with IP address with 192.168.2.100 and
subnet mask with 255.255.255.0
2)
Open a browser , type in
configuration page.
3)
Key in admin in the Password field and click login
Cat5e / Cat6 Cable
http://192.168.2.1
admin
48V POE
Injector
POE
LAN
Router / Switches
to open AP
Advertisement
Table of Contents
Related Manuals for TODAAIR In1212YW-H
Summary of Contents for TODAAIR In1212YW-H
- Page 1 To Setup In1212YW-H Lan Cable Connection Method 48V POE Injector Router / Switches Cat5e / Cat6 Cable Please set your laptop / PC with IP address with 192.168.2.100 and subnet mask with 255.255.255.0 Open a browser , type in http://192.168.2.1 to open AP configuration page.
- Page 2 Make sure your router modem was ready and online to internet , then this wirelss AP IN1212YW-H will auto find the available router to get connected online. Successful WAN connection will show as example as below. Always remain the Mode Settings as AP Mode for this wireless device...
- Page 3 You can change the LAN IP of the wireless AP or leave it default and DHCP Service always remain disable. You can control the download or upload bandwidth by enable the Bandwidth Control in Qos Setting. This may useful for managing the wireless AP for certain group of user to access internet with different bandwidth control within a group of wireless APs.
- Page 4 In Wireless Setting , you can preset your 2.4Ghz Mode wireless SSID and 5.0Ghz Mode wireless SSID respectively in 2.4G Basic Settings and 5G Basic Settings , remain the Channel,Work Mode, and Transmitt Power as default. Wireless Security Setting were able to set with different SSID name with its Safe Mode Type ,Encryption Type and Password respectively.
