Grandinroad Ultimate Animated Monster Easy-To-Follow Instructions

Please read all instructions carefully before assembling.
Care & Storage Instructions: Store product in its original package. Keep away from heat & moisture. For indoor use only. Save instruction sheet for future reference.
This item, when assembled by the following instructions, should take 15 minutes to assemble. Please follow the step by step guide and
enjoy your Ultimate Animated Monster.

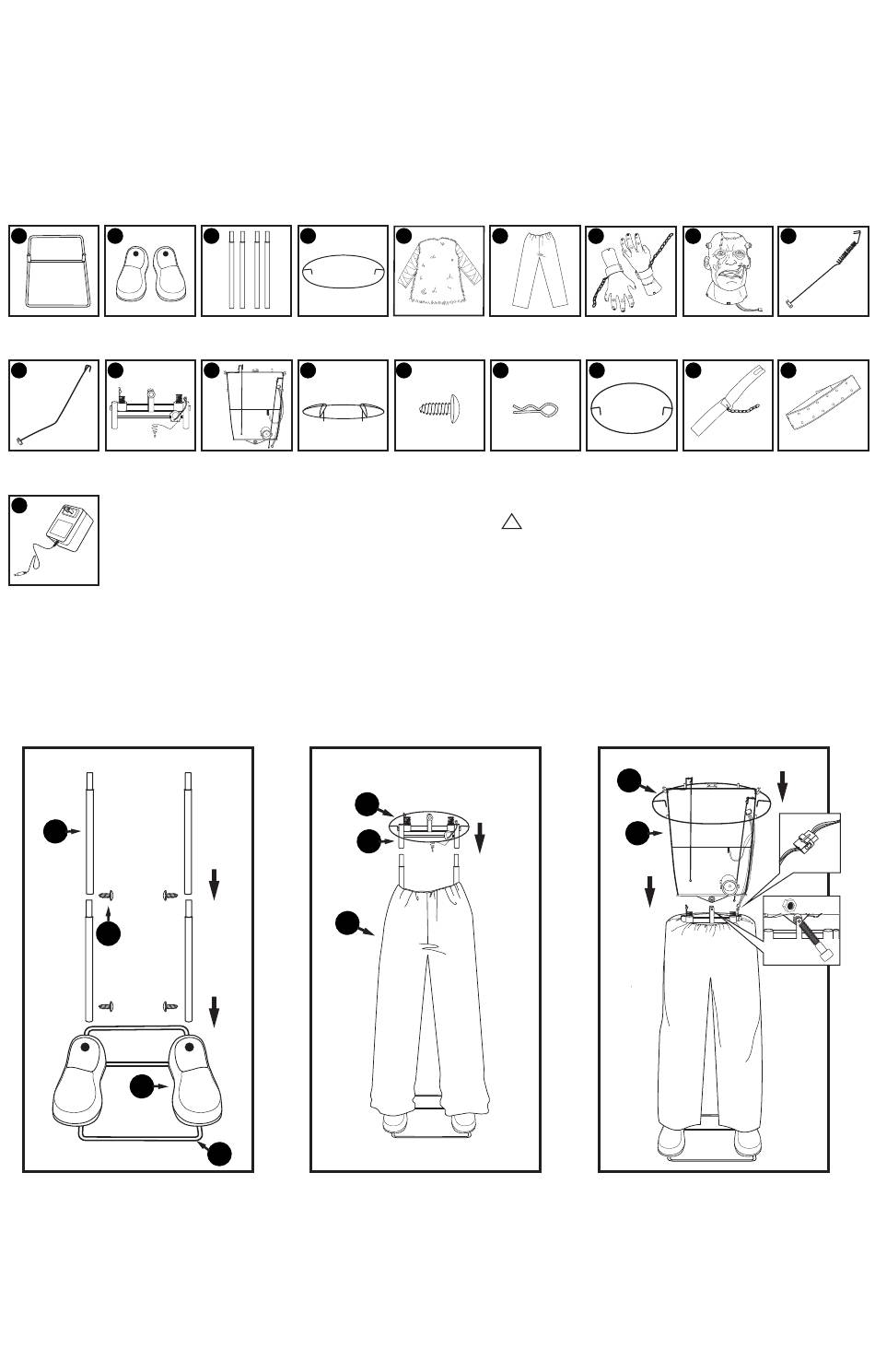

Parts List:

A B
Base Shoes x 2
J K
Right arm Waist Frame

A/C Adapter Specification:

S
Input: 120V~ 60Hz
Output: 6VDC 800mA
Only use adapter with same
technical specification.
A/C Adapter
Caution: changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures; Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the
equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or experienced radio/TV technician for help.

Assembly Instructions:

Note: You will need a Phillips Head Screwdriver (not included)
C
N
B
STEP 1
NOTE: The longer end of the (A) Base goes towards the
front.
First, slide (B) Shoes onto the (A) Base and then
assemble the (C) Support Poles through the tops of the
(B) Shoes as shown. Insert (N) Screws through the (C)
Support Poles and tighten to secure.
Easy to Follow Instructions
# 45479 Ultimate Animated Monster
C D
Support Poles Chest Hoop
L M
Torso frame Shoulder
with attached motor support
P
K
F
A
STEP 2
Lower (F) Pants over (C) Support Poles through the
pant leg openings & out through the top of the (F)
Pants. Assemble the (K) Waist Frame onto the (C)
Support Poles and insert (N) Screws and tighten to
secure. Attach the (P) Hip Hoop through the slot
housings on the sides of the (K) Waist Frame.
E F
Jacket Pants
N O
Screws x 8 Cotter Pin x 4
PROP 65 WARNING:
!
Handling the coated electrical wires of this product exposes you to lead, a chemical known to
the State of California to cause cancer, birth defects or other reproductive harm. Wash hands
after use.
1
G H
Hands x 2 Head
P Q
Hip hoop Collar
D
L
STEP 3
Loosen the Nut on the bottom of the (L) Torso Frame &
remove the Bolt. Set the (L) Torso Frame onto the (K)
Waist Frame as shown so that the center Bolt holes of
both parts are aligned. Insert the Bolt back through the
aligned Bolt holes of the (L) Torso Frame & (K) Waist
Frame and tighten with the Nut. Carefully connect the
connecting wire from the (L) Torso Frame to the
connecting wire from the Motor. Pull the (F) Pants over
the (P) Hip Hoop as shown and route the power cord
through and out the bottom of the right pant leg. Attach
the (D) Chest Hoop through the slot housings on the
sides of the (L) Torso Frame as shown.
I
Left arm
R
Belt
2011 0602
