ASSEMBLY, MAINTENANCE, &
USER MANUAL
MODEL #STT100
WARNING
Read the assembly, installation, care, maintenance, and use
instructions in this manual prior to assembling and using this
equipment. Save this manual for future reference.
Ages: 4-8
Maximum occupancy: 2 users
Maximum weight capacity: 80 lbs.
Skwalker Holdings LLC
P.O. Box 574, Brigham City, UT 84302

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STT100 and is the answer not in the manual?

Questions and answers

Related Manuals for Skwalker STT100

Summary of Contents for Skwalker STT100

  • Page 1 ASSEMBLY, MAINTENANCE, & USER MANUAL MODEL #STT100 WARNING Read the assembly, installation, care, maintenance, and use instructions in this manual prior to assembling and using this equipment. Save this manual for future reference. Ages: 4-8 Skwalker Holdings LLC Maximum occupancy: 2 users P.O.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Part List....................................3 Part Identification...............................4-5 Exploded Drawing..............................6 Assembly..................................6-10 Maintenance & Care Information.........................10 Instructions for Use..............................11 Warning Label Placement..........................12 Playground Surfacing Materials Information..................13 Limited Warranty..............................14 STOP EVERYTHING YOU'RE DOING AND REGISTER YOUR TEETER TOTTER Find our warranty registration online by typing in: www.skywalkertrampolines.com/registration/ You'll need to have the following information handy: •...

  • Page 3: Part List

    PART LIST Key No. Qty. Description Turret Assembly Support Pole Rotation Pole Assembly Seat Pole Assembly Handle Seat Limit Frame Cushion M8x18mm Bolt M8x50mm Bolt M8x62mm Bolt M10x75mm Bolt M6x15mm Bolt M8 Locknut M10 Locknut M8 Washer M8 Spring Washer 6mm Hex Key Screwdriver Wrench...

  • Page 4: Part Identification

    PART IDENTIFICATION Before you begin, take a look at the drawings below to make sure you have all the parts! The numbers in the squares to the left (key numbers) will help you identify the parts during assembly. Rotation Pole Turret Assembly (x1) Support Pole (x3) Assembly (x1)
  • Page 5 M6x15mm Bolt (x2) M8 Locknut (x12) M10 Locknut (x1) M8 Spring M8 Washer (x4) 6mm Hex Key (x1) Washer (x4) Wrench (x1) L-Screwdriver (x1)

  • Page 6: Exploded Drawing

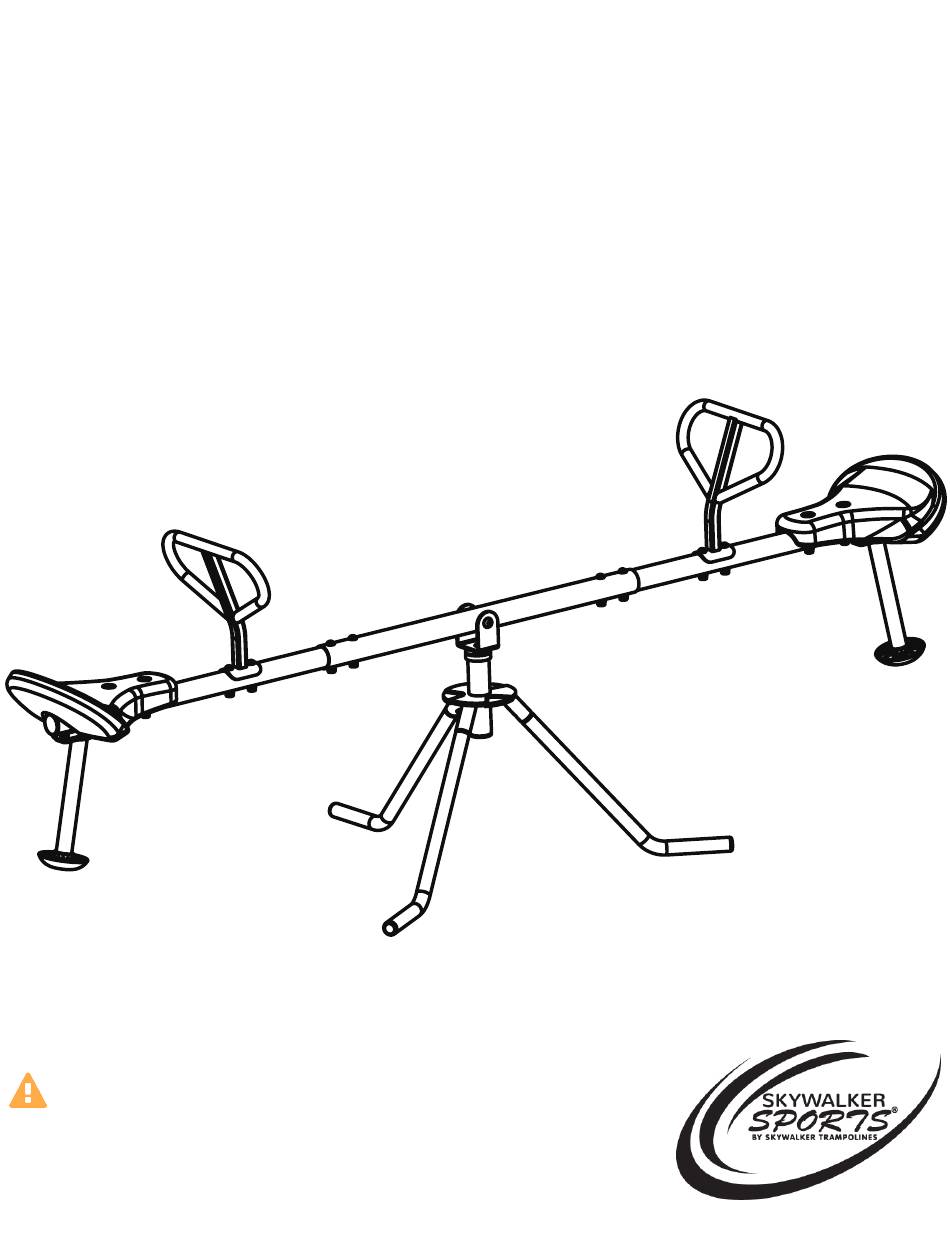

    EXPLODED DRAWING (11) (10) (10) (10) (11) (16) (10) (10) (10) (16) (17) (14) (17) (14) (14) (12) (15) (14) (14) (13) (16) (16) (14) (17) (17) (13) ASSEMBLY STEP 1 First thing’s first... resgister your teeter totter! For info on warranty registration, see page 2.

  • Page 7: Assembly

    ASSEMBLY STEP 2 Attach the rotation pole assembly (3) to the turret assembly (1) using the M10x75mm bolt (12) and M10 locknut (15). Don’t be confused by the big words... and don’t tighten the bolt completely (the change point needs Rotation Pole M10x75mm M10 Locknut...
  • Page 8 ASSEMBLY STEP 4 Attach the handle (5) to the seat pole assembly (4) using two M8x50mm bolts (10) and two M8 locknuts (14). Now just do the same thing on the other side! If you want, take a snack break because you’re more than M8 Locknut M8x50mm Handle (x2)
  • Page 9 STEP 6 This step may look complicated, but it’s a piece of cake. Just install the limit frame (7) to the seat pole assembly (4) using two M8x18mm bolts (9), two M8 spring washers (17), and two M8 washers (16). Limit M8x18mm M8 Spring...

  • Page 10: Maintenance & Care Information

    ASSEMBLY STEP 8 Congratulations on completing your new teeter totter! (See... we knew you could do it!) So here comes the real question... are you satisfied with this completed product? If you are, go ahead and write a review on the retailer’s site you bought it from.

  • Page 11: Instructions For Use

    INSTRUCTIONS FOR USE To reduce the risk of serious injury, read and follow all of the warnings, precautions, and instructions in this manual before you use this equipment. Warnings and instructions for care, maintenance, and use of this teeter totter are included to promote safe enjoyable use of this equipment.

  • Page 12: Warning Label Placement

    Customer Care Hot Line toll-free at 1-866-603-JUMP (5867), Monday through Friday, 8 a.m. until 5 p.m. Mountain Time, to order a free replacement label. WARNING WARNING Model STT100 Skywalker Sports SKYWALKER SPORTS Swivel Teeter Totter...

  • Page 13: Playground Surfacing Materials Information

    PLAYGROUND SURFACING MATERIALS The following information is from Section 4 of the United States Consumer Product Safety Commission’s (USCPSC) Outdoor Home Playground Safety Handbook for playground surfacing material. X3. SECTION 4 OF THE CONSUMER PRODUCT SAFETY COMMISSION’S OUTDOOR HOME PLAYGROUND SAFETY HANDBOOK X3.1 Select Protective Surfacing —...

  • Page 14: Limited Warranty

    LIMITED WARRANTY Skywalker Holdings, LLC warrants its products to be free from defects in material and workmanship under normal use and service conditions. The steel frame is warranted for three (3) years after the date of purchase. All other parts are warranted for one (1) year after the date of purchase. Warranty coverage extends only to the original retail purchaser from the date of original purchase.
  • Page 15 NOTE: SKYWALKER HOLDINGS, LLC IS NOT RESPONSIBLE OR LIABLE FOR INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCT OR OTHER DAMAGES WITH RESPECT TO ANY ECONOMIC LOSS, LOSS OF PROPERTY, LOSS OF REVENUE OR PROFITS, LOSS OF ENJOYMENT OR USE, COST OF REMOVAL, INSTALLATION OR OTHER CONSEQUENTIAL DAMAGES.
