KEYBOARDPARTNER HX3.5 WiFi Module Installation Manual

For hx3 midi expander

Hide thumbs Also See for HX3.5 WiFi Module:

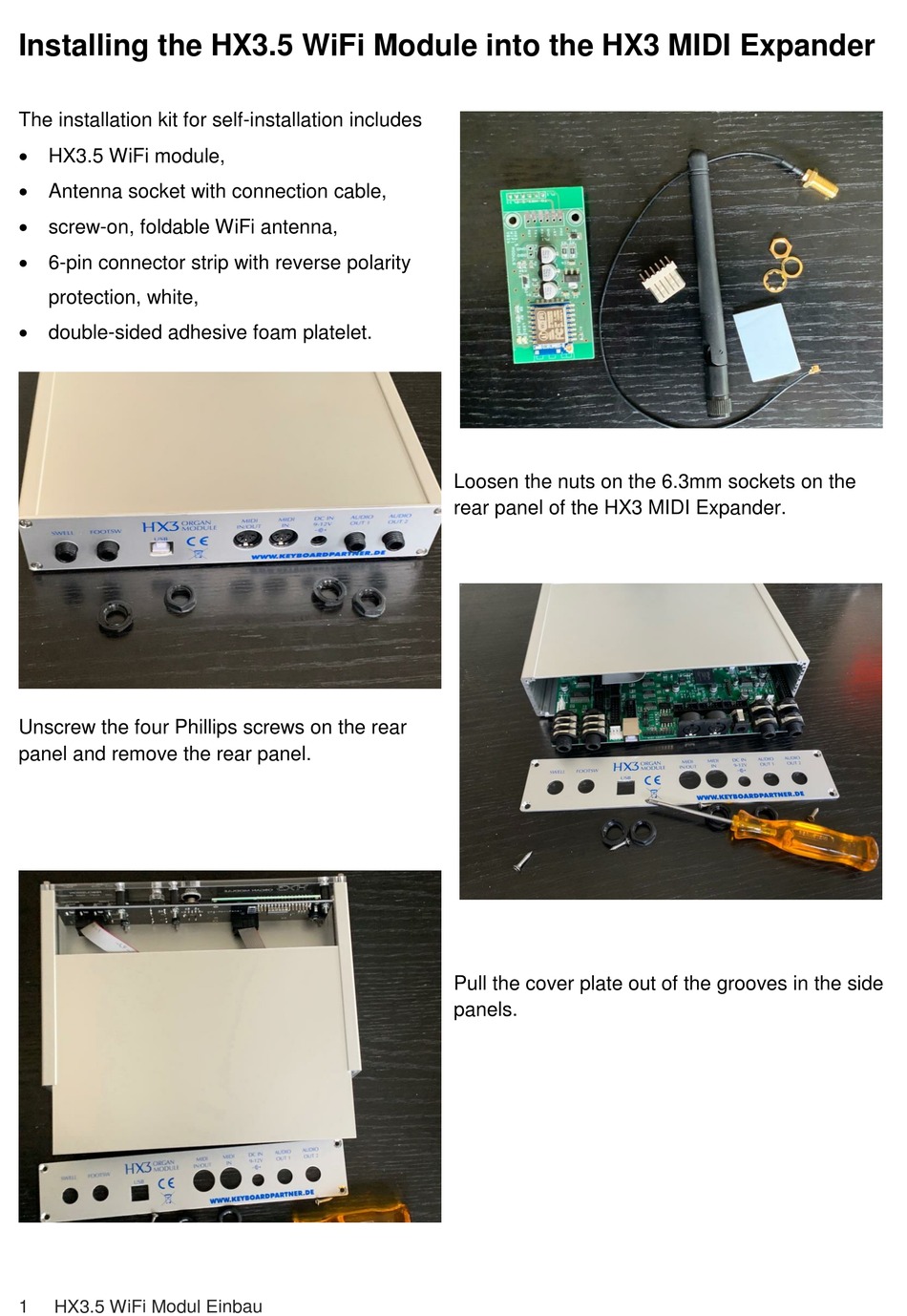

Installing the HX3.5 WiFi Module into the HX3 MIDI Expander

The installation kit for self-installation includes

 HX3.5 WiFi module,

 Antenna socket with connection cable,

 screw-on, foldable WiFi antenna,

 6-pin connector strip with reverse polarity

protection, white,

 double-sided adhesive foam platelet.

Unscrew the four Phillips screws on the rear

panel and remove the rear panel.

HX3.5 WiFi Modul Einbau

Loosen the nuts on the 6.3mm sockets on the

rear panel of the HX3 MIDI Expander.

Pull the cover plate out of the grooves in the side

panels.

Table of Contents

Do you have a question about the HX3.5 WiFi Module and is the answer not in the manual?

Page 1 Installing the HX3.5 WiFi Module into the HX3 MIDI Expander The installation kit for self-installation includes  HX3.5 WiFi module,  Antenna socket with connection cable,  screw-on, foldable WiFi antenna,  6-pin connector strip with reverse polarity protection, white, ...
Page 2 If the PL33 slot on the main board is empty, you will need to solder the supplied connector strip here. Disconnect the connection cable(s) to the menu panel from the main board and note the slots. Solder the connector strip to PL33. The reverse polarity protection must point to the USB socket.
Page 3 Screw in the antenna socket. Insert the main board into the rear panel and tighten the nuts of the 6.3mm sockets. Remove the blue protective foil from the foam platelet and attach it to the edge under the antenna socket on the back of the WiFi module. Carefully press the plug of the antenna cable onto the antenna socket of the WiFi module until it clicks firmly into place.
Page 4 Now the HX3.5 WiFi configuration page appears. For more information, refer to the HX3.5 TouchOSC User Manual. Entwicklung elektronischer Musikinstrumente Carsten Meyer, Ithweg 37, D-30851 Langenhagen Web: keyboardpartner.com EMail: info@keyboardpartner.de All information given herein is given to describe certain components and shall not be considered as a guarantee of characteristics.
