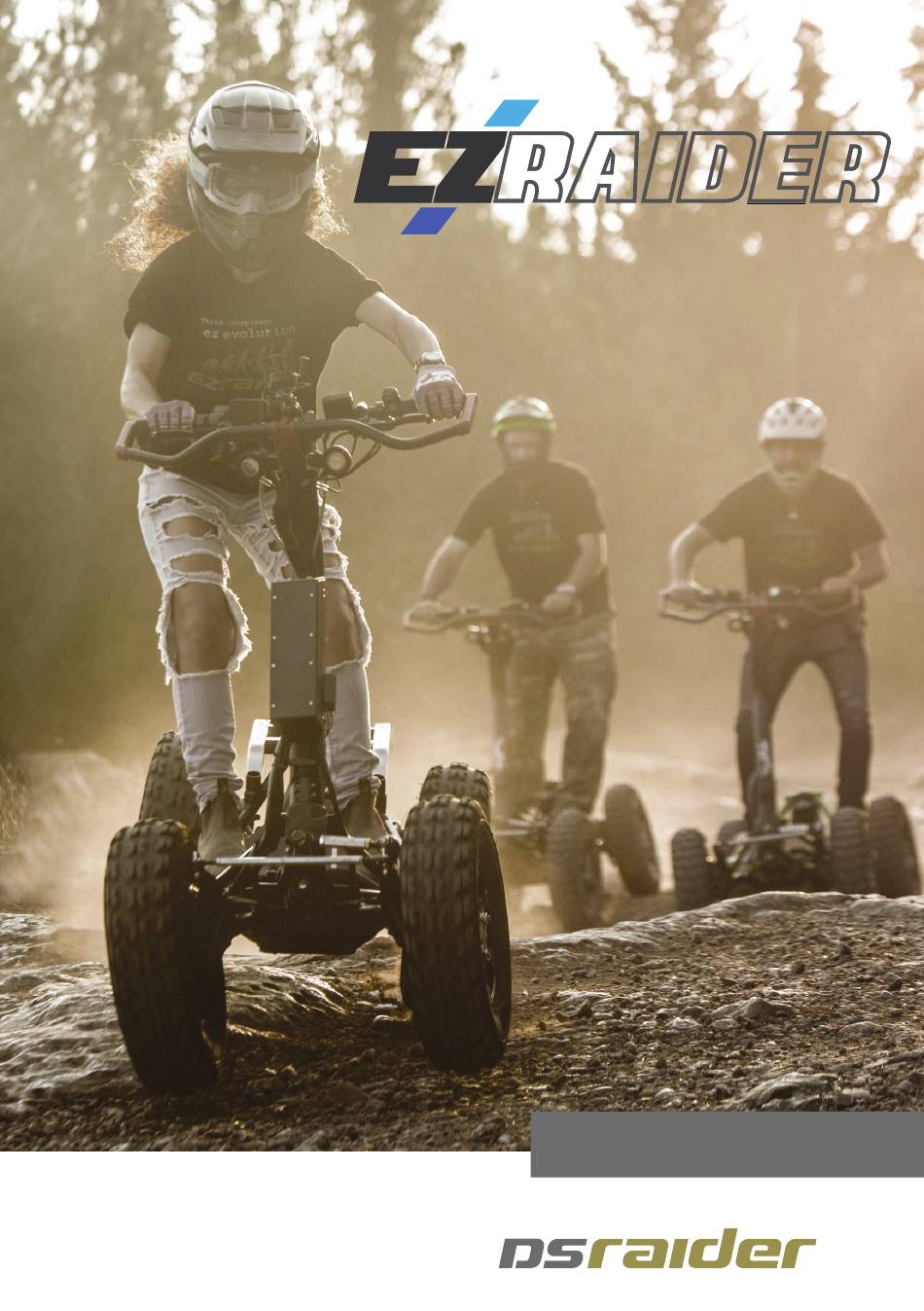

  • Page 1 User Manual...

  • Page 2: Ezraider User Manual

    EZRaider User Manual We at DSRaider would like to congratulate you on your purchase of the EZRaider electric 4-wheel vehicle, and welcome you to the growing community of EZRaider users. We want to thank you for your trust and wish you many years of safe, productive, and enjoyable use.

  • Page 3: Table Of Contents

    Table of Contents EZRaider User Manual Cleaning EZRaider - General Introduction Maintenance Vehicle Rear End Troubleshooting Vehicle Underside EZRaider Cart User Manual EZRaider HD2 - General Cart - General Introduction Introduction E-Cart - General Introduction 24-25 EZRaider HD4 - General 10-11 Identifying the Cart Introduction...

  • Page 4: Ezraider - General Introduction

    General Introduction...
  • Page 5 General Introduction Throttle Power on/off switch Controls Front brake lever and parking brake Rear brake lever and parking brake Handguard (optional) Headlight switch Steering column Steering column folding mechanism Brake (found in each wheel) Long hex bar Steering shaft Short hex bar Front rubber shock absorbers Rear rubber shock absorbers Front oil shock absorbers + spring...

  • Page 6: Vehicle Rear End

    Vehicle Rear End Wheel bolts Rear oil/gas shock absorbers + spring Shock adjustment point Disk brakes Brakes Towing point Connection point with the EZRaider Cart Luggage carrier - EZRaider model (optional) Motor...

  • Page 7: Vehicle Underside

    Vehicle Underside Long hex bar Skid Plate - Underbody protector (optional) Rear spring adjustment point – lower bolt Rear spring adjustment point – upper bolt Main motor connection nut Brake Disk brakes Motor Towing point...

  • Page 8: Ezraider Hd2 - General

    General Introduction ** Features not specified in this EZRaider HD2 introduction are identical to those of the EZRaider.
  • Page 9 General Introduction Control box – containing two controls, one for each motor Standing platform and battery compartment 20-6-10 All-Terrain Vehicle tires Handguard (optional) Luggage carrier - EZRaider HD model (included with the EZRaider HD2) EZRaider HD2 Motor. The vehicle includes two rear-hub motors. Rear oil/gas shock absorbers + spring Steering column folding mechanism Skid Plate - Underbody protector (optional)

  • Page 10: Ezraider Hd4 - General

    General Introduction ** Features not specified in this EZRaider HD4 introduction are identical to those of the EZRaider.
  • Page 11 General Introduction Control box – containing four controls, one for each motor Standing platform and battery compartment 22-7-10 All-Terrain Vehicle tires Handguard (optional) Luggage carrier - EZRaider HD model (included with the EZRaider HD4) Connection point with the EZRaider luggage carrier EZRaider HD4 Motor.

  • Page 12: Switches And Controls

    Switches and Controls Power on/off switch Battery voltage indicator. Provides a continuous indication of battery voltage. The voltage indication varies between 66V for a full battery, to 52V, at which point the battery saving mode is enabled, and the EZRaider is powered down. Front parking brake lever Throttle Driving mode selector (1: Reduced power, 0: Normal, 2: Maximum power).

  • Page 13: Identifying The Ezraider

    Identifying the The EZRaider chassis number – which serves as a unique ID number for your vehicle – can be read from a number of locations on the vehicle: A sticker on the front of the chassis Engraved on the frame of the chassis Always use this number when contacting the customer service department.

  • Page 14: Pre-Ride Inspection

    Pre-ride Inspection A daily inspection prior to using the EZRaider will contribute to its proper functionality and driving safety. WARNING ! If a malfunction or suspicion of failure has been identified, the EZRaider should not be used until it has been repaired at an authorized service center. General inspection.

  • Page 15: Driving

    Driving Before use, make sure that the EZRaider is positioned on level ground, that the parking brake is engaged, and that there are no objects, animals or people in the vicinity of the vehicle that may be damaged or injured due to operation of the vehicle.
  • Page 16 WARNING ! 1. While driving, hold the handlebar with both hands. Do not drive with only one hand on the handlebar! 2. Drive carefully when starting the drive from standstill. The throttle lever should be operated gently! 3. Releasing the brake when the throttle is engaged may cause you to lose control of the vehicle.

  • Page 17: Charging The Battery

    Do not stand on the standing platform while charging. The charger is intended for use with EZRaider batteries supplied by DSRaider only. Do not use batteries and chargers that are not supplied by DSRaider. The charger should be located in a dry, well-ventilated area.

  • Page 18: Towing

    WARNING ! Only towing accessories from DSRaider may be used with the EZRaider. Do not attempt to attach any cart to the vehicle other than the EZRaider Cart. See the chapter, EZRaider Cart, for a complete guide to the use of the cart.

  • Page 19: Cleaning

    Cleaning Turn the power on/off switch to OFF. Remove dust, dirt and mud using a gentle dry brush. Use a soft cloth, or a slightly damp sponge to clean the EZRaider. Wipe the EZRaider with a soft, wet cloth, dipped in clean water. Dry the EZRaider using a soft, dry cloth.
  • Page 20 Maintenance Months weeks 2 Kilometers 1,000 5,000 10,000 25,000 Engine Check for loose parts and bolts √ √ √ √ Tighten engine bolts Steering Check for loose parts √ √ Check steering alignment √ √ Check for loose parts in front-wheel √...

  • Page 21: Troubleshooting

    In case of any malfunction or fault that does not appear in the table, or that impacts user safety, contact an authorized service center, or contact our customer service department at info@DSRaider.com. WARNING ! Do not detach the standing platform. Platform detachment should be performed an authorized service center only! Do not disassemble the switches.

  • Page 22: Ezraider Cart User Manual

    EZRaider Cart User Manual Congratulations on your purchase of the EZRaider Cart from DSRaider. DSRaider offers two cart models that are attached to the EZRaider and are used for towing: Cart - Connects to the EZRaider and can tow loads of up to 150 kilograms.

  • Page 23: Cart - General Introduction

    Cart - General Introduction Towing point Payload tying points Payload platform Carriage shaft height adjustment point 20-6-10 All-Terrain Vehicle tires Wheel rim Sticker with chassis number...

  • Page 24: E-Cart - General Introduction

    E-Cart - General Introduction Towing point Payload tying points Battery voltage indicator Charging inlet Battery compartment, 1750/3000 watt battery, two controllers Carriage shaft height adjustment point Control cable anchoring point 1500 watt motor Wheel rim 22-7-10 All-Terrain Vehicle tires Sticker with chassis number Payload platform...

  • Page 25: Identifying The Cart

    Battery voltage indicator The battery voltage indicator provides a continuous indication of battery voltage. The voltage indication varies between 66V for a full battery, to 52V, at which point the battery saving mode is enabled, and the EZRaider is powered down. WARNING ! The E-Cart is equipped with an electrical drivetrain operating at 60 volts.

  • Page 26: Cart Use Safety Instructions

    Cart Use Safety Instructions NOTE The following safety instructions are valid for all EZRaider Cart models. Read this User’s Manual thoroughly, including its safety instructions and warnings, before operating the cart. Use of the cart is restricted to persons aged 16 and up. Before towing, make sure that the cart is functioning correctly and that there are no loose parts, cracks, or damage that will affect the performance of the cart.

  • Page 27: Pre-Ride Inspection

    Pre-ride Inspection A daily inspection prior to using the cart will contribute to its proper functionality and driving safety. WARNING ! If a malfunction or suspicion of failure has been identified, the cart should not be used until it has been repaired at an authorized service center. General check.

  • Page 28: Driving The Ezraider With The Cart

    E-Cart Inspection Cables and wiring. Check that the electrical wiring and control cables are intact, and that their shielding is not torn, frayed, or missing. Check the soundness of the electrical wiring and control cables that connect the EZRaider and the E-Cart as well. Electrical system.
  • Page 29 Driving the EZRaider with the Cart Make sure that the cart’s payload is properly tied to the cart, so that it will not come loose while driving. When the cart is attached, reduce driving speed by at least 40% When driving with the cart, begin by performing a test drive with an empty cart, and make sure the vehicle and cart are operating properly.

  • Page 30: Charging The E-Cart Battery

    • Do not load materials on the E-Cart during charging. • The charger is intended for use with EZRaider batteries supplied by DSRaider only. Do not use batteries and chargers that are not supplied by DSRaider. • The charger should be located in a dry, well-ventilated area.

  • Page 31: Towing

    The cart should be towed exclusively by the EZRaider. Do not attempt to attach any cart to the vehicle other than the EZRaider. WARNING ! • Use towing accessories from DSRaider only. • When towing, drive slowly and carefully. • Drive carefully when towing downhill. If driving speed increases, releasing the throttle to engage the regenerative braking function, which slows the EZRaider while charging the drivetrain battery.

  • Page 32: Cleaning

    Cleaning Turn the power on/off switch to OFF. Remove dust, dirt and mud using a gentle dry brush. Use a soft cloth, or a slightly damp sponge to clean the cart. Wipe the cart with a soft, wet cloth, dipped in clean water. Dry the cart using a soft, dry cloth.

  • Page 33: Maintenance

    Maintenance Routine maintenance is required in order to maintain the cart’s safety and proper function. Follow the manufacturer-approved maintenance program, detailed in the table below, to achieve maximum performance and product lifetime. WARNING ! • All maintenance work should be performed while the cart is disconnected from the EZRaider.

  • Page 34: Troubleshooting

    In case of any malfunction or fault that does not appear in the table, or that impacts user safety, contact an authorized service center, or contact our customer service department at info@DSRaider.com. WARNING ! • Do not attempt to disassemble the E-Cart’s battery compartment. The compartments should be opened at an authorized service center only! •...

  • Page 35: Accessories

    Accessories Luggage carrier - EZRaider model Underbody protector Driver seat...
  • Page 36 Accessories Luggage carrier - EZRaider HD2 and HD4 models Hand guard – available for all models Platform for second rider – attaches to luggage carrier...
  • Page 37 Doc# : 10MRM001 I EN Rev# : 2...
