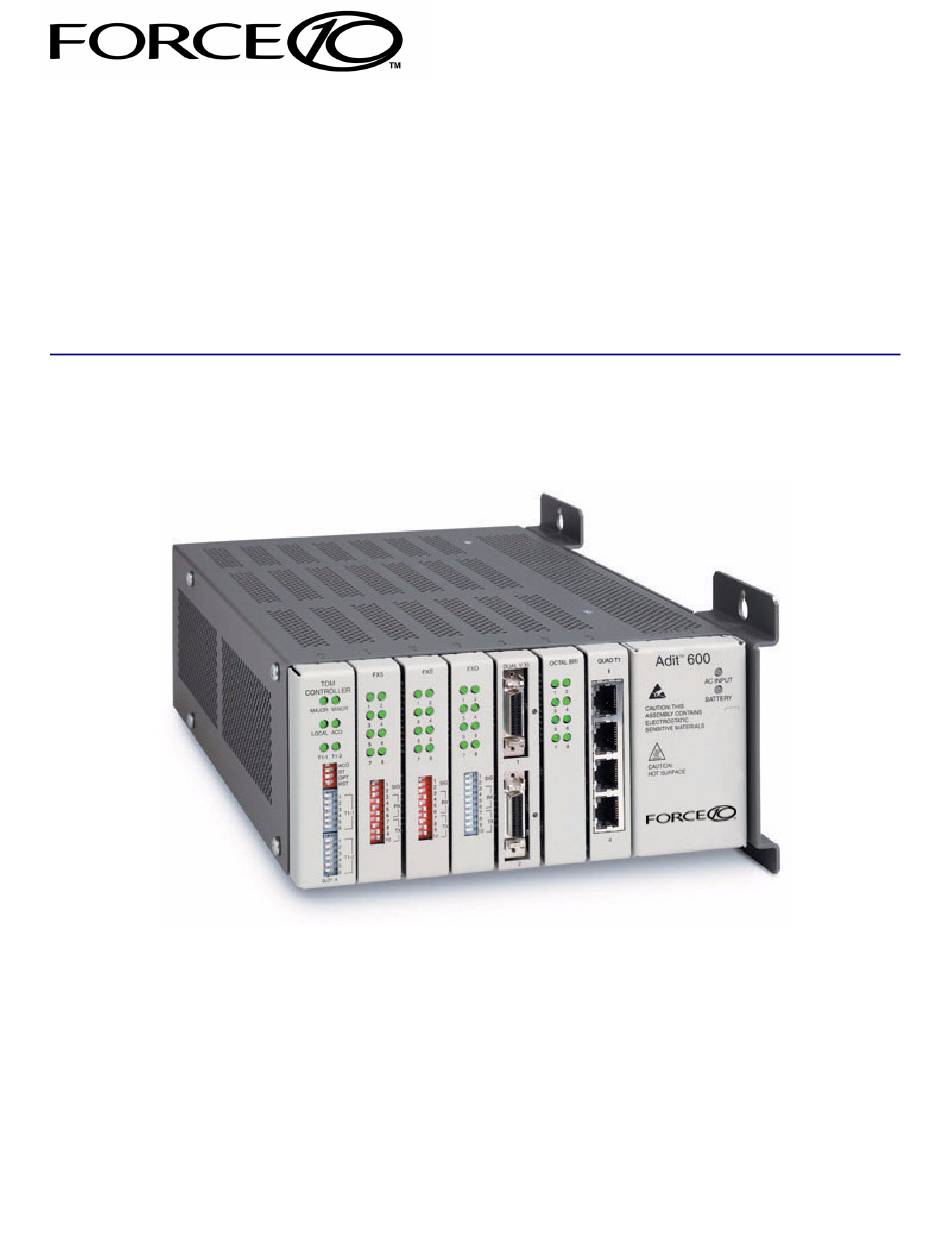

Adit 600
U
M
SER
ANUAL
Part Number: 770-0009-JE
Product Release: 10.1.1
August 2009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Adit 600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Force 10 Adit 600

  • Page 1 Adit 600 ANUAL Part Number: 770-0009-JE Product Release: 10.1.1 August 2009...
  • Page 2 Adit, Access Navigator, Force10 Networks, and NetworkValet are registered trademarks of Force10 Networks, Inc. Force10 and the Force10 logo are trademarks of Force10 Networks, Inc. or its affiliates in the United States and other countries and are protected by U.S. and international copyright laws. All other brand and product names are trademarks or registered trademarks of their respective holders.

  • Page 3: Safety Of Information Technology Equipment

    REFACE Preface Compliance Safety of Information Technology Equipment The Adit 600 is safety certified by MET Laboratories, Inc. and is compliant with the following safety standards: UL60950 3rd Edition CSA C22.2 No. 60950 3rd Edition EN60950:2000 AN/NZS 60950 3rd Edition...

  • Page 4: Fcc Requirements, Part 68

    Quad DS1 ADPCM 1.544Mbps 04DU9-BN 6.0N RJ48C or RJ48M Quad DS1 ADPCM 1.544Mbps 04DU9-DN 6.0N RJ48C or RJ48M Quad DS1 ADPCM 1.544Mbps 04DU9-1KN 6.0N RJ48C or RJ48M Quad DS1 ADPCM 1.544Mbps 04DU9-1SN 6.0N RJ48C or RJ48M Adit 600 - Release 10.1.1...
  • Page 5 If the trouble is causing harm to the telephone network, the telephone company may request that you remove the Adit 600 from the network until the problem is resolved. User repairs must not be made. Doing so will void the warranty.

  • Page 6: Industry Canada Ices-003

    N A DOMESTIC ENVIRONMENT THIS PRODUCT MAY CAUSE RADIO INTERFERENCE IN WHICH THE USER MAY BE REQUIRED TO TAKE ADEQUATE MEASURES NOTE: See Installation Instructions and Ferrite Beads (Europe, Australia and Canada) on page 3-4. Adit 600 - Release 10.1.1...
  • Page 7 Preface Adit 600 - Release 10.1.1...

  • Page 8: Safety Information

    ARNING NOTICE INDICATES THE POSSIBILITY OF EQUIPMENT DAMAGE IF THE HAZARD IS NOT AVOIDED NOTE: A Note indicates information to help you understand how to perform a procedure or how the system works. Notes should be read before performing the required action. viii Adit 600 - Release 10.1.1...

  • Page 9: Electrostatic Discharge (Esd) Precautions

    NLESS YOU ARE A QUALIFIED SERVICE TECHNICIAN WHO USES TOOLS AND TECHNIQUES THAT CONFORM TO ACCEPTED INDUSTRY PRACTICES DO NOT HANDLE The ESD warning label appears on packages and storage bags that contain static-sensitive products and components. Adit 600 - Release 10.1.1...

  • Page 10: Warranty

    Warranty Procedure BUYER must promptly notify Force10 Networks of any defect in the Product or Software and comply with Force10 Networks' return/repair policy and procedures. Force10 Networks or its agent will have the right to inspect the Product or workmanship on BUYER's premises. With respect to a...
  • Page 11 Networks software specifications but that do not significantly impair the function or service of the Force10 Networks Product or the system. Determination of Severity 1, 2 or 3 shall be made solely by Force10 Networks following receipt of the reported problem. Refurbished material may be used to repair or replace the Product.

  • Page 12: Warranty Product Returns

    FORCE10 NETWORKS HAS BEEN ADVISED THEREOF. No agent, BUYER, or representative is authorized to make any warranties on behalf of Force10 Networks or to assume for Force10 Networks any other liability in connection with any of Force10 Networks' Products, software, or services.

  • Page 13: Table Of Contents

    Warranty Product Returns ........xii Adit 600 Base Platform Overview .
  • Page 14 Wall Mounting ..........2-4 Adit 600 Speedway (Optional Feature)....... 2-5 Rack Mounting (Optional Feature) .
  • Page 15 Change the IP Address of the DS0 Management Channel ... .4-10 Upgrade the Adit 600 Software ....... .4-11 Upgrade the Router Card Software.
  • Page 16 Table of Contents Configure IP Router in Adit 600 ....... 4-44 Configuration of the Adit 600 at Remote Site .
  • Page 17 (router) coldboot........5-70 Adit 600 - Release 10.1.1...
  • Page 18 (router) enhanced security ....... . 5-124 xviii Adit 600 - Release 10.1.1...
  • Page 19 (router-voice) echo tail ........5-200 Adit 600 - Release 10.1.1...
  • Page 20 ..........5-246 Adit 600 - Release 10.1.1...
  • Page 21 (router) stp ......... . .5-274 Adit 600 - Release 10.1.1...
  • Page 22 ......... . 5-316 xxii Adit 600 - Release 10.1.1...
  • Page 23 (router) ..........5-347 Adit 600 - Release 10.1.1...
  • Page 24 LEDs ............7-9 xxiv Adit 600 - Release 10.1.1...
  • Page 25 LEDs ............9-6 Channel Associated Signaling (CAS) Conversions ..... .9-7 Adit 600 - Release 10.1.1...
  • Page 26 Physical ..........11-5 xxvi Adit 600 - Release 10.1.1...
  • Page 27 Clocking ..........13-5 Adit 600 - Release 10.1.1...
  • Page 28 Replacing a Power Supply ........15-16 xxviii Adit 600 - Release 10.1.1...
  • Page 29 Physical ...........17-6 Adit 600 - Release 10.1.1...
  • Page 30 Simultaneous Call Limits........19-5 Adit 600 - Release 10.1.1...
  • Page 31 LEDs ............20-17 Adit 600 - Release 10.1.1...
  • Page 32 LEDs ............21-56 xxxii Adit 600 - Release 10.1.1...
  • Page 33 V.35 DCE (DB-26) ......... .23-7 Adit 600 - Release 10.1.1...
  • Page 34 Backup Adit 600 Configuration ........24-5...
  • Page 35 Adit 600 Overview........
  • Page 36 Table of Contents xxxvi Adit 600 - Release 10.1.1...

  • Page 37: Adit 600 Base Platform

    HAPTER Adit 600 Base Platform In this Chapter Overview Features Controllers Service Cards Power Supplies Local and Remote Management Technical Specifications Chassis...

  • Page 38: Overview

    MGCP protocol, while the MSR card uses the SIP protocol. Both can be deployed in the same Adit 600 chassis. In addition to VoIP services, the MSR card also enables VPN routing and T.38 Fax Relay services.

  • Page 39: Features

    Allows any service connection or network access line to be deployed in any slot Provides integrated 18 T1 or E1 port digital cross-connect for service grooming and restoration Flexibly provisions a broad variety of services within a single Adit 600 chassis occupying just 2 rack units of equipment space...

  • Page 40: Controllers

    Dual E1 Controller NOTE: E1 is not supported in this release of the Adit 600 Controller. It will be supported in a future release. There is a wide variety of service cards, however all cards do not operate with both the T1 and E1 Controllers.

  • Page 41: Service Cards

    Adit 600 Base Platform Service Cards Service Cards All service cards are hot-swapable and can be installed in any of the 6 service slots of the Adit 600 chassis. NOTE: E1 is not supported in this release of the Adit 600 Controller. It will be supported in a future release.

  • Page 42: Pots Service Card

    The 4 port T1 service card enables cost-effective provisioning and expansion of T1 bandwidth with full non-blocking digital cross-connection of all timeslots to any Adit service card. In a Adit 600 with T1 Controller, up to 432 DS0 user capacity. Note: This card is no longer manufactured; it has been replaced by the Quad DS1/E1 service card.

  • Page 43: Multi-Service Router (Msr) Service Card

    Power Supplies 115 VAC/-48 VDC Power Supply/Charger Enables the Adit 600 to be powered from either 115 VAC or -48 VDC sources, and includes an integral battery charger and ringing generator. 230 VAC/-48 VDC Power Supply/Charger Enables the Adit 600 to be powered from either 230 VAC or -48 VDC sources, and includes an integral battery charger and ringing generator.

  • Page 44: Technical Specifications

    Adit 600 Base Platform Technical Specifications Technical Specifications NOTE: E1 is not supported in this release of the Adit 600 Controller. It will be supported in a future release. Platform Features Wide selection of service cards Hot-swapable service cards Integrated 1:0 Digital Cross Connect Switching with 18 full T1/E1s...

  • Page 45: Network Standards

    1 x 2 pin modular plug for -48 V/Battery (with 115V Power Supply installed) 1 x 10/100Base-T Ethernet RJ-45 jack 2 x RJ-48C jacks 2 x 6 pin modular receptacle for alarm relay output 2 x 25 pin Telco connectors 2 x 3/16 inch threaded stud for grounding Adit 600 - Release 10.1.1...

  • Page 46: Regulatory Approvals

    Dimensions: 3.5 in. (H-2 RU) x 8.5 in. (W) x 12 in. (D) 8.9 cm (H) x 21.6 cm (W) x 30.5 cm (D) Weight: 7 lbs. (3.2 kg) base unit (with Power Supply and Controller) 1-10 Adit 600 - Release 10.1.1...

  • Page 47: Chassis

    Alarm -48 VDC/Battery -24VDC Management Power Input Power Input Port 10Base-T Management Port 2 T1/E1 Interfaces Controller Tip & Ring Tip & Ring RS-232 Telco Telco Management Connector Connector Port (Lines 25-48) (Lines 1-24) Adit 600 - Release 10.1.1 1-11...
  • Page 48 Adit 600 Base Platform Chassis 1-12 Adit 600 - Release 10.1.1...

  • Page 49: Physical Installation

    HAPTER Physical Installation In this Chapter Unpacking and Inspection Installation Environment Assembly of Adit 600 Wall Mounting Adit 600 Speedway (Optional Feature) Rack Mounting (Optional Feature)

  • Page 50: Unpacking And Inspection

    Installation Environment The environment in which you are installing the Adit 600 must meet the following conditions: Operating temperature range: 32° to 104° F (0° to 40° C) Storage temperature range: -40° to 158° F (-40° to 70° C) Cooling method is by free air convection, requires long axis of unit to be mounted horizontally Maximum operating altitude: 10,000 ft.

  • Page 51: Assembly Of Adit 600

    Service Cards can be in any slot 1 through 6. Note: When an Adit 600 is mounted to the wall, cards that use the front cable connections should be loaded from Slot 6 to 1. This will minimize card access issues due to cable interference.

  • Page 52: Wall Mounting

    Adit 600 for adequate ventilation The Adit 600 is delivered with a mounting bracket attached for quick and easy wall mounting, as shown in the illustration above. To install the unit to the wall, attach the unit using the four screws provided, one at each bracket foot.

  • Page 53: Adit 600 Speedway (Optional Feature)

    Battery option sits on a shelf below the first Battery. The Adit 600 is secured to a swing plate, which allows the front of the Adit to swing away from the wall giving full access to the unit for removal or installation of service cards. The battery backup unit sits below the Adit on a shelf secured by front pins.

  • Page 54: Rack Mounting (Optional Feature)

    Rack mounting kits (P/N 710-0019 NEBS version, 710-0016 non-NEBS version) are available for both 19 and 23 inch racks. To rack mount the Adit 600, follow the instructions below: 1. Attach bracket ears to rack mounting bracket using four #8-32 x 3/16" screws on each side.
  • Page 55 4. Remove wall mount and screws from Adit 600 unit. 5. Slide the Adit 600 unit into rack mounting Thumbscrew bracket. 6. Swing the front latch up to secure the Adit 600 unit(s), and tighten thumbscrew. Adit 600 - Release 10.1.1...
  • Page 56 Physical Installation Rack Mounting (Optional Feature) As many as 20 Adit 600 units can be mounted on a single 7 foot rack, as shown in the following illustration (2 Adits are mounted side-by side and 10 high). Adit 600 occupies 2 RUs...

  • Page 57: Electrical Installation/Cabling

    HAPTER Electrical Installation/Cabling In this Chapter Compliant Installation Chassis Connectors and Buttons Connectors...

  • Page 58: Compliant Installation

    1. Connect all of the signal cables as shown in the illustration above, and secure them with a plastic tie. Dress the signal cables toward the left of the Adit 600. 2. If using the 115V Power Supply, connect the -48 VDC battery power cable.

  • Page 59: Ferrite Beads (Us)

    Ethernet Cable (from front of card) *The CMG-01 and CMG-02 Router cards do not require a ferrite bead. For additional information on ferrite beads and their installation on the Adit 600, please contact Force10 Networks Customer Support at 1-866-887-4638 (US) or 1-707-665-4355 (International/Direct).

  • Page 60: Ferrite Beads (Europe, Australia And Canada)

    Ferrite Beads (Europe, Australia and Canada) NOTE: E1 is not supported in this release of the Adit 600 Controller. It will be supported in a future release. To be compliant with EN55022 and CISPR22 Class A emissions, the following beads are required for the chassis and components listed below.
  • Page 61 D-sub Male to Winchester Female, 25 ft. P/N 005-0069 D-sub Male to Winchester Female, 50 ft. For additional information on Ferrite beads and their installation on the Adit 600, please contact Force10 Networks Customer Support at 1-866-887-4638 (US) or 1-707-665-4355 (International/ Direct).

  • Page 62: Chassis Connectors And Buttons

    RS-232 Craft Port Connectors NOTE: E1 is not supported in this release of the Adit 600 Controller. It will be supported in a future release. The following are the Adit 600 interface connectors: T1-1/E1-1 and T1-2/E1-2 line connection ports each equipped with standard...

  • Page 63: Chassis Ground Connector

    NSTALL THE GROUNDING CONDUCTOR IN ACCORDANCE WITH ATIONAL OR OCAL EGULATIONS 1. Route wire (#6 or #8 AWG copper) from building ground to lug on Adit 600. 2. Strip insulation off wire end, if necessary. Compression Screw Ground Lug Lug Barrel 3.

  • Page 64: Power Cord Ac

    -48V Battery The -48 VDC input connector on the Adit 600 is used for either direct DC powering of the Adit 600 unit or for a Battery Backup connection when AC is used. There is no power cable provided for this connector, however the connector is provided.

  • Page 65: Power Cord Dc

    7. Verify with voltmeter that voltage is correct and polarity Battery is correct. Return (-) 8. Plug connector(s) into the Adit 600 DC Power connector, as seen in the graphic and secure with set Battery (+) screws 9. A green light should appear on the DC OK LED on the front of the Power Supply.

  • Page 66: External Alarm Connector

    The alarm inputs provide 5 VDC across the two contacts, and generate an alarm when a short circuit is detected Alarm In - between the contacts. The alarm generated is a minor severity alarm. 3-10 Adit 600 - Release 10.1.1...

  • Page 67: 25-Pair Telco Connectors

    BRI ports and are jumper selectable on the Quad T1, Quad E1, Quad DS1/E1 and Quad ADPCM service cards. Circuit connections are made at the 25-pair telco connectors. A standard 25-pair telephone cable with RJ-21X wiring and a male D-type connector at the Adit 600 end is required. The pinouts are as follows: Pair Pin Location...
  • Page 68 Tip Channel 21 Violet/Blue Ring Channel 21 Blue/Violet Tip Channel 22 Violet/Orange Ring Channel 22 Orange/Violet Tip Channel 23 Violet/Green Ring Channel 23 Green/Violet Tip Channel 24 Violet/Brown Ring Channel 24 Brown/Violet Reserved Violet/Slate Slate/Violet 3-12 Adit 600 - Release 10.1.1...

  • Page 69: Craft Port (Female Db-9)

    PC or Hayes-compatible modem for local or remote configuration, management, and performance monitoring using the Adit 600 Command Line Interface (CLI). The RS-232 craft port connects via a female DB-9 connector on the Adit 600. The pinouts are as follows: Pin Number...

  • Page 70: T1 And E1 Connection Ports

    Electrical Installation/Cabling Connectors T1 and E1 Connection Ports The T1 and E1 connection ports are each equipped with a standard RJ-48C (female) on the Adit 600 unit. The pinouts are as follows: T1/E1 (RJ-48C) Name Description Receive Ring Receive from DS1 network...
  • Page 71 ISDN BRI Service Setup OCU-DP Card Setup ADPCM Card Setup V.35 Port Setup Change the IP Address of the DS0 Management Channel Upgrade the Adit 600 Software Upgrade the Router Card Software Basic Router Setups Configuration Restrictions Install Country Specific Ringer Tones...

  • Page 72: Configuration

    Setting up a CLI Connection Setting up a CLI Connection NOTE: Default IP address of the Adit 600 Controller is 10.0.0.10. To connect with CLI, set up the connection: If connecting via the Ethernet 10Base-T connection, use a Telnet TCP/IP program to access the CLI.

  • Page 73: Setting Up Login Security

    The default for the system is to have no login. A login should be setup, as soon as possible, for security reasons. To set up security on the Adit 600 perform the following: 1. Open a CLI session (either through Telnet, HyperTerm, or other).

  • Page 74: System Information

    Once a management session has been initiated (Telnet or HyperTerm) the system information will be displayed similar to the following: NOTE: CLEI codes are only displayed after system bootup or with the command status equipment as seen below. Force10 Networks - Adit 600 00:00:17 08/01/2004 Status Equipment: BootCode Version: 2.00...

  • Page 75: Basic System Setup

    Set the IP gateway, in the standard IP address format set ip gateway {ip-addr} Basic Security Setup Use the following commands to set up the security on the Adit 600. For further information see the specific commands listed in Chapter 5, CLI Commands. Command Description Set user password length requirement.

  • Page 76: Ds1/T1 Setup

    E1 Setup NOTE: E1 is not supported in this release of the Adit 600 Controller. It will be supported in a future release. Use the following commands to set up a E1. See the set (e1) command for more details.

  • Page 77: Ds0/Channel Setup

    Set the receive gain/loss in dB. See the set (fxs) or set set {slot:port} rxgain {n} (fxo) command for details Set the transmit gain/loss in dB. See the set (fxs) or set set {slot:port} txgain {n} (fxo) command for details Adit 600 - Release 10.1.1...

  • Page 78: 4-Wire E&M Setup

    Set the signaling option for the channel you want to set {slot:port:channel} signal map. See set (ds0) command for details {emdw|emi|emicpd|emw|gs|ls|plar|r2} Connect the channels. See the connect (card-trunk) connect {slot:port} {slot:port} (card-trunk) command for details Adit 600 - Release 10.1.1...

  • Page 79: Isdn Bri Service Setup

    Sets a DS0 data signaling type set {ds0-addr} type data Connects DS0 (in previous step) to OCU-DP port (in connect {ds0-addr} {ocudp-addr} previous step) Displays connect information for OCU-DP card show connect (ocudp_card-addr} Adit 600 - Release 10.1.1...

  • Page 80: Adpcm Card Setup

    Set the receive clock inversion mode set {slot:port} rxclkinv {invert|normal} Change the IP Address of the DS0 Management Channel Use the following commands to change the IP over DS0 Management Channel for the Adit 600. Command Description Set the DS0 management channel down set ipds0 down Set the DS0 management channel IP address.

  • Page 81: Upgrade The Adit 600 Software

    Determine the system software level. The Slot A line status equipment (SW Vers) will display the current software level Load the new system software to the Adit 600. load tftp {ip-addr} {"file-name"} See the load command on page 5-60 for important (or load xmodem) information about Controller memory size and "large"...

  • Page 82: Basic Router Setups

    {router_card-addr} router_card-addr = {slot} location of router card Example: telnet 6 (if earlier than 3.0 release {slot:port} must be used) Local and Remote Profile Setup To enable configuration changes, reset the card. reset {slot} 4-12 Adit 600 - Release 10.1.1...

  • Page 83: Ppp Internet Connection And Public Ip Address Routing

    Adds a static IP network (route) to the WAN interface add 1 "wan1" static ip network 0.0.0.0 0.0.0.0 Set WAN interface "wan1" to be mapped to trunk 1 set 1 "wan1" trunk 1 Reboot the router, to enable all configurations set reset 1 Adit 600 - Release 10.1.1 4-13...

  • Page 84: Frame Relay Internet Connection And Public Ip Address Routing

    Set WAN interface "wan1" to be mapped to trunk 1 set 1 "wan1" trunk 1 Set the DLCI number set 1 "wan1" dlci 101 Reboot the router, to enable all configurations set reset 1 4-14 Adit 600 - Release 10.1.1...

  • Page 85: Internet Connection Using Ppp, Nat/Pat And Firewall Filters

    1 "wan1" firewall 5 pass inout nolog udp 1-65535 0.0.0.0/0 0.0.0.0/0 Set WAN interface "wan1" to be mapped to trunk 1 set 1 "wan1" trunk 1 Reboot the router, to enable all configurations set reset 1 Adit 600 - Release 10.1.1 4-15...

  • Page 86: Internet Connection Using Nat And Static Nat Addresses

    *In the private network that can be reached from the outside world. There can be up to 16 static NAT addresses, therefore the actual range can be 216.174.44.232 to 216.174.44.247. Only 4 were used in this example. 4-16 Adit 600 - Release 10.1.1...

  • Page 87: Back-To-Back With Ppp

    Configuration Basic Router Setups Back-to-Back with PPP The following configuration will set up two Adit 600 Routers back-to-back with PPP. Denver Boulder 24 DS0s Boulder Denver wan1: PPP or Frame Relay 1.1.1.1/24 2.2.2.1 / 24 Static Routes Boulder Router in Slot 1...

  • Page 88: Back-To-Back With Multi-Link Ppp

    Configuration Basic Router Setups Back-to-Back with Multi-Link PPP The following configuration will set up two Adit 600 Routers back-to-back with Multi-Link PPP. Boulder Router in Slot 1 Command Description Set Router to default settings set 1 default Disconnect all T1-1 connections to the Controller...

  • Page 89: Back-To-Back With Frame Relay

    Set the WAN interface named "wan1" to be mapped to set 1 "wan1" trunk 1 trunk 1 Set the DLCI number set 1 "wan1" dlci 101 Reboot the router, to enable all configurations set reset 1 Adit 600 - Release 10.1.1 4-19...
  • Page 90 Set the WAN interface named "wan1" to be mapped to set 3 "wan1" trunk 1 trunk 1 Set the DLCI number set 3 "wan1" dlci 101 Reboot the router, to enable all configurations set reset 3 4-20 Adit 600 - Release 10.1.1...

  • Page 91: Basic Voip Setup (Cmg Router)

    Adit 600: the CMG voice channels are connected to the FXS channels Adit 600 CMG: the VoIP parameters and data parameters are configured Adit 600 uses endpoint prefix "aaln" and endpoint suffix "1-48" i.e. channel 1 would be suffix "1", channel 5 would be suffix "5"...
  • Page 92 Set the MGCP as In-Service set 6 mgcp up Start logging events to the CMG text log, for MGCP set 6:1:1:1-24 log start both protocol events and errors Reset the CMG card, to apply all configurations reset 6 4-22 Adit 600 - Release 10.1.1...

  • Page 93: Configuration Restrictions

    16MB Controller. See 8MB Controller Configuration Restrictions on page 4-24 for a table of configurations supported by the 8MB Controller. The Adit 600 can have up to four DS0 data streams. The following service cards reserve one data stream for each card installed:...

  • Page 94: 8Mb Controller Configuration Restrictions

    Proxy Restriction When more than one router card is in use, multiple proxies may be established, but the Adit 600 limits Telnet sessions to just one of them at a time. See the set (router) proxy command on page 5-167 for information about setting up a proxy.

  • Page 95: Install Country Specific Ringer Tones

    Once a tone file is loaded into a CMG Router card it will remain in effect until replaced by another. It is not removed when the CMG Router card is set back to its default settings. NOTE: Use of ringer tones requires Adit 600 Controller release 5.0 or higher and CMG Router release 1.1 or higher. Syntax: load {cmg_card-addr} tftp {ip-addr} {"tone_file"}...

  • Page 96: Quick Configuration Reload

    7. The download is complete when the text has finished scrolling on the screen and the Adit ID prompt displays again. 4-26 Adit 600 - Release 10.1.1...
  • Page 97 Main HyperTerminal screen. 6. Select Transfer/Send Text File.. from the menu bar. Hyperterm will now send the configuration to the Adit exactly as it was saved in the Download Config File process. Adit 600 - Release 10.1.1 4-27...

  • Page 98: Ds0 Management Channel Setup

    The DS0 Management Channel provides an alternative to the FDL link for management information where FDL is unavailable. The Access Navigator and the remote Adit 600 will use IP packets to communicate management and control information over the DS0 Management channel. This information includes support for the activation, testing, and status reporting of ISDN lines.

  • Page 99: Equipment Required

    DS0 Management Channel Setup Equipment Required Access Navigator (version 1.7 or above) (1) Co-located Router This example uses an Adit 600 (version 10.1.1) with an IP Router card (version 2.97) Remote Adit: (1-24) Adit 600 Cables: Ethernet, T1 Adit 600...
  • Page 100 32:16 a:1:16 Adit17 192.168.202.17 32:17 a:1:17 Adit18 192.168.202.18 32:18 a:1:18 Adit19 192.168.202.19 32:19 a:1:19 Adit20 192.168.202.20 32:20 a:1:20 Adit21 192.168.202.21 32:21 a:1:21 Adit22 192.168.202.22 32:22 a:1:22 Adit23 192.168.202.23 32:23 a:1:23 Adit24 192.168.202.24 32:24 a:1:24 4-30 Adit 600 - Release 10.1.1...

  • Page 101: Set Ip Configuration Of Pc

    Connects second DS0 of T1-1 of the controller to port 1, WAN 2 of the Router in slot 1. connect a:1:3 1:1:3 Up to 24 WAN connections (a:1:24 1:1:24) set a:1 up Sets the T1-1 as In-Service Adit 600 - Release 10.1.1 4-31...
  • Page 102 3. Select Terminal Emulation (scroll with ) and select NTER Once you are in the router, the key will move you through the menus and the will scroll you through selections in < >. PACEBAR 4-32 Adit 600 - Release 10.1.1...
  • Page 103 DS0 Management Channel Setup Configure Trunk Connections 1. Select Configuration < Profile Directory > -> from the Router Main Menu and select NTER 2. Select Router CARD <Setup - > from the Profile window and [ NTER Adit 600 - Release 10.1.1 4-33...
  • Page 104 Configure window. For these configuration changes to take effect, you must Reinitialize the Router. NOTE: Since there are only Frame Relay links for this application there is no need to enable/ disable the authentication protocols (CHAP/PAP) that are under the Router CARD/Security menu. 4-34 Adit 600 - Release 10.1.1...
  • Page 105 Set the LAN Networks Updates for IP and IPX to < Neither > *. Set the LAN IP Address to 192.168.201.101 (Router IP Address) along with the Subnet Mask to 255.255.255.0. 3. Select to exit menu and <Yes> to save changes. Adit 600 - Release 10.1.1 4-35...
  • Page 106 Set WAN IP: Numbered to <No> *. to Setup: <Static/VPN Networks > (scroll to this selection if it is not displayed) and select NTER NOTE: If the IP Protocol is set to <Bridge > this option will not be available. 4-36 Adit 600 - Release 10.1.1...
  • Page 107 255.255.255.0. You must retype the entire address of 255.255.255.255. 7. Set the Metric to (1). 8. Select to exit and <Yes> to save changes. 9. On the Remote Profile setup window select Setup: <Trunk Port > and NTER Adit 600 - Release 10.1.1 4-37...
  • Page 108 1. Select Exit <Reinitialize > from the Router main window and select NTER 2. Select <YES> and select to Reinitialize the Router Card. This will save all the NTER changes made to the Router. 4-38 Adit 600 - Release 10.1.1...
  • Page 109 Displays the configurations of the DS0 mgmt channel show ipds0 Will display the operational status (up/down) of the DS0 status ipds0 management channel to the Navigator Sets the T1-1 as In-Service set a:1 up Adit 600 - Release 10.1.1 4-39...

  • Page 110: Testing The Ds0 Management Channel

    Once the Management Channel is working properly, add additional Remote units. Test the DS0 Management Channel after each additional unit has been setup. With the successful completion of the setup and test of the DS0 Management Channels, the Ethernet may be reattached to the network. 4-40 Adit 600 - Release 10.1.1...

  • Page 111: Basic P-Phone Configuration Setup

    Configuration Basic P-Phone Configuration Setup Basic P-Phone Configuration Setup The following is the basic P-Phone setup of the Adit 600. For more information on this service card see Chapter 13, P-Phone Card. Equipment required for this setup (1) Adit 600 with T1 Controller (Rel 6.0), (3) P-Phone Service cards...
  • Page 112 Sets DS1 1 as the DS0 Management Channel with the set ds1 1 remote device mgmt Router (address listed) and P-Phone Call Connection caip 192.168.202.1 pphone Connects DS1 1:DS0 24 to DS1 32, DS0 1 connect 1:24 32:1 4-42 Adit 600 - Release 10.1.1...

  • Page 113: Configure Adit And Router At Co

    WAN 1 of the Router in slot 1. Set Ethernet IP address, in IP address format set ethernet ip address {ip-addr} {mask} Set IP gateway, in the conventional IP address format set ip gateway {ip-addr} Displays the IP information show ip Adit 600 - Release 10.1.1 4-43...
  • Page 114 Configuration Basic P-Phone Configuration Setup Configure IP Router in Adit 600 Add and Enable all Remote Adits Needed Telnet into Router: 1. From the CLI execute a Telnet command to the Router telnet {slot} Example: telnet 1 2. Enter password (default is "admin") and select NTER 3.
  • Page 115 4. Set the WAN Connection Type to <Frame Relay 1490>, and PVC Management: to <Disabled>. Scroll with the to select options. PACEBAR Note: settings will not take effect until the Router is Reinitialized. 5. Select to exit and <Yes> to save changes. Adit 600 - Release 10.1.1 4-45...
  • Page 116 IP Protocol Eth II (with an X), all others should not be selected (default) LAN Networks Updates for IP and IPX to <Neither> (default) LAN IP Address to 192.168.201.101 (Router IP Address). LAN IP Subnet Mask to 255.255.255.0. 3. Select to exit and <Yes> to save changes. 4-46 Adit 600 - Release 10.1.1...
  • Page 117 Rename the Profile RemoteUnit (example is RemoteAdit1) WAN Networks Updates for IP to <Never> (default) WAN IP Numbered to <No> (default) to Setup: <Static/VPN Networks> (scroll to this selection if it is not displayed, and select NTER Adit 600 - Release 10.1.1 4-47...
  • Page 118 Setup Statics: to <IP Networks> Network Address to 192.168.201.1 (RemoteAdit1 WAN Address) Subnet Mask to 255.255.255.0 (subnet mask for the above) 5. Select to exit and <Yes> to save changes. 6. Select Setup: <Trunk Port> and select NTER 4-48 Adit 600 - Release 10.1.1...
  • Page 119 Set DLCI to (16) 8. Select to exit the Trunk Port window. 9. Select to exit and <Yes> to save changes. 10. Select to exit the Profile Directory and return to the Main Router window. Adit 600 - Release 10.1.1 4-49...
  • Page 120 1. On the Main Router window, select Exit <Logout > and scroll with the PACEBAR <Reinitialize> and select NTER 2. Select <YES> and select to Reinitialize the Router Card. This will save all the NTER changes made to the Router. 4-50 Adit 600 - Release 10.1.1...
  • Page 121 Configuration Basic P-Phone Configuration Setup Configuration of the Adit 600 at Remote Site Direct connect to CLI via RS-232. Use the following commands for your initial setup. Note: P-Phones are installed in slots 1, 2 and 3. Command Description Sets the unit back to default settings...
  • Page 122 3. PING 192.168.202.1 from the PC. 4. Telnet 192.168.202.1 from the PC to the Remote Adit. Once the Management Channel is working properly, add additional Remote units. Test the DS0 Management Channel after each additional unit has been setup. 4-52 Adit 600 - Release 10.1.1...
  • Page 123 HAPTER CLI Commands In this Chapter Adit 600 CLI Syntax Command Line Interface Help CLI Commands NOTE: E1 is not supported in this release of the Adit 600 Controller. It will be supported in a future release.
  • Page 124 The Adit 600 general syntax is: Adit 600> command [object] [setting] [modifier] Symbols used in the Adit 600 CLI syntax are as follows: Any items listed in brackets {} or [ ] are variables set by the user. {} implies mandatory parameters...
  • Page 125 (if any): > set snmp [TAB] will scroll through all the set SNMP options > set snmp contact [TAB] > set snmp getcom [TAB] > set snmp location [TAB] > set snmp name ... etc. Adit 600 - Release 10.1.1...
  • Page 126 (router) NOTE: For most router configuration changes to go into effect, the router must be reset. Best practice is to always reset the router after making configuration changes. Adit 600 - Release 10.1.1...
  • Page 127 Alarm cutoff active. One or more active alarms suppressed. To turn off ACO, all alarms must be cleared, or the operator can reset the controller, which will set the ACO back to the default (off) state. Adit 600 - Release 10.1.1...
  • Page 128 (router-lan) filter add (router-lan) firewall add (router-lan) secondary ip address add (router-lan) static add (router-wan) firewall add (router-wan) gre network add (router-wan) nat bypass add (router-wan) static add snmp group add snmp view add user Adit 600 - Release 10.1.1...
  • Page 129 Creates a AIS DS1 list all DS1s in the system to be configured to trigger sending AIS. {ds1-addr1}, Creates a AIS DS1 list of up to 4 DS1s to be configured to trigger sending AIS. [ds1-addr2], [ds1-addr3], [ds1-addr4] Adit 600 - Release 10.1.1...
  • Page 130 = numeric value must be entered in Hex. {“string”} Unidentified with a maximum of 50 characters, enclosed in quotes. {ip-addr} [ip-addr] IP address in the form xxx.xxx.xxx.xxx, where xxx is [ip-addr] [ip-addr] a number from 0 to 255. Adit 600 - Release 10.1.1...
  • Page 131 The slot number (1-6) that contains the Router (IP, CMG or TSR) card. profile-name The name of the remote WAN profile to add with a maximum length of 11 characters. This name must be enclosed in quotes. Adit 600 - Release 10.1.1...
  • Page 132 The IP address of the destination trap to add, in the form of xxx.xxx.xxx.xxx, where xxx is between 0-255. profile-name The profile name for the Router interface that is used to reach this destination. Maximum of 11 characters and this name must be enclosed in quotes. 5-10 Adit 600 - Release 10.1.1...
  • Page 133 The IP address to allow upload from, in the form xxx.xxx.xxx.xxx, where xxx is between 0-255. profile-name Name of the remote WAN or LAN profile that can be used for upload, enclosed in quotes. Adit 600 - Release 10.1.1 5-11...
  • Page 134 HEX value, 0xxxxxxxxxxxx. Please note that the MAC address is preceeded by a 0x. filter-name A symbolic name given to identify a filter rule. This name must be enclosed in quotes, with a maximum of 8 characters. 5-12 Adit 600 - Release 10.1.1...
  • Page 135 Flags (3 bits) Fragment Offset (13 bits) Time-to-Live (8 bits) Protocol (8 bits) Header Checksum (16 bits) Source IP Address Destination IP Address IP Options (+ padding) Data portion of Datagram ----------------------------------------------- 32 Bits ------------------------------------------------- Adit 600 - Release 10.1.1 5-13...
  • Page 136 SSAP values in a SNAP packet. The match value is entered as a 8-bit hex value. filter-name A symbolic name given to identify a filter rule. This name must be enclosed in quotes, with a maximum of 8 characters. 5-14 Adit 600 - Release 10.1.1...
  • Page 137 The IP Address is in the form of xxx.xxx.xxx.xxx, where xxx is between 0-255. Note: the address 0.0.0.0/0 matches any address. Adit 600 - Release 10.1.1 5-15...
  • Page 138 Mask of the secondary IP address, in the form of xxx.xxx.xxx.xxx, where xxx is between 0-255. bits The subnet mask, specified as the number of ones bits in the mask value. Range is between 1-32. 5-16 Adit 600 - Release 10.1.1...
  • Page 139 A symbolic name for this static ip address. This name must be enclosed in quotes, with a maximum of 8 characters. ip-addr The IP address of the learned address table for the LAN, in the form of xxx.xxx.xxx.xxx, where xxx is between 0-255. Adit 600 - Release 10.1.1 5-17...
  • Page 140 Enter a numeric value indicating the distance from your local network to the destination network. This field is only used on IP networks. Valid entries range from 1 to 15. (Please note that a value of 1 usually indicates a direct network.) 5-18 Adit 600 - Release 10.1.1...
  • Page 141 7 characters mac-addr MAC address to add to the learned address table for the LAN, in the form a 6-octet HEX value separated by colons, xx:xx:xx:xx:xx:xx. This number must be preceeded by Adit 600 - Release 10.1.1 5-19...
  • Page 142 - Wide Area Information Services protocol - Enter a protocol number. Note: for list of protocols and numbers see, Appendix D, Protocol Number in Firewall Filters. {protocol-number}= number between 0-255 0= any protocol 5-20 Adit 600 - Release 10.1.1...
  • Page 143 0-255. Note: the address 0.0.0.0/0 matches any address. bits Use this field to identify the number of bits, from left to right that will be used to match the IP Address field within the data packet. Range is between 1-32. Adit 600 - Release 10.1.1 5-21...
  • Page 144 The IP address of the far end of this tunnel, in the form of xxx.xxx.xxx.xxx, where xxx is between 0-255. tunnel-name A symbolic name for this tunnel. Maximum of 12 characters and must be enclosed in quotes. 5-22 Adit 600 - Release 10.1.1...
  • Page 145 0-255. bits Use this field to identify the number of bits, from left to right that will be used to match the IP Address field within the data packet. Range is between 1-32. Adit 600 - Release 10.1.1 5-23...
  • Page 146 A symbolic name to help remember the purpose of this entry. Maximum of 7 characters and must be enclosed in quotes. ip-addr The IP address to add to the learned address table for the WAN, in the form of xxx.xxx.xxx.xxx, where xxx is between 0-255. 5-24 Adit 600 - Release 10.1.1...
  • Page 147 A numeric value indicating the distance from your local network to the destination network. Valid entries range from 1 to 15. (Please note that a value of 1 usually indicates a direct network). Adit 600 - Release 10.1.1 5-25...
  • Page 148 7 characters and must be enclosed in quotes. mac-addr The MAC address to add to the learned address table for the LAN, in the form a 6-octet HEX value, 0xxxxxxxxxxxx. Please note that the MAC address is preceeded by a 0x. 5-26 Adit 600 - Release 10.1.1...
  • Page 149 Use the add snmp group command to add a new SNMPv3 group. NOTE: SNMPv3 is a keyed feature. Keys must be purchased from Force10 Networks. The Controller must be running release 9.8 or higher to support SNMPv3. Syntax: add snmp group {“group-name”}...
  • Page 150 Use the add snmp view command to add a new SNMPv3 MIB view. You can add up to 10 OIDs (SNMP object identifiers) per view. NOTE: SNMPv3 is a keyed feature. Keys must be purchased from Force10 Networks. The Controller must be running release 9.8 or higher to support SNMPv3. Syntax: add snmp view {“view-name”} {"OID"}...
  • Page 151 "short," mandatory if password length is set to "long." The password must be enclosed in quotes and must not include blanks. The password can include any printable character other than the following: " (quote) ? (question mark) ; (semi-colon) Adit 600 - Release 10.1.1 5-29...
  • Page 152 All Terminal Server Router facility alarms. All V.35 facility alarms. severity - note this is an optional parameter. alert Alert alarms (threshold crossing). critical Critical alarms. info Information alarms. major Major alarms (service effecting). minor Minor alarms (non-service affecting). 5-30 Adit 600 - Release 10.1.1...
  • Page 153 Use the clear command to clear logs, performance data and tables. clear banner clear (ds1) clear (e1) clear key clear log clear (ocudp) performance clear (router) ip address table clear (router) log clear (router) mac address table clear (router) mgcp stats clear (router) performance Adit 600 - Release 10.1.1 5-31...
  • Page 154 Clear les (line errored seconds) performance data. Clear pcv (path code violations) performance data. sefs Clear sefs (severely errored frame seconds) performance data. Clear ses (severely errored seconds) performance data. Clear uas (unavailable seconds) performance data. 5-32 Adit 600 - Release 10.1.1...
  • Page 155 The slot number (1-6) that contains the Router (IP, CMG or TSR) card. This optional parameter is used for router specific keyed features. key-code The key code is entered to enable the specific feature. Adit 600 - Release 10.1.1 5-33...
  • Page 156 The name for the Router interface profile. This name must be enclosed in quotes, with a maximum of 11 characters. Note: the profile-name is optional, if not specified the tables for all interfaces will be cleared. 5-34 Adit 600 - Release 10.1.1...
  • Page 157 Example: clear 2 mgcp stats The example will set all MGCP statistics counts to zero, on the CMG in slot 2. Variable Definition cmg_card-addr The slot number (1-6) that contains the CMG Router card. Adit 600 - Release 10.1.1 5-35...
  • Page 158 The example will clear all of the runtime statistics on the router card in slot 4. Variable Definition rtr_card-addr The slot number (1-6) that contains the Router (IP, CMG or TSR) card. Clear both LAN and WAN statistics Clear the LAN statistics only. Clear the WAN statistics only. 5-36 Adit 600 - Release 10.1.1...
  • Page 159 Channel number or range, for T1 ports. Use the following variations of the connect command for specific applications: connect (bri) [4:1 mode] connect (router-trunk) (t1) connect (card-trunk) (card-trunk) connect (router-voice) (t1|fxs) connect (msr) Adit 600 - Release 10.1.1 5-37...
  • Page 160 Channel Associated Signaling (CAS) Conversions NOTE: E1 is not supported in this release of the Adit 600 Controller. It will be supported in a future release. Cross-connects are done at a DS0 level. The following rules need to be kept in mind while performing cross-connects for the voice cards.
  • Page 161 Similarly connect A:1:4 3:5 d will connect BRI D channel for ports 5-8 to A:1:4. Variable Definition slot The slot number, A for the controller card, or 1 - 6 location of BRI card. port Port number or range. channel Channel number or range. Adit 600 - Release 10.1.1 5-39...
  • Page 162 Trunk number for this port, 1-24. v35-addr The V.35 trunk address is in the form {slot:port} slot The slot number (1-6) that contains a V.35 card. port Port number (1-2). ds0-number The number of DS0s to connect (1-60). 5-40 Adit 600 - Release 10.1.1...
  • Page 163 A for the controller card. 1 - 6 for service cards. port Port number or range. channel Channel number or range. Must be specified when a Link Cross-Connect is to be used for a PRI interface. Adit 600 - Release 10.1.1 5-41...
  • Page 164 The slot number, A for the controller card, or 1 - 6 for service cards. port Port number or range (port must be a T1). channel Channel number or range, for T1 ports. 5-42 Adit 600 - Release 10.1.1...
  • Page 165 (router-lan) filter delete (router-lan) firewall delete (router-lan) secondary ip address delete (router-lan) static delete (router-wan) firewall delete (router-wan) gre network delete (router-wan) nat bypass delete (router-wan) static delete snmp group delete snmp view delete user Adit 600 - Release 10.1.1 5-43...
  • Page 166 2 dhcp server option 13 Variable Definition rtr_card-addr The slot number (1-6) that contains the Router (IP, CMG or TSR) card. An existing tag to be removed. Use the show (router) dhcp command to see current options. 5-44 Adit 600 - Release 10.1.1...
  • Page 167 The slot number (1-6) that contains the Router (IP, CMG or TSR) card. profile-name The name of the remote WAN profile to delete. This name must be enclosed in quotes, with a maximum of 12 characters. Adit 600 - Release 10.1.1 5-45...
  • Page 168 The slot number (1-6) that contains the Router (IP, CMG or TSR) card. community- The name of an existing community, enclosed in quotes. name ip-addr The IP address of the destination trap to delete, in the form of xxx.xxx.xxx.xxx, where xxx is between 0-255. 5-46 Adit 600 - Release 10.1.1...
  • Page 169 Host IP address, in the form of xxx.xxx.xxx.xxx, where xxx is between 0-255. profile-name The name of the remote WAN or LAN profile specified in the entry to be removed. This name must be enclosed in quotes Adit 600 - Release 10.1.1 5-47...
  • Page 170 The slot number (1-6) that contains the Router (CMG) card. lan-name The LAN interface to modify. The name must be enclosed in quotes. Delete all firewall rules on this LAN rule-number The specific firewall rule to delete 5-48 Adit 600 - Release 10.1.1...
  • Page 171 The mask of the secondary IP address, in the form of xxx.xxx.xxx.xxx, where xxx is between 0-255 bits The subnet mask, specified as the number of ones bits in the mask value. Range is between 1-32. Adit 600 - Release 10.1.1 5-49...
  • Page 172 - The profile name for the Router interface. Name must be enclosed in quotes, with a maximum length of 11 characters. ip-addr The IP address of the learned address table for the LAN, in the form of xxx.xxx.xxx.xxx, where xxx is between 0-255 5-50 Adit 600 - Release 10.1.1...
  • Page 173 The mask of the static IP network, in the form of xxx.xxx.xxx.xxx, where xxx is between 0-255. next-hop-ip- The IP address of the next hop gateway for this route, in the form of xxx.xxx.xxx.xxx, where xxx is between 0-255. addr Adit 600 - Release 10.1.1 5-51...
  • Page 174 11 characters. mac-addr The MAC address to add to the learned address table for the LAN, in the form a 6-octet HEX value, xx:xx:xx:xx:xx:xx. Note: The MAC address must be preceeded by an 0x. 5-52 Adit 600 - Release 10.1.1...
  • Page 175 The IP Address of the IP network to tunnel, in the form of xxx.xxx.xxx.xxx, where xxx is between 0-255. bits The subnet mask, specified as the number of ones bits in the mask value. Range is between 1-32. Adit 600 - Release 10.1.1 5-53...
  • Page 176 The slot number (1-6) that contains the Router (IP, CMG or TSR) card. wan-name The WAN interface to modify. The name must be enclosed in quotes. ip-addr The IP Address to delete from the WAN, in the form of xxx.xxx.xxx.xxx, where xxx is between 0-255. 5-54 Adit 600 - Release 10.1.1...
  • Page 177 The slot number (1-6) that contains the Router (IP, CMG or TSR) card. wan-name The WAN interface to modify. The name must be enclosed in quotes. network The IPX network number in HEX (0x...). Adit 600 - Release 10.1.1 5-55...
  • Page 178 The slot number (1-6) that contains the Router (IP, CMG or TSR) card. wan-name The WAN interface to modify. The name must be enclosed in quotes. local-ip-addr IP address of the local IP host. nat-ip-addr The NAT public IP address. 5-56 Adit 600 - Release 10.1.1...
  • Page 179 Use the delete snmp group command to delete an SNMPv3 group. NOTE: SNMPv3 is a keyed feature. Keys must be purchased from Force10 Networks. The Controller must be running release 9.8 or higher to support SNMPv3. Syntax: delete snmp group {“group-name”}...
  • Page 180 Link Cross-Connect identifiers are in the form {slot:1:link} Line Cross-Connect identifiers are in the form {slot:1:1:channel} slot The slot number (1-6) that contains the MSR card. link Link number (1-8). channel Channel number (1-48, range, or all). 5-58 Adit 600 - Release 10.1.1...
  • Page 181 (slot) router The Adit 600 Controller card automatically creates a backup of the configuration of any Router cards in their respective slot. If a Router is removed and replaced with a another Router (same type) the backup of the configuration from the first occupying Router card is loaded onto the replacing Router card.
  • Page 182 To upgrade your Controller using the "large" file, the Controller must have 16MB of memory. Early versions of the Adit 600 Controller use 8MB of memory. For these Controllers, you must upgrade using the "small" file. Be aware that the "small" file does not provide all of the features available with the "large"...
  • Page 183 The software file to load, including path. Must be enclosed in quotes. For the Controller, the file type must be: .mgm (software) .cfg (configuration) .txt (script) For the MSR card, the file type must be: .cfg (configuration) .rmt (application image) .img (rgloader boot image) Adit 600 - Release 10.1.1 5-61...
  • Page 184 Adit 600. Example: load tftp 192.168.43.52 “BoulderManufactDSAPRIVHOST.CPK” The example loads a DSA private host key to the Controller. Example: load tftp 192.168.43.52 “AditBanner.ban” The example loads a custom banner file to the Controller. 5-62 Adit 600 - Release 10.1.1...
  • Page 185 The banner file is a custom text file that can contain up to 240 characters. The banner can be used to warn against unauthorized access and use at login. The default is no banner. Adit 600 - Release 10.1.1 5-63...
  • Page 186 Press any key to stop boot . 5 . 4 . 3 . 2 . 1 . 0 Looking for valid application image in Flash... Executing application image from Flash Attached TCP/IP interface to cpm unit 0 Attaching interface lo0...done ADIT startup 5-64 Adit 600 - Release 10.1.1...
  • Page 187 The slot number, A for the controller card, or 1-6 for service cards. alert Alert events (threshold crossing) critical Critical events info Information events major Major events (service effecting) minor Minor events (non-service affecting) Adit 600 - Release 10.1.1 5-65...
  • Page 188 This optional parameter sets the number of pings to send. Range is 1 to 32, default is 5. length This optional parameter sets the number of bytes to send in the ICMP echo request payload. Range is 0 to 8000, default is 56. 5-66 Adit 600 - Release 10.1.1...
  • Page 189 Syntax: print {config|help} print config Print the configuration file for the Adit 600. The operator may then save this to a text file, which can be sent to another Adit 600 to automatically configure the system. Syntax: print config [rtr_card-addr]...
  • Page 190 The current LAN or WAN profile name. This name must be enclosed in quotes. new-profile-name The new profile name of a LAN or WAN profile. This name has a maximum length of 11 characters, and must be enclosed in quotes. 5-68 Adit 600 - Release 10.1.1...
  • Page 191 {rtr_card-addr} Example: reset 1 Do you really want to do this ? The example will reboot the Router card in slot 1. Variable Definition rtr_card-addr The slot number (1-6) that contains the Router card. Adit 600 - Release 10.1.1 5-69...
  • Page 192 This command is available to Manager-level users only. Syntax: restore defaults Example: restore defaults For the restore default changes to take effect send a reset command. Further configuration changes made before a reset will be lost. 5-70 Adit 600 - Release 10.1.1...
  • Page 193 IP addresses. Default is to use the IP address of the interface from which the ping is sent. The IP address, in the form of xxx.xxx.xxx.xxx, where xxx is a number from 0-255. Adit 600 - Release 10.1.1 5-71...
  • Page 194 (router) priority tos set login support set (router) proxy set (msr-intf-id) up/down set (router) reboot set notes set (router) rip set ntp set (router) snmp set (ocudp) set (router) stp set password length set (router) syslog 5-72 Adit 600 - Release 10.1.1...
  • Page 195 (router-voice) endpoint suffix set time set (router-voice) fax set time daylightsavings set (router-voice) log start set user set (router-voice) log stop set (v35) set (router-voice) modem set (v54) set (router-voice) rfc2833 set verification set (router-voice) rxgain Adit 600 - Release 10.1.1 5-73...
  • Page 196 The example set the alarm state of critical on. Variable Definition critical Sets a critical alarm major Sets a major alarm. minor Sets a minor alarm. Disables the alarm state. Enable the alarm state. 5-74 Adit 600 - Release 10.1.1...
  • Page 197 Switch and normally processed over the FDL will be ignored, commands to control Loop Back or Corrupt CRC tests will also be ignored. The Adit 600 will not be capable of reporting to the Switch any changes in the ISDN line status, such as Loss of Signal, on an automatically activated line.
  • Page 198 The CRV value is between 1-768. A value of 0 deactivates the ISDN BRI line. Note: The CRV value for the BRI ports MUST be set the same by both the Adit 600 and the Access Navigator. set (bri) down Use the set (bri) down command to set the ISDN BRI line Out-of-Service.
  • Page 199 Definition bri-addr The {slot:port} address of the BRI card you want to apply the changes to. slot - Slot number 1 - 6, location of the BRI card port - Port number or range. Adit 600 - Release 10.1.1 5-77...
  • Page 200 The example will set the date to January 1, 20001. Variable Definition Represents the month. Range is 1-12, single digits can be entered. Represents the Day. Range is 1-31, single digits can be entered. yyyy Represents the year. Range is 1999-2106. 5-78 Adit 600 - Release 10.1.1...
  • Page 201 - Port number or range. channel - Channel number or range. drop DS0 connection faces the drop (FXS, RT, station, subscriber, customer user) side. Default. network DS0 connection faces the network (FXO, COT, office, exchange) side. Adit 600 - Release 10.1.1 5-79...
  • Page 202 - Slot number, A for the Controller card, or 1 - 6 for service cards. port - Port number or range. channel - Channel number or range. data Set the DS0 up to carry data (clear channel) voice Set the DS0 up to carry voice traffic (robbed-bit signaling) 5-80 Adit 600 - Release 10.1.1...
  • Page 203 - Slot number, A for the Controller card, or 1 - 6 for service cards. port - Port number, range or all. disable Disables the AIS Forwarding on the DS1. Default enable Enables the AIS Forwarding on the DS1. Adit 600 - Release 10.1.1 5-81...
  • Page 204 - Slot number, A for the Controller card, or 1 - 6 for service cards. port - Port number, range or all. loopdown Disable equipment loopback on the DS1 loopup Enable equipment loopback on the DS1 5-82 Adit 600 - Release 10.1.1...
  • Page 205 - Port number, range or all. To D4 Superframe (SF) framing. To Extended Superframe (ESF) framing. tr8afdl TR-08 A shelf framing with FDL. tr8anofdl TR-08 A shelf framing with no FDL. tr8b TR-08 B shelf framing. Adit 600 - Release 10.1.1 5-83...
  • Page 206 DSX-1 equalization for 133-266 feet DSX-1 equalization for 266-399 feet DSX-1 equalization for 399-533 feet DSX-1 equalization for 533-655 feet CSU attenuation for LBO of -7.5dB CSU attenuation for LBO of -15dB CSU attenuation for LBO of -22.5dB 5-84 Adit 600 - Release 10.1.1...
  • Page 207 - Slot number, A for the Controller card, or 1 - 6 for service cards. port - Port number, range or all. Alternate Mark Inversion line coding b8zs Binary 8 Zero Substitution line coding. Default is B8ZS. Adit 600 - Release 10.1.1 5-85...
  • Page 208 - Port number, range or all. Enable detection of CSU loop codes. Enable detection of NIU loop codes. Note: Adit 600 (8.0) does not support NIU Loopback on DS1 cards with an earlier software version than listed below: Quad DS1 ADPCM - 1.13 Quad T1 - 1.82...
  • Page 209 Line errored seconds range: 0 - 900 Path code violations range: 0 - 1389600 sefs Severely errored frame seconds range: 0 - 900 Severely errored seconds range: 0 - 900 navailable seconds range: 0 - 900 Adit 600 - Release 10.1.1 5-87...
  • Page 210 The slot number (1-6) that contains a DS1 type card (Quad DS1/E1 or Quad DS1 ADPCM service card). e1span Enables E1 capability on this card. t1span Enables T1 capability on this card. (Default) 5-88 Adit 600 - Release 10.1.1...
  • Page 211 X3/4 X3/4 X5/6 X5/6 X5/6 X7/8 X7/8 X7/8 X9/10 X9/10 X9/10 X11/12 X11/12 X11/12 X14/15 X13/14 X13/14 X16/17 X15/16 X15/16 X18/19 X17/18 X17/18 X20/21 X19/20 X19/20 X22/23 X21/22 X21/22 X23/24 Not Avail Not Avail Adit 600 - Release 10.1.1 5-89...
  • Page 212 CLI Commands set (e1) NOTE: E1 is not supported in this release of the Adit 600 Controller. It will be supported in a future release. set (e1) down set (e1) national set (e1) equipment set (e1) signal set (e1) framing...
  • Page 213 - Slot number, A for the Controller card, or 1 - 6 for service cards (Quad E1). port - Port number, range or all. Alternate Mark Inversion line coding hdb3 High Density Bipolar 3. Adit 600 - Release 10.1.1 5-91...
  • Page 214 E1 address in the form {slot:port}. slot - Slot number, A for the Controller card, or 1 - 6 for service cards (Quad E1). port - Port number, range or all. To Channel Associated Signaling none To none 5-92 Adit 600 - Release 10.1.1...
  • Page 215 Line errored seconds range: 0 - 900 Path code violations range: 0 - 1389600 sefs Severely errored frame seconds range: 0 - 900 Severely errored seconds range: 0 - 900 navailable seconds range: 0 - 900 Adit 600 - Release 10.1.1 5-93...
  • Page 216 Enables E1 capability on this card. t1span Enables T1 capability on this card. (Default) set ethernet ip address Use the set ethernet ip address command to set the Ethernet address for the Adit 600. NOTE: This command is available to Manager-level users only. Syntax:...
  • Page 217 The Transmit direction is Analog to Network, with a range is -9 to +7 (db). Available values are -9, -7, -6, -5, -4, -3, -2, 0, 2, 3, 4, 5, 6, and 7. Default is 7dB. Adit 600 - Release 10.1.1 5-95...
  • Page 218 The Transmit direction is Analog to Network, with a range of -9 to +7 (dB). Available values are -9, -7, -6, -5, -4, -3, -2, 0, 2, 3, 4, 5, 6, and 7. Default setting is -3 dB 5-96 Adit 600 - Release 10.1.1...
  • Page 219 The Receive direction is Network to Analog. Syntax: set {fxs-addr} rxgain {gain} gain. FXS 8D, FXS 8C, FXS 8B, FXS 8A, FXS 5G, E1-FXS: -12 to +6 dB, in .25 dB increments. Default -6 dB FXS 4G: -9 to +7 dB in 1 dB increments Adit 600 - Release 10.1.1 5-97...
  • Page 220 Set to E1 R2 signaling txgain The Transmit direction is Analog to Network. Syntax: set {fxsINTL-addr} txgain {gain} gain - range is -12 to +6 dB, in .25 dB increments. Default is -3 dB 5-98 Adit 600 - Release 10.1.1...
  • Page 221 Use the set id command to the unit ID. Syntax: set id {“id-name”} Example: set id “ADIT600” ADIT600> Variable Definition id-name The name must be unique with a maximum of 20 characters, enclosed in quotes. Adit 600 - Release 10.1.1 5-99...
  • Page 222 Use the set ip gateway command to set the IP gateway address (also known as the default route) for the Adit 600. The command specifies the numeric Internet Protocol (IP) address. The new gateway address takes effect immediately.
  • Page 223 0-255. set key Use the set key command to enable a specific keyed feature. To acquire a feature key code, contact Force10 Networks Customer Support. Currently, keyed features (if available) can be enabled on a Controller or a Router. Syntax: set [rtr_card-addr] key {“key-code”}...
  • Page 224 Variable Definition To configure the Adit 600 using the DIP switches. To configure using the Command Line Interface (CLI). set login auth Use the set login auth command to set the authentication method for controller logins, with local database or external RADIUS servers.
  • Page 225 CLI Commands set login support Use the set login support command to enable/disable the internal login accounts for Force10 Networks Support personnel for the Controller and Router cards (IP, CMG, TSR). Syntax: set login support {disable|enable} Example: set login support disable The example will prohibit logins via Force10 Networks Support passwords.
  • Page 226 Use the set ntp enable command to enable both Network Time Protocol (NTP) processing (RFC 2030). The initial default for this processing is disabled. Syntax: set ntp enable Example: set ntp enable The example will start NTP processing on the Controller. 5-104 Adit 600 - Release 10.1.1...
  • Page 227 Offset from GMT in hours. Range is from -12 - 12, with a default of 0. minute-offset An optional parameter which sets the offset from GMT in minutes. Range is from 0 - 59, with a default of 0. This is used for half hour time zones. Adit 600 - Release 10.1.1 5-105...
  • Page 228 Set OCU-DP baud rate to 56000 (Default) sw56 Set to switched 56 service sw56cp Set to switched 56 service with call progress capability. Sends special call progress CMI codes to DSU. 64000 Set OCU-DP baud rate to 64000 5-106 Adit 600 - Release 10.1.1...
  • Page 229 Set CSU manual loop codes detection Set DSU manual loop codes detection Set OCU manual loop codes detection Set up latching loopback detection nllb Set up non-latching loopback detection disable Disable loop detection enable Enable loop detection Adit 600 - Release 10.1.1 5-107...
  • Page 230 {ocudp-addr} selftest Example: set 3:2 selftest Variable Definition ocudp-addr The {slot:port} address of the OCUDP card. slot - Slot number (1-6) where the OCUDP card is located port - Port number or range. 5-108 Adit 600 - Release 10.1.1...
  • Page 231 Passwords must be from 6 to 10 characters in length. For character restrictions, see the set user password command. short Passwords are not required to log into system. If passwords are assigned, they can contain from 1 to 10 characters. (Default.) Adit 600 - Release 10.1.1 5-109...
  • Page 232 Set the receive gain. Range is 6 to -12, in .25 increments. Default is -6 dB. txgain Set the transmit gain. Range is 6 to -12, in .25 increments. Default is -3 dB. 5-110 Adit 600 - Release 10.1.1...
  • Page 233 Syntax: set radius retries {number} Example: set radius retries 2 Variable Definition number The number of retries for each RADIUS servers. Range is 1-6, with a default of 3. Adit 600 - Release 10.1.1 5-111...
  • Page 234 2 Variable Definition seconds The number of seconds to wait for a reply after each request before the next attempt. Range is 1 - 6, with a default of 3 seconds. 5-112 Adit 600 - Release 10.1.1...
  • Page 235 1 compander alaw Variable Definition cmg_card-addr The slot number (1-6) that contains the CMG Router card alaw The companding algorithm used in Europe and elsewhere. mulaw The companding algorithm used in North America. Adit 600 - Release 10.1.1 5-113...
  • Page 236 (router) dhcp client transmit set (router) dhcp server netbios packet broadcast bit nodetype set (router) dhcp disable set (router) dhcp server netbios scope set (router) dhcp relay server set (router) dhcp server startaddr 5-114 Adit 600 - Release 10.1.1...
  • Page 237 Note: To disable the DHCP Client, see the set (router-lan) ip address. Syntax: set {rtr_card-addr} dhcp client enable Example: set 3 dhcp client enable Variable Definition rtr_card-addr The slot number (1-6) that contains the Router (IP, CMG or TSR) card. Adit 600 - Release 10.1.1 5-115...
  • Page 238 If the DHCP client is not enabled this command has no effect. It is enabled, the card will perform a typical lease renewal sequence based on its current DHCP configurables. 5-116 Adit 600 - Release 10.1.1...
  • Page 239 IP-less Forever Lease of our supported requestable options, excluding the IP/Mask options. disable Will disable the request of this parameter from the DHCP server. enable Will enable the request of this parameter from the DHCP server. Adit 600 - Release 10.1.1 5-117...
  • Page 240 The IP address of the server to relay to, in the form of xxx.xxx.xxx.xxx, where xxx is between 0-255. profile-name The profile name for the Router interface that is used to reach this destination. This name must be enclosed in quotes, with a maximum of 11 characters. 5-118 Adit 600 - Release 10.1.1...
  • Page 241 5 dhcp server duration 3:45 Variable Definition rtr_card-addr The slot number (1-6) that contains the Router (IP, CMG or TSR) card. hours:minutes The lease duration in hours and minutes. hours = 1-999 minutes = 1-59. Adit 600 - Release 10.1.1 5-119...
  • Page 242 The slot number (1-6) that contains the Router (IP, CMG or TSR) card. scope-name The Scope is a DHCP option that represents a grouping of computers on a subnet using the same NetBIOS name. Enter up to 41 alphanumeric characters for the scope-name, enclosed in quotes. 5-120 Adit 600 - Release 10.1.1...
  • Page 243 {cmg_card-addr} dialplan timeout interdigit long {seconds} Example: set 6 dialplan timeout interdigit long 30 Variable Definition cmg_card-addr The slot number (1-6) that contains the CMG Router card. seconds The number of seconds (1-60). The default is 16. Adit 600 - Release 10.1.1 5-121...
  • Page 244 3 dns domain “mycompany.com” Variable Definition rtr_card-addr The slot number (1-6) that contains the Router (IP, CMG or TSR) card. domain-name The domain name, with a maximum of 43 characters. Name must be enclosed in quotes. 5-122 Adit 600 - Release 10.1.1...
  • Page 245 The slot number (1-6) that contains the Router (IP, CMG or TSR) card. Setup IP address of DNS server 1 Setup IP address of DNS server 2 ip-addr The IP address, in the form of xxx.xxx.xxx.xxx, where xxx is between 0-255. Adit 600 - Release 10.1.1 5-123...
  • Page 246 Definition rtr_card-addr The slot number (1-6) that contains the Router (IP, CMG or TSR) card. annexd Set LMI to Annex D. disable Disable LMI on the Router. Set LMI to LMI rev1 (DLCI 1023) 5-124 Adit 600 - Release 10.1.1...
  • Page 247 Stop adding new entries when log is full (Default) last Always add new entries, overwrite old entries. detail Displays the log entries in greater detail, which will cause fewer entries to fit in the log. Adit 600 - Release 10.1.1 5-125...
  • Page 248 5 login prompt disable Variable Definition rtr_card-addr The slot number (1-6) that contains the Router (IP, CMG or TSR) card. disable Do not present a login prompt. enable Present a login prompt. Default. 5-126 Adit 600 - Release 10.1.1...
  • Page 249 (router) mgcp package default set (router) mgcp timeout set (router) mgcp parsemode set (router) mgcp tos set (router) mgcp piggyback set (router) mgcp up set (router) mgcp port set (router) mgcp version set (router) mgcp protocolid Adit 600 - Release 10.1.1 5-127...
  • Page 250 1 mgcp addressformat nobrackets Variable Definition cmg_card-addr The slot number (1-6) that contains the CMG card. brackets MGCP will place brackets around IP addresses (Default) nobrackets MGCP will not place brackets around IP addresses 5-128 Adit 600 - Release 10.1.1...
  • Page 251 Enter one of the following algorithms: g711mu, g711a, g726_16, g726_24, g726_32, g726_40, g729a. algorithm-name The MGCP algorithm name for the CMG card. This name must be enclosed in quotes, with a maximum of 16 characters. Adit 600 - Release 10.1.1 5-129...
  • Page 252 The default IP address for MGCP to send command to call agent. In the form of xxx.xxx.xxx.xxx, where xxx is between 0-255. domain-name The default domain name for MGCP to send commands to call agent. Name has a maximum of 43 characters, enclosed in quotes. 5-130 Adit 600 - Release 10.1.1...
  • Page 253 1 mgcp callagent port 2427 Variable Definition cmg_card-addr The slot number (1-6) that contains the CMG card. port-number Port number for MGCP on the call agent. Range is from 1025 to 65535. Default 2727. Adit 600 - Release 10.1.1 5-131...
  • Page 254 1 mgcp callagent secondary port 5000 Variable Definition cmg_card-addr The slot number (1-6) that contains the CMG card. port-num Default port number for MGCP on the secondary call agent. Range from 0 to 65535, with a default of 2727. 5-132 Adit 600 - Release 10.1.1...
  • Page 255 Example: set 1 mgcp dialstring format commas Variable Definition cmg_card-addr The slot number (1-6) that contains the CMG card. commas Insert commas between digit events (Default) nocommas Do not insert commas between digit events Adit 600 - Release 10.1.1 5-133...
  • Page 256 Wait a defined time (see time below) before taking endpoint out of service, disconnect any remaining calls. No new calls established during waiting period [time] Number of seconds to wait before taking endpoints Out-of-Service. Default time is 60 seconds. 5-134 Adit 600 - Release 10.1.1...
  • Page 257 The slot number (1-6) that contains the CMG card. disable Disables the MGCP keep-alive timer. Default is disable. minutes The number of minutes for the countdown timer. Range is 0 - 255, where 0 will also disable the timer. Adit 600 - Release 10.1.1 5-135...
  • Page 258 CODEC. enable The LCO ptime is used to determine which packetization times may be used for the call. 5-136 Adit 600 - Release 10.1.1...
  • Page 259 1 mgcp package default g Variable Definition cmg_card-addr The slot number (1-6) that contains the CMG card. Make the DTMF (D) package the default Make the General (G) package the default Make the Line (L) package the default Adit 600 - Release 10.1.1 5-137...
  • Page 260 {cmg_card-addr} mgcp piggyback {disable|enable} Example: set 1 mgcp piggyback enable Variable Definition cmg_card-addr The slot number (1-6) that contains the CMG card. disable Disallow sending of piggyback commands (Default) enable Allow sending of piggybacked commands 5-138 Adit 600 - Release 10.1.1...
  • Page 261 If the protocol ID setting is set to “default” or the null string (""), then the following default strings will be used depending on the configured MGCP version. MGCP Version Default Protocol ID ietf10 MGCP 1.0 ietf01 MGCP 0.1 MGCP 0.1 NCS 1.0 Adit 600 - Release 10.1.1 5-139...
  • Page 262 1 mgcp report hookswitch onrequest Variable Definition cmg_card-addr The slot number (1-6) that contains the CMG card. always Always report hookswitch events (Default) onrequest Wait for a request from the call agent before reporting hookswitch events 5-140 Adit 600 - Release 10.1.1...
  • Page 263 Normal mode. Note: To enhance Fallback mode functionality, the CMG Router can respond to input from a user- configured RSIP scheduler server. See the set (router) mgcp rsipscheduler qtimeout command for additional information. Adit 600 - Release 10.1.1 5-141...
  • Page 264 The IP address of the RSIP scheduler server, in the form xxx.xxx.xxx.xxx, where xxx is between 0-255. "domain-name" The domain name of the RSIP scheduler server. The name must be enclosed in quotes, with a maximum length of 41 characters. 5-142 Adit 600 - Release 10.1.1...
  • Page 265 The slot number (1-6) that contains the CMG card. value The number of unsuccessful RSIP messages that must be sent to cause the transition from Normal to Fallback mode. The range is 0 - 255. The default is 3. Adit 600 - Release 10.1.1 5-143...
  • Page 266 {cmg_card-addr} mgcp rsipscheduler port {value} Example: set 1 mgcp rsipscheduler port 9999 Variable Definition cmg_card-addr The slot number (1-6) that contains the CMG card. value The UDP port number for the RSIP scheduler server. The default is 2727. 5-144 Adit 600 - Release 10.1.1...
  • Page 267 The format can be n/sec, n/min and n/hour where n is the rate number (0 - 3600). If not specified, the value set by the set (router) mgcp rsipscheduler normal command will be used. Adit 600 - Release 10.1.1 5-145...
  • Page 268 The slot number (1-6) that contains the CMG card. value The randomization percentage to be introduced into the periodic RSIP intervals. The range is 0 - 50%. The default is 20%. A value of 0 disables randomization. 5-146 Adit 600 - Release 10.1.1...
  • Page 269 The slot number (1-6) that contains the CMG card. The SDP CODEC priority order that will follow the LCO settings. See set (router) mgcp lco. rdesc The SDP CODEC priority order will follow the Remote Descriptor. Adit 600 - Release 10.1.1 5-147...
  • Page 270 {cmg_card-addr} mgcp timeout {milliseconds} Example: set 1 mgcp timeout 5000 Variable Definition cmg_card-addr The slot number (1-6) that contains the CMG card. milliseconds Range: 0 to 65535 milliseconds. Default is 3000 milliseconds (3 seconds). 5-148 Adit 600 - Release 10.1.1...
  • Page 271 0xC0 AF23 = 010110 0x58 IP Precedence = 7 0xE0 AF31 = 011010 0x68 AF32 = 011100 0x70 AF33 = 011110 0x78 AF41 = 100010 0x88 AF42 = 100100 0x90 AF43 = 100110 0x98 Adit 600 - Release 10.1.1 5-149...
  • Page 272 The slot number (1-6) that contains the CMG card. ietf01 IETF MGCP version 0.1, as specified in an IETF MGCP Internet draft ietf10 IETF MGCP version 1.0, as specified in IETF RFC 3435 (Default) PacketCable MGCP version NCS 1.0 5-150 Adit 600 - Release 10.1.1...
  • Page 273 5 network info enable Variable Definition rtr_card-addr The slot number (1-6) that contains the Router (IP, CMG, or TSR) card. enable Enables the propagation of the network information. disable Disables the propagation of the network information. (Default) Adit 600 - Release 10.1.1 5-151...
  • Page 274 1 ntp poll 120 Variable Definition rtr_card-addr The slot number (1-6) that contains the Router (IP, CMG or TSR) card. seconds The number of seconds between polls. Seconds range is 16 to 1024. Default is 16. 5-152 Adit 600 - Release 10.1.1...
  • Page 275 The slot number (1-6) that contains the Router (IP, CMG or TSR) card. hour-offset Used to calculate gateway time from GMT. The hour-offset range is -12 to 12. minute-offset Used to calculate gateway time from GMT. The minute-offset range is 0 to 60. Adit 600 - Release 10.1.1 5-153...
  • Page 276 Set Security level password on the Router. view Set View level password on the Router. password A password with a maximum of 15 characters. Password must be enclosed in quotes, and is case-sensitive. 5-154 Adit 600 - Release 10.1.1...
  • Page 277 Set baud rate to 4800 9600 Set baud rate to 9600 19200 Set baud rate to 19200 38400 Set baud rate to 38400 57600 Set baud rate to 57600 115400 Set baud rate to 115400 Adit 600 - Release 10.1.1 5-155...
  • Page 278 The slot number (1-6) that contains the TSR card. port-number The port number (1-4) of the TSR card. disable Disable will not use the reset feature. Default enable Enable causes the session to teardown when DSR goes low. 5-156 Adit 600 - Release 10.1.1...
  • Page 279 The port number (1-4) of the TSR card. disable Disable will not use a inactivity timer. Default. time The inactivity timer will cause the session to timeout and teardown when a value is entered. Range is 1 - 999. Adit 600 - Release 10.1.1 5-157...
  • Page 280 The slot number (1-6) that contains the TSR card. port-number The port number (1-4) of the TSR card. even Set even parity to the TSR port none Set no parity to the TSR port Set odd parity to the TSR port 5-158 Adit 600 - Release 10.1.1...
  • Page 281 The slot number (1-6) that contains the TSR card. port-number The port number (1-4) of the TSR card. disable Disable Authentication Prompt on a TSR port. enable Set the Authentication Prompt on a TSR port. Adit 600 - Release 10.1.1 5-159...
  • Page 282 Stop bits values available. Note: If 1.5 Stop Bits is selected, the Data Bits setting MUST be 5 Data Bits, if 2 Stop Bits is selected, 5 Data Bits MUST NOT be selected. See set (router) port stopbits on page 5-160. 5-160 Adit 600 - Release 10.1.1...
  • Page 283 Alcatel MDR-4000 radio for monitoring lynx_1_4_port_prot_sw Proxium Lynx radio lynx_8_port_prot_sw Proxium Lynx radio lynx_ds3 Proxium Lynx radio lynx_hd_31145_10 Proxium Lynx radio lynx_hd_31145_1f Proxium Lynx radio none None will disable monitoring for that TBOS display. Adit 600 - Release 10.1.1 5-161...
  • Page 284 The slot number (1-6) that contains the Router (IP, CMG or TSR) card. chap Set to the CHAP protocol. none The remote PPP device cannot authenticate this Adit (Default). Set to the PAP protocol. 5-162 Adit 600 - Release 10.1.1...
  • Page 285 The slot number (1-6) that contains the Router (IP, CMG or TSR) card. profilename Use the profile name as the CHAP or PAP user name. protocol-name The CHAP or PAP user name. A maximum of 16 characters, enclosed in quotes. Adit 600 - Release 10.1.1 5-163...
  • Page 286 Variable Definition rtr_card-addr The slot number (1-6) that contains the Router (IP, CMG or TSR) card. ip-addr The IP address, in the form of xxx.xxx.xxx.xxx, where xxx is between 0-255. 5-164 Adit 600 - Release 10.1.1...
  • Page 287 Will set the server to use the RADIUS (Remote Authentication Dial-In Service) protocol. RADIUS is a client/server-based authentication software system. tacacs Will set the server to use the TACACS+ (Terminal Access Controller Access Control System) protocol. TACACS+ provides services of authentication, authorization and accounting independently. Adit 600 - Release 10.1.1 5-165...
  • Page 288 IP Precedence = 7 0xE0 0xE0 AF31 = 011010 0xFC 0x68 AF32 = 011100 0xFC 0x70 AF33 = 011110 0xFC 0x78 AF41 = 100010 0xFC 0x88 AF42 = 100100 0xFC 0x90 AF43 = 100110 0xFC 0x98 5-166 Adit 600 - Release 10.1.1...
  • Page 289 Controller can be accessed by IP hosts over the Router’s LAN/WAN interfaces without using the Controller’s physical Ethernet interface. Note: When more than one router card is in use, multiple proxies may be established, but the Adit 600 limits Telnet sessions to just one of them at a time.
  • Page 290 Router subnets or be equal to one of the Router IP addresses if the user wishes to have both devices share a single IP address, and that the IP gateway address be set to equal the proxy address. 5-168 Adit 600 - Release 10.1.1...
  • Page 291 The slot number (1-6) that contains the Router (IP, CMG or TSR) card. recv Set RIP receive version send Set RIP send version Set RIP to version 1 v1and2 Set RIP to version 1 and version 2 Set RIP to version 2 Adit 600 - Release 10.1.1 5-169...
  • Page 292 Variable Definition rtr_card-addr The slot number (1-6) that contains the Router (IP, CMG or TSR) card. system-name The value of sysName, with a maximum of 64 ASCII characters. Name must be enclosed in quotes. 5-170 Adit 600 - Release 10.1.1...
  • Page 293 3 stp bridge hellotime 3 Variable Definition rtr_card-addr The slot number (1-6) that contains the Router (IP, CMG or TSR) card. value The value can range from 1 to 10 seconds, with a default of 2. Adit 600 - Release 10.1.1 5-171...
  • Page 294 The slot number (1-6) that contains the Router (IP, CMG or TSR) card. Enter {slot} only. If {slot:port} is entered the command will be directed to the Router LAN and not the Router Card. disable Disable Spanning Tree protocol enable Enable Spanning Tree protocol 5-172 Adit 600 - Release 10.1.1...
  • Page 295 Enter {slot} only. If {slot:port} is entered the command will be directed to the Router LAN and not the Router Card. value The range of valid facility values is from 0 to 23, with a default of 16 (local use 0). Adit 600 - Release 10.1.1 5-173...
  • Page 296 The slot number (1-6) that contains the Router (IP, CMG or TSR) card. ip-addr Set the IP address for the external Syslog server, using the form xxx.xxx.xxx.xxx, where xxx is a number from 0 to 255. 5-174 Adit 600 - Release 10.1.1...
  • Page 297 The example enables automatic adjustment for Daylight Savings Time on the CMG card in slot 1. Variable Definition disable Disables automatic adjustment for Daylight Savings Time. (Default.) enable Enables automatic adjustment for Daylight Savings Time. Adit 600 - Release 10.1.1 5-175...
  • Page 298 Use the set (router) voip default command to set all VoIP options to their default values. NOTE: This command applies to the CMG Router card only. Syntax: set {cmg_card-addr} voip default Example: set 3 voip default Variable Definition cmg_card-addr The slot number (1-6) that contains the CMG card. 5-176 Adit 600 - Release 10.1.1...
  • Page 299 Variable Definition cmg_card-addr The slot number (1-6) that contains the CMG card. disable Will prevent the use of the G.729 codec. enable Will allow the use of the G.729 codec. Enable is the default. Adit 600 - Release 10.1.1 5-177...
  • Page 300 This command applies to the CMG Router card only. Syntax: set {cmg_card-addr} voip osi {milliseconds} Example: set 3 voip osi 1000 Variable Definition cmg_card-addr The slot number (1-6) that contains the CMG Router card. milliseconds 500-2500 milliseconds. 5-178 Adit 600 - Release 10.1.1...
  • Page 301 3 voip payload type lenient Variable Definition cmg_card-addr The slot number (1-6) that contains the CMG card. lenient Process packets with invalid payload type strict Do not process packets with invalid payload type (Default) Adit 600 - Release 10.1.1 5-179...
  • Page 302 Set packetization time for all algorithms time Default packetization time in milliseconds. Valid values are 10, 20, 30, 40, 50, 60, 70, or 80 milliseconds. Where 40 through 80 are only valid for g729a 5-180 Adit 600 - Release 10.1.1...
  • Page 303 Variable Definition cmg_card-addr The slot number (1-6) that contains the CMG card. seconds Interval time is in seconds, range is 0 to 255. If zero, RTCP reporting is turned off. Default is 5 seconds. Adit 600 - Release 10.1.1 5-181...
  • Page 304 The G.729 feature is protected by a software key. Until an appropriate key is entered to enable this feature is will not be usable. The command, however, will still succeed to allow for pre-configuration. For additional information on how to purchase this feature, contact Customer Support. 5-182 Adit 600 - Release 10.1.1...
  • Page 305 Set payload type and name for the Named Service Event (NSE). Type ranges is 98-119, with a default of 100. type RTP dynamic payload type, Range is 0 - 12, unless otherwise listed above. name Identifier up to 15 characters, enclosed in quotes. Adit 600 - Release 10.1.1 5-183...
  • Page 306 This setting allows the user to accept/attempt ECM T38 negotiation. It should be noted that when ECM is enabled, the fax call might train at a lower speed, thus lengthening the overall fax call time. Enable is the default. 5-184 Adit 600 - Release 10.1.1...
  • Page 307 During a CMG's voice call when a voice channel is sending T.38 fax payload packets, this setting allows the user to define the number of redundant or duplicate packets sent during a low speed T.38 fax call. Range is 1-8 packets. Adit 600 - Release 10.1.1 5-185...
  • Page 308 The number of collisions in the collision interval time period below which a standing excess collision alarm is cleared. count The number of collisions in the collision interval time period. Range is 0 - 65535. 5-186 Adit 600 - Release 10.1.1...
  • Page 309 Enable or disable a frame type for protocols other than IP and IPX ethii Ethernet II framing ieee8022 IEEE 802.2 framing ieee8023 IEEE 802.3 framing snap LLC/SNAP framing disable Disable the frame type enable Enable the frame type Adit 600 - Release 10.1.1 5-187...
  • Page 310 Name must be enclosed in quotes, with a maximum of 11 characters. ip-addr The Router IP address, in the form of xxx.xxx.xxx.xxx, where xxx is between 0-255. mask The subnet mask, in the form of xxx.xxx.xxx.xxx, where xxx is between 0-255 5-188 Adit 600 - Release 10.1.1...
  • Page 311 - Profile name for the Router interface used to reach this destination. Name must be enclosed in quotes, with a maximum of 11 characters. auto Auto-negotiate (highly recommended). full10 10 MHz full-duplex. full100 100 MHz full-duplex. half10 10 MHz half-duplex. half100 100 MHz half-duplex. Adit 600 - Release 10.1.1 5-189...
  • Page 312 Shut IPX RIP (or IPX RIP and SAP) off completely. recv Enable IPX RIP (or IPX RIP and SAP) in the receive direction only. send Enable IPX RIP (or IPX RIP and SAP) in the send direction. 5-190 Adit 600 - Release 10.1.1...
  • Page 313 The value can range from 1 to 65535, higher values represent slower data paths. For a 100 Mb LAN a value of 19 is recommended. For a 10 Mb LAN a value of 100 is recommended Adit 600 - Release 10.1.1 5-191...
  • Page 314 Router port is set down, a link failure will not cause an alarm. This can be used to eliminate alarms from Router ports that are not in-use. When the Router port is set up, a link failure on the Ethernet port will cause an alarm to be reported to the Adit 600. Syntax:...
  • Page 315 - The slot number (1-6) that contains the Router card. port - Port number of the Router. trunk - Trunk number for this port, 1-24. number The multilink group number. Range is 1-24. Adit 600 - Release 10.1.1 5-193...
  • Page 316 - The slot number (1-6) that contains the Router card. port - Port number of the Router. trunk - Trunk number for this port, 1-24. down Set the WAN down. Set the WAN up. 5-194 Adit 600 - Release 10.1.1...
  • Page 317 - The slot number (1-6) that contains the Router card. port - Port number of the Router. trunk - Trunk number for this port, 1-24. percent The maximum percentage of VoIP bandwidth. Range is 0 - 100. Adit 600 - Release 10.1.1 5-195...
  • Page 318 G.711 mu-law PCM - 56 or 64 kb/s g729a G.729 CS-ACELP - 8 kb/s g726_40 G.726 ADPCM - 40 kb/s g726_32 G.726 ADPCM - 32 kb/s g726_24 G.726 ADPCM - 24 kb/s g726_16 G.726 ADPCM - 16 kb/s 5-196 Adit 600 - Release 10.1.1...
  • Page 319 In the form {slot:voip:channel} slot - The slot number (1-6) that contains the CMG card. voip - To designate VoIP 1:1 is used. channel - Channel number for the router is 1-48, range or all Adit 600 - Release 10.1.1 5-197...
  • Page 320 - The slot number (1-6) that contains the CMG card. voip - To designate VoIP 1:1 is used. channel - Channel number for the router is 1-48, range or all seconds The number of seconds (1-10). The default is 4. 5-198 Adit 600 - Release 10.1.1...
  • Page 321 - To designate VoIP 1:1 is used. channel - Channel number for the router is 1-48, range or all disable Disable DTMF relay as the default for voice calls (Default) enable Enable DTMF relay as the default for voice calls Adit 600 - Release 10.1.1 5-199...
  • Page 322 - The slot number (1-6) that contains the CMG card. voip - To designate VoIP 1:1 is used. channel - Channel number for the router is 1-48, range or all milliseconds Valid values: 8, 16, 24, 32 and 64. Default is 16 milliseconds. 5-200 Adit 600 - Release 10.1.1...
  • Page 323 - The slot number (1-6) that contains the CMG card. voip - To designate VoIP 1:1 is used. channel - Channel number for the router is 1-48, range or all suffix An identifier with a maximum of 16 characters, enclosed in quotes. Adit 600 - Release 10.1.1 5-201...
  • Page 324 - To designate VoIP 1:1 is used. channel - Channel number for the router is 1-48, range or all both Record MGCP protocol events and errors errors Record protocol and other errors only mgcp Record MGCP protocol events only 5-202 Adit 600 - Release 10.1.1...
  • Page 325 A Modem call would be treated as a normal voice call. No special processing or codec re-negotiation is used. (Default.) bypass Will cause the line to transmit in G.711 mode, with echo cancellation and silence suppression disabled, on detection of Modem tone. Adit 600 - Release 10.1.1 5-203...
  • Page 326 - Channel number for the router is 1-48, range or all default Sets the payload type to the DTMF Relay payload type value (normally 97). This setting is the default. number Range between 94 - 127. 5-204 Adit 600 - Release 10.1.1...
  • Page 327 RTP ABCD signaling is not refreshed periodically. After 16 seconds or less, the CMG will terminate a constant RING-ON RTP ABCD signaling event. This will prevent the ringing forever condition when Ethernet connectivity is lost. Adit 600 - Release 10.1.1 5-205...
  • Page 328 - To designate VoIP 1:1 is used. channel - Channel number for the router is 1-48, range or all value The periodic refresh interval of RTP signaling states. Range is 500 - 4000 milliseconds. Default is 4000 5-206 Adit 600 - Release 10.1.1...
  • Page 329 - The slot number (1-6) that contains the CMG card. voip - To designate VoIP 1:1 is used. channel - Channel number for the router is 1-48, range or all fxsls FXS loop start signaling. (Default) fxsgs FXS ground start signaling. Adit 600 - Release 10.1.1 5-207...
  • Page 330 - Channel number for the router is 1-48, range or all disable Suppress the use of a slash between the endpoint prefix and suffix. enable Insert a slash between the endpoint prefix and suffix. (Default) 5-208 Adit 600 - Release 10.1.1...
  • Page 331 - The slot number (1-6) that contains the CMG card. voip - To designate VoIP 1:1 is used. channel - Channel number for the router is 1-48, range or all gain Gain range is -14 to 14 dB. Default is 0 dB. Adit 600 - Release 10.1.1 5-209...
  • Page 332 Definition rtr_card-addr The slot number (1-6) that contains the Router (IP, CMG or TSR) card. wan-name The WAN interface to modify. The name must be enclosed in quotes. value DLCI value to use, 16-1022. 5-210 Adit 600 - Release 10.1.1...
  • Page 333 0-255. tunnel-name A symbolic name to give to this tunnel, required if GRE tunneling is set to All, prohibited if GRE tunneling is set to By Network. Up to 12 characters, enclosed in quotes. Adit 600 - Release 10.1.1 5-211...
  • Page 334 The WAN interface to modify. The name must be enclosed in quotes. block Set the WAN to block IP. bridge Set the WAN to bridge IP. route Set the WAN to route IP. 5-212 Adit 600 - Release 10.1.1...
  • Page 335 Set the WAN to bridge IPX with optimized local advertising IPX servers and networks. optimize Setting to optimize enables the Adit to use Force10 Networks’ network optimization feature, which ensures that only necessary data is transmitted over the WAN connection. The Adit will initiate IPX learning mode. Learning mode is effective for optimizing bandwidth usage for IPX RIP, SAP, serialization and watchdog (IPX and SPX) packets.
  • Page 336 The slot number (1-6) that contains the Router (IP, CMG or TSR) card. wan-name The WAN interface to modify. The name must be enclosed in quotes. size Fragmentation size. Range is 320 to 1600 bytes, with a default of 1600. 5-214 Adit 600 - Release 10.1.1...
  • Page 337 The slot number (1-6) that contains the Router (IP, CMG or TSR) card. wan-name The WAN interface to modify. The name must be enclosed in quotes. disable Disable NAT mapping. enable Enable NAT mapping. Adit 600 - Release 10.1.1 5-215...
  • Page 338 The WAN interface to modify. The name must be enclosed in quotes. block Set the WAN to block protocols other than IP or IPX. bridge Set the WAN to bridge protocols other than IP or IPX. 5-216 Adit 600 - Release 10.1.1...
  • Page 339 Typical data on this interface is easy to compress, such as text files (Default). enable Enable PPP compression negotiation. hard Typical data on this interface is hard to compress, such as binary files. Adit 600 - Release 10.1.1 5-217...
  • Page 340 The WAN interface to modify. The name must be enclosed in quotes. never Set the WAN to not send RIP updates. periodic Set the WAN to send periodic RIP updates. triggered Set the WAN to send triggered RIP updates. 5-218 Adit 600 - Release 10.1.1...
  • Page 341 The slot number (1-6) that contains the Router (IP, CMG or TSR) card. wan-name The WAN interface to modify. The name must be enclosed in quotes. disable Disable Spanning Tree on this interface. enable Enable Spanning Tree on this interface. Adit 600 - Release 10.1.1 5-219...
  • Page 342 The WAN interface to modify. The name must be enclosed in quotes. multilink-group This optional parameter, indicates the number the multilink group will use, else the number is the trunk number to use. number Trunk or multilink group number to use, range is 1-24. 5-220 Adit 600 - Release 10.1.1...
  • Page 343 Set the Clear To Send operation mode to one of the following: Follow CD high Force CTS high Force CTS low remote Follow state of remote handshake line. Not valid at 64 kbps Follow RTS Adit 600 - Release 10.1.1 5-221...
  • Page 344 40 lines of a long output before pausing. To set the screen to scroll without pausing, set the screen height to 0. Syntax: set screen {screen-height|off} Where screen-height is the number of lines in the scrolling output screen. 5-222 Adit 600 - Release 10.1.1...
  • Page 345 Set event trap severity limit to 'critical'. major Set event trap severity limit to 'major'. minor Set event trap severity limit to 'minor'. warning Set event trap severity limit to 'warning'. none Set event trap severity limit to 'none'. Adit 600 - Release 10.1.1 5-223...
  • Page 346 Use the set snmp engineid command to specify the ID for the local SNMPv3 engine. NOTE: SNMPv3 is a keyed feature. Keys must be purchased from Force10 Networks. The Controller must be running release 9.8 or higher to support SNMPv3.
  • Page 347 Use the set snmp group command to assign MIB views to an SNMPv3 group. You can assign separate read, write, and notify views. NOTE: SNMPv3 is a keyed feature. Keys must be purchased from Force10 Networks. The Controller must be running release 9.8 or higher to support SNMPv3. Syntax: set snmp group {"group-name"}...
  • Page 348 Use the set snmp view command to change the OID assignment(s) for an existing SNMPv3 MIB view. NOTE: SNMPv3 is a keyed feature. Keys must be purchased from Force10 Networks. The Controller must be running release 9.8 or higher to support SNMPv3. Syntax: set snmp view {“view-name”} {n} {"OID"|none}...
  • Page 349 Trace level. Range is 0 - 7, with a default of 0. 0 - Disabled (Default) 1 - Fatal 2 - Error 3 - Info 4 - Verbose 5 - Debug 1 6 - Debug 2 7 - Debug 3 Adit 600 - Release 10.1.1 5-227...
  • Page 350 Variable Definition none Set the RSA1 public and private key pair to none used and clear any saved keys. (Default) Set the RSA1 public and private key pair to a newly generated random value. 5-228 Adit 600 - Release 10.1.1...
  • Page 351 Use the set ssh1 command to enable or disable SSH v1. The default for SSH v1 is enabled. This command takes effect immediately, but does not impact any pre-existing sessions. Syntax: set ssh1 {enable|disable} Example: set ssh1 disable Variable Definition enable Enables SSH v1. (Default) disable Disables SSH v1. Adit 600 - Release 10.1.1 5-229...
  • Page 352 Use the set ssh2 command to enable or disable SSH v2. The default for SSH v2 is enabled. This command takes effect immediately, but does not impact any pre-existing sessions. Syntax: set ssh2 {enable|disable} Example: set ssh2 disable Variable Definition enable Enables SSH v2. (Default) disable Disables SSH v2. 5-230 Adit 600 - Release 10.1.1...
  • Page 353 The command will fail if there is not at least one Syslog server configured, see set syslog server. The initial default setting is disabled. NOTE: This command is available to Manager-level users only. Syntax: set syslog enable Example: set syslog enable The example will enable Syslog on the Controller. Adit 600 - Release 10.1.1 5-231...
  • Page 354 Sets all (1-3) external Syslog servers. server-num External Syslog server number. Range 1 - 3. value The facility value to report in the Syslog messages sent to the server. Range is 0 - 23, with a default of 16. 5-232 Adit 600 - Release 10.1.1...
  • Page 355 4 - Only critical, major and minor alarms will be sent 5 - Only critical, major, minor alarms and alert events will be sent 6 - Only critical, major, minor alarms, alert and informational events will be sent Adit 600 - Release 10.1.1 5-233...
  • Page 356 {disable|enable} Example: set time daylightsavings enable The example enables automatic adjustment for Daylight Savings Time. Variable Definition disable Disables automatic adjustment for Daylight Savings Time. (Default.) enable Enables automatic adjustment for Daylight Savings Time. 5-234 Adit 600 - Release 10.1.1...
  • Page 357 Use the set user auth command to set the SNMPv3 authentication protocol for a user. NOTE: SNMPv3 is a keyed feature. Keys must be purchased from Force10 Networks. The Controller must be running release 9.8 or higher to support SNMPv3.
  • Page 358 Use the set user group command to assign users to SNMPv3 groups. NOTE: SNMPv3 is a keyed feature. Keys must be purchased from Force10 Networks. The Controller must be running release 9.8 or higher to support SNMPv3. Syntax: set user {“user-name”} group {"group-name"}...
  • Page 359 {“user-name”} password Example: set user “john” password New Password: ****** New Password again: ****** Variable Definition user-name An existing user name (added to the system with the add user command). Must be enclosed in quotes. Adit 600 - Release 10.1.1 5-237...
  • Page 360 Use the set user priv command to set the SNMPv3 encryption protocol and privacy password for a user. NOTE: SNMPv3 is a keyed feature. Keys must be purchased from Force10 Networks. The Controller must be running release 9.8 or higher to support SNMPv3. Syntax: set user {“user-name”} priv {des|none|password}...
  • Page 361 Set the data rate for each DS0 to which a V.35 is crossconnected 56K data rate 64K data rate txclkinv Set the transmit clock invert mode to one of the following: invert invert the transmit clock normal do not invert the transmit clock Adit 600 - Release 10.1.1 5-239...
  • Page 362 Syntax: set {v54-addr} v54 network enable prepcnt Syntax: set {v54-addr} v54 network prepcnt {nnn} Sets the preparatory pattern response count. nnn = number of times that the preparatory pattern must be received to be recognized. 5-240 Adit 600 - Release 10.1.1...
  • Page 363 Use the set verification command to enable or disable verification prompts. Syntax: set verification {off|on} Example: set verification off The example will cause yes/no verification messages to be suppressed. Variable Definition Turn yes/no verification prompts off. Turn yes/no verification prompts on. Adit 600 - Release 10.1.1 5-241...
  • Page 364 (router-lan) collision show ipds0 show (router-lan) filter show local show (router-lan) firewall show login show (router-lan) static show ntp show (router-lan) stp show (ocudp) show (router-trunk) show password length show (router-voice) 5-242 Adit 600 - Release 10.1.1...
  • Page 365 (router-wan) nat bypass show snmp show (router-wan) ppp show syslog show (router-wan) static show test (fxs8D/fxs8C/fxs8B) show (router-wan) stp show time show (router-wan) trunk show users show routes show (v35) show (rs232) show (v54) Adit 600 - Release 10.1.1 5-243...
  • Page 366 In the form of {slot} or {slot:port}. Note if only the slot is listed all ports will be displayed slot - Slot (1-6) where the 4-Wire E&M card is located. port - Port number, range or "all". 5-244 Adit 600 - Release 10.1.1...
  • Page 367 The ADPCM address is in the form {slot:port}. for all ports on the card, {slot:port} for only the defined port. slot - Slot number (1-6) where the ADPCM card is located port - Port number. range 1-4. Adit 600 - Release 10.1.1 5-245...
  • Page 368 SSH (Secure Shell) is a keyed feature. Keys must be purchased from Force10 Networks. The Controller must be running release 9.7 or higher to support SSH. Syntax: show banner Example: show banner Banner is: WARNING: Unauthorized access is prohibited! 5-246 Adit 600 - Release 10.1.1...
  • Page 369 (Controller card), DS1 2; and the secondary clock source is in slot 6 (BRI card), DS1 1. > show clock Primary Master Transmit Clock Source: Slot A DS1 Secondary Master Transmit Clock Source: Slot 6 BRI Adit 600 - Release 10.1.1 5-247...
  • Page 370 DS0 <--> WAN DATA 2:01:04 Variable Definition slot The slot number, A for the controller card, or 1 - 6 for service cards. port Port number, range or all. channel Channel number, range or all. 5-248 Adit 600 - Release 10.1.1...
  • Page 371 - Slot number (1-6) where the ADPCM card is located port - Port number. range 1-4. show date The show date command displays the date in dd/mm/yyyy format. Example: show date > show date date: 08/10/2002 Adit 600 - Release 10.1.1 5-249...
  • Page 372 NETWORK Variable Definition ds0-addr DS0 address in the format {slot:port:channel}. slot A for the controller card, or 1 - 6 for service cards. port Port number or range. channel Channel number, range or all. 5-250 Adit 600 - Release 10.1.1...
  • Page 373 A for the controller, or 1 - 6 for service cards containing a Quad T1, or Quad DS1/E1 card. port Port number, range or "all". Note: if the port is not defined, all ports will be listed. Adit 600 - Release 10.1.1 5-251...
  • Page 374 CLI Commands show (e1) NOTE: E1 is not supported in this release of the Adit 600 Controller. It will be supported in a future release. The show (e1) command displays settings for E1s. Syntax: show {e1-addr} Example: show 6:1 In the following example, the query show 6:1 has returned the following E1 settings for slot 6, port 1.
  • Page 375 In the form of {slot} or {slot:port}. Note if only slot is listed, all ports will be displayed slot - The slot number (1-6) of the Adit chassis that contains the FXO card port - Port number, range or “all”. Adit 600 - Release 10.1.1 5-253...
  • Page 376 In the form of {slot} or {slot:port}. Note if only slot is listed, all ports will be displayed slot - The slot number (1-6) of the Adit chassis that contains the FXS card port - Port number, range or “all”. 5-254 Adit 600 - Release 10.1.1...
  • Page 377 Note: Wink time displays only when signaling is set to GSW or GSWRB. Variable Definition fxs-addr List of voice channels to apply setting to, in the form {slot:port}. slot - Slot number 1 - 6, location of the FXS card. port - Port number or range. Adit 600 - Release 10.1.1 5-255...
  • Page 378 CLI Commands show (fxsINTL) NOTE: E1 is not supported in this release of the Adit 600 Controller. It will be supported in a future release. The show (fxsINTL) command displays the settings for the E1-FXS card. Syntax: show {fxsINTL-addr} Example: show 2:1 Displays the settings for channel 1 for the E1-FXS card located in Slot 2.
  • Page 379 The example shows the ID of a Adit 600 labeled “Adit 6001" Adit 6001> show id ID: Adit 6001 show idle The show idle command displays the system idle code for the Adit 600. Syntax: show idle Example: show idle >...
  • Page 380 Note: In general, -Law settings are used for T1 applications, A-Law settings are used for E1 μ applications. show ip The show ip command displays the IP Address information for the Adit 600. Syntax: show ip Example: show ip > show ip IP Address and Mask: 192.168.3.193...
  • Page 381 Administrative state: DOWN DS0 Selected: a:1:1 IP Address and Mask: 192.168.210.1 255.255.255.0 show local The show local command shows whether the Adit 600 is in local mode. Syntax: show local Example: show local > show local LOCAL: show login The show login command displays the RADIUS login authentication configuration settings for the Controller.
  • Page 382 Use the show password length command to display the current password length requirement (long or short). See the set password length command for more information. Syntax: show password length Example: show password length password length: short 5-260 Adit 600 - Release 10.1.1...
  • Page 383 The show radius command displays the RADIUS configuration settings for the Controller. Syntax: show radius Example: show radius RADIUS Configuration Parameters: Authentication: enabled for Slot 4 Slot 5 NAS Identifier: Retry count: Timeout (sec): Server(1) : UNUSED Server(2) : UNUSED Server(3) : UNUSED Adit 600 - Release 10.1.1 5-261...
  • Page 384 Octets Packets Octets RemoteAdit DOWN 1h27m16s SNMP Settings for Router: SNMP Communities: Name Address Access public 0.0.0.0 Read SNMP Trap Destinations: Name Address Location public 0.0.0.0 Local LAN Name: unknown Contact: unknown Location: unknown 5-262 Adit 600 - Release 10.1.1...
  • Page 385 Code Config Total: 0 LAN Profile Name for Router: LocalAdit 192.168.3.195 WAN Profile Name(s) for Router: RemoteAdit Unnumbered Variable Definition rtr_card-addr The slot number (1-6) that contains the Router (IP, CMG or TSR) card. Adit 600 - Release 10.1.1 5-263...
  • Page 386 Scope: NetBIOS Name Servers: 0.0.0.0 0.0.0.0 DHCP Option: 0x2 Sent in 1 byte 0x3200 Sent in 2 bytes Variable Definition rtr_card-addr The slot number (1-6) that contains the Router (IP, CMG or TSR) card. 5-264 Adit 600 - Release 10.1.1...
  • Page 387 DHCP SERVER LEASES REPORT Slot-4 DHCP Server Leases: Used=0 Avail=5 # State ClientId Expires HostName No DHCP Leases In Use. Variable Definition rtr_card-addr The slot number (1-6) that contains the Router (IP, CMG or TSR) card. Adit 600 - Release 10.1.1 5-265...
  • Page 388 {rtr_card-addr} dns proxy Example: show 5 dns proxy SLOT 5: DNS Proxy Settings for Router: Total: 0 Variable Definition rtr_card-addr The slot number (1-6) that contains the Router (IP, CMG or TSR) card. 5-266 Adit 600 - Release 10.1.1...
  • Page 389 > show 4 log SLOT 4: Log Settings for CMG: Logging Mode: First Log Details: Call Detail Records (CDR): Disabled Total Ports Logging: 0 Variable Definition cmg_card-addr The slot number (1-6) that contains the CMG card. Adit 600 - Release 10.1.1 5-267...
  • Page 390 The slot number (1-6) that contains the MSR card. eth1 Optional parameter. Shows the MAC address for Ethernet port 1 only. eth2 Optional parameter. Shows the MAC address for Ethernet port 2 only. 5-268 Adit 600 - Release 10.1.1...
  • Page 391 Lenient Quarantine: Step Process RSIP Wildcard: Disabled RSIP Forced: Disabled Protocol ID: Default Keep-Alive Timeout: Disabled Type of Service: LCO Codecs: Enabled LCO PTimes: Enabled SDP Codec Order: RDesc Order CAC Delay Alert: Disabled Adit 600 - Release 10.1.1 5-269...
  • Page 392 State: Disable Normal RSIP Rate: Seconds Fallback RSIP Rate: Seconds RSIP Fallback Threshold: Randomize: Quiet Timeout: RSIP Address: 0.0.0.0 RSIP Port: 2727 Variable Definition cmg_card-addr The slot number (1-6) that contains the CMG card. 5-270 Adit 600 - Release 10.1.1...
  • Page 393 NTP Settings for CMG: NTP: Disabled NTP Server: 0.0.0.0 NTP Interval (seconds):120 NTP Timezone (offset from GMT):0 hours 0 minutes Variable Definition rtr_card-addr The slot number (1-6) that contains the Router (IP, CMG or TSR) card. Adit 600 - Release 10.1.1 5-271...
  • Page 394 Baud Rate 9600 Data Bits Stop Bits No Parity No Flowcontrol Port 3 Name: none Type: Ethernet Port 4 Name: none Type: Ethernet Variable Definition tsr_card-addr The slot number (1-6) that contains the TSR card. 5-272 Adit 600 - Release 10.1.1...
  • Page 395 Example: show 5 rip SLOT 5: RIP Settings for Router: RIP Mode Receive: RIP2 RIP Mode Send: Rip2 Variable Definition rtr_card-addr The slot number (1-6) that contains the Router (IP, CMG or TSR) card. Adit 600 - Release 10.1.1 5-273...
  • Page 396 Bridge Hello Time: 2 seconds Bridge Max Age: 20 seconds Bridge Forward Delay: 15 seconds Bridge Priority: 32768 Variable Definition rtr_card-addr The slot number (1-6) that contains the Router (IP, CMG or TSR) card. 5-274 Adit 600 - Release 10.1.1...
  • Page 397 Reboot After Code is Loaded: Reboot After Configuration is Loaded: Upload/Download IP Address Client Site Code Config Adit1 Total: 1 Variable Definition rtr_card-addr The slot number (1-6) that contains the Router (IP, CMG or TSR) card. Adit 600 - Release 10.1.1 5-275...
  • Page 398 Payload Type Ptime ------------- --------------- -------------- -------------- g711mu pcmu g711a pcma g726_16 g726-16 g726_24 g726-24 g726_32 g726-32 g726_40 g726-40 dtmf_relay telephone-event 97 Variable Definition cmg_card-addr The slot number (1-6) that contains the CMG card. 5-276 Adit 600 - Release 10.1.1...
  • Page 399 - The slot number (1-6) that contains the Router card. port - Port number of the Router. profile-name - Profile name for the Router interface used to reach this destination. Name must be enclosed in quotes, with a maximum of 11 characters. Adit 600 - Release 10.1.1 5-277...
  • Page 400 - The slot number (1-6) that contains the Router card. port - Port number of the Router. profile-name - Profile name for the Router interface used to reach this destination. Name must be enclosed in quotes, with a maximum of 11 characters. 5-278 Adit 600 - Release 10.1.1...
  • Page 401 - Profile name for the Router interface used to reach this destination. Name must be enclosed in quotes, with a maximum of 11 characters. address Display Address filters only. custom Display Custom filters only. protocol Display Protocol filters only. Display all the defined filters. Adit 600 - Release 10.1.1 5-279...
  • Page 402 - The slot number (1-6) that contains the Router card. port - Port number of the Router. profile-name - Profile name for the Router interface used to reach this destination. Name must be enclosed in quotes, with a maximum of 11 characters. 5-280 Adit 600 - Release 10.1.1...
  • Page 403 - The slot number (1-6) that contains the Router card. port - Port number of the Router. profile-name - Profile name for the Router interface used to reach this destination. Name must be enclosed in quotes, with a maximum of 11 characters. Adit 600 - Release 10.1.1 5-281...
  • Page 404 - The slot number (1-6) that contains the Router card. port - Port number of the Router. profile-name - Profile name for the Router interface used to reach this destination. Name must be enclosed in quotes, with a maximum of 11 characters. 5-282 Adit 600 - Release 10.1.1...
  • Page 405 - The slot number (1-6) that contains the Router card. port - Port number of the Router. profile-name - Profile name for the Router interface used to reach this destination. Name must be enclosed in quotes, with a maximum of 11 characters. Adit 600 - Release 10.1.1 5-283...
  • Page 406 The Router (IP, CMG or TSR) trunk address is in the form {slot:port:trunk}. slot The slot number (1-6) that contains the Router (CMG, IP or CMG) card. port Port number or range. trunk Trunk number for this port, 1-24. 5-284 Adit 600 - Release 10.1.1...
  • Page 407 Definition cmg_voice-addr In the form {slot:voip:channel} slot The slot number (1-6) that contains the CMG card. voip To designate VoIP 1:1 is used. channel Channel number for the router is 1-48, range or all Adit 600 - Release 10.1.1 5-285...
  • Page 408 WAN Firewall Settings for LosAngeles: Variable Definition rtr_card-addr The slot number (1-6) that contains the Router (IP, CMG or TSR) card. wan-name The WAN interface to modify. The name must be enclosed in quotes. 5-286 Adit 600 - Release 10.1.1...
  • Page 409 255.255.255.0 201.23.16.0 255.255.255.0 Total: 2 Variable Definition rtr_card-addr The slot number (1-6) that contains the Router (IP, CMG or TSR) card. wan-name The WAN interface to modify. The name must be enclosed in quotes. Adit 600 - Release 10.1.1 5-287...
  • Page 410 Packets Octets RemoteAdit DOWN 26m36s Variable Definition rtr_card-addr The slot number (1-6) that contains the Router (IP, CMG or TSR) card. wan-name The WAN interface to modify. The name must be enclosed in quotes. 5-288 Adit 600 - Release 10.1.1...
  • Page 411 WAN Static IP Address Settings for LosAngeles: Total: 0 Variable Definition rtr_card-addr The slot number (1-6) that contains the Router (IP, CMG or TSR) card. wan-name The WAN interface to modify. The name must be enclosed in quotes. Adit 600 - Release 10.1.1 5-289...
  • Page 412 Next IPX Router 00000011 00:00:00:00:00:00 Total: 1 Variable Definition rtr_card-addr The slot number (1-6) that contains the Router (IP, CMG or TSR) card. wan-name The WAN interface to modify. The name must be enclosed in quotes. 5-290 Adit 600 - Release 10.1.1...
  • Page 413 WAN Static NAT Address Settings for RemoteUnit: Total: 0 Variable Definition rtr_card-addr The slot number (1-6) that contains the Router (IP, CMG or TSR) card. wan-name The WAN interface to modify. The name must be enclosed in quotes. Adit 600 - Release 10.1.1 5-291...
  • Page 414 WAN Port Number: Connection Type: Variable Definition rtr_card-addr The slot number (1-6) that contains the Router (IP, CMG or TSR) card. wan-name The WAN interface to modify. The name must be enclosed in quotes. 5-292 Adit 600 - Release 10.1.1...
  • Page 415 192.168.3.1/32 192.168.3.1 direct/local qtsr4 192.168.4.1/32 192.168.4.1 direct/local qtsr5 192.168.5.1/32 192.168.5.1 direct/local 10 6 Qtsr6 192.168.6.1/32 192.168.6.1 direct/local IP-ADDRS: # Slot Ifname IP/Network RTR_LAN 192.168.1.1/24 qtsr2 192.168.2.1/24 qtsr3 192.168.3.1/24 qtsr4 192.168.4.1/24 qtsr5 192.168.5.1/24 Qtsr6 192.168.6.1/24 Adit 600 - Release 10.1.1 5-293...
  • Page 416 Always High DCD: Follow Software Control Baud Rate: 64000 bps Loopback: None Variable Definition rs232-addr In the form of {slot|slot:port}. slot - slot (1-6) location of an RS-232 card. port - Port number or range. 5-294 Adit 600 - Release 10.1.1...
  • Page 417 Private Host Key is Default. SSH DSA Public Host Key is Default. SSH DSA Public User Key is None. SSH LogLevel is 0. SSH Max Login Attempts is 3. SSH1 is Enabled. SSH2 is Disabled. Telnet is Enabled. Adit 600 - Release 10.1.1 5-295...
  • Page 418 Unauthenticated: NOTE: The SNMP Version 3 Statistics are displayed only on systems supporting SNMPv3. SNMPv3 is a keyed feature. Keys must be purchased from Force10 Networks. The Controller must be running release 9.8 or higher to support SNMPv3. 5-296 Adit 600 - Release 10.1.1...
  • Page 419 Use the show snmp engineid command to view the ID for the local SNMPv3 engine. NOTE: SNMPv3 is a keyed feature. Keys must be purchased from Force10 Networks. The Controller must be running release 9.8 or higher to support SNMPv3.
  • Page 420 Use the show snmp groups command to display the attributes of all SNMPv3 groups. NOTE: SNMPv3 is a keyed feature. Keys must be purchased from Force10 Networks. The Controller must be running release 9.8 or higher to support SNMPv3. Syntax:...
  • Page 421 Use the show snmp view command to display the attributes of an individual SNMPv3 MIB view. NOTE: SNMPv3 is a keyed feature. Keys must be purchased from Force10 Networks. The Controller must be running release 9.8 or higher to support SNMPv3.
  • Page 422 - Channel number 1-8, or all will display all tests on the card. show time The show time command displays the system time, in 24 hour hh:mm:ss format. Example: show time time: 00:22:51 5-300 Adit 600 - Release 10.1.1...
  • Page 423 Tx Clock Inversion: Normal Data Inversion: Normal Data Speed: Data Rate: Loopback: None Variable Definition v35-addr In the form of {slot|slot:port}. slot - slot (1-6) location of a V.35 card. port - Port number or range. Adit 600 - Release 10.1.1 5-301...
  • Page 424 V.54 Rx Prep count: V.54 Test Pattern: QRSS V.54 Ignore ACK: Loopback: None Variable Definition v54-addr In the form of {slot|slot:port}. slot - slot (1-6) location of a V.35/54 card. port - Port number or range. 5-302 Adit 600 - Release 10.1.1...
  • Page 425 Note: Only one SSH client session is permitted per logged-in user at a time. (User can be logged into the Controller via Telnet or SSH.) Syntax: ssh ip {ip-addr} Example: ssh ip 192.168.1.1 Variable Definition ip-addr IP address in the form xxx.xxx.xxx.xxx, where xxx is a number from 0 to 255. Adit 600 - Release 10.1.1 5-303...
  • Page 426 (router) stp status (fxs8D/fxs8C/fxs8B/fxs8A/fxs5G) status (router-lan) status (fxsINTL) status (router-trunk) status (fxsPS) status (router-voice) status ipds0 status (rs232) status (ocudp) status sessions status (ocudp) performance status (v35) status (ocudp) performance history status (v54) 5-304 Adit 600 - Release 10.1.1...
  • Page 427 {slot:port} for only the defined port. slot - Slot number (1-6) where the ADPCM card is located port - Port number. range 1-4. If no port is entered all ports will be displayed. Adit 600 - Release 10.1.1 5-305...
  • Page 428 * - indicates threshold has been crossed. Variable Definition adpcm-addr The ADPCM address is in the form {slot:port}. slot - Slot number (1-6) where the ADPCM card is located port - Port number, range or all. 5-306 Adit 600 - Release 10.1.1...
  • Page 429 15 min. intervals in data: Variable Definition adpcm-addr The ADPCM address is in the form {slot:port}. slot - Slot number (1-6) where the ADPCM card is located port - Port number, range or all. Adit 600 - Release 10.1.1 5-307...
  • Page 430 - The slot number (1-6) that contains the BRI card port - Port number, range or “all” performance Displays the current performance statistics for specified BRI. history Displays historical performance statistics for specified BRI. 5-308 Adit 600 - Release 10.1.1...
  • Page 431 In the form of {slot port:channel}. slot - A for the controller card, or 1 - 6 for service cards. port - Port number or range. channel - Channel number or range, for T1 ports. Adit 600 - Release 10.1.1 5-309...
  • Page 432 Receive: Traffic Transmit: Traffic Loopback: Variable Definition ds1-addr In the form of {slot port}. slot - A for the controller card, or 1 - 6 for service cards. port - Port number or range. 5-310 Adit 600 - Release 10.1.1...
  • Page 433 * - indicates threshold has been crossed. Variable Definition ds1-addr In the form of {slot port}. slot - A for the controller card, or 1 - 6 for service cards. port - Port number or range. Adit 600 - Release 10.1.1 5-311...
  • Page 434 15 min. intervals in data: Variable Definition ds1-addr In the form of {slot port}. slot - A for the controller card, or 1 - 6 for service cards. port - Port number or range. 5-312 Adit 600 - Release 10.1.1...
  • Page 435 CLI Commands status (e1) NOTE: E1 is not supported in this release of the Adit 600 Controller. It will be supported in a future release. Use the status (e1) command to display the current status of the specified E1. Syntax:...
  • Page 436 CLI Commands status (e1) performance NOTE: E1 is not supported in this release of the Adit 600 Controller. It will be supported in a future release. Use the status (e1) performance command to display the performance statistics for the current (15 min) and previous (15 min, hour, and day) intervals for the specified E1.
  • Page 437 (e1) performance history NOTE: E1 is not supported in this release of the Adit 600 Controller. It will be supported in a future release. Use the status (e1) performance history command to display performance statistics for the current 15 minute interval and all previous 15 minute intervals (up to a total of 96) for the specified E1.
  • Page 438 CLI Commands status equipment Use the status equipment command to display current equipment information of the Adit 600. Syntax: status equipment [slot] Example: status equipment BootCode Version: 2.00 CardType Status SW Vers CLEI SLOT A T1x2 Present SIC3DH0CAA SLOT 1...
  • Page 439 See Display Descriptions on page 5-309 for definitions of column headings. Variable Definition fxs-addr The {slot:port} address of the FXS card to display. slot - The slot number (1-6) that contains the FXS card port - Port number or range. Adit 600 - Release 10.1.1 5-317...
  • Page 440 Set to Loop Start signaling lsrb Set to Loop Start signaling with reverse battery T1 - Status of the T1 (Traffic, Loss of Signal, Loss of Framing, Loopback) TP - Trunk Processing (Y = yes, N = no) 5-318 Adit 600 - Release 10.1.1...
  • Page 441 CLI Commands status (fxsINTL) NOTE: E1 is not supported in this release of the Adit 600 Controller. It will be supported in a future release. Use the status (fxsINTL) to display the current near-end line status of the specified E1-FXS card.
  • Page 442 NONE CSU Latching Loopback: NONE Variable Definition ocudp-addr The {slot:port} address of the OCUDP card to display. slot - Slot number (1-6) where the OCUDP card is located port - Port number or range. 5-320 Adit 600 - Release 10.1.1...
  • Page 443 15 min. intervals in data: Variable Definition ocudp-addr The {slot:port} address of the OCUDP card to display. slot - Slot number (1-6) where the OCUDP card is located port - Port number or range. Adit 600 - Release 10.1.1 5-321...
  • Page 444 Variable Definition rtr_card-addr The Router (IP, CMG or TSR) address is in the form {slot:port}. slot - Slot number (1-6) that contains the Router card. port - Port number of the Router is 1. 5-322 Adit 600 - Release 10.1.1...
  • Page 445 FXSL ..46-Down FXSL ..15-Down FXSL ..31-Down FXSL ..47-Down FXSL ..16-Down FXSL ..32-Down FXSL ..48-Down FXSL ..Variable Definition cmg_card-addr The slot number (1-6) that contains the CMG Router card. Adit 600 - Release 10.1.1 5-323...
  • Page 446 : Enabled Lease (hr:min:sec) : 3:57:22 remaining time Lease Status : Hunt : Discover attempts=4 Quarantine : None Variable Definition rtr_card-addr The slot number (1-6) that contains the Router (IP, CMG or TSR) card. 5-324 Adit 600 - Release 10.1.1...
  • Page 447 DNS RESOLVER IS ENABLED My DNS Ip Address My DNS Hostname Adit25.test Primary DNS Server 10. 10. 10. Secondary DNS Server Variable Definition rtr_card-addr The slot number (1-6) that contains the Router (IP, CMG or TSR) card. Adit 600 - Release 10.1.1 5-325...
  • Page 448 9 23:29:33.4 NVRAM Flash Task Wakeup Event Sent 9 23:28:35.7 Download complete in 0.1 secs [60000 bps] Jan 9 23:28:35.5 Download config.cfg by Controller Variable Definition rtr_card-addr The slot number (1-6) that contains the Router (IP, CMG or TSR) card. 5-326 Adit 600 - Release 10.1.1...
  • Page 449 The slot number (1-6) that contains the Router (IP, CMG or TSR) card. profile-name The profile name for the Router interface that is used to reach this destination. Name must be enclosed in quotes, with a maximum length of 11 characters. Adit 600 - Release 10.1.1 5-327...
  • Page 450 The slot number (1-6) that contains the Router (IP, CMG or TSR) card. profile-name The profile name for the Router interface that is used to reach this destination. Name must be enclosed in quotes, with a maximum length of 11 characters. 5-328 Adit 600 - Release 10.1.1...
  • Page 451 The slot number (1-6) that contains the Router (IP, CMG or TSR) card. profile-name The profile name for the Router interface that is used to reach this destination. Name must be enclosed in quotes, with a maximum length of 11 characters. Adit 600 - Release 10.1.1 5-329...
  • Page 452 The slot number (1-6) that contains the Router (IP, CMG or TSR) card. profile-name The profile name for the Router interface that is used to reach this destination. Name must be enclosed in quotes, with a maximum length of 11 characters. 5-330 Adit 600 - Release 10.1.1...
  • Page 453 The slot number (1-6) that contains the Router (IP, CMG or TSR) card. profile-name The profile name for the Router interface that is used to reach this destination. Name must be enclosed in quotes, with a maximum length of 11 characters. Adit 600 - Release 10.1.1 5-331...
  • Page 454 Prot Err ACKs Sent Tot ACKs Rcvd Negative ACKs Rcvd Msg Retries Total Protocol Errors: Return Codes Sent Rcvd Description ------------ ----- ----- ----------------------------------- None Variable Definition cmg_card-addr The CMG Router card slot number (1 - 6). 5-332 Adit 600 - Release 10.1.1...
  • Page 455 Bytes Transmitted Packets Queued Bytes Queued Packets Dropped Max Queue Level RemoteUnit: No Port/Trunk is assigned to this WAN. Variable Definition rtr_card-addr The Router (IP, CMG or TSR) card slot number (1 - 6). Adit 600 - Release 10.1.1 5-333...
  • Page 456 Router (IP, CMG or TSR) address is in the form {slot:port} or {slot “profile-name”}. slot - The slot number (1-6) that contains the Router card. port - Port number of the Router. profile-name - Existing WAN identifier, enclosed in quotes. 5-334 Adit 600 - Release 10.1.1...
  • Page 457 The Router (IP, CMG or TSR) trunk address is in the form {slot:port:trunk} slot The slot number (1-6) that contains the Router card. port Port number. trunk Trunk number, a range or “all” can be used here. Port numbers are 1-24. Adit 600 - Release 10.1.1 5-335...
  • Page 458 Payld Octets Sent: 0 Payld Octets Rcvd: 0 Dropped Packets: Jitter: Delay: Call Agent Communications Status for this Endpoint: Notified Entity: [192.168.24.228]:2427 Comm State: Last Cmd Rcvd: CRCX From: 192.168.24.228:2427 Last Cmd Sent: NTFY 5-336 Adit 600 - Release 10.1.1...
  • Page 459 Number of octets received on the connection Packets lost Number of packets that were not received on the connection. calculated from gaps in the sequence number Jitter Average inter-packet arrival jitter, in milliseconds Delay Average latency, in milliseconds. Adit 600 - Release 10.1.1 5-337...
  • Page 460 Use the status sessions command to display the current status of all active CLI sessions. Syntax: status sessions Example: status sessions > status sessions Session User Login Port ------- ---- ---------- * CLI paul RS-232 * indicates current session 5-338 Adit 600 - Release 10.1.1...
  • Page 461 CTS - Clear to Send indicates port is ready to receive data DSR - Data Set Ready indicates port is ready to send data RTS - Request to Send DTR - Data Terminal Ready Adit 600 - Release 10.1.1 5-339...
  • Page 462 CTS - Clear to Send indicates port is ready to receive data DSR - Data Set Ready indicates port is ready to send data RTS - Request to Send DTR - Data Terminal Ready BERT - Bit Error Rate Test 5-340 Adit 600 - Release 10.1.1...
  • Page 463 Host IP address in the form of xxx.xxx.xxx.xxx, where xxx is a number from 1 to 255. If not supplied, the host IP address from the database will be used. file-name The configuration file to load, including path. Must be enclosed in quotes. The file type must be: .cfg (configuration) Adit 600 - Release 10.1.1 5-341...
  • Page 464 If not supplied, the host IP address from the database will be used. file-name This will name the configuration file that you are storing. The file must be a .cfg file and must be enclosed in quotes. 5-342 Adit 600 - Release 10.1.1...
  • Page 465 The Router (IP, CMG or TSR) card slot number (1 - 6) to retrieve the image information from. Note: If no slot number is entered, the image information is retrieved from the Controller. Adit 600 - Release 10.1.1 5-343...
  • Page 466 CLI Commands telnet telnet (router) telnet (router) port telnet ip telnet (router) Use the telnet (router) command to establish a Telnet session from the Adit 600 CLI to the Router card. Syntax: telnet {rtr-addr} Example: telnet 3 > telnet 3 Connected.
  • Page 467 CLI Commands telnet (router) port Use the telnet (router) port command to establish a Telnet session from the Adit 600 Controller to an individual port on the Quad-Port TSR (TSR) router card. This feature can be used in conjunction with SSH to establish a secure connection to a TSR port.
  • Page 468 Results will be available in approximately 20 seconds. Variable Definition fxs-addr List of voice channels to apply setting to, in the form {slot:port}. slot - Slot number 1 - 6, location of the FXS card. channel - Channel number 1-8. 5-346 Adit 600 - Release 10.1.1...
  • Page 469 This is the default User Datagram Protocol (UDP) method requires that all devices in the chain of the trace route support probes on the particular UDP port. This method is not recommended. Adit 600 - Release 10.1.1 5-347...
  • Page 470 Allows the user to define the end (or the maximum) of the range of hops the trace route will query. Range is [ttlbeg] - 255 value. Default = 30. upd-port This parameter only applies if [type] is set to UDP. Range is 1-65535. Default = 33434 5-348 Adit 600 - Release 10.1.1...
  • Page 471 HAPTER T1 Controller Card In this Chapter Overview Features Technical Specifications Configuration CLI Commands DIP Switch Settings LEDs DS0 Management (IP over DS0) TR-08 Mode 1...
  • Page 472 Quad DS1/E1 Service Cards. The Adit 600 offers a modular design that includes the T1 Controller Card (required) and an array of available service cards. This flexibility allows the Adit 600 to function in a variety of applications,...
  • Page 473 Front-panel LED indicators for T1 status, major and minor alarms, remote/local management mode, and Alarm Cut-Off status Controller support for IP router card code download through its Ethernet management port Configurations automatically stored in non-volatile memory Adit 600 - Release 10.1.1...
  • Page 474 - RFC 2494 (DS0-MIB) - RFC 1907 (SNMPv2-MIB) - RFC 2495 (DS1-MIB) - RFC 2011 (IP-MIB) - RFC 2571 (SNMP) - RFC 2233 (IF-MIB) CLI offers three levels of password controlled security Performance Report Messages Adit 600 - Release 10.1.1...
  • Page 475 Quad DS1/E1 Service card (T1 or E1 mode) Quad DS1 ADPCM Service card OCU-DP Single and 4 port Service cards Octal P-Phone Service card Dual RS-232 Synchronous Data Service card (limited configuration) Single Channel POTS Service card Adit 600 - Release 10.1.1...
  • Page 476 Dimensions: 3.5 in. (H) x 1 in. (W) x 11.25 in. (D) 8.9 cm (H) x 2.5 cm (W) x 28.6 cm (D) Weight: 5.7 oz. (.16 kg) For information on Adit 600 Environment required, see Installation Environment on page 2-2. Adit 600 - Release 10.1.1...
  • Page 477 Displays the settings for the DS0 management channel status (ds1) Displays the status of the DS1 (receive, transmit, loopback) status ipds0 Display the status of the DS0 management channel Adit 600 - Release 10.1.1...
  • Page 478 T1 Controller Card Configuration DIP Switch Settings On the front of the TDM controller card on the Adit 600 are DIP switches you can use to configure your Adit 600 locally. Switch Function Description Alarm Cut 0 = Alarm contacts enabled (close when alarm occurs).
  • Page 479 T1 Controller Card LEDs LEDs The T1 Controller has a set of six LEDs you can use to troubleshoot your Adit 600. The table below describes each LED. State Description MAJOR No major alarms present Major alarm present MINOR No minor alarms present...
  • Page 480 DS0 Management Channel. This information includes support for the activation, testing, and status reporting for ISDN lines. A DS0 Channel will be used in the remote Adit 600 to send and receive the management IP packets. An Adit equipped with IP routing capabilities and co-located with the Navigator will be used to forward the IP packets between the remote Adit and the Navigator.
  • Page 481 Each TR-08 provisioned T1 will handle the signaling throughput for 24 DS0 voice channels. With T1-1 provisioned as an A shelf and T1-2 provisioned as a B shelf, the Adit 600 will provide 48 DS0 voice channels with alarm reporting capability for both shelves.
  • Page 482 T1 Controller Card TR-08 Mode 1 6-12 Adit 600 - Release 10.1.1...
  • Page 483 HAPTER E1 Controller Card In this Chapter Overview Features Technical Specifications Configuration CLI Commands DIP Switch Settings LEDs...
  • Page 484 E1 is not supported in this release. It will be supported in a future release. The Adit 600 with the Dual E1 Controller card offers a cost-effective, compact solution to deliver a wide range of services from both wireline and wireless access networks. The E1 Controller includes two E1 ports with integrated CSUs and a built-in 558 timeslot (DS0) 1/0 cross-connect matrix.
  • Page 485 Any service connection or network access line in any slot Capacity for control of 48 analog voice lines, 40 ISDN BRIs, 18 E1s, or 12 V.35s in an Adit 600 chassis Includes integration of Dual E1 functionality and Ethernet SNMP management...
  • Page 486 - RFC 2011 (IP-MIB) - RFC 2494 (DS0-MIB) - RFC 1659 (V.35) - RFC 2233 (IF-MIB) - RFC 2495 (DS1/E1-MIB) - RFC 1907 (SNMPv2-MIB) CLI offers three levels of password controlled security Performance Report Messages Adit 600 - Release 10.1.1...
  • Page 487 Quad T1 Service card Quad E1 Service card Quad DS1/E1 Service card (T1 or E1 mode) Quad DS1 ADPCM Service card Single Channel POTS Service card Network Standards ITU-T G.703, G.704, G.821/G.823 CTR 12 & 13 Adit 600 - Release 10.1.1...
  • Page 488 Dimensions: 3.5 in. (H) x 1 in. (W) x 11.25 in. (D) 8.9 cm (H) x 2.5 cm (W) x 28.6 cm (D) Weight: 5.7 oz. (.16 kg) For information on Adit 600 Environment required, see Installation Environment on page 2-2. Adit 600 - Release 10.1.1...
  • Page 489 Allows configuration notes to be added and displayed as comments in the print config output. show (e1) Displays current settings for E1 (up, down, framing, line coding, loop back and signaling) status (e1) Displays the status of the E1 (receive, transmit and loopback) Adit 600 - Release 10.1.1...
  • Page 490 E1 Controller Card Configuration DIP Switch Settings On the front of the E1 Controller card there are DIP switches to configure your Adit 600 locally. Switch Function Description Alarm Cut 0 = Alarm contacts enabled (close when alarm occurs). Default.
  • Page 491 Bipolar Violation (BPV) detected, LCV Flashing Green Loopback active Flashing Red (slow) Loss of Frame (LOF) or Alarm Indication Signal (AIS) detected Flashing Red (fast) Card Failure Flashing Yellow Yellow alarm (Remote Alarm Indication) detected. Adit 600 - Release 10.1.1...
  • Page 492 E1 Controller Card LEDs 7-10 Adit 600 - Release 10.1.1...
  • Page 493 HAPTER 4-Wire E&M/TO Card In this Chapter Overview Features Technical Specifications Card Configuration CLI Commands LEDs Connector Pinouts RJ-45 Connector Operating Modes Signaling Types Jumpers Settings Normal and Tandem Cables...
  • Page 494 Overview Overview NOTE: E1 is not supported in this release of the Adit 600 Controller. It will be supported in a future release. The Quad 4-Wire E&M/TO (Transmit Only) Service Card is a cost-effective way to incrementally add E&M or TO voice support to the Adit 600 Multi-Service Delivery Terminal platform. Operating in any of the Adit 600's six service card slots, the 4-Wire E&M/TO Card offers industry-leading E&M density,...
  • Page 495 Receive gain: adjustable from 16 dB to -8.5 dB in .25 increments Transmit gain: adjustable from -7 dB to 17.5 dB in .25 increments Network Standards ANSI T1.409.2002 RX gain range -16/+8.5 dB. TX gain -7/+17 dB per G.712 paragraph 2.1 Adit 600 - Release 10.1.1...
  • Page 496 8.9 cm (H) x 1.9 cm (W) x 28.6 cm (D) Weight: 5.1 oz. (0.14 kg) For information on Adit 600 Environment required, see Installation Environment on page 2-2. Card Configuration The 4-Wire E&M Service cards can be configured, using the Command Line Interface (CLI).
  • Page 497 SB (Signal Battery) Brown SG (Signal Ground) Green NOTE: When in TO Mode either cable can be used, as the TO mode uses only pins 3-6 and these pins have the same assignment on both cables. Adit 600 - Release 10.1.1...
  • Page 498 A/B bit-robbed signaling, maximizing the transmission performance per channel for dedicated operations. NOTE: For each of these mode there is a corresponding jumper setting and cable. Please see the following section for additional information. Adit 600 - Release 10.1.1...
  • Page 499 4-Wire E&M/TO Card Signaling Types Signaling Types The 4-Wire E&M/TO card supports Signaling Types I, II, III, IV and V. The default is Type I. Adit 600 - Release 10.1.1...
  • Page 500 4-Wire E&M/TO Service Card Cables Description 005-0216-0001 Normal Mode Cable. 10 Feet, RJ-45 8 position connector. 005-0217-0001 Tandem Mode Cable. 10 Feet, RJ-45 8 position connector. NOTE: When in TO Mode either cable can be used. Adit 600 - Release 10.1.1...
  • Page 501 HAPTER FXO Voice Card In this Chapter Overview Features Technical Specifications Card Configuration CLI Commands DIP Switch Settings LEDs Channel Associated Signaling (CAS) Conversions...
  • Page 502 FXO Service card. These cards can be inserted into any slot of the Adit 600 six-slot chassis, and up to 96 lines in two side-by-side chassis occupying just two rack units of space.
  • Page 503 Features Features NOTE: E1 is not supported in this release of the Adit 600 Controller. It will be supported in a future release. Delivers FXO or DID telephone services from T1 or E1 access circuits Supports CLASS services including Caller ID, Calling Party Disconnect and Distinctive...
  • Page 504 Dimensions: 3.5 in. (H) x 0.75 in. (W) x 11.25 in. (D) 8.9 cm (H) x 1.9 cm (W) x 28.6 cm (D) Weight: 9.1 oz. (.26 kg) For information on Adit 600 Environment required, see Installation Environment on page 2-2. Adit 600 - Release 10.1.1...
  • Page 505 Displays the status (AB bits received, AB bits transmitted, signal, trunk processing) of the DS0s (AB Bit Monitoring) status (fxo) Displays the status (AB bits received, AB bits transmitted, signal, T1/E1 activity, trunk processing) of the specified FXO (AB Bit Monitoring) Adit 600 - Release 10.1.1...
  • Page 506 Idle (loop open) Green Idle Tip ground (incoming seizure) Incoming seizure Ring ground (outgoing seizure) Loop closure (outgoing seizure) Yellow Call in progress Call in progress Call in progress (reverse battery) Flashing Ringing Ringing green Adit 600 - Release 10.1.1...
  • Page 507 Channel Associated Signaling (CAS) Conversions NOTE: E1 is not supported in this release of the Adit 600 Controller. It will be supported in a future release. Cross-connects are done at a DS0 level. The following rules need to be kept in mind while performing cross- connects for a FXO voice card.
  • Page 508 FXO Voice Card Channel Associated Signaling (CAS) Conversions Adit 600 - Release 10.1.1...
  • Page 509 HAPTER FXS Voice Card In this Chapter Overview Features Technical Specifications (FXS 8D) Card Configuration CLI Commands LEDs Channel Associated Signaling (CAS) Conversions Previous FXS Cards Technical Specifications (Previous FXS Cards) DIP Switch Settings LEDs Identifying FXS 4G and 5G Cards...
  • Page 510 24,000 feet with optimal conditions. An Adit 600 platform can be equipped with up to six FXS 8D cards to deliver up to 48 FXS telephone lines. The lines can be configured as FXS loop-start or ground-start interfaces, which can be used to deploy either external phone lines, or on-premises customer business line services from T1 access lines.
  • Page 511 FXS Voice Card Technical Specifications (FXS 8D) Technical Specifications (FXS 8D) NOTE: E1 is not supported in this release of the Adit 600 Controller. It will be supported in a future release. Controller Software Required T1 Controller Release 9.7 or higher is required for the FXS 8D Service card E1 Controller Release 9.7 is required for the FXS 8D Service card...
  • Page 512 FXSDN Signaling: E&M immediate or wink start to either loopstart or groundstart conversion ® ® ® ® ® with ringback tone for carrier services such as Megacom , Flexpath , DSS , VPN , VNET etc. Wink delay for advanced ANI/DNIS 800 number services 10-4 Adit 600 - Release 10.1.1...
  • Page 513 Dimensions: 3.5 in. (H) x 0.75 in. (W) x 11.25 in. (D) 8.9 cm (H) x 1.9 cm (W) x 28.6 cm (D) Weight: 5.8 oz. (.16 kg) For information on Adit 600 environment required, see Installation Environment on page 2-2. Adit 600 - Release 10.1.1 10-5...
  • Page 514 Displays the E1-FXS status (AB bits received & transmitted, signal, E1 activity, trunk processing) test (fxs8D/fxs8C/fxs8B) Tests the channels on the FXS 8D, FXS 8C, or FXS 8B Service Card. Note: only one channel can be tested at a time. 10-6 Adit 600 - Release 10.1.1...
  • Page 515 Idle (tip open) Green Idle Tip ground (incoming seizure) Note: This can be seen with Ring ground (outgoing seizure) Forward Disconnect (tip open) Yellow Call in progress Call in progress Flashing green Ringing Ringing Adit 600 - Release 10.1.1 10-7...
  • Page 516 Channel Associated Signaling (CAS) Conversions NOTE: E1 is not supported in this release of the Adit 600 Controller. It will be supported in a future release. Cross-connects are done at a DS0 level. The following rules need to be kept in mind while performing cross-connects for an FXS voice card.
  • Page 517 Previous FXS Cards The FXS 8D Service card supports all the features of the following cards. The following information is provided for older cards you may have installed in your Adit 600. For any additional information, contact Force10 Networks Customer Support.
  • Page 518 FXS 8C, FXS 8B, FXS 8A, FXS 5G, E1-FXS: -12 to +6 dB in .25 dB increments management selectable per channel or switch selectable per card (FXS 5G and E1-FXS only). FXS 4G: -9 to +7 dB in 1 dB increments management selectable per channel, or switch selectable per card. 10-10 Adit 600 - Release 10.1.1...
  • Page 519 FXSDN Signaling: E&M immediate or wink start to either loopstart or groundstart conversion ® ® ® ® ® with ringback tone for carrier services such as Megacom , Flexpath , DSS , VPN , VNET etc. Wink delay for advanced ANI/DNIS 800 number services Adit 600 - Release 10.1.1 10-11...
  • Page 520 Weight: FXS 4G - 9.6 oz. (.27 kg) FXS 8C, FXS 8B, FXS 8A, FXS 5G, and E1-FXS - 5.8 oz. (.16 kg) For information on Adit 600 environment required, see Installation Environment on page 2-2. DIP Switch Settings Note: DIP Switches are only on the following FXS Voice Service cards:...
  • Page 521 Identifying the original FXS (4G) card from the FXS 5G card is not easily done by looking at the faceplate, as they are both labeled FXS. The cards are easily identified by viewing the cards. Please see the above photo. Adit 600 - Release 10.1.1 10-13...
  • Page 522 FXS Voice Card Previous FXS Cards 10-14 Adit 600 - Release 10.1.1...
  • Page 523 HAPTER ISDN BRI Card In this Chapter Overview Features Technical Specifications Card Configuration CLI Commands LEDs Connector Pinouts 25-Pair Telco Connectors...
  • Page 524 Channel (EOC) and is used to pass signaling and other management information, such as loopback commands. The following is an example of how a Adit 600 with a ISDN BRI card can function as a Line Unit Network Termination (LUNT) with central office applications, and a Line Unit Line Termination (LULT) with subscriber lines.
  • Page 525 D-Channel concentration is utilized from the GR-303 interface of a Class 5 switch. EOC management information from the switch is supported. The following is an example of how a Adit 600 with a ISDN BRI card can function as with the Access Navigator in the 4:1 TDM Mode.
  • Page 526 E1 Controller Release 3.2 through 9.4 is required NOTE: E1 is not supported in this release of the Adit 600 Controller. It will be supported in a future release. Product Includes Configurable as Line Unit Line Terminal (LULT) or Line Unit Network Terminal (LUNT) Works with all standard Carrier Serving Area (CSA) loops - maximum 18,000 ft.
  • Page 527 ISDN BRI Card Technical Specifications Clocking Loop timing derived from Channel 1 of ISDN BRI card or any Adit 600 T1 line Testing & Diagnostics Initiates 2B+D, B1, or B2 loopbacks toward the BRI at the NT1 Performs self test at power up...
  • Page 528 Displays BRI port configuration show clock Displays actual clock source show (ds1) Displays DS1 configuration status (bri) Displays port status or performance statistics for the specified BRI status clock Displays actual clock status and source 11-6 Adit 600 - Release 10.1.1...
  • Page 529 Line U-interface is synchronized with customer equipment, but is not passing customer data. Flashing green Line U-interface is in external loopback toward the switch at the unit. Green Normal (Line U-interface is active and transparently passing customer data.) Adit 600 - Release 10.1.1 11-7...
  • Page 530 1 through 6. However, a Dual would only use the first 2 of the 8 pair, a Quad the first 4, and an Octal all 8. The following is the breakdown of designated pairs to each Adit 600 slot. SLOT...
  • Page 531 Tip Channel 21 Violet Ring Channel 21 Blue Tip Channel 22 Violet Ring Channel 22 Orange Tip Channel 23 Violet Ring Channel 23 Green Tip Channel 24 Violet Ring Channel 24 Brown Reserved Violet Slate Adit 600 - Release 10.1.1 11-9...
  • Page 532 ISDN BRI Card Connector Pinouts 11-10 Adit 600 - Release 10.1.1...
  • Page 533 HAPTER OCU-DP Card In this Chapter Overview Features Technical Specifications Card Configuration CLI Commands Basic Setup LEDs Jumper Settings Alarms Line Rates/Line Lengths Connector Pinouts DDS RJ-48S 25-Pair Telco Connector...
  • Page 534 2.4 Kbps to 64 Kbps, including Switched 56 Kbps data rates. Up to six OCU-DP cards can be inserted into any of the service card slots of the Adit 600, providing up to 24 DDS connections. These cards enable industry leading density and cost per port at Central Offices (COs) hub and collocations (COLOs) and cell sites.
  • Page 535 Overview Customer Premise Application In this model, the carrier deploys the Adit 600 in conjunction with DDS DSU/CSUs to provide standards-based DDS access for customer data terminal needs. In essence, the Adit 600 integrates the DDS capabilities that were traditionally served by D4 or DLC Remote Terminal equipment into a customer premise multi-service solution.
  • Page 536 One RJ-48S front-panel jack Strap selections for rear-panel RJ-21X telco connector Four-port OCU-DP interface Four RJ-48S front-panel jack Strap selections for rear-panel RJ-21X telco connector Network Interface Each OCU port DS0 cross-connected to T1 port 12-4 Adit 600 - Release 10.1.1...
  • Page 537 Dimensions: 3.5 in. (H) x 0.75 in. (W) x 11.25 in. (D) 8.9 cm (H) x 1.9 cm (W) x 28.6 cm (D) Weight: 5.7 oz. (.16 kg) For information on Adit 600 Environment required, see Installation Environment on page 2-2. Adit 600 - Release 10.1.1 12-5...
  • Page 538 Displays OCU-DP card configuration (baud, loopdetect, error correction, switched and enhanced switched service and secondary channel provisioning) status (ocudp) Displays the status or performance statistics of the OCU-DP card (OOS, LOF, LOS and BPV seconds) 12-6 Adit 600 - Release 10.1.1...
  • Page 539 Green Port is receiving valid signals. Port is receiving no signal (primary) or no frame sync (secondary or clear channel). Red Flashing Bottom Port is receiving bipolar violations Yellow Bottom Port is in loopback. Adit 600 - Release 10.1.1 12-7...
  • Page 540 P1 applies to connectors 1 and 2 (connector 2 only with the 4 port card). P2 applies to connectors 3 and 4 (for the four port card only). Top of Card Front of P1 is set to P2 is set to Card RJ-48S Position 25-Pin Telco Position 12-8 Adit 600 - Release 10.1.1...
  • Page 541 6.3 miles/5.9 miles (10.1 km/9.4 km) 38.4 Kbps 38.4 Kbps/51.2 Kbps 5.5 miles/5.3 miles (8.8 km/8.5 km) 56 Kbps 56 Kbps/72 Kbps 5.1 miles/4.7 miles (8.2 km/7.6 km) 64 Kbps 64 Kbps 4.7 miles (7.6 km) Adit 600 - Release 10.1.1 12-9...
  • Page 542 Pinout for the Single (noted by an *) or Quad OCU-DP card. Must setup jumpers on card to use this connector. Card Slot Line Card Slot Line T1 and R1 = Receive. T and R = Transmit. Note: The above information is relative to the connector. 12-10 Adit 600 - Release 10.1.1...
  • Page 543 HAPTER P-Phone Card In this Chapter Overview Features Technical Specifications Card Configuration CLI Commands DIP Switch Settings LEDs...
  • Page 544 CO based solutions, all while offering lower cost per DS0. Plus, the Adit 600's built in 1/0 DCS capabilities means no additional data grooming equipment is required to blend P-phone service delivery with other voice and data services.
  • Page 545 Simplified Message Desk Interface Call Waiting - Incoming Only User Programmable Call Forward, Busy - No Answer Call Waiting - Intragroup Inhibit Call Waiting Business Set Services Group Intercom Message Waiting Multiple Appearance Directory Number (MADN) Adit 600 - Release 10.1.1 13-3...
  • Page 546 Access Navigator Release 1.8 or higher Capabilities 8 P-Phone channels per card Up to 6 P-Phone cards per Adit 600 In-building service delivery to 5,000 ft. over 26 gauge wire Control and management via GR-303 with Access Navigator host with dedicated DS0 management channel Support for locally-powered phones (no line powering);...
  • Page 547 Dimensions: 3.5 in. (H) x 0.75 in. (W) x 11.25 in. (D) 8.9 cm (H) x 1.9 cm (W) x 28.6 cm (D) Weight: 5.9 oz. (.17 kg) For information on Adit 600 Environment required, see Installation Environment on page 2-2. Adit 600 - Release 10.1.1 13-5...
  • Page 548 To setup the P-Phone card channels parameters (CRVs, rx gain, tx gain) show (p-phone) Displays the settings (CRVs, rx gain, tx gain) for the P-Phone card status (p-phone) Displays the test status of the P-Phone ports 13-6 Adit 600 - Release 10.1.1...
  • Page 549 Each P-Phone channel has a corresponding LED, described in the table below. State Line State No P-Phone connected Green No call in process Flashing Green Alert (Ringing) Yellow Call in progress Flashing Yellow P-Phone Loopback in Progress Flashing Red Self-test failed Adit 600 - Release 10.1.1 13-7...
  • Page 550 P-Phone Card LEDs 13-8 Adit 600 - Release 10.1.1...
  • Page 551 HAPTER Single Channel POTS Card In this Chapter Overview Features Technical Specifications Card Configuration CLI Commands Connector Pinouts LEDs...
  • Page 552 POTS line from a local carrier. The POTS Service Card features a single RJ-11 telecom connection. The POTS Service card can be inserted into any service card slot of the Adit 600 and is configured using CLI.
  • Page 553 In addition to the systems environment requirements, the following applies to the Single Channel POTS card. For additional information see Installation Environment on page 2-2. Operating temperature range: -40° to 149° F (-40° to 65° C) Adit 600 - Release 10.1.1 14-3...
  • Page 554 Connect the DSO A:1:1 to port 1 of the Single Channel connect a:1:1 8:1 POTS card in slot 8. See the set (fxsPS) command for details. Assign this DS0 a phone line Connect phone Test phone for dial-tone 14-4 Adit 600 - Release 10.1.1...
  • Page 555 The POTS channel LED (left) status is described in the table below. State Loop Start Meaning Calling Party Disconnect Green Idle Yellow Call in progress Flashing green Ringing The second LED (right) is a status LED is not used on this card. Adit 600 - Release 10.1.1 14-5...
  • Page 556 Single Channel POTS Card LEDs 14-6 Adit 600 - Release 10.1.1...
  • Page 557 HAPTER Power Supply In this Chapter 115 VAC/-48 VDC Power Supply/Charger 230 VAC/-48 VDC Power Supply/Charger 24 VDC Power Supply Ringer Waveform Options Replacing a Power Supply...

  • Page 558: 115 Vac/-48 Vdc Power Supply/Charger

    115 VAC/-48 VDC Power Supply/Charger 115 VAC/-48 VDC Power Supply/Charger The 115 VAC/-48 VDC Power Supply and Charger enables the Adit 600 to be powered from either 115 VAC or -48 VDC sources, and includes an integral battery charger and ringing generator. Integrating...
  • Page 559 Solid-state input overcurrent protection trips at 2.5 A at 68 F (20 Extended mode: jumper option enables Adit 600 startup at low battery input voltage Electrical Output -37 VDC (short loop)/ -54 DC (long loop), talk battery, 1.45 A maximum -54 VDC battery charger output, 0.5 A maximum...
  • Page 560 AC Input AC input missing or failure Green AC input present Battery Battery input not used Green Battery charging or operating from DC source only. Yellow Battery discharging Battery low (less than 42V), ringer disabled 15-4 Adit 600 - Release 10.1.1...

  • Page 561: 230 Vac/-48 Vdc Power Supply/Charger

    230 VAC/-48 VDC Power Supply/Charger 230 VAC/-48 VDC Power Supply/Charger The 230 VAC Power Supply/Charger enables the Adit 600 to be powered from either 230 VAC or -48 VDC sources, and includes an integral battery charger and ring generator. Integrating AC and DC power...
  • Page 562 Dimensions: 3.5 in. (H) x 2 in. (W) x 12 in. (D) 8.9 cm (H) x 5.1 cm (W) x 30.5 cm (D) Weight: 1 lb. 6 oz. (0.62 kg) For information on Adit 600 Environment required, see Installation Environment on page 2-2. 15-6 Adit 600 - Release 10.1.1...
  • Page 563 AC input missing or failure Input Green AC input present Battery Battery input not used Green Battery charging or operating from DC source only. Yellow Battery discharging Battery low (less than 42V), ringer disabled Adit 600 - Release 10.1.1 15-7...

  • Page 564: 24 Vdc Power Supply

    24 VDC Power Supply 24 VDC Power Supply The 24 VDC Power Supply delivers +24 VDC power to the Adit 600. This power supply integrates +24 VDC power with a ringing generator in the Adit chassis to dramatically reduce installation time, space requirements and costs compared to separate +24 to -48 VDC power conversion equipment for wireless equipment bays or other +24 VDC applications.
  • Page 565 Dimensions: 3.5 in. (H) x 2 in. (W) x 12 in. (D) 8.9 cm (H) x 5.1 cm (W) x 30.5 cm (D) Weight: 1 lb. 9 oz. (0.71 kg) For information on Adit 600 Environment required, see Installation Environment on page 2-2. Adit 600 - Release 10.1.1 15-9...
  • Page 566 Wire Gauge Maximum Distance 18 AWG 12 Feet 16 AWG 20 Feet 14 AWG 35 Feet Chassis Ground Connect Ground Lugs to permanent Earthing ground. See Chassis Ground Connector on page 3-7 for more information. 15-10 Adit 600 - Release 10.1.1...
  • Page 567 The power supply card has two LEDs, as described in the table below. State Description DC OK DC input missing or failure Green DC input present -48 Battery Normal VDC is low (less than 42 VDC), ringer disabled Adit 600 - Release 10.1.1 15-11...
  • Page 568 Standard Waveform Square Waveform None Long Rise Time or Rounded Waveform J5 and J6 Frequency Options Ringer Frequency of 20 Hz J8 and J9 Ringer Frequency of 25 Hz Ringer Frequency of 50 Hz 15-12 Adit 600 - Release 10.1.1...
  • Page 569 Power Supply Ringer Waveform Options Standard Waveform The standard waveform (default) should work well for most applications. Ringer Frequency: 20 Hz Ringer Frequency: 25 Hz Ringer Frequency: 50 Hz Adit 600 - Release 10.1.1 15-13...
  • Page 570 Power Supply Ringer Waveform Options Square Waveform Ringer Frequency: 20 Hz Ringer Frequency: 25 Hz Ringer Frequency: 50 Hz 15-14 Adit 600 - Release 10.1.1...
  • Page 571 Power Supply Ringer Waveform Options Long Rise Time or Rounded Waveform Ringer Frequency: 20 Hz Ringer Frequency: 25 Hz Ringer Frequency: 50 Hz Adit 600 - Release 10.1.1 15-15...
  • Page 572 6. Press gently on the faceplate of the power supply to ensure that the connector is fully seated. 7. Replace nut and lock washer on the power supply retention stud. NOTE: Reconnect the power cord to the unit. 15-16 Adit 600 - Release 10.1.1...
  • Page 573 HAPTER Quad DS1 ADPCM Card In this Chapter Overview Features Technical Specifications Card Configuration CLI Commands Cross Connects Basic Setup Jumper Settings Connector Pinouts RJ-48 Connector LEDs...
  • Page 574 NOTE: This card is no longer manufactured. The Quad DS1 ADPCM Service card is a component of the Adit 600, and provides an intelligent, compact device that can compress and groom traffic, which increases bandwidth utilization and reduces costs. Using Adaptive Differential Pulse Code Modulation (ADPCM), the ADPCM Service card compresses selected timeslots from one of the T1 ports.
  • Page 575 Less than 10 ms overall system signaling latency ADPCM Signaling Clear Channel Signaling passed on 64K clear channel 24-channel 32 Kbps ADPCM compression Management Managed by Adit 600 Controller Craft or SNMP Interface Synchronization Provides reference clock to backplane from selected T1 Network Standards RFC 2495 ANSI T1.403-1995, T1.231-1993...
  • Page 576 For systems environment requirements, see Installation Environment on page 2-2. Physical Dimensions: 3.5 in. (H) x 0.75 in. (W) x 11.25 in. (D) 8.9 cm (H) x 1.9 cm (W) x 28.6 cm (D) Weight: 5.1 oz. (0.14 kg) 16-4 Adit 600 - Release 10.1.1...
  • Page 577 Displays the connections for the ADPCM port. show (ds1) Displays current settings for DS1. status (adpcm) Displays the status of the ADPCM card (receive, transmit, loopback). status (ds1) Displays the status of the DS1 (receive, transmit, loopback). Adit 600 - Release 10.1.1 16-5...
  • Page 578 The example connects all 24 channels of the ADPCM to the 12 channels of the T1 (now compressed) on port 4. Example is with map2 Displays the connections made above. show connect adpcm {2:1) 16-6 Adit 600 - Release 10.1.1...
  • Page 579 With Map 1, the example will connect the ADPCM pairs 1-11 (which is actually channels 1-23 - no 12) to channels 1-11 (now compressed) on port 4 and channel 24 (12) to channel 12 (non-compressed data). Adit 600 - Release 10.1.1 16-7...
  • Page 580 See for pinout information. P2 and P3 Jumpers Faceplate of ADPCM card Jumper set to 25-pin Telco connectors on the back of the chassis Jumper set to RJ-48 connector on the front of the card 16-8 Adit 600 - Release 10.1.1...
  • Page 581 Loss of Signal (LOS) Yellow Bipolar Violation (BPV) Flashing Green Loopback active Flashing Yellow Yellow Alarm (Remote Alarm Indication) Flashing Red (Slow) Loss of Frame (LOF) or Alarm Indication Signal (AIS) Flashing Red (Fast) Self-test Failure Adit 600 - Release 10.1.1 16-9...
  • Page 582 Quad DS1 ADPCM Card LEDs 16-10 Adit 600 - Release 10.1.1...
  • Page 583 HAPTER Quad T1, Quad E1 & Quad DS1/E1 Cards In this Chapter Overview Features Technical Specifications Card Configuration CLI Commands Jumper Settings Connector Pinouts 25-pin Telco Connector RJ-48 Connector LEDs...
  • Page 584 When fully equipped with four Quad DS1/E1 Service cards plus a Dual T1 or E1 Controller Card, an Adit 600 can support up to 18 T1 or E1 ports enabling the Adit to function as mini-DCS with DS0 voice interfaces. In wireless applications, this available bandwidth enables the Adit 600 to cost-effectively address fixed-wireless service distribution, mobile wireless backhaul and daisy-chained DS0 distribution to remote cell sites.
  • Page 585 Features Features NOTE: E1 is not supported in this release of the Adit 600 Controller. It will be supported in a future release. Up to four DS1/E1 service cards can be installed in the Adit 600 for up to 18...
  • Page 586 Quad E1 service card requires release 3.2 Quad DS1/E1 service card requires release 7.0 through 9.4. Supported when in E1 mode. NOTE: E1 is not supported in this release of the Adit 600 Controller. It will be supported in a future release. Card Interface...
  • Page 587 Quad T1, Quad E1 & Quad DS1/E1 Cards Technical Specifications E1 Interface (specific) NOTE: E1 is not supported in this release of the Adit 600 Controller. It will be supported in a future release. ± 4 selectable E1 ports operating at 2.048 Mbps...
  • Page 588 Dimensions: 3.5 in. (H) x 0.75 in. (W) x 11.25 in. (D) 8.9 cm (H) x 1.9 cm (W) x 28.6 cm (D) Weight: 5.1 oz. (0.14 kg) For information on Adit 600 Environment required, see Installation Environment on page 2-2. 17-6 Adit 600 - Release 10.1.1...
  • Page 589 (e1) Displays current settings for E1 (up, down, framing, line coding, clock source, loop back and signaling). show lsprotect Displays the low speed protection settings. Adit 600 - Release 10.1.1 17-7...
  • Page 590 See 25-pin Telco Connector on page 17-9 for pinout information. P2 and P3 Jumpers Faceplate of T1 Card Jumper set to Telco connector on the back of the chassis Jumper set to RJ-48 connector on the front of the card 17-8 Adit 600 - Release 10.1.1...
  • Page 591 Black Ring Transmit to DS1 network Orange 2 and 5 Tip Receive from DS1 network Black Ring Receive from DS1 network Green Tip Transmit to DS1 network Black Ring Transmit to DS1 network Brown Adit 600 - Release 10.1.1 17-9...
  • Page 592 Ring Transmit to DS1 network Orange 3 and 6 Tip Receive from DS1 network Violet Ring Receive from DS1 network Green Tip Transmit to DS1 network Violet Ring Transmit to DS1 network Brown Reserved Violet Slate 17-10 Adit 600 - Release 10.1.1...
  • Page 593 Loss of Signal (LOS) Yellow Bipolar Violation (BPV) Flashing Green Loopback active Flashing Yellow Yellow Alarm (Remote Alarm Indication) Flashing Red (Slow) Loss of Frame (LOF) or Alarm Indication Signal (AIS) Flashing Red (Fast) Self-test Failure Adit 600 - Release 10.1.1 17-11...
  • Page 594 Quad T1, Quad E1 & Quad DS1/E1 Cards LEDs 17-12 Adit 600 - Release 10.1.1...
  • Page 595 HAPTER Router (IP) Card In this Chapter Overview Features Technical Specifications Card Configuration CLI Commands Connector Pinouts 10Base-T Ethernet LEDs...
  • Page 596 The Adit 600 supports up to four or six IP Router cards in a chassis, in any combination of services, depending upon the Controller (see Restrictions on Multiple Router Cards on page 4-24). This flexibility enables service providers to target multi-tenant units with a single device that supports business-class voice, Internet access and data services.
  • Page 597 Features Features NOTE: E1 is not supported in this release of the Adit 600 Controller. It will be supported in a future release. Supplies auto-sensing 10/100Base-TX Ethernet Supports up to 6 router cards per Adit 600 chassis, depending upon the Controller (see...
  • Page 598 Code download via TFTP Configuration upload and download via TFTP WAN Interface Any T1 interface on the Adit 600 platform Up to 24 WAN interfaces per router Up to 60 DS0s bandwidth per router PPP, Frame Relay, PPP in Frame Relay, MLPPP and GRE tunneling...
  • Page 599 Router (IP) Card Technical Specifications Frame Relay RFC 1490 encapsulation ANSI T1.617 Annex D LMI ITU Q.933 Annex A LMI Filtering LAN/WAN Filters up to Layer 4, stateful Adit 600 - Release 10.1.1 18-5...
  • Page 600 Dimensions: 3.5 in. (H) x 0.75 in. (W) x 11.25 in. (D) 8.9 cm (H) x 1.9 cm (W) x 28.6 cm (D) Weight: 5.2 oz. (0.15 kg) For information on Adit 600 Environment required, see Installation Environment on page 2-2. 18-6 Adit 600 - Release 10.1.1...
  • Page 601 Add static elements to the specified WAN interface (IP address, IP network, IPX network, MAC address and NAT address). clear (router) ip address table Flush the learned entries from the IP address table for the specific interface from the specified Router card. Adit 600 - Release 10.1.1 18-7...
  • Page 602 Will download software via TFTP to the Controller or the Router card. WARNING! EFORE LOADING A DOWN LEVEL OF OUTER CODE TO AN SAVE THE CONFIGURATION TO A FILE ONFIGURATION MAY BE RESET TO THE DEFAULT SETTING AND CURRENT CONFIGURATION LOST 18-8 Adit 600 - Release 10.1.1...
  • Page 603 Configures Router in-use basics (up, down and proxy). set (router) reboot Set automatic reboot after an upload of code or configuration file. set (router) rip Specify version of RIP packets to transmit and receive. Adit 600 - Release 10.1.1 18-9...
  • Page 604 Set the IP traffic handling on the WAN interface. set (router-wan) ip address Set the IP address for a WAN interface. set (router-wan) ipx Set the IPX traffic handling on the specified WAN interface. 18-10 Adit 600 - Release 10.1.1...
  • Page 605 Displays the current Syslog setup for the router show (router) uploaduser Displays the current list of users allowed to upload and download configuration and code files show (router-lan) Displays the settings for the router card Adit 600 - Release 10.1.1 18-11...
  • Page 606 (router) stp Displays the current Spanning Tree state from the specified router status (router-lan) Displays the current Router status information status (router-trunk) Displays the current status for the specified trunk on the Router card. 18-12 Adit 600 - Release 10.1.1...
  • Page 607 Save a software file from a defined slot to a defined location on a PC, via TFTP. telnet (router) Establish a Telnet session from the Adit 600 CLI to the Router port user interface. trace route Will invoke a Trace Route to a host device on a network of a this Router.
  • Page 608 Ethernet collisions have occurred and have not dropped to minimum level Yellow Flashing Ethernet collision occurring No ethernet transmit activity Green Ethernet transmit activity No current ethernet receive activity Green Current ethernet receive activity 18-14 Adit 600 - Release 10.1.1...
  • Page 609 HAPTER Router (CMG) Card In this Chapter Overview Features Technical Specifications Card Configuration CLI Commands Connector Pinout 10Base-T Ethernet LEDs...
  • Page 610 Terminal, enable high-capacity, converged IP service delivery while supporting the service provider's TDM to IP migration strategy. With the CMG the Adit 600 can be configured as an IP Services Delivery Terminal that enables carrier-class services for Small- and Medium-sized Businesses (SMBs). In...
  • Page 611 Features Features NOTE: E1 is not supported in this release of the Adit 600 Controller. It will be supported in a future release. Up to 48 simultaneous voice channels (G.711, G.726, G.729a) Up to 8 T1s or 6 E1s in a single Adit 600 chassis Supports MGCP line-side applications Supports T.38 Fax Relay, auto-detect/fall-back...
  • Page 612 Voice/Fax/Modem - up to 48 designated FXS or DS0 channels LAN - 10/100Base-TX port on card WAN - designated Adit 600 Ethernet or T1/E1lines and channel groups (PPP, Frame Relay, PPP over Frame Relay, MLPPP) Internal - backplane cross-connect interfaces to other data cards (CMG, IP Router, TSR or V.35)
  • Page 613 24 (DSP) 48 (DSP) G.729 70ms = 14PPS 24 (DSP) 24 (DSP) 48 (DSP) G.729 80ms = 13PPS 24 (DSP) 24 (DSP) 48 (DSP) NOTE: All G.726 codecs consume the same DSP resources as G.729. Adit 600 - Release 10.1.1 19-5...
  • Page 614 MGCP IETF Version 0.1, 1.0, 1.0bis Services Enabled (under Softswitch Control) Basic calling Caller ID, Call waiting, call forwarding, voice mail Hold/transfer, conference using external bridge Many other Centrex and CLASS services Distinctive ringing 19-6 Adit 600 - Release 10.1.1...
  • Page 615 Dimensions: 3.5 in. (H) x 0.75 in. (W) x 11.25 in. (D) 8.9 cm (H) x 1.9 cm (W) x 28.6 cm (D) Weight: 5.2 oz. (0.15 kg) For information on Adit 600 Environment required, see Installation Environment on page 2-2. Adit 600 - Release 10.1.1 19-7...
  • Page 616 Add an address filter to the table of Layer 2 filter applied to the specified LAN interface add (router-lan) firewall Add a firewall rule to a LAN add (router-lan) secondary ip address Add a secondary IP address and subnet to the specified LAN interface 19-8 Adit 600 - Release 10.1.1...
  • Page 617 Delete an SNMP community entry delete (router) snmp trap Delete a trap destination from the router card delete (router) static dns host Delete a static DNS host record delete (router) uploaduser Remove an existing authorized uploaduser Adit 600 - Release 10.1.1 19-9...
  • Page 618 (router) cdr Enable/disable Call Detail Recording (CDR) for the CMG card set (router) compander Set the companding algorithm to use with the PCM (G.711) voice stream to/from the TDM side of a connection 19-10 Adit 600 - Release 10.1.1...
  • Page 619 (router) proxy Enable/disable proxy ARP mode set (router) reboot Set automatic reboot after an upload of code or configuration file set (router) rip Specify version of RIP packets to transmit and receive Adit 600 - Release 10.1.1 19-11...
  • Page 620 Set percentage of bandwidth on the trunk that is reserved for routed or bridged data set (router-voice) algorithm preference Specify the list of voice coding algorithms to be supported for VoIP calls set (router-voice) cpd Configure how calling party disconnect should be signaled to an endpoint 19-12 Adit 600 - Release 10.1.1...
  • Page 621 Allow fragmented packets to pass though the firewall to accommodate devices that send reverse-ordered or out-of-ordered packets set (router-wan) gre Configure the GRE tunneling for a specified WAN interface set (router-wan) ip Set the IP traffic handling on the WAN interface Adit 600 - Release 10.1.1 19-13...
  • Page 622 Displays the current Local PPP (Point-to-Point Protocol) authentication and security settings for the router show (router) rip Displays the current RIP settings for the Router show (router) snmp Displays the current SNMP settings for the Router 19-14 Adit 600 - Release 10.1.1...
  • Page 623 (router-wan) static mac address Displays the current list of static IP MAC network entries for the specified WAN interface show (router-wan) static nat address Displays current static NAT address entries for the specified WAN interface Adit 600 - Release 10.1.1 19-15...
  • Page 624 Displays the current status information for the specified Trunk on the router status (router-voice) Displays the current status of service, calls signaling, connections, call agent communications and telephony statistics for a CMG Router voice channel 19-16 Adit 600 - Release 10.1.1...
  • Page 625 Save a software file from a defined slot to a defined location on a PC, via TFTP telnet (router) Establish a Telnet session from the Adit 600 CLI to the Router port user interface trace route Will invoke a Trace Route to a host device on a network of a this Router.
  • Page 626 Good ethernet link 10/100 10 Mb ethernet Green 100 Mb ethernet No ethernet transmit activity Green Ethernet transmit activity Yellow Current ethernet transmit collision No current ethernet receive activity Green Current ethernet receive activity 19-18 Adit 600 - Release 10.1.1...
  • Page 627 HAPTER Terminal Server Router Card In this Chapter Overview Features Technical Specifications Card Configuration CLI Commands Connector Pinout 10Base-T Ethernet LEDs...
  • Page 628 The TSR card is SNMP or Command Line Interface (CLI) manageable. Management connectivity is provided either by directly through the user data port connection on the TSR card, or through the Controller cards as a component of the Adit 600 platform. Quad TSR with TBOS The Quad-Port Terminal Server Router (TSR) card with TBOS-to-SNMP conversion, offers a fully integrated solution to convert and transport TBOS alarms.
  • Page 629 Enables remote management of cell site resources Supplies 4 selectable RS-232 asynchronous or 10/100Base-T Ethernet connections per card Supports up to 6 Router cards per Adit 600 chassis, depending upon the Controller (see Restrictions on Multiple Router Cards on page 4-24)
  • Page 630 Controller Software Required T1 or E1 Controller NOTE: E1 is not supported in this release of the Adit 600 Controller. It will be supported in a future release. Adit 600 Release 4.1 or higher to support a TSR Service card Adit 600 Release 7.0 or higher to support a TSR Service card with TBOS...
  • Page 631 RS-232 TBOS support: RS-422 TBOS support can be provided using an external RS-232 to RS-422 converter Frame Relay RFC 1490 encapsulation ANSI T1.617 Annex D LMI ITU Q.933 Annex A LMI Filtering LAN/WAN Filters up to Layer 4, stateful Adit 600 - Release 10.1.1 20-5...
  • Page 632 Dimensions: 3.5 in. (H) x 0.75 in. (W) x 11.25 in. (D) 8.9 cm (H) x 1.9 cm (W) x 28.6 cm (D) Weight: 5.2 oz. (0.15 kg) For information on Adit 600 Environment required, see Installation Environment on page 2-2. 20-6 Adit 600 - Release 10.1.1...
  • Page 633 (router-lan) static Add a static elements on the specified LAN interface add (router-wan) firewall Add a firewall rule to a WAN add (router-wan) gre network Add a "by network" GRE tunnel to a WAN Adit 600 - Release 10.1.1 20-7...
  • Page 634 Remove a a single filter rule from the table of Layer 2 filters applied to the specified LAN interface delete (router-lan) secondary ip address Delete a secondary IP address and subnet to the specified LAN interface delete (router-lan) static Remove a static element from the LAN interface 20-8 Adit 600 - Release 10.1.1...
  • Page 635 (router) login auth Sets how login authentication for this router should be performed set (router) login prompt Enable/disable the suppression of the Router login prompt for a user that telnets in from the Controller CLI Adit 600 - Release 10.1.1 20-9...
  • Page 636 Specify the Ethernet PHY (physical specifications) speed and mode set (router-lan) rip Specify IP RIP for the LAN interface set (router-lan) stp Configure the Spanning Tree Protocol on the LAN interface set (router-lan) up/down Set the LAN interface up or down 20-10 Adit 600 - Release 10.1.1...
  • Page 637 Displays the current DNS setup for the router card show (router) dns proxy Displays the current DNS Proxy setup for the router card show (router) lmi Displays the current Local Management Interface (LMI) settings for the Router card Adit 600 - Release 10.1.1 20-11...
  • Page 638 (router-wan) static ip network Displays the current list of static IP network entries for the specified WAN interface show (router-wan) static ipx network Displays the current list of static IPX network entries for the specified WAN interface 20-12 Adit 600 - Release 10.1.1...
  • Page 639 Displays the current Router status information status (router-trunk) Displays the current status for the specified WAN store scp Save a software file from a defined slot to a defined location on a PC, via TFTP Adit 600 - Release 10.1.1 20-13...
  • Page 640 (router) Establish a Telnet session from the Adit 600 Controller to the TSR Router user interface telnet (router) port Establish a Telnet session from the Adit 600 Controller to an individual RS-232 port on the TSR Router card trace route...
  • Page 641 RS-232 pinouts. There is a RS-232 to DB-9 converter cable available, P/N 005-0106. The pinout is as follows: RJ-45 DB-9 RS-232 CTS (Input) RTS (Output) DSR (Input) TXD (Output) RXD (Input) DCD (Input) DTR (Output) SG (Filtered) RI (Not Used) Adit 600 - Release 10.1.1 20-15...
  • Page 642 10/100Base-T Position is farthest away from the front of the card RS-232 Position closest to the front of the card In the following graphic all port jumpers are set to 10/100Base-T Ethernet. Card Front 20-16 Adit 600 - Release 10.1.1...
  • Page 643 Current Ethernet collision Green Flashing Current Ethernet receive Yellow Flashing Current Ethernet transmit Port Set for RS-232 TOP LED Bottom LED Description Yellow No Activity Yellow Flashing Yellow Current transmit Yellow Flashing Green Current receive Adit 600 - Release 10.1.1 20-17...
  • Page 644 Terminal Server Router Card LEDs 20-18 Adit 600 - Release 10.1.1...
  • Page 645 HAPTER Multi-Service Router (MSR) Card In this Chapter Overview Features Technical Specifications CLI Commands Configuration Connector Pinouts LEDs...
  • Page 646 – offering a powerful blend of speed, security, data, and voice. When integrated into the Adit 600, the MSR card offers scalability and high performance for Internet and IP access, LAN-to-LAN connectivity over private and public networks, and VoIP PBX trunk service applications.
  • Page 647 SIP-PRI/CAS trunk capability for PBX trunk applications PBX Redirection support Selectable trunk channel hunt schemes for incoming SIP-to-PRI/CAS calls LAN-to-LAN connectivity over private and public networks WAN routing with QoS mechanisms for voice traffic and routed data prioritization Adit 600 - Release 10.1.1 21-3...
  • Page 648 NOTE: The Adit 600 supports one MSR card per chassis. There are additional restrictions on the total number of service cards that can be installed in an Adit 600. See Configuration Restrictions on page 4-23 for more information. T1 or E1 Controller Software Required NOTE: E1 is not supported in this release of the Adit 600 Controller.
  • Page 649 VoIP-capable phones may be placed directly on the Ethernet LAN for independent routing to external SIP/MGCP proxies and application servers NOTE: The Adit 600 can perform MGCP VoIP operations in parallel with SIP when equipped with a CMG card in addition to the MSR card. General Routing/Security Features...
  • Page 650 ToS marking and interpretation per IETF Std. 5 VLAN Priority Queuing Firewall Features Stateful Firewall NAT/NAPT, NAT Bypass, NAT Pin-Holes L1-L4 Flow Classification Application Layer Gateways including VoIP Denial of Service Filtering Intrusion Detection 21-6 Adit 600 - Release 10.1.1...
  • Page 651 Line Cross-Connects (FXS) FXS "Line Cross-Connects" permitted between MSR card FXS voice channels and any other Adit 600 external DS0 FXS channels on T1/E1 lines or on FXS cards Up to 48 Line Cross-Connect channels Line Cross-Connects can be "voice" typed, with a signaling type of "loop start" or "ground start"...
  • Page 652 Up to 8 Link Cross-Connects Three types of Link Cross-Connects: Data – PPP or MLPPP WAN links between MSR and any other Adit 600 WAN destination Voice – CAS links between MSR CAS trunk functionality and Adit 600 external T1/E1 lines PRI –...
  • Page 653 Dimensions: 3.5 in. (H) x 0.75 in. (W) x 11.25 in. (D) 8.9 cm (H) x 1.9 cm (W) x 28.6 cm (D) Weight: 6.7 oz. (190 g) For environmental requirements, see Installation Environment on page 2-2. Adit 600 - Release 10.1.1 21-9...
  • Page 654 Full configuration of the MSR card must be performed through its Graphical User Interface (GUI) or Command Line Interface (CLI). A limited number of CLI commands are available from the Adit 600 Controller for setting up cross-connects, loading code, and performing other basic functions:...
  • Page 655 Connection Options For MSR card configuration, the following connection options are available: RS-232 interface on the Adit 600 Controller - Provides access to the MSR’s CLI via Telnet - Allows ASCII text configuration storage via text capture using the ’print config’ command Ethernet interface on the Adit 600 Controller - Provides access to the MSR’s CLI via Telnet...
  • Page 656 2. Type ifconfig to display the network devices and allocated IPs. 3. Type pump -i dev, the dev is the network device name. 4. Type ifconfig again to view the new allocated IP address. 21-12 Adit 600 - Release 10.1.1...
  • Page 657 After you set up WAN connections on the MSR card, you can access the GUI through a WAN as well as the LAN. See Setting up the MSR for GUI Access via WAN on page 21-17. Adit 600 - Release 10.1.1 21-13...
  • Page 658 After successful login, the prompt will appear as follows: Adit MSR> NOTE: After you set up WAN connections on the MSR card, you can access the CLI through the WAN as well as the LAN and the Controller’s management connections. 21-14 Adit 600 - Release 10.1.1...
  • Page 659 These features are enabled via a Software Key. The number of keyed features may expand with the development of the product. To purchase a key, contact Force10 Networks Customer Service or Sales. To enter a software key, use the following CLI command:...
  • Page 660 IXP400 Software Release: 1_4 SQA4_1 MSP: 82610 - 100 channels Image File Name: TGW_v5_05.axf API Version : 2.1.0 Source IP Addr : 10.10.4.202 MSR Card Slot: 5 CLEI Code: SITRAANBAA Product Features: enabled. enabled. G729A enabled. 21-16 Adit 600 - Release 10.1.1...
  • Page 661 Enter password for the Privileged mode. Password: ******** Enter the Configuration mode. #configure terminal Enable remote web admin. (config)# remote-admin web primary-port enable 3. Connect to the GUI as described in Setting up a GUI Connection on page 21-13. Adit 600 - Release 10.1.1 21-17...
  • Page 662 If the MSR is not "out-of-the-box," you may want to verify that it is set to defaults. NOTE: This will reset the IP address back to the default setting of 192.168.1.1. 1. Select Advanced from the Navigation bar. 2. Select Restore Defaults. 21-18 Adit 600 - Release 10.1.1...
  • Page 663 Multi-Service Router (MSR) Card Configuration 3. Select OK to restore defaults. Adit 600 - Release 10.1.1 21-19...
  • Page 664 Modifying the Default Admin User For security purposes, it is recommended that the Administrator User be changed from the default settings. To modify the Administrator User: 1. Select Advanced from the Navigation bar. 2. Select the Users icon. 21-20 Adit 600 - Release 10.1.1...
  • Page 665 Multi-Service Router (MSR) Card Configuration 3. Select Administrator to open the profile. Adit 600 - Release 10.1.1 21-21...
  • Page 666 Administrative Privileges. For users with other access levels, use New User to add additional users on the system. For security purposes, the password should be changed from the default setting. 21-22 Adit 600 - Release 10.1.1...
  • Page 667 Multi-Service Router (MSR) Card Configuration 5. You will be required to log in again if you have modified your current User Profile. Adit 600 - Release 10.1.1 21-23...
  • Page 668 Single Link Cross-Connect WAN (PPP) NOTE: Cross-connects from Adit 600 resources (T1 lines or WAN-capable cards) must be made before setting up the WAN link on the MSR card. All DS0s cross-connected to the WAN link must be of type "Data." Use the connect (msr) command to cross-connect resources to the MSR card.
  • Page 669 Multi-Service Router (MSR) Card Configuration 3. Select New Connection to create the PPP Serial connection. Adit 600 - Release 10.1.1 21-25...
  • Page 670 Multi-Service Router (MSR) Card Configuration 4. Select Point-to-Point Protocol over DS0 (Serial), and select Next. 21-26 Adit 600 - Release 10.1.1...
  • Page 671 Multi-Service Router (MSR) Card Configuration 5. Enter the User Name and Password. 6. Select the Connection (LCC#1 to LCC#8) to be used for this WAN. Adit 600 - Release 10.1.1 21-27...
  • Page 672 Multi-Service Router (MSR) Card Configuration 7. Select Next. A summary of the connection is displayed. If correct, select Finish. 21-28 Adit 600 - Release 10.1.1...
  • Page 673 Multi-Service Router (MSR) Card Configuration 8. The new connection (Serial 1) appears on the Network Connections screen. Select the Serial 1 connection. Adit 600 - Release 10.1.1 21-29...
  • Page 674 Select the checkbox next to SIP ALG. If a data T1 is being used to access the MSR, make sure that Default Route is checked. Configure any other settings as necessary for your application. 21-30 Adit 600 - Release 10.1.1...
  • Page 675 Multi-Service Router (MSR) Card Configuration Adit 600 - Release 10.1.1 21-31...
  • Page 676 Multi-Service Router (MSR) Card Configuration 11. Select OK to apply the new settings and exit this screen. 12. Select OK again to return to the Network Connections screen. 21-32 Adit 600 - Release 10.1.1...
  • Page 677 Multiple Link Cross-Connect WAN (Multilink PPP) NOTE: Cross-connects from Adit 600 resources (T1 lines or WAN-capable cards) must be made before setting up the WAN link on the MSR card. All DS0s cross-connected to the WAN link must be of type "Data." Use the connect (msr) command to cross-connect resources to the MSR card.
  • Page 678 Multi-Service Router (MSR) Card Configuration 4. Select Multilink Point-to-Point Protocol over DS0 (Multilink), and select Next. 5. Enter User Name and Password. 21-34 Adit 600 - Release 10.1.1...
  • Page 679 Multi-Service Router (MSR) Card Configuration 6. Select the Connections (from LCC#1 to LCC#8) to be used for this WAN. Adit 600 - Release 10.1.1 21-35...
  • Page 680 Multi-Service Router (MSR) Card Configuration 7. Select Next. A summary of the Multilink connection is displayed. If correct, select Finish. 21-36 Adit 600 - Release 10.1.1...
  • Page 681 Multi-Service Router (MSR) Card Configuration 8. The new connection (Multilink 1) appears on the Network Connections screen. Select the Multilink 1 connection. Adit 600 - Release 10.1.1 21-37...
  • Page 682 Set DNS Static Entries to Use the following DNS Server Addresses. Specify the Primary DNS Server and the Secondary DNS Server. Make sure that Routing Mode is set to NAPT. Select the checkbox next to SIP ALG. Configure any other settings as necessary for your application. 21-38 Adit 600 - Release 10.1.1...
  • Page 683 Multi-Service Router (MSR) Card Configuration Adit 600 - Release 10.1.1 21-39...
  • Page 684 Multi-Service Router (MSR) Card Configuration 11. Select OK to apply the new settings and exit this screen. 12. Select OK again to return to the Network Connections screen. 21-40 Adit 600 - Release 10.1.1...
  • Page 685 Multi-Service Router (MSR) Card Configuration Ethernet WAN To configure an Ethernet WAN: 1. Select Network Connections from the Navigation bar. 2. Select the Ethernet 2 (WAN Ethernet) connection. Adit 600 - Release 10.1.1 21-41...
  • Page 686 Subnet Mask, and Default Gateway. Under DNS Static Entries, specify the Primary DNS Server and the Secondary DNS server. Make sure that Routing Mode is set to NAPT. Configure any other settings as necessary for your application. 21-42 Adit 600 - Release 10.1.1...
  • Page 687 Multi-Service Router (MSR) Card Configuration 6. Select OK to apply the new settings and exit this screen. 7. Select OK again to return to the Network Connections screen. Adit 600 - Release 10.1.1 21-43...
  • Page 688 PRI trunk, you must use the "pri" option with the connect (msr) command. 2. From the Adit 600 controller, use the connect (msr) command to cross-connect DS0s from network-facing DS1 resources to MSR lines. The DS0s must be "voice" typed. You can cross- connect DS0s from different DS1s.
  • Page 689 Multi-Service Router (MSR) Card Configuration Adit 600 - Release 10.1.1 21-45...
  • Page 690 Multi-Service Router (MSR) Card Configuration 5. Select the Advanced button. Modify any advanced VoIP settings as needed. Select Apply, then select OK to exit this screen. 21-46 Adit 600 - Release 10.1.1...
  • Page 691 Note: To display all available lines, select Display All Lines at the bottom of the screen. To display only cross-connected lines, select Display Cross Connect Lines. 7. Select the Action icon for Line #1 to edit the line settings. Adit 600 - Release 10.1.1 21-47...
  • Page 692 8. Enter the Phone Number in the User ID field. Enable the appropriate Calling Features, and specify the Authentication settings. Configure any other settings as necessary for your application. Select OK, then select OK again at the confirmation screen. 21-48 Adit 600 - Release 10.1.1...
  • Page 693 9. Repeat the configuration steps for each line you are setting up. 10. Select the Line Monitoring tab. This screen displays the SIP status of the lines. Note: When a line is successfully registered, the Registration Status column displays "Registered" in green. Adit 600 - Release 10.1.1 21-49...
  • Page 694 (designated by a check mark). Set the Trunk Signaling type to PRI or CAS. (This example uses PRI.) Select the Signaling Type. Select the Channel Hunt Mode. Configure any other settings as necessary for your application. 21-50 Adit 600 - Release 10.1.1...
  • Page 695 Multi-Service Router (MSR) Card Configuration Adit 600 - Release 10.1.1 21-51...
  • Page 696 Possible usages include stripping off the area code or the 3-digit office prefix. For Prefix, enter the digits or name to be added to the phone number (starting from the left- most digit) after the stripping process has been applied. 21-52 Adit 600 - Release 10.1.1...
  • Page 697 16. When finished entering dial patterns, select OK, then select OK again at the confirmation screen to return to the Voice Over IP screen. 17. If you have not already done so, use the connect (msr) command from the Adit 600 controller to configure cross-connects, as described in steps 1 and 2.
  • Page 698 Multi-Service Router (MSR) Card Configuration 18. Select the Trunk Monitoring tab to view the status of any calls on the trunk. 21-54 Adit 600 - Release 10.1.1...
  • Page 699 Receive - Receive from network Transmit + Transmit to network Not connected Transmit - Transmit to network Not connected NOTE: These ports use a "hub" pinout. Use a straight-through cable to connect a PC. Adit 600 - Release 10.1.1 21-55...
  • Page 700 ETH1 and 10 Mbit/sec, down, or not connected ETH2 Green 100 Mbit/sec Top LED ETH1 and Link down ETH2 Green Link up Bottom LED Flashing Green Traffic on link Yellow Collision status 21-56 Adit 600 - Release 10.1.1...
  • Page 701 HAPTER RS-232 Card In this Chapter Overview RS-232 Service Card (hardened) Features Features Technical Specifications Card Configuration CLI Commands LEDs Connector Pinouts Connector Adapter DA-26S Connector Pin Assignments...
  • Page 702 RS-232 ports on each card can be mapped to a DS0 of a T1 network and may operate simultaneously at any supported speed (i.e., 2.4, 4.8, 9.6, 56 and 64 Kbps). Clocking is derived from the Adit 600 and the source connected to it.
  • Page 703 Dimensions: 3.5 in. (H) x 0.75 in. (W) x 11.25 in. (D) 8.9 cm (H) x 1.9 cm (W) x 28.6 cm (D) Weight: 4.6 oz. (0.13 kg) For information on Adit 600 Environment required, see Installation Environment on page 2-2. Adit 600 - Release 10.1.1 22-3...
  • Page 704 Displays the current settings for RS-232 (clear to send, request to send, data carrier detect, baud rate, loopback) status (rs232) Displays the current status of the specified RS-232 (clear to send, request to send, data carrier detect). 22-4 Adit 600 - Release 10.1.1...
  • Page 705 The RJ-45 shall be pinned-out as follows (matches DTS product interface) to minimize the customer transition from DTS FlexT to Adit. RJ-45 Pin No Signal Direction From DTE To DTE To DTE From DTE To DTE To DTE To DTE Signal Ground Adit 600 - Release 10.1.1 22-5...
  • Page 706 Not Used Output Not Used Output Not Used SIG GND Input TXC/RXC Output Not Used Not Used Output Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used 22-6 Adit 600 - Release 10.1.1...
  • Page 707 HAPTER V.35 and V.35/V.54 Cards In this Chapter Overview V.35 Service Card V.35/54 and Hardened V.35/54 Service Cards Features Technical Specifications Card Configuration CLI Commands LEDs Cables Connector Pinouts V.35 DCE (DB-26)
  • Page 708 The V.35 Service card provides scalable high-speed data service capacity to grow with user needs. Up to six V.35 cards can be inserted into any slot of the Adit 600 Customer Service Terminal, providing up to 12 fractional T1 V.35 connections from two T1 network connections. Two Adit Quad T1 Network Access/Drop-and-Insert cards allow eight T1s with full T1 CSU/DSU functionality to be terminated to eight V.35 ports in a single Adit 600 chassis.
  • Page 709 Enables up to 12 V.35 ports may be equipped in a single Adit 600 chassis Allows a total of 24 V.35 ports to be equipped in two Adit 600 chassis, occupying only two rack units of equipment space in a 19-inch rack...
  • Page 710 8.9 cm (H) x 1.9 cm (W) x 28.6 cm (D) Weight: 4.6 oz. (0.13 kg) For information on Adit 600 Environment required, see Installation Environment on page 2-2. Accessories Sub-miniature DB-26 to Winchester adapter cables are required to interface DTE with the Dual V.35 card.
  • Page 711 Displays the current status of the specified V.35 (data terminal ready, request to send, data carrier detect, clear to send, data set ready). status (v54) Displays the current near-end line status of the specified V.54 (DCD, CTS, DSR, RTS, DTR, BERT). Adit 600 - Release 10.1.1 23-5...
  • Page 712 V.35 data cables with male connector for connecting a router with a female V.35 Winchester connector or 005-0009 V.35 Male 25-foot cable other data equipment to a Adit 600 V.35 data port 005-0008 V.35 Male 10-foot cable (sub-miniature DB-26). Order one cable per V.35 port.
  • Page 713 10-foot, 25-foot, or 50-foot Force10 Networks DTE V.35 cable equipped with a sub-miniature DB-26 connector and a 34-pin Winchester connector. This cable is used to connect the Adit 600 V.35 DCE data ports to synchronous V.35 DTE data sources up to 1.536 Mbps, all rates (1-24) Nx56 or Nx64 channel-rate progression.
  • Page 714 V.35 and V.35/V.54 Cards Connector Pinouts 23-8 Adit 600 - Release 10.1.1...
  • Page 715 Determining Boot Code Software Level Upgrading System and Router Software via TFTP Upgrading System and Router Software via TFTP using Proxy Upgrading Software Levels via X-Modem Backup Adit 600 Configuration Save Controller Configuration Load Controller Configuration Replace Controller Card Hot Swap Service Card...
  • Page 716 Determining Boot Code Software Level 1. Start a CLI session on the Adit 600 using a terminal emulation program or via Telnet. 2. After login, type status equipment at the CLI prompt.
  • Page 717 See Chapter 5, CLI Commands for more information on these commands. 2. Start your TFTP server utility. 3. Login to the Adit 600 using the Proxy IP address, (example: 192.168.100.80) using a terminal emulation program or via Telnet. 4. Enter: load [slot] tftp {ip-addr} "file-name"...
  • Page 718 1. Login to the Adit 600. 2. Enter: load xmodem to download the application from the binary file. This will start the system looking for an xmodem download. The Adit 600 will prompt you to send the file. Use one of the following methods:...
  • Page 719 RS-232 port or via Telnet. The upload of the file from the PC back to the Adit 600 can only be done via direct RS-232 connection. This is because the Adit 600 will be at factory default and an IP address is not assigned to the Adit 600.
  • Page 720 Maintenance Backup Adit 600 Configuration Load Controller Configuration 1. Open HyperTerm session with the Adit 600 unit. 2. In HyperTerm, select File/Properties/Settings/ASCII Setup. 3. Set the Line delay to 500 ms and the Character delay to 5 ms. 4. Select OK to save ASCII Setup and OK to save HyperTerm Properties.
  • Page 721 1. Gently slide the Service card straight out of the slot. 2. Gently slide the new Service card into the empty slot. 3. Ensure that the new card is fastened securely into the connector at the back of the unit. Adit 600 - Release 10.1.1 24-7...
  • Page 722 Maintenance Hot Swap Service Card 24-8 Adit 600 - Release 10.1.1...
  • Page 723 PPENDIX Regulatory Approvals In this Appendix This appendix contains a chart of all the components of the Adit 600 and their Regulatory Approvals.
  • Page 724 * A T1 Controller purchased with Release 9.1 is designed to meet NEBs, but is not currently certified. The T1 Controller with 9.0 or earlier is NEBs certified. For the current NEBs compliance status on any card, call Customer Support. Adit 600 - Release 10.1.1...
  • Page 725 PPENDIX SNMP Interface In this Appendix Overview SNMP Basics SNMPv3 Enterprise MIB Support Router Enterprise MIB Support Public MIB Support Router Public MIB Support MIB Loading Order Adit 600 Trap Support...
  • Page 726 Overview The Simple Network Management Protocol (SNMP) enables network operations centers (NOCs) to monitor and manage network elements across an internetwork. The Adit 600 supports SNMP through its Ethernet port, which provides access to the carrier’s TCP/IP management network. SNMP Basics SNMP is a protocol used to manage network equipment over TCP/IP networks.
  • Page 727 SNMPv3 SNMPv3 Starting with release 9.8, the Adit 600 supports SNMPv3. SNMPv3 provides enhanced security features not available in SNMPv1 and SNMPv2. Rather than using community strings, SNMPv3 employs user names and passwords. SNMPv3 packets are authenticated and encrypted based on how the users have been defined.
  • Page 728 – Set the SNMPv3 authentication protocol (HMAC MD5 or HMAC SHA) for a user. set user priv – Set the SNMPv3 encryption protocol and privacy password for a user. show snmp users – Display the SNMPv3 attributes of all users. Adit 600 - Release 10.1.1...
  • Page 729 CAGEN-ADPCM-MIB cagen-adpcm.mib CAGEN-BRI-MIB cagen-bri.mib CAGEN-CMG-MIB cagen-cmg.mib CAGEN-DS0-MIB cagen-ds0.mib CAGEN-DS1-MIB cagen-ds1.mib CAGEN-FX-MIB cagen-fx.mib CAGEN-IF-FACTORY-MIB cagen-if-factory.mib CAGEN-NTP-MIB cagen-ntp.mib CAGEN-OCUDP-MIB cagen-ocudp.mib CAGEN-PPHONE-MIB cagen-pphone.mib CAGEN-RS232-MIB cagen-rs232.mib CAGEN-SYSLOG-MIB cagen-syslog.mib CAGEN-TSR-MIB cagen-tsr.mib CAGEN-V35-MIB cagen-v35.mib SNMPV2-CONF-MIB snmpv2-conf.mib SNMPV2-SMI-MIB snmpv2-smi.mib SNMPV2-TC-MIB snmpv2-tc.mib Adit 600 - Release 10.1.1...
  • Page 730 CAGENCMG-DIALPLAN-MIB caGenCmg-dialplan.mib CAGENCMG-MGCP-MIB caGenCmg-mgcp.mib CAGENCMGCARD-TC-MIB caGenCmg-tc.mib CAGENCMG-SIPCARD-MIB caGenCmg-sip.mib CAGENCMG-TRUNK-MIB caGenCmg-trunk.mib CAGENCMG-VCHAN-MIB caGenCmg-vchan.mib CAGENCMG-VOIP-MIB caGenCmg-voip.mib TSR Specific CAGENTSR-MIB caGen-tsr.mib Common with Controller CARRIERACCESS-GENERIC-MIB carrieraccess-generic.mib CARRIERACCESS-TC-MIB carrieraccess-tc.mib CAGEN-GENERIC-MIB cagen-generic.mib CAGEN-SYSTEM-MIB cagen-system.mib SNMPV2-CONF-MIB snmpv2-conf.mib SNMPV2-SMI-MIB snmpv2-smi.mib SNMPV2-TC-MIB snmpv2-tc.mib Adit 600 - Release 10.1.1...
  • Page 731 RFC2495 (DS1-MIB) dsx1ConfigTable Far End Tables and dsx1CurrentTable Fractional Table not dsx1IntervalTable supported dsx1TotalTable RFC2571 (SNMP-FRAMEWORK-MIB) SNMP TC Defines textual conventions; no objects RFC2572 (SNMP-MPD-MIB) RFC2573 (SNMP-TARGET-MIB, SNMP- NOTIFICATION-MIB, SNMP-PROXY-MIB) RFC2574 (SNMP-USER-BASED-SM-MIB) RFC2575 (SNMP-VIEW-BASED-ACM-MIB) Adit 600 - Release 10.1.1...
  • Page 732 RFC1215 (RFC-1215-MIB) RFC1215-TRAP (RFC-1215-TRAP-MIB) RFC2012 (TCP-MIB) RFC2013 (UDP-MIB) RFC2127 (ISDN-MIB) RFC2272 (SNMP-MPD-MIB) RFC2273 (SNMP-TARGET-MIB, SNMP-NOTIFICATION-MIB, SNMP-PROXY-MIB) RFC2274 (SNMP-USER-BASED- SM-MIB) RFC2275 (SNMP-VIEW-BASED- ACM-MIB) RFC2465 (IPV6-MIB) RFC2493 (PerfHist-TC-MIB) RFC2495 (DS1-MIB) RFC2571 (SNMP-FRAMEWORK- MIB) RFC2573 (SNMP-TARGET-MIB, SNMP-NOTIFICATION-MIB, SNMP-PROXY-MIB) Adit 600 - Release 10.1.1...
  • Page 733 SNMP Interface Router Public MIB Support RFC2576 (SNMP-COMMUNITY- MIB) RFC2786 (SNMP-USM-DH- OBJECTS-MIB) RFC3413 (SNMP-TARGET-MIB, SNMP-NOTIFICATION-MIB, SNMP-PROXY-MIB) RFC3584 (SNMP-COMMUNITY- MIB) Adit 600 - Release 10.1.1...
  • Page 734 52. adit600-tdm-router.mib 23. rfc2574.mib 53. caGen-ocudp.mib 24. rfc2575.mib 54. caGenRouter.mib 25. rfc2576.mib 55. caGenRouter-trunk.mib 26. rfc2786.mib 56. caGenRouter-WanProfile.mib 27. rfc3291.mib 57. caGenRouter-CardProfile.mib 28. rfc3413.mib 58. caGenRouter-DNS.mib 29. rfc3584.mib 59. caGenRouter-Filters.mib 30. rfc1155-smi.mib 60. caGenRouter-LanProfile.mib B-10 Adit 600 - Release 10.1.1...
  • Page 735 SNMP Interface Adit 600 Trap Support Adit 600 Trap Support This section highlights the standard and Enterprise SNMP trap support in the Adit 600 controller. The controller supports both standard and Enterprise specific SNMPv2 NOTIFICATION-TYPE traps. Standard Traps The Adit 600 controller supports the following standard traps.
  • Page 736 SNMPv2 must be capable of generating this trap, the snmpEnableAuthenTraps object indicates whether this trap will be generated." Enterprise Traps The Adit 600 controller supports the following enterprise specific traps. All enterprise traps are defined in the CA-TRAPS-MIB (cagen-traps.mib) Most variable bindings are imported from the CA-EVENT- MIB (cagen-event.mib).
  • Page 737 Loss Of Signal No Dying Gasp Line Coding Violation Remote Alarm Indication Loss Of Frame Link Down Loss Of RTS Call Connection Down If the ifIndex has a name, 'caGenEventAdditionalText' reports it for all ifTypes." Adit 600 - Release 10.1.1 B-13...
  • Page 738 7. caGenMajorUserAlarmInputDetected Variable Binding List: caGenEventCategory, caGenEventInfoParam1 Trap OID: 1.3.6.1.4.1.964.3.4.1.100.0.7 Full Path of OID: iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).carrieraccess(964).products(3).caGen (4).caGeneric(1).caGenTraps(100).caGenEventsV2(0).caGenMajorUserAlarmInputDetected( Trap Description: "A major user alarm input has been detected. 'caGenEventInfoParam1' indicates which user alarm input has tripped." B-14 Adit 600 - Release 10.1.1...
  • Page 739 "A user alarm input has been cleared. 'caGenEventInfoParam1' indicates which user alarm input has cleared." 11. caGenPowerSupplyFailure Variable Binding List: caGenEventCategory, caGenEventAdditionalText Trap OID: 1.3.6.1.4.1.964.3.4.1.100.0.12 Full Path of OID: iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).carrieraccess(964).products(3).caGen (4).caGeneric(1).caGenTraps(100).caGenEventsV2(0).caGenPowerSupplyFailure(12) Trap Description: "Power Supply Failure. 'caGenEventAdditionalText' varies for specific products." Adit 600 - Release 10.1.1 B-15...
  • Page 740 Full Path of OID: iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).carrieraccess(964).products(3).caGen (4).caGeneric(1).caGenTraps(100).caGenEventsV2(0).caGenCardDetected(15) Trap Description: "Card detected." 15. caGenCardResetComplete Variable Binding List: caGenEventCategory, caGenSlot Trap OID: 1.3.6.1.4.1.964.3.4.1.100.0.16 Full Path of OID: iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).carrieraccess(964).products(3).caGen (4).caGeneric(1).caGenTraps(100).caGenEventsV2(0).caGenCardResetComplete(16) Trap Description: "Card reset complete. 'caGenSlot' holds the slot number" B-16 Adit 600 - Release 10.1.1...
  • Page 741 18. caGenMajorUserAlarmInputCleared Variable Binding List: caGenEventCategory, caGenEventInfoParam1 Trap OID: 1.3.6.1.4.1.964.3.4.1.100.0.23 Full Path of OID: iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).carrieraccess(964).products(3).caGen (4).caGeneric(1).caGenTraps(100).caGenEventsV2(0).caGenMajorUserAlarmInputCleared(2 Trap Description: "A major user alarm input has been cleared. 'caGenEventInfoParam1' indicates which user alarm input has cleared." Adit 600 - Release 10.1.1 B-17...
  • Page 742 20. caGenInfoUserAlarmInputCleared Variable Binding List: caGenEventCategory, caGenEventInfoParam1 Trap OID: 1.3.6.1.4.1.964.3.4.1.100.0.25 Full Path of OID: iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).carrieraccess(964).products(3).caGen (4).caGeneric(1).caGenTraps(100).caGenEventsV2(0).caGenInfoUserAlarmInputCleared(25) Trap Description: "A informative user alarm input has been cleared. 'caGenEventInfoParam1' indicates which user alarm input has cleared." B-18 Adit 600 - Release 10.1.1...
  • Page 743 PPENDIX Diagnostics & Troubleshooting In this Appendix Alarms Logs Status and Performance Loopbacks Overview DS1/E1 Loopbacks V.35 Loopbacks V.35/V.54 Loop V.54 Equipment Loopback OCU-DP Loopbacks Router Diagnostics and Performance Tools...
  • Page 744 Alarms Test Alarm The Adit 600 alarm functions can be manually tested using the following command for setting critical, major and minor alarms. Turning alarms on or off will produce alarm messages and log entries stating the alarm event was manually set/cleared by the user.
  • Page 745 Router (CMG) Card, LEDs Terminal Server Router Card, LEDs Multi-Service Router (MSR) Card, LEDs RS-232 Card, LEDs V.35 and V.35/V.54 Cards, LEDs Power Supply, 115 VAC LEDs Power Supply, 230 VAC LEDs Power Supply, 24 VDC LEDs Adit 600 - Release 10.1.1...
  • Page 746 Once an alarm is identified then the process of clearing it can begin. Silence Alarm, if necessary (Alarm Cut Off CLI command: aco) Check Connection Check Cable, replace if necessary Check hardware and replace if necessary Call Customer Support Adit 600 - Release 10.1.1...
  • Page 747 00:00:12 01/01/2002 Info 2-FXS5Gx8 Card Detected 00:00:06 01/01/2002 Major A:2-DS1 Loss Of Signal 00:00:05 01/01/2002 Info 4-CMGx1 Card Detected 00:00:02 01/01/2002 Info A-T1x2 Card Detected 00:00:02 01/01/2002 Info System Powerup Total=7 Category = bri|ds1|env|equipment|fxo|fxs|rtr|v35 Severity = alert|critical|info|major|minor Adit 600 - Release 10.1.1...
  • Page 748 (router) performance status (fxsINTL) status (router) stp status (fxsPS) status (router-lan) status ipds0 status (router-trunk) status (ocudp) status (router-voice) status (ocudp) performance status (rs232) status (ocudp) performance history status (v35) status (p-phone) status (v54) Adit 600 - Release 10.1.1...
  • Page 749 Loopbacks Overview NOTE: E1 is not supported in this release of the Adit 600 Controller. It will be supported in a future release. A loopback test is a diagnostic procedure in which a signal is transmitted and returned to the sending device after passing through all or a portion of a network or circuit.
  • Page 750 > set a:1 line loopdown View Status of Loopback DS1 Status > status a:1 SLOT A: Status for DS1 Receive: Traffic Transmit: Traffic Loopback: E1 Status > status a:1 SLOT A: Status for E1 Receive: Traffic Transmit: Traffic Loopback: Adit 600 - Release 10.1.1...
  • Page 751 SLOT A: Status for DS1 Receive: Traffic Transmit: Traffic Loopback: PAYLOAD Disable Payload Loopback > set a:1 payload loopdown View Status of Loopback > status a:1 SLOT A: Status for DS1 Receive: Traffic Transmit: Traffic Loopback: Adit 600 - Release 10.1.1...
  • Page 752 > status a:1 SLOT A: Status for DS1 Receive: Traffic Transmit: Traffic Loopback: LINE C-10 Adit 600 - Release 10.1.1...
  • Page 753 > status a:1 SLOT A: Status for DS1 Receive: Loss of Signal Transmit: RAI/Yellow Alarm Loopback: Adit 600 - Release 10.1.1 C-11...
  • Page 754 Disable Equipment Loopback > set 5:1 equipment loopdown C-12 Adit 600 - Release 10.1.1...
  • Page 755 Performance Threshold Settings 15 min. 1 day unavailable seconds: severely errored seconds: errored seconds: sev. errored frame seconds: line errored seconds: controlled slip seconds: bursty errored seconds: degraded minutes: total linecode violations: total pathcode violations: Adit 600 - Release 10.1.1 C-13...
  • Page 756 > show 6:1 SLOT 6: Settings for V35 Port 1: CTS: Always High Timing: Source Rx Clock Inversion: Normal Tx Clock Inversion: Normal Data Inversion: Normal Data Speed: Data Rate: 1536 K Loopback: Line C-14 Adit 600 - Release 10.1.1...
  • Page 757 > show 6:1 SLOT 6: Settings for V35 Port 1: CTS: Always High Timing: Source Rx Clock Inversion: Normal Tx Clock Inversion: Normal Data Inversion: Normal Data Speed: Data Rate: 1536 K Loopback: None Adit 600 - Release 10.1.1 C-15...
  • Page 758 > show 6:1 SLOT 6: Settings for V35 Port 1: CTS: Always High Timing: Source Rx Clock Inversion: Normal Tx Clock Inversion: Normal Data Inversion: Normal Data Speed: Data Rate: 1536 K Loopback: None C-16 Adit 600 - Release 10.1.1...
  • Page 759 Normal Data Speed: Data Rate: 768 K V.54 Rx LB: disabled V.54 Rx Addr: V.54 Test Addr: V.54 Tx Prep count: V.54 Rx Prep count: V.54 Test Pattern: QRSS V.54 Ignore ACK: Loopback: None Adit 600 - Release 10.1.1 C-17...
  • Page 760 Normal Data Speed: Data Rate: 768 K V.54 Rx LB: enabled V.54 Rx Addr: V.54 Test Addr: V.54 Tx Prep count: V.54 Rx Prep count: V.54 Test Pattern: QRSS V.54 Ignore ACK: Loopback: None C-18 Adit 600 - Release 10.1.1...
  • Page 761 High DTR: High BERT: RUNNING (Syncing up) > status 6:1 SLOT 6: Status for V35 PORT 1: DCD: High CTS: High DSR: High RTS: High DTR: High BERT: RUNNING BITS: 8386950 ERRS: BER: 0.00000000 Adit 600 - Release 10.1.1 C-19...
  • Page 762 View Status of Loopback > status 6:1 SLOT 6: Status for V35 PORT 1: DCD: High CTS: High DSR: High RTS: High DTR: High BERT: Complete BITS: 109030350 ERRS: BER: 0.00000000 BERT DATE: 1/5/2001 01:39:18 C-20 Adit 600 - Release 10.1.1...
  • Page 763 Where a OCU-DP card is in slot 3. > show 3:1 SLOT 3: Settings for OCUDP Port 1: Up/Down: Baudrate: 56000 Loopdetect Types Enabled: CSU Latching DSU Latching OCU Latching Error Correction: DISABLE Secondary Channel: DISABLE Adit 600 - Release 10.1.1 C-21...
  • Page 764 > show 3:1 SLOT 3: Settings for OCUDP Port 1: Up/Down: Baudrate: 56000 Loopdetect Types Enabled: CSU Latching CSU Non-Latching DSU Latching DSU Non-Latching OCU Latching OCU Non-Latching Error Correction: DISABLE Secondary Channel: DISABLE C-22 Adit 600 - Release 10.1.1...
  • Page 765 PASS OCU Manual Loopback: NONE CSU Manual Loopback: In Progress OCU NonLatching Loopback: NONE DSU NonLatching Loopback: NONE CSU NonLatching Loopback: NONE OCU Latching Loopback: NONE DSU Latching Loopback: NONE CSU Latching Loopback: NONE Adit 600 - Release 10.1.1 C-23...
  • Page 766 PASS OCU Manual Loopback: In Progress CSU Manual Loopback: NONE OCU NonLatching Loopback: NONE DSU NonLatching Loopback: NONE CSU NonLatching Loopback: NONE OCU Latching Loopback: NONE DSU Latching Loopback: NONE CSU Latching Loopback: NONE C-24 Adit 600 - Release 10.1.1...
  • Page 767 Trace Route The Trace Route option is used to verify timely and reliable connections. The Trace Route utility determines the path a packet follows from source to destination. Adit 600 - Release 10.1.1 C-25...
  • Page 768 Router would update the data in the table and send the information to all enabled remotes to exchange the updated data. Address Tables The MAC Address and IP Address Tables, along with Network Tables are used to determine if and where the Router should send packets. C-26 Adit 600 - Release 10.1.1...
  • Page 769 PPENDIX Protocol Types In this Appendix Protocol Number in Firewall Filters Ethernet Protocol Types...
  • Page 770 Bulk Data Transfer Protocol [RFC969, DDC1] MFE-NSP NFE Network Services Protocol [MFENET, BCH2] MERIT-INP MERIT Internodal Protocol [HWB] Sequential Exchange Protocol [JC120] Third Party Connect Protocol [SAF3] IDPR Inter-Domain Policy Routing Protocol [MXS1] [GXC] Datagram Delivery Protocol [WXC] Adit 600 - Release 10.1.1...
  • Page 771 Computer Protocol Heart Beat [DXM2] Wang Span Network [VXD] Packet Video Protocol [SC3] BR-SAT-MON Backroom SATNET Monitoring [SHB] SUN-ND SUN ND PROTOCOL-Temporary [WM3] WB-MON WIDEBAND Monitoring [SHB] WB-EXPAK WIDEBAND EXPAK [SHB] ISO-IP ISO Internet Protocol [MTR] Adit 600 - Release 10.1.1...
  • Page 772 0-hop protocol [IANA] L2TP Layer Two Tunneling Protocol [Aboba] D-II Data Exchange (DDX) [Worley] IATP Interactive Agent Transfer Protocol [Murphy] Schedule Transfer Protocol [JMP] SpectraLink Radio Protocol [Hamilton] [Lothberg] [Ekblad] [Crowcroft] Performance Transparency Protocol [Welzl] Adit 600 - Release 10.1.1...
  • Page 773 Combat Radio User Datagram [Sautter] SSCOPMCE [Waber] IPLT [Hollbach] Secure Packet Shield [McIntosh] PIPE Private IP Encapsulation within IP [Petri] SCTP Stream Control Transmission Protocol [Stewart] Fibre Channel [Rajagopal] RSVP-E2E-IGNORE [RFC3175] 135-254 Unassigned [IANA] Reserved [IANA] Adit 600 - Release 10.1.1...
  • Page 774 Berkeley Trailer encapsulation 1600 VALID 4242 BXS Basic Block Protocol 5208 BBN Simnet Private 6000 DEC Unassigned 6001 DEC MOP Dump/Load Assistance 6002 DEC MOP Remote Console 6003 DEC DECnet Phase IV 6004 DEC LAT Adit 600 - Release 10.1.1...
  • Page 775 SGI reserved type (obsolete) 8016 SGI "bounce server" (obsolete) 8019 Apollo 802E Tymshare 802F Tigan, Inc. 8035 Reverse ARP 8036 Aeonic Systems 8038 DEC LANBridge 8039 DEC Unassigned 803A DEC Unassigned 803B DEC Unassigned 803C DEC Unassigned Adit 600 - Release 10.1.1...
  • Page 776 806E-8077 Landmark Graphics Corporation 807A Matra (France) 807B Dansk Data Elektronic A/S (Denmark) 807C Merit Internodal 807D VitaLink Communications 807E VitaLink Communications 807F VitaLink Communications 8080 VitaLink Communications bridge 8081 Counterpoint Computers 8082 Counterpoint Computers Adit 600 - Release 10.1.1...
  • Page 777 80D5 IBM SNA Services over Ethernet 80DD Varian Associates 80DE Integrated Solutions TRFS (Transparent Remote File System) 80DF Integrated Solutions 80E0-80E3 Allen-Bradley 80E4-80F0 Datability 80F2 Retix 80F3 Kinetics, AppleTalk ARP (AARP) 80F4 Kinetics 80F5 Kinetics Adit 600 - Release 10.1.1...
  • Page 778 Novell (old) NetWare IPX (ECONFIG E Option) 8138 Novell 8139-813D 9000 Loopback (Configuration Test Protocol) 9001 Bridge Communications XNS Systems Management 9002 Bridge Communications TCP/IP Systems Management 9003 Bridge Communications FF00 BBN BITAL LANBridge cache wakeup D-10 Adit 600 - Release 10.1.1...
  • Page 779 PPENDIX Force10 Networks Adit 600 U.S. DoD Deployment Guide For Release 10.1 In this Appendix Overview Adit 600 Overview Installing Release 10.1 Required Ancillary Equipment (RAE) Release 10.1 Security Features...
  • Page 780 FederalSales@force10networks.com. Adit 600 Overview The Adit 600 defines a new class of equipment that combines multi-network access and multi-service delivery into one platform. The result is an extremely cost-effective, compact, and flexible solution that supports voice, IP, high-speed data, and legacy serial services using the most economical broadband access available over wireline and wireless networks.
  • Page 781 CLI. A description of all CLI commands occurs in Chapter 5, CLI Commands. Required Ancillary Equipment (RAE) DISA has determined that the Adit 600 shall be deployed with an Ethernet link to a RADIUS server and a Syslog server to adequately meet minimum security requirements when connected to a DISA network.
  • Page 782 Syslog server is unavailable. The set syslog CLI command controls the Syslog. Note that all events are logged based on the Adit 600 internal clock which must be set using the manual set date and set time commands or automatically by enabling the set ntp automatic time update commands.
  • Page 783 LOSSARY Glossary ADPCM Adaptive Differential Pulse Code Modulation Alarm Indication Signal Automatic Mark Inversion Address Resolution Protocol Asynchronous Transfer Mode B8ZS Bipolar with 8 Zero Substitution Bit Error Rate BERT Bit Error Rate Tester Burst Errored Seconds Binary Digit Bits Per Second Bipolar Violation Basic Rate Interface Channel Associated Signaling...
  • Page 784 Data Terminal Ready signal. The European counterpart to T1, which transmits at 2.048 Mbits/sec E&M Ear and Mouth - a 4-wire analog voice transport with supervisory signaling. Errored Seconds Extended Superframe Facilities Data Link Foreign Exchange Glossary-2 Adit 600 - Release 10.1.1...
  • Page 785 Million Bits Per Second MGCP Media Gateway Control Protocol MLPPP Multilink PPP Multiplexer MVEC Majority Vote Error Correction Network Address Translation Network-based Call Signaling NEBS Network Equipment Building Standards Network Interface Unit Network Time Protocol Adit 600 - Release 10.1.1 Glossary-3...
  • Page 786 Terminal Access Controller Access Control System. Time Division Multiplex. TFTP Trivial File Transfer Protocol. Type of Service Terminal Server Router VC MUX Virtual Channel Multiplexer VOIP Voice over IP. Wide Area Network. Virtual Channel. Glossary-4 Adit 600 - Release 10.1.1...
  • Page 787 The interface to the T1 line that terminates the local loop. Classless Inter-Domain CIDR is a new addressing scheme for the Internet which allows for more efficient Routing allocation of IP addresses than the old Class A, B, and C address scheme. Adit 600 - Release 10.1.1 Glossary-5...
  • Page 788 A fragment of data that is packaged into a frame format, which comprises a header, payload, and trailer. Glossary-6 Adit 600 - Release 10.1.1...
  • Page 789 The total opposition a circuit offers to the flow of alternating current. It is measured in ohms and the lower the ohmic value, the better the quality of the conductor Integrated Services ISDN BRI, which is 144,000 bits per second and designed for the desktop. Digital Network Adit 600 - Release 10.1.1 Glossary-7...
  • Page 790 Many systems on the Internet run NTP, and have the same time (relative to Greenwich Mean Time). OCU-DP Office Channel Unit - Data Port. A channel bank unit used to interface between the channel bank and a customer’s DDS CSU or DSU. Glossary-8 Adit 600 - Release 10.1.1...
