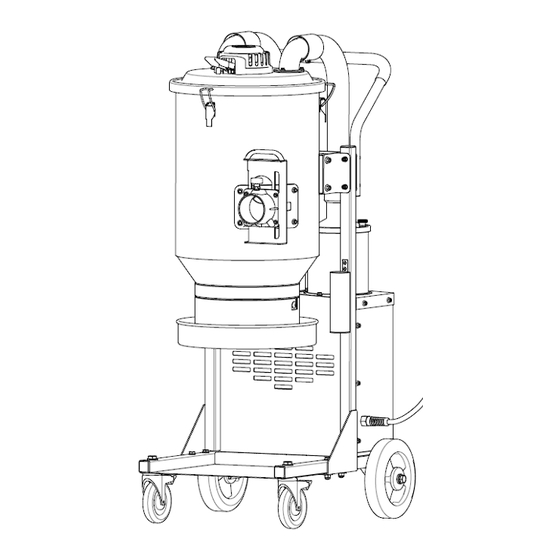

Summary of Contents for Bartell INNOVATECH HD Vacuum Series
- Page 1 INNOVATECH PRODUCTS & EQUIPMENT. 4701 Allmond Ave, Louisville, KY 40209, USA Telephone: 1-425-405-9100 Dust Extractors HD Vacuum Series COMPLETE MANUAL www.BARTELLGLOBAL.com...
- Page 2 No part of this work may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or by any information storage or retrieval system without the prior written permission of Bartell Morrison Inc. unless such copying is permitted by federal copyright laws.
- Page 3 P a g e SAFETY PRECAUTIONS DANGER EXPLOSION HAZARD Never operate the machine in an explosive atmosphere, near combustible materials, or where ventilation does not clear exhaust fumes. WARNING BURN HAZARD Never come into contact with the engine or muffler when engine is operating or shortly after it is turned off.
-
Page 4: Table Of Contents
P a g e TABLE OF CONTENTS About This Manual Important Safety Instructions ENERAL RECAUTIONS LECTRICAL AFETY HERMAL ROTECTION ROUNDING NSTRUCTIONS Unpacking Intended Use Servicing Operating Instructions ACUUMING ILTER LEANING UST STORAGE AND RELEASE UST COLLECTING AND BAGGING Filter Change HANGE OF ILTER HEPA F... -
Page 5: About This Manual
P a g e 1. About This Manual This Manual contains the information and procedures to assist you to operate and maintain the HD Dust Vacuum machine safely and correctly. Read this Manual before you operate or service the equipment. If you need additional information or assistance, please get in touch with our Customer Service Department: Innovatech Products &... -
Page 6: Important Safety Instructions
P a g e 2. Important Safety Instructions General Precautions • The employer must inform and train the user according to the provisions of applicable laws. Use of the machine by untrained and unauthorized persons is strictly forbidden. • Read the complete instruction manual before operating your dust extractor. Pay particular attention to the safety regulations. -
Page 7: Electrical Safety
P a g e Electrical Safety • Improper connection of the equipment-grounding conductor can result in a risk of electrical shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. •... -
Page 8: Unpacking
P a g e 3. Unpacking When unpacking the machine, make sure that the following accessories are included: • A hose with end fittings • Metal wands • Floor tools and its spare parts If any of the above-mentioned parts are missing, please contact your local distributor or our sales representative. -
Page 9: Operating Instructions
P a g e 6. Operating Instructions Vacuuming Before starting a vacuuming process, • make sure the machine is properly connected to a grinder or a floor tool via the provided hose and fittings. • chek the power cable and the plugs are in a good condition. •... -
Page 10: Dust Storage And Release
P a g e | 10 Dust storage and release The separated dust accumulates in the conic bottom during the vacuuming process, and it drops through the bottom flap into the plastic bag when the machine is switched off. In some extreme cases the adhesive ability of the dust must be broken manually. -
Page 11: Change Of Hepa Filter
P a g e | 11 Change of HEPA Filter 1) Loosen the 2 nuts on each filter cover. Take out a new filter from its bag. Lift out the used HEPA filter from its chamber and place it gently into the filter bag. This bag must be closed and diposed properly. -
Page 12: Troubleshooting
P a g e | 12 9. Troubleshooting The machine is designed and manufactured for a specific severe environments and tasks. Its filter, seals, attachments, and fittings are customized or selected specifically for the applications. Please note that the machine must be protected from knocks and blows. The operator and service personnel must treat the machine with care for it to work correctly for an expected life span. -
Page 13: Parts Breakdown
P a g e | 13 10. Parts Breakdown OIPB-I02210-HDVacuum – 20/11/19... -
Page 14: Hd1 Exploded View
P a g e | 14 HD1 Exploded View Item No. Part Number Description Qty. 833-0060 Purge handle cover kit 833-0030 Purge handle kit 833-0080 Bend connector seal 833-0011 D50 bend connector 833-0086 Hose D50x375 with fittings 833-0013 HD1 Top cover 833-0001 HD1 Main Filter 833-0036... - Page 15 P a g e | 15 OIPB-I02210-HDVacuum – 20/11/19...
-
Page 16: Hd1 Motor Assembly
P a g e | 16 HD1 Motor Assembly Item No. Part Number Description Qty. 833-0097 Nut M8 833-0084 Seal washer M8 833-0018 Filter cover 833-0004 HEPA filter 833-0090 Top cover rubber seal 833-0043 HD1 Top cover kit 833-0019 HEPA chamber 833-0108 Motor seal 833-0006... - Page 17 P a g e | 17 OIPB-I02210-HDVacuum – 20/11/19...
-
Page 18: Hd2 Exploded View
P a g e | 18 HD2 Exploded View Item No. Part Number Description Qty. 833-0060 Purge handle cover kit 833-0030 Purge handle kit 833-0080 Bend connector seal 833-0011 D50 bend connector 833-0087 Hose D50x560 with fittings 833-0021 HD2 Top cover 833-0002 HD2 Main Filter 833-0036... - Page 19 P a g e | 19 OIPB-I02210-HDVacuum – 20/11/19...
- Page 20 P a g e | 20 HD2 Motor Assembly Item No. Part Number Description Qty. 833-0097 Nut M8 833-0084 Seal washer M8 833-0018 Filter cover 833-0004 HEPA filter 833-0090 Top cover rubber seal 833-0051 HD2 Top cover kit 833-0019 HEPA chamber 833-0108 Motor seal 833-0006...
- Page 21 P a g e | 21 OIPB-I02210-HDVacuum – 20/11/19...
-
Page 22: Hd3 Exploded View
P a g e | 22 HD3 Exploded View Item No. Part Number Description Qty. 833-0060 Purge handle cover kit 833-0030 Purge handle kit 833-0080 Bend connector seal 833-0011 D50 bend connector 833-0088 Hose D50x750 with fittings 833-0089 Hose D50x800 with fittings 833-0023 HD3 Top cover 833-0003... - Page 23 P a g e | 23 OIPB-I02210-HDVacuum – 20/11/19...
- Page 24 P a g e | 24 HD3 Motor Assembly Item No. Part Number Description Qty. 833-0097 Nut M8 833-0084 Seal washer M8 833-0018 Filter cover 833-0004 HEPA filter 833-0090 Top cover rubber seal 833-0056 HD3 Top cover kit 833-0019 HEPA chamber 833-0108 Motor seal 833-0007...
- Page 25 P a g e | 25 OIPB-I02210-HDVacuum – 20/11/19...
- Page 26 P a g e | 26 HD1 Wagon Frame Breakdown Item No. Part Number Description Qty. 833-0015 HD1 Wagon frame base 833-0068 Front wheel kit 833-0059 Rear wheel kit 833-0082 Plastic insert 25x25 833-0058 L bracket kit 833-0037 HD1 Mainstay right kit 833-0039 HD1 Mainstay left kit 833-0061...
- Page 27 P a g e | 27 OIPB-I02210-HDVacuum – 20/11/19...
-
Page 28: Hd2 Wagon Frame Breakdown
P a g e | 28 HD2 Wagon Frame Breakdown Item No. Part Number Description Qty. 833-0016 HD2 Wagon frame base 833-0068 Front wheel kit 833-0059 Real wheel kit 833-0083 Plastic insert 30x30 833-0058 L bracket kit 833-0047 HD2 Mainstay right kit 833-0046 HD2 Mainstay left kit 833-0062... -
Page 29: Hd3 Wagon Frame Breakdown
P a g e | 29 HD3 Wagon Frame Breakdown Item No. Part Number Description Qty. 833-0016 HD3 Wagon frame base 833-0068 Front wheel kit 833-0059 Real wheel kit 833-0079 Plastic insert 40x40 833-0058 L bracket kit 833-0053 HD3 Mainstay kit 833-0062 HD3 Tank holder kit 833-0026... -
Page 30: Hd1 Accessories
P a g e | 30 HD1 Accessories Item No. Part Number Description Qty. 833-0069 Hose assembly kit D40x5.0m 833-0028 D50 S wand 2” Hose Adaptor (Grey) 833-0112 833-0029 D50 floor brush 833-0098 HD1/2/3 Spare brush 833-0116 Rubber blade/squeegee 430mm 833-0117 Rubber blade/squeegee 550mm HD2 &... -
Page 31: Warranty
P a g e | 31 11. Warranty Innovatech warrants to the original buyer, for a period of one (1) year from the date of delivery, that the Equipment is free from defects in materials and workmanship and that the Equipment conforms to the operating specifications supplied with the Equipment. - Page 32 P a g e | 32 OIPB-I02210-HDVacuum – 20/11/19...
