Slim Pace Clock

User Guide

F972 Rev. 202007

Table of Contents

Need help?

Do you have a question about the CoLorado TIME SYSTEMS Slim Pace Clock and is the answer not in the manual?

Questions and answers

Summary of Contents for Playcore CoLorado TIME SYSTEMS Slim Pace Clock

Page 1 Slim Pace Clock User Guide F972 Rev. 202007...
Page 2 Manufacturer: Everlast Climbing Industries, Inc. DBA Colorado Time Systems 1551 East 11th Street Loveland, CO 80537 USA Sales: 800-279-0111 or +1 970-667-1000 Service: 1-800-287-0653 or +1 970-667-1000 Service Fax: +1 970-667-1032 Web: www.coloradotime.com Email: support@coloradotime.com Product Identification Product: Slim Pace Clocks Model Numbers: MS-0037 through MS-0040 Power Specification 150W power supply: 100-240V, 50/60Hz, max 2A...
Page 3: Table Of Contents
Contents Product Description ................... 1 Mounting and Power Connection ..............1 Physical Installation Electrical Installation Operating Instructions ..................3 Synchronizing clocks Setting time, intensity, channel, PAN and module address Displaying Data on the Clock ................6 Segment Timer Tabletop controller Handheld controller (generic sport) Changing Module, Channel and PAN at the control board ........
Page 5: Product Description

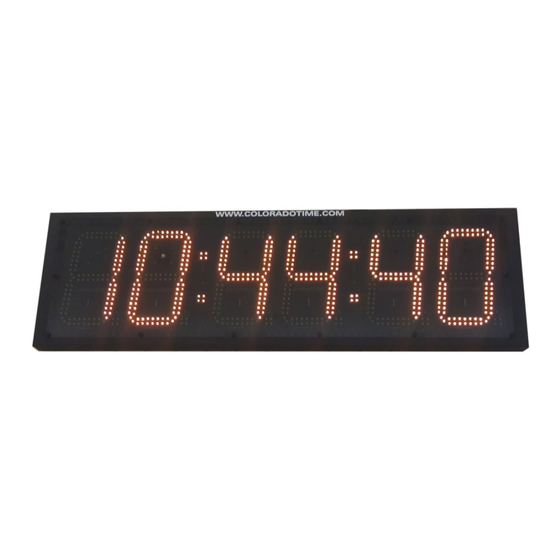

Product Description Slim Pace Clocks display time for time of day and pacing purposes. Six-digit clocks display hours, minutes and seconds. Four-digit clocks can display either hours and minutes, or minutes and seconds. Clocks set to the same channel and PAN ID will automatically synchronize with each other.
Page 6: Electrical Installation
Electrical Installation Loosen strain relief on left side of clock and pull recessed power cord from enclosure. Connect to standard outlet (120V or 230V) no further than 6 feet from left end of clock with the internally wired power cord. The pace clock is grounded through the power connection.
Page 7: Operating Instructions
12. Insert excess power cord into enclosure and tighten cable nut of strain relief on the outside of the scoreboard An optional cover for the power cable is available for both the 6 digit and 4 digit slim pace clocks. It can be installed on the right or left. To install, place the cover over the power cable, line up the screw holes on the cover with the holes on the pace clock and secure to the top and bottom of the pace clock using the 4 supplied screws.
Page 8: Setting Time, Intensity, Channel, Pan And Module Address
Configuring Hold the push button for 2 seconds and release to cause the clock to enter the menu. The clock enters Menu 1, as described below. Once in the menu, hold the button for one second to advance to the next menu item. If you continue to hold, the clock will step through the menu options every second.
Page 9 Menu 6: Digit intensity Displays _int. Intensity switches from low to medium to high to AL (ambient light) with each button click. This must be set individually for each clock. When the choice you want is displayed, press and hold the button for one second to to advance to the next menu. Menu 7: Set Channel C and the channel number are displayed;...
Page 10: Displaying Data On The Clock
Displaying Data on the Clock The clock can display time of day, synchronized with other scoreboards and clocks set to the same wireless channel and PAN. It can also display game time it receives from a tabletop controller or a handheld controller. Segment Timer Follow the instructions in the segment timer manual to set the segment timer to the same channel, PAN and module as the clock(s) and scoreboard(s) you want to control...
Page 11: Changing Module, Channel And Pan At The Control Board
Changing Module, Channel and PAN at the control board The most convenient way to change the clock’s module, channel and PAN is with the push button (see page 5). You can also change them by changing the switch settings on the clock’s control board, as described here.
Page 12: Standards Followed
Standards followed UL 48 Issue:2011/09/02 Ed:15 Rev:2012/05/04 UL Standard for Safety Electric Signs CAN/CSA C22.2#207 Issue:1989/01/01 Portable and Stationary Electric Signs and Displays General Instruction No 1: 1989/10/01 - (R2008) FCC 47CFR 15B clB Issued:2011/04/21 Title 47 CFR Part 15 Subpart B Unintentional Radiators Class A Verification ICES 003 Issue:2004/01/01 Issue No.4 Interference-Causing Equipment Standard, Digital Apparatus support@coloradotime.com...
Page 14 Customer Service Department www.coloradotime.com Email: support@coloradotime.com Phone: +1 970-667-1000 Toll Free U.S. and Canada 800-287-0653 Fax: +1 970-667-1032...
