MR0100
MAD-MOUNT
Installation Instructions

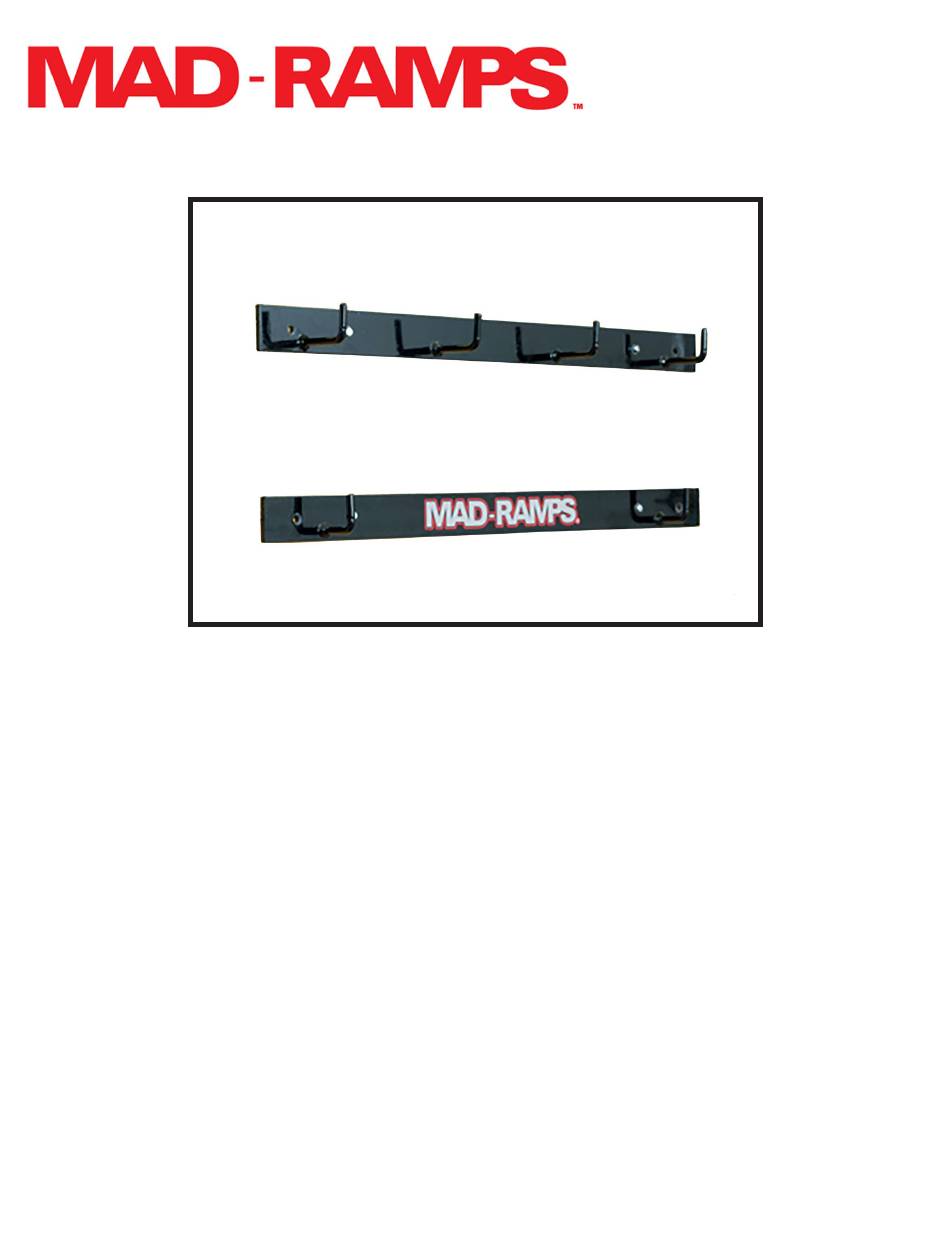

The MAD-MOUNT consists of two components: a Lower Mounting Plate for the MAD-RAMPS frame
and an Upper Mounting Plate for the Pivot Cage Assemblies (Pivot Cages and Aluminum Ramps).
The Upper Mounting Plate has four individual hooks and the Lower Mounting Plate has two individual
hooks, along with the MAD-RAMPS logo. Two fasteners for each Mounting Plate are included in box.
Please note that the Upper and Lower Mounting Plates are not interchangeable.
The MAD-MOUNT is equipped with pre-drilled holes on each mounting plate to accommodate wall
framing on 16-inch and 24-inch centers. The MAD-MOUNT must be secured into the wood-framed
wall studs with the provided fasteners. The use of drywall anchors or other fasteners are not
acceptable and could be a potential safety hazard. The MAD-MOUNT is designed only for
wood framed walls and should not be used on metal-framed walls. Please follow instructions
carefully to ensure proper installation.
Mount the MAD-MOUNT on an area six-feet wide by five-feet high to accommodate The MAD-
RAMPS Pivoting Ramp System when stored. Additionally, prior to beginning the installation process,
clear your work area of any objects that could pose a safety hazard, and always ensure that there
are no small children present in your work area. Lastly, in an effort to discourage small children from
climbing on the MAD-MOUNT after installation, install the MAD-MOUNT in a low-traffic area of your
garage or shop.
405-0680
10/28/2019
Page 1 of 5
Advertisement
Table of Contents
Summary of Contents for MAD-RAMPS MAD-MOUNT
- Page 1 The Upper Mounting Plate has four individual hooks and the Lower Mounting Plate has two individual hooks, along with the MAD-RAMPS logo. Two fasteners for each Mounting Plate are included in box. Please note that the Upper and Lower Mounting Plates are not interchangeable.
- Page 2 MR0100 MAD-MOUNT Installation Instructions Tools Required Measuring Tape Level Pencil Drill 3/16” Drill Bit Stud Finder Item No. Part No. Description Qty. 1.........61-8307 ......2 Hook Lower Mounting Plate .........1 2.........61-8308 ......4 Hook Upper Mounting Plate .........1 3.........201-1124 ......5-16” x 3-1/2” SPAX Power Lag, ZP ........4 4.........229-1154(Not Shown) ..T40 x 2”...
- Page 3 Installing the Upper Mounting Plate Step 1: After locating the wall space where you will install the MAD-MOUNT, measure five feet up from the ground and make a mark on the wall. Using a level, draw a straight line across the wall (approximately 36 inches);...
- Page 4 Pivot Bar, and then slide the Driver-Side Pivot Cage and Aluminum Ramp off of the MAD-RAMPS frame and set it aside. Reinsert the retainer clip into Pivot Bar. Repeat the process for the Passenger-Side Pivot Cage and Aluminum Ramp.
- Page 5 Pivot Cage to the Pivot Bar (when fully assembled) should be facing away from the wall. Repeat this process for the Passenger-Side Pivot Cage, utilizing the two remaining hooks on the Upper Mounting Plate. Figure 3 shows how the MAD-RAMPS Pivoting Ramp System looks when properly stored on the MAD-MOUNT.
