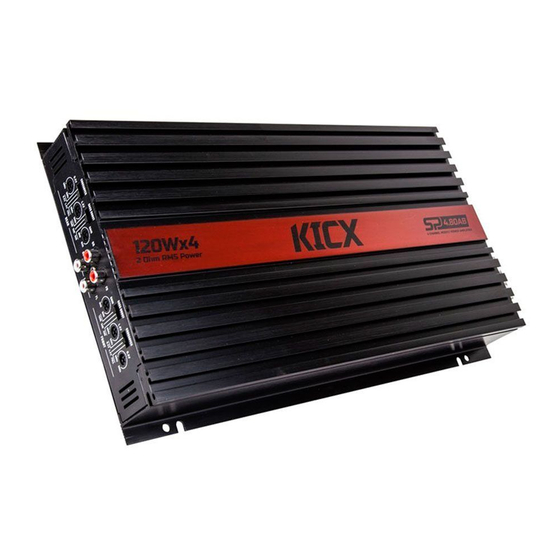

Summary of Contents for Kicx SP 4.80AB
- Page 1 INSTRUCTIONS FOR POWER Before installing and using this unit, Read the instructions carefully...
-
Page 3: System Connection
A WARNING Make sure you have chosen the right place to connect the device. The location must be completely dry, with good air circulation and securely fastened. system connection Proper connection of the system is the best way to maximize the performance of your amplifier. Proper installation - is the reliability of your system. - Page 4 Notes for power supply Connection of speakers: • Power supply + 12V feeding only after all wires are connected. Required securely connect the grounding • wire to the metallic device of the vehicle. • Misalignment can lead to failure of the amplifier. REMOTE (control wire): The amplifier is energized when the +12 volt terminal.
- Page 5 Example 1: Using 4-channel amplifier - 3 -...
- Page 6 Example 2: Using 3-amplifier channels (By channel and bridges) - 4 -...
- Page 7 Example 3: Using the 2-channel amplifier (2 bridges) - 5 -...
-
Page 8: Troubleshooting
Trouble-shooting malfunction Possible reason Actions not included REMOTE (control wire) is not connected or Ensure that the control wire + 12V there is no signal blown fuse Check the fuse on the battery and on the amplifier (replace blown) power cable "+" or "-" is not connected Check the integrity of cables, make sure that there is ground distorted sound... - Page 9 Specifications Amplifier Output Power / Output Power Rating: 4 ohm load, rated power, W 4 x 80 2 ohm, rated power, W 120 x 4 1 ohm, rated power, W 4 ohm load, rated power in bridge connection, W 240 x 2 2 ohm, rated power in bridge connection, W Frequency, Hz 20-20000...
- Page 10 notes - 8 -...
- Page 12 Made in China. Made in China.
