Summary of Contents for COMAC Retro

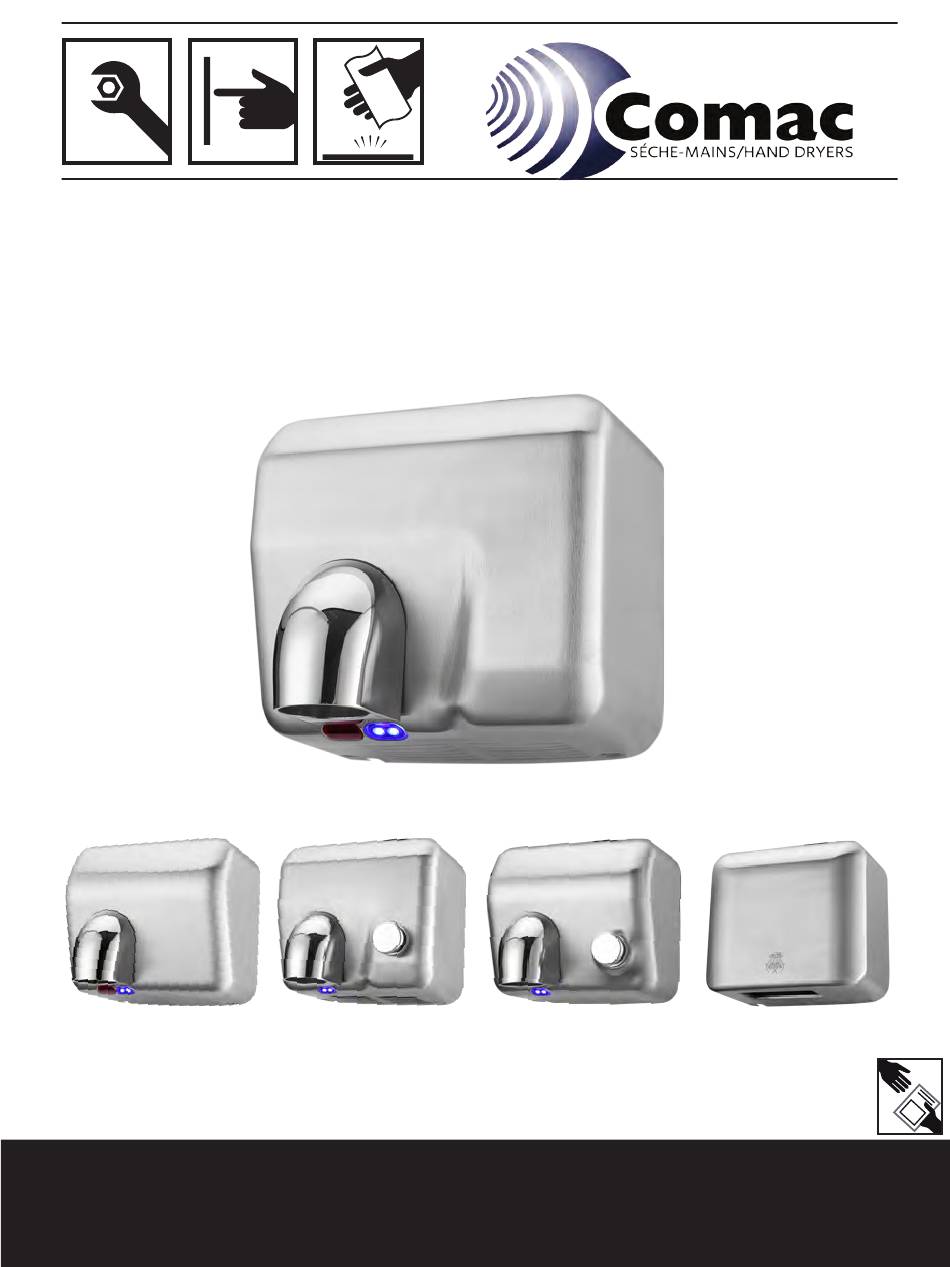

- Page 1 Retro & Retro+ HAND DRYER PLEASE READ CAREFULLY THROUGH THIS MANUAL BEFORE USING THE PRODUCT, OBSERVING ALL SAFETY INFORMATION, WARNINGS.
-
Page 2: Safety Warnings
SAFETY WARNINGS Before installing, be sure to read this installation manual and retain for future reference. This product must be installed by qualified personnel in accordance with the instructions given in this manual and installation must comply with all applicable regulations, national security standards and laws in force in the country where the product is installed. -
Page 3: Packing List
PACKING LIST ITEM KEY ITEM DESCRIPTION ITEM QTY NOTES Stainless Steel 304 Cover&Cabinet Hand Dryer Unit Complete Owner Manual(OM - this booklet) Mounting Template(MT) Φ8x38MM [ 5/16" Dia.x 1-1/2"], for#10 Wall Anchors, Expansion Self-threading Phillips PH Screws M5x36MM [ No.10 AB x 1-3/16"] Flat Washer(F1)+Silent Block(F2) F1 For M5[No.10 AB]Phillips PH Screws Hex Key (for cover screws) -
Page 4: Before Installation
BEFORE INSTALLATION Installation must be carried out in accordance with the current edition of the local wiring regulations code having jurisdiction. Installation should be performed only by a qualified electrician. Please check if hand dryer is supplied with convenient plug in feature. If hand dryer is to be installed with hardwired L Min. - Page 5 5. Drill four(4) holes at location A,B,C, and D of 5/16" Diameter(Φ8) x 35MM[1-3/8"] deep if using wall anchors supplied with unit. Install supplied anchors flush with wall face, or install other fastening system suitable for wall conditions (not supplied). Attach dryer to wall. For wood wall/studs use Dia.
- Page 6 HARD WIRED ONLY HOT AIR ON/OFF (Selection) SENSOR RANGE SETTING Turn CCW Turn CW Sensor VR...
- Page 7 HAND DRYER CONNECTIONS (SENSOR TYPE) HAND DRYER CONNECTIONS (MANUAL TYPE) PLUG IN/TURN ON CIRCUIT BREAKER 4MM [5/32"]...
-
Page 8: Operation
OPERATION No-touch operation. There is a blue LED light to guide user to the air flow. Shake excess water from hands. Place hands under the outlet to start operation. Rub hands lightly and rapidly under the nozzle outlet. Stops automatically after hands are removed or if maximum time is reached. BASIC USE (Sensor Type) Operation without touching, Externally visible service... -
Page 9: Warranty
OWNER ADJUSTMENTS It is possible to turned on/off It is possible to adjust the Air nozzle is available to have hot air with a switch(If it is detection distance by means 360° revolving. supplied) located inside the of the potentiometer located Turn upward to dry face or hiar unit (See 7 in “INSTALLATION”). - Page 10 Periodic cleaning of the unit is recommended. Remove cover and clean dryer dust lint. Stainless steel is highly resistant to rust, but there are some very strict cleaning and maintenance rules to be followed to prevent damage to its appearance. Apply neutral detergents formulated for these purposes (non-ionic surfactants and citric acid).
- Page 11 DIAGRAM BY STANDARD CIRCUIT BOARD Sensor Assembly Power (Hardwired or Plug into Socket). ONLY be used on same voltage as product rated label marked. See owner Grounding adjustments Heat Element Yellow HOT/COLD Switch Terminal Block Black <Selection> Main Fuse Blue Motor Brown These two connector...
