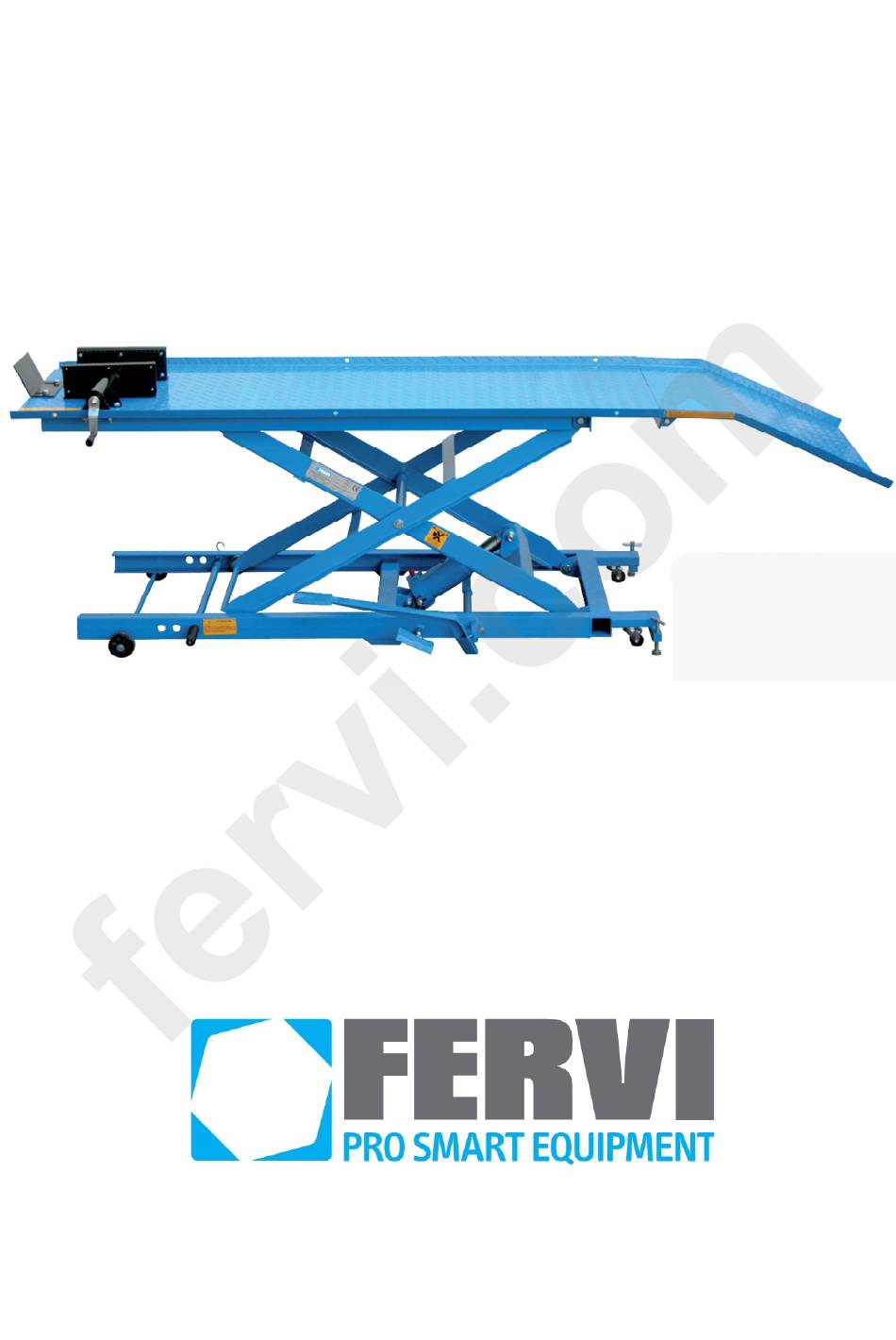

- Page 1 OPERATION AND MAINTENANCE MANUAL Hydraulic pedal-pump operated motorcycle lifter Art. S008/M TRANSLATION OF THE ORIGINAL INSTRUCTIONS...
- Page 2 Manual on the date of its issuance (shown in this page). On the other hand, the lifter may even be subject to important technical changes in the future, without the manual being updated. Therefore, please contact FERVI for information about modifications that may have been implemented. REV. 2...
-
Page 3: Table Of Contents
MACHINES AND ACCESSORIES CONTENTS INTRODUCTION ..................4 SAFETY WARNINGS .................. 5 General safety rules ......................5 Technical Assistance .....................6 Other provisions ......................6 TECHNICAL SPECIFICATIONS ..............6 MACHINE DESCRIPTION ................7 Main units of the machine .....................8 Identification and warning labels..................9 Identification label......................9 Caution labels ...................... -
Page 4: Introduction
MACCHINE E ACCESSORI INTRODUCTION The purpose of this manual is to convey the necessary knowledge for the use and maintenance of the motorcycle lifter, and to create a sense of responsibility and knowledge of the capabilities and limits of this machine entrusted to the operator. This machine too must be entrusted to experienced and reliable operators and must be perfectly known, if it is to be used effectively and without danger. -
Page 5: Safety Warnings
MACHINES AND ACCESSORIES SAFETY WARNINGS 2.1 General safety rules Risks associate to usage of the motorcycle lifter DO NOT underestimate the risks associated with using the motorcycle lifter, and concentrate on the work you are doing. Despite the implementation of all safety devices for safe use of the machine, it is necessary take note of all the requirements for the prevention of the accidents reported in various parts of this manual. -
Page 6: Technical Assistance
If any defect is detected, do not use the motorcycle lifter! Even more so, it is strictly forbidden to modify or remove guards, safety devices, labels and indication signs. TECHNICAL SPECIFICATIONS Description Art. S008/M Lifting height (mm) 195 to 750 Carrying capacity (kg) Length (mm) -
Page 7: Machine Description
MACHINES AND ACCESSORIES MACHINE DESCRIPTION (Art. S008/M) is a lifting apparatus to be used raising motor vehicles, OTORCYCLE LIFTER in order to make their maintenance and/or repair comfortable and safe. Other types of use, or the extension of use beyond the one expected, do not correspond to the destination attributed by the manufacturer, who therefore will not take on any responsibility for possibly resulting damages. -
Page 8: Main Units Of The Machine
MACCHINE E ACCESSORI 4.1 Main units of the machine Figure 1 – Overview of the machine. Front casters Removable ramp Carrier frame Locking feet Pantograph-type lifting arms Hydraulic pump/cylinder assembly Front stopper plate Pressure relief pedal Front wheel locking vise Lifting pedal Platform top Safety lock rod... -
Page 9: Identification And Warning Labels
MACHINES AND ACCESSORIES 4.2 Identification and warning labels The machine carries the following labels: A. Identification label, on the lifting arms; B. Caution label against squeezing, on the lifting arms; C. Caution label giving the main safety rules and the maximum carrying capacity; D. -
Page 10: Caution Labels
MACCHINE E ACCESSORI 4.4 Caution labels 4.4.1 Caution label against squeezing, on the lifting arms 4.4.2 Caution label of maximum carrying capacity and safety rules Page 10 of 29... -
Page 11: Caution Label In Correspondence Of The Locking Rod
MACHINES AND ACCESSORIES 4.4.3 Caution label in correspondence of the locking rod 4.4.4 Caution label in correspondence of the removable ramp Page 11 of 29... -
Page 12: Description Of Controls
MACCHINE E ACCESSORI 4.5 Description of controls Motorcycle lifter Art. S008/M has two pedals: for lifting and lowering the load respectively. Both pedals are located on the left hand side of the machine (figure 3). Figure 3 – Detail of lifting and lowering pedals. -
Page 13: Machine Safeties
MACHINES AND ACCESSORIES MACHINE SAFETIES 5.1 Safety lock rod The safety lock rod is inserted in the carrier frame: it prevents sudden and undesired lowering of the lifter. Once inserted, the locking rod is maintained in position by means of a cotter pin. See figure 5. -
Page 14: Personal Protective Equipment (Ppe)
MACCHINE E ACCESSORI 5.3 Personal protective equipment (PPE) Use of PPE ALWAYS use appropriate personal protective equipment (PPE) such as (see Figure 7): Gloves, Overalls or aprons; Safety shoes. Figure 7 – Personal Protective Equipment. Page 14 of 29... -
Page 15: Inappropriate Uses And Counter-Indications
MACHINES AND ACCESSORIES INAPPROPRIATE USES AND COUNTER- INDICATIONS The actions described here below (they obviously cannot cover the entirety of possibilities of “bad use” of the machine) are to be considered as absolutely prohibited. IT IS DEFINITELY FORBIDDEN TO: Use the platform without having first secured the motorcycle wheel in the vise. -
Page 16: Transport And Hoisting
MACCHINE E ACCESSORI TRANSPORT AND HOISTING The machine is to be transported in a closed van, in order to preserve the machine itself from atmospheric agents. The dimensions of the van must be adequate to the load to be transported. The weight of the is of about 160 kg, therefore it can be hoisted and MOTORCYCLE LIFTER... -
Page 17: Installation And Start-Up
MACHINES AND ACCESSORIES INSTALLATION AND START-UP 8.1 How to remove the packaging . S008/M is delivered in a wooden crate. OTORCYCLE LIFTER Before eliminating the packaging, be careful not to reject machine parts, the instruction manual or any other documentation. - Page 18 MACCHINE E ACCESSORI For assembling the machine, proceed as follows: 1. Lay the platform on a flat and levelled surface, sufficiently strong to sustain its own weight and the load (~560 kg). 2. Screw the adjustable feet (located at the rear part of the machine) until both pivoting casters get detached from the floor.
- Page 19 MACHINES AND ACCESSORIES Figure 11 – Mounting the wheel stopper plate. 6. Secure the two jaws of the wheel locking vise to the platform top. Each jaw must be secured by means of four M10x20 bolts, eight flat washers and four M10 nuts. Use two wrenches for hexagon nuts in order to tighten the bolts and the nuts, as shown in figure 12.
-
Page 20: Operation
MACCHINE E ACCESSORI OPERATION 9.1 Getting started Use of the machine The motorcycle lifter must be used only for lifting motor vehicles weighing not more than 400 kg, which is the nominal capacity (shown on the identification label). Upon the first use, it is necessary to vent the hydraulic circuit, as follows: ... - Page 21 MACHINES AND ACCESSORIES Figure 13 – Locking the platform by means of its adjustable feet. Always lock the platform Before starting to use the platform, lift the rear casters from the floor by means of the adjustable feet, in order to prevent it from turning over or from moving unexpectedly. 5.
- Page 22 MACCHINE E ACCESSORI 7. Press the pedal (10) for lowering the table top so that the initial part of the ramp gets laid on the floor and you will be able to load the motor. 8. Load the motor vehicle onto the platform until its front wheel gets against the stopper plate;...
- Page 23 MACHINES AND ACCESSORIES Figure 17 – Lifting pedal. 11. Insert the safety lock rod in the holes for it on the frame, as shown in figure 18. This locking rod must be introduced in the “free” holes that are nearest to the bearings on which the arms are sliding, from the front part.
- Page 24 MACCHINE E ACCESSORI Figure 19 – Remove the ramp. Danger of accident Check for stability of the lifter before starting to work on the motor vehicle. Never leave the lifter unguarded when it is loaded and in elevated position. 14.
-
Page 25: Maintenance
MACHINES AND ACCESSORIES 10 MAINTENANCE Every maintenance operation, except for those indicated otherwise in this manual, is to be executed by specialized and authorized staff. This manual does not give in-depth information on repair and extraordinary maintenance, as these operations are to be executed always and exclusively by personnel from the manufacturer’s Service department. -
Page 26: Spare Parts
MACCHINE E ACCESSORI 11 SPARE PARTS Please always indicate clearly: The machine name and serial number; The code number of the parts required; Their quantities; The exact address of your company. Original spare parts The manufacturer rejects any liability for damage of any nature coming from the use of non- original spare parts. - Page 27 MACHINES AND ACCESSORIES Ref. Description Ref. Description S008/M/01 Loading plate S008/M/22 Lifting pedal S008/M/02 Mobile side of the vise S008/M/23 Central pivot S008/M/03 Fixed side of the vise S008/M/24 M16 washer S008/M/04 Stopper plate S008/M/25 Cotter pin S008/M/05 M10x20 bolt...
-
Page 28: Storage
MACCHINE E ACCESSORI 12 STORAGE Should the machine have to remain stored for a while, for avoiding damage or deterioration it must be preserved in a sheltered and humidity-free place. 13 DISPOSAL OF COMPONENTS AND MATERIALS When the machine will ultimately be scrapped, the various parts must be separated for recycling. -
Page 29: Trouble Shooting
MACHINES AND ACCESSORIES 14 TROUBLE SHOOTING PROBLEM PROBABLE CAUSE SOLUTION A. Air in the hydraulic circuit. A. Purge it (para. 9.1). B. Pressure relief pedal B. Check the pedal, make there is no pressed. foreign material on it. The platform would not lift C.
