MMcall MMC-T10 User Manual

Standard guest paging system

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

G-:JG-:J©@OO

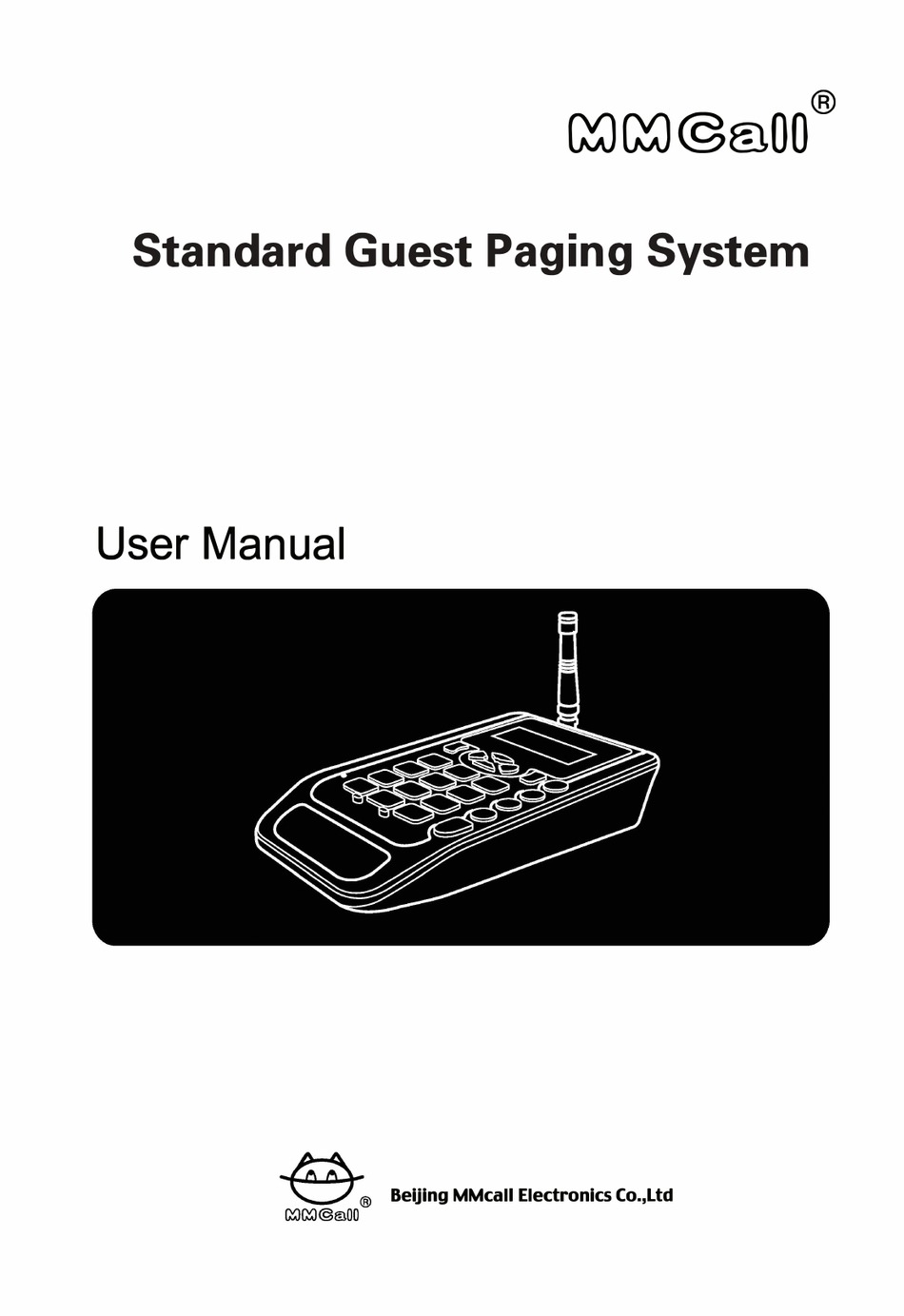

Standard Guest Paging System

User Manual

Beijing MMcall Electronics Co.,Ltd

Table of Contents

Need help?

Do you have a question about the MMC-T10 and is the answer not in the manual?

Questions and answers

Summary of Contents for MMcall MMC-T10

Page 2 Content 1 In t r oductio n ·········································· 3 1 . 1 Su mm ar y ·········································· 3 1 .2 P ara m eter ········································· -4 2.5 U se r Setup ·········································· 10 2.6. 8 Modi fy F r e q uency ·...
Page 3 Extended functions: This system is also compatible with LCD pagers wearing by manager or staff, for interior staff management. Featured functions: MMCall coaster's ID can be manually programmed. And the coaster No. can be bound together with the bills No., which makes the paging more convenient. Out of range alert...
Page 4 ® l¼ll¼l©@OO Standard Guest Paging System User Manual 1 .2 Parameter Category Parameter 220mm * 130mm * 45mm Dimension Display LCD1602, 2*16 characters 0~9 digit input Keypad Power supply 12V/ 1.5A U SB, RS485 { Ethernet ) Interface Customization available Frequency Paging No.

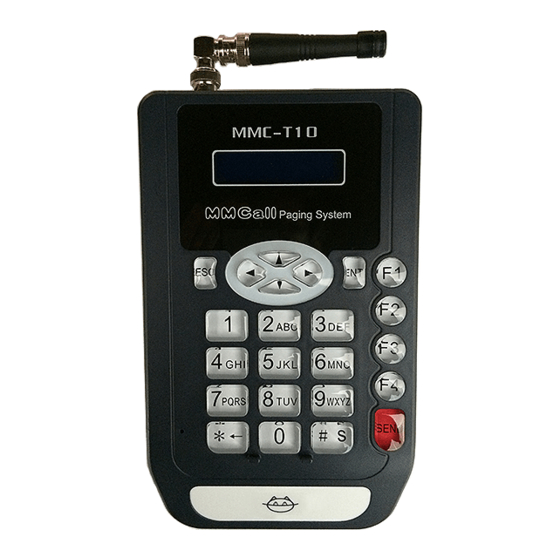

Page 5 ® l¼ll¼l©@OO Standard Guest Paging System User Manual 1.3 Appearance T10 Paging Transmitter as picture 1.1 ; The panel part includes display area, key pad area, scan area and buzzer speaker, among which the key pad area function is as following. ESC -- Return ENT -- Confirm F1 -- Switch guest paging/staff paging interface...
Page 6 ® ��©@00 Standard Guest Paging System User Manual ······· Display area Buzzer speaker•· ···· Keypad area••········ Picture 1.1 Transmitter Appearance 2.0peration Guidance 2.1 Guest Paging Guest Paging Interface as picture 2.1, Picture 2.1 Guest Paging Interface 4-------------------------...
Page 7 ® ��©@00 Standard Guest Paging System User Manual <Gcall> means guest paging interface, 12:07 is time, NUM means to input number. E.g., No. 010 can be input as 10 or 010, then press SEND. If this coaster number is edited and bound together with the bill No., e.g, coaster No.
Page 8 ® !¼l!¼l©@OO Standard Guest Paging System User Manual 2.2 S taff Paging Staff paging interface as picture 2.3, press 'F1 ' to switch staff/guest interface. Picture 2.3 Staff Paging Interface <Scali> means staff paging interface, 12:07 is time, NUM means to input number, the paging method is the same as guest paging.
Page 9 Standard Guest Paging System User Manual 2.3 S ingle Ke y Paging Press F3 to enter single key paging interface, as picture 2.5. Use upper and lower key to check and read the single key message, input 0-9 to page the corresponding waiter/staff pager. Notes: Single key paging can only page the staff/waiter number but not the guest number.
Page 10 ® !¼l!¼l©@OO Standard Guest Paging System User Manual <Eorder> means bill No. paging, 00 is serial number, 010 is coaster pager number, the four digit after -# is the bill number, and the bill number has to be four digit. 1.
Page 11 ® !¼l!¼l©@OO Standard Guest Paging System User Manual 2.5.1 Setup Time Setup time interface as picture 2.7 Use the key pad to input the time, use the left/right key to move the cursor and modify the data. Picture 2.7 Setup Time Interface 2.5.2 Duty Alert Setup duty alert interface as picture 2.8, 1.
Page 12 ® ��©@00 Standard Guest Paging System User Manual Picture 2.9 is to input the duty alert message, use the keypad to input the data and use the left/right key to move the cursor and modify the data. Picture 2.9 Duty Alert Input Message Interface Duty alert is for staff use.
Page 13 ® ��©@00 Standard Guest Paging System User Manual Notes: For this function, the second ID address has to be used, and it has to be matched with the guest group paging 2.5.4 Modify Password Pre: Input current password, e.g. 1234 Now: New modified password, e.g.: 2345 Press ENT, there will be a success prompt, otherwise failed, as picture2.11...
Page 14 ® Q:JQ:J©@OO Standard Guest Paging System User Manual 2. Setup Interval Time for Ring T:_s is the ring time interval, unit is second, maximum 99s, this function will only work when N is setup as 0. 3. Setup Ring Method W: _is different ring choices, press upper/lower key to switch(vibration, ring and shine),# is to switch on/off this function.
Page 15 ® Q:JQ:J©@OO Standard Guest Paging System User Manual T: _s means repage time interval, maximum 99s, 1s is recommended to be used. While the time interval for queuing paging is the same as this time interval setup. Use keypad 0-9 to modify the times, use left/right key to move the cursor.
Page 16 ® Q:JQ:J©@OO Standard Guest Paging System User Manual 7.DeleGuest ID Delete guest pager No. message 8.DeleStaff ID Delete staff pager No. message 9.Dele Okey ID Delete single key paging message Delete common message 1 0.Dele Message (currently can not be used) 11.TestMode Test Mode 12.lnitialize...
Page 17 ® Q:JQ:J©@OO Standard Guest Paging System User Manual Picture 2.16 Edit Guest Paging ID 2.6.3 Single Key Paging Use upper/lower key to edit the single key paging, 0 is the single key number, 001 is the corresponding waiter/staff number, the content after- is the paging message. Press ENT to save the message.
Page 18 Standard Guest Paging System User Manual 2.6.5 Test Mode In test mode, use left/right key to move the cursor, if choose N and press ENT, it will exit the current interface, if Y then press ENT, it will enter the test mode, as picture 2.18. Picture 2.18 Test Mode After enter test mode as picture 2.19, press upper/lower key to modify the interval time.
Page 19 ® (¼)(¼)@@00 Standard Guest Paging System User Manual 2.6.7 Send Mode Setup send mode as picture 2.21, use upper/lower key to modify the mode, in total two modes: Internal and External. The default mode is Internal. If External mode, it will switch to 485 interface with external transmitter to send the data.
Page 20 ® Q:JQ:J©@OO Standard Guest Paging System User Manual Picture 2.23 Linking 2. Modify Frequency After setup links successfully, it will come to the interface as picture 2.24, press the keypad 0-9 to input new frequency. The frequency range is 420~450Mhz. Please modify within this range, otherwise the distance may be affected.
Page 21 ® Q:JQ:J©@OO Standard Guest Paging System User Manual Picture 2.26 Test mode In test interface, press ENT, the transmitter will send the test data, if frequency is modified successfully, the coaster lights will shine. Otherwise it won' t shine. Data Sending Interface as picture 1.6 shows Picture 2.27 Data Sending Interface ------------------------- 1 9...
