Summary of Contents for LENCO MP3Sportwatch-100

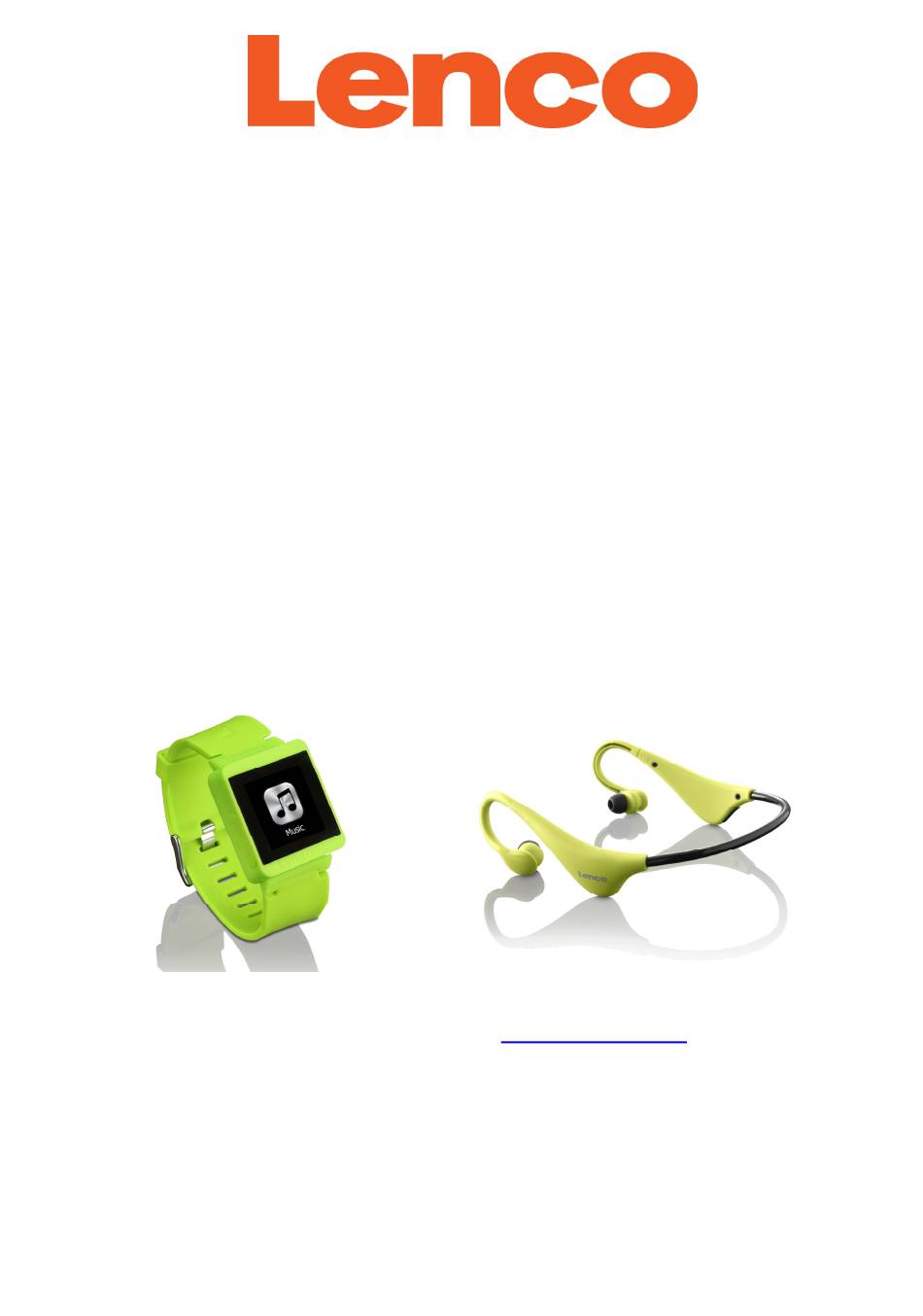

- Page 1 R10_20140702 USER’S MANUAL Model: MP3Sportwatch-100 & BH-100 Description: Sport Watch (P.3-24) Headset with Bluetooth (P.26-28) For more information: www.lenco.com...
- Page 2 R10_20140702 Cautions • Do not place naked flames, such as lighted candles on or near the product. • Do not place objects filled with liquids, such as vases on or near the product. • Do not use or store this product in a place where it is subject to direct sunlight, heat, excessive dust or vibration.
- Page 3 R10_20140702 A. Get to know the controls on Player Item Description TFT With Touch Function Capacitive Touch Panel Button For Volume Up / Value Button For Volume down / Value Button For Power On/Off, Mode, Reset 3.5mm Earphone Jack For Earphone Set Micro USB Port For PC Connection / Charge Splash Proof Cover...
- Page 4 R10_20140702 Once you have connected player with computer / power charger, then you will see the “PC Connection” or “Battery Charging” screen appear for view; PC Connection Battery Charging For PC connection screen: the player is connecting with computer for data’s transfer and the battery is charging in background.
- Page 5 R10_20140702 Or, if you’re using a Windows PC, you can also eject player in My Computer or by clicking the “Safely Remove Hardware” icon in the Windows system tray, select the correspondence name of USB Device and choose “Stop” > choose “Confirm”...
- Page 6 R10_20140702 seconds. “Main Menu” screens F. Use Setup Menu You might need to set date & time or change some default setting as you desired in setup menu before you start to use the player. To go into setup menu, from main menu, choose “Setup” by slide to left / right on screen, then tap the “Setup”...
- Page 7 R10_20140702 icon or tap the rest items “Month / Day / Hour / Minute / Second” box, to adjusting them to current date and time by the same methods. icon to confirm those adjusted values. If not, the date and time will not store after you have exited.
- Page 8 R10_20140702 6. Power Off Tap the “Power Off” item > tap “OFF / 10 / 15 / 30 / 60 / 120 Minutes” which you desired; Choose “OFF” to disable the sleep timer function. Choose “10 ~ 120 minutes” time to enable the sleep timer function, the Player will be turned power to “OFF”...
- Page 9 R10_20140702 You can use this music player to playback with almost full format of music file of audio coding. To open the music player in Main Menu: From main menu, choose “Music” by slide to left / right on screen, then tap the “Music”...
- Page 10 R10_20140702 6. To Call Out Music File List In Music Now Playing interface, slide to left on screen, a “Music File” list appear to use; Then slide to up or down on screen to page up/down the list for select the desired music which you want to play.
- Page 11 R10_20140702 In video playing mode; Tap the center of screen to pause the playing video. Also, the Video Now Playing interface is appearing. Tap the center of screen to play the video file from pause. 2. Play Next / Previous file and Fast-forward / Fast-backward Call out the video now playing interface.
- Page 12 R10_20140702 MPEG format video files, please install related DirectShow filter at first. Otherwise, AVI Converter cannot work normally. For Media Manager in Windows XP and Windows 2003, please make sure you have installed Microsoft Media Player 10.0 or above, and Microsoft .NET framework 3.0.
- Page 13 R10_20140702 Make sure resolution of AVI is selected to “128x128”, if not, click on the button at right and change it to 128x128”. The Quality of AVI in Setting is defaulted at “High”. You can change it, by click on the button at right, to “High / Normal / Low” if you want. The Aspect Ratio of AVI in Setting is defaulted at “Full”.
- Page 14 R10_20140702 Conversion Software before use it. Move the mouse allow on this program icon which in desktop, then right click mouse button, a “dialog window” pop up for use; In Compatibility mode window, click the box of “Run this program in compatibility”...
- Page 15 R10_20140702 - Walk / Run 10 steps with your normal stride as illustrated below; - Measure the distance from START to END in centimeter (cm). Then calculate your stride length by dividing the total distance by 10. Example: - Total distance = 800 cm; - 800 cm ÷...
- Page 16 R10_20140702 display is appearing and time is start running, from “00:00:00”. At same time pedometer sensor is starting to counts your move. Now you can start the walk or running as you chosen. Those wanted information; such as: Steps, distance, calorie burned and Speed (average speed per Hour), are showing on pedometer counts display screen for view.
- Page 17 R10_20140702 Close the zipper / button of your pocket (if available) to prevent the unit from dropping. Hanging the player from your neck Attach a secure lanyard or string to the unit. (not provided) Place the lanyard around your neck and hang the unit as illustrated.
- Page 18 R10_20140702 When the unit swings from your belt, the top of your pants or a bag. Up and down movement. Standing up and/or sitting down movement. Playing sports other than walking. Ascending or descending movement at stairs or in a steep slope. Walking at an inconsistent stride.
- Page 19 R10_20140702 are contains supported picture files. If not, no picture file will show out when you entered the selected folder) Slide to right on screen to go back to previous list, or slide to up / down on screen to move up or down the list when necessary. Once files are located, tap the desired file to start the play, a Picture Now Playing interface appear and the picture is displaying.
- Page 20 R10_20140702 In Now Playing interface, press or pressing the function’s key and or tap the relevant icons, or slide to Up / Down / Left / Right on screen for the wanted function. (refer to item D above mentioned functions for reference) M.
- Page 21 R10_20140702 2. EQ will lock as default effect even you want to change it. 3. Every time power Off the device, Bluetooth will be turned Off for energy saving. If you want it again, turn On the Bluetooth function after power On the device.
- Page 22 R10_20140702 P. Install / Remove with Watchband Install Remove Q. Splashproof Handling: 4. The Sport Watch can handle a brief jet of water on its surface (IPX4 Splash Proof). However, it should never be operated under running water and under no circumstance it should never be fully immersed in water. Make sure that the splash proof Rubber Seal Cover it tightens closed at the right position.
- Page 23 S. Frequently Asked Question Where can I find Check for latest Software update at updates & download? http://www.lenco.com/support/firmware/ T. Specification Dimension 45.2 mm (H) x 40.3 mm (W) x 18.0mm (D) Weight 1.41 inches, Resolution (RGB) 128 x 128 PC connection USB 2.0...
- Page 24 R10_20140702 (by calculation) Picture Format JPEG, BMP Water Resistance IPX4 (Splash Proof) Operating Temperature 0 to 40℃ Operating System Window 2000/XP/Vista/Win7. Or, Mac 9.2 and above U. Disclaimer Updates to Firmware and/or hardware components are made regularly. Therefore some of the instruction, specifications and pictures in this documentation may differ slightly from your particular situation.
- Page 25 R10_20140702...
-
Page 26: Headset Overview
2. Activate the Bluetooth feature on your phone and search for the headset. 3. Select the headset (Lenco BH-100 ) from the list of devices found by your phone. 4. When pairing successfully,the indicator light will stop flashing,the blue indicator light flashes once every 3 seconds in standby mode. -
Page 27: Technical Specifications
R10_20140702 1.Short press the power switch button to answer a call when you hear incoming call tones. 2.When you are listening to music,the music stops during a call. Ending a call 1.Short press the power switch button to end a call. Rejecting a call 1.Press the power switch button for 2 seconds to reject a call when a call comes in. -
Page 28: Specifications
R10_20140702 ITEM SPECIFICATIONS Driver Unit 10 mm Impedance Ohms Frequency Response 20 Hz to 20KHz 88±5dB Rated Power 3 mW Max. output Power 30 mW Max.Input Power 30 mW Operating voltage range 3.0V-4.2V Battery Lithium 3.7V, 100mAh Bluetooth-Version Bluetooth v3.0 EDR class 2 Mic Sensitivity -42 ±3dB Operating range... - Page 29 (both during and after the warranty period) you should contact your local dealer. Important note: It is not possible to send products that need repairs to Lenco directly. Important note: If this unit is opened or accessed by a non-official service center in any way, the warranty expires.
- Page 30 R10_20140702 standards of environmental protection in treatment and disposal of electrical waste (Waste Electrical and Electronic Equipment Directive). ®All rights reserved...
- Page 31 R10_20140702...
