Precautions
1. Ensure normal safety precautions are taken when using tools and walking on roofs.
2. Do not cut any structural members in the house.
3. Measure twice and cut once.
Tools Required
• Reciprocating Saw
• Marking Pencil
• String
• Hammer
Components

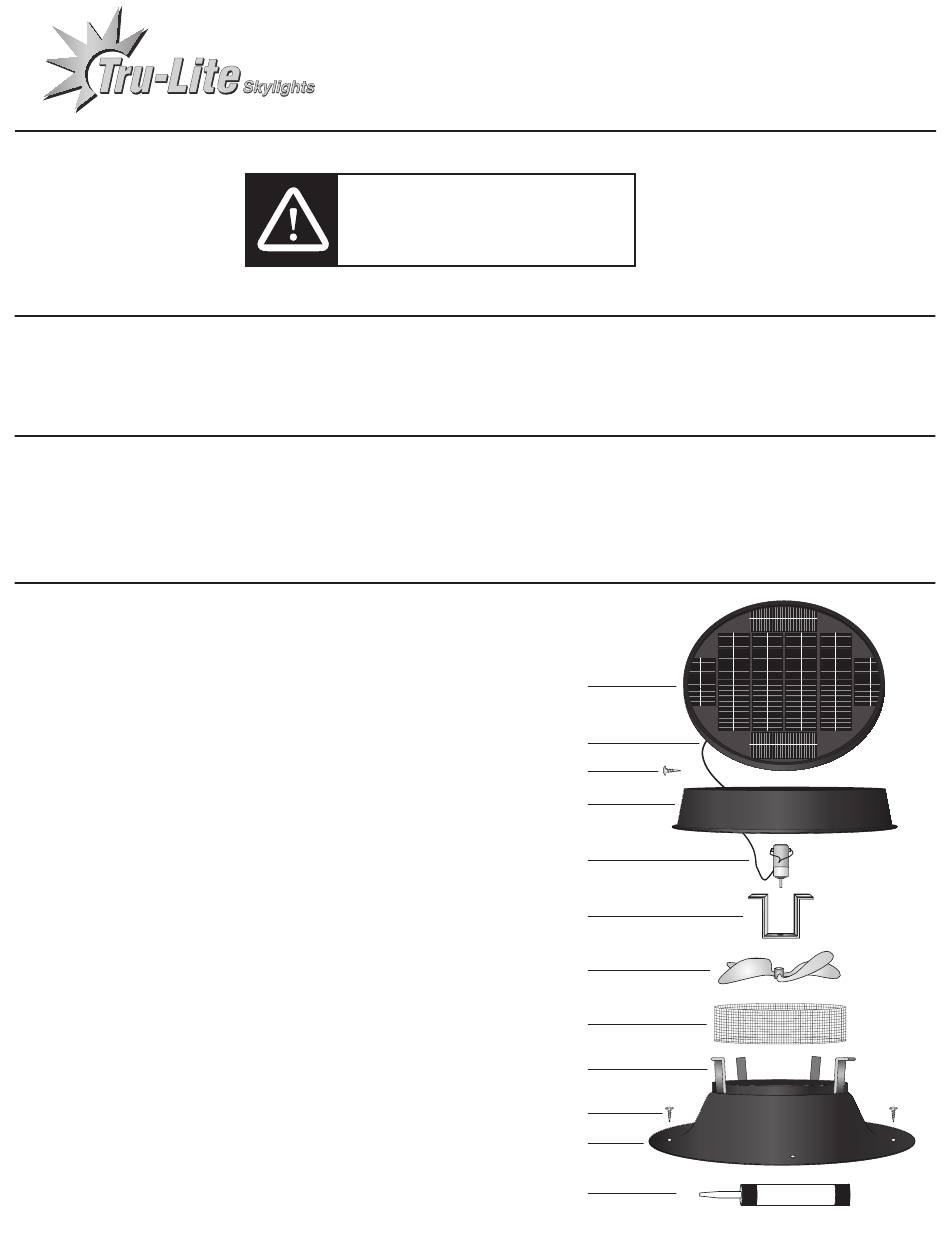

Note: Exploded view for illustrative purposes.
Unit comes pre-assembled.
1. Custom Solar Panel
2. Wire Lead
3. (4) #8x.5" Stainless Steel Phillips Head Screws
4. Aluminum Hood
5. Custom DC Motor
6. Motor Isolation Bracket
7. Precision Pitch Aluminum Blade
8. 4"x48" Stainless Steel Wire Mesh
9. Rugged 11 Gauge Hood Support Bracket
10. (6) #10x1.5" Stainless Steel Phillips
Head Screws
11. Aluminum Flashing
12. Caulk
Ultra Low-Profile Solar Attic Fan
WARNING:
Please take the time to read
through the ENTIRE instructions prior
to starting any work. Not following the
instructions will invalidate the warranty.
• Caulking Gun
• Screwdriver
• Ladder
• Measuring Tape
Installation Instructions
• Utility Knife
• Safety Goggles
• Stud Finder
1
2
3
4
5
6
7
8
9
10
11
12
