GrillPro 13975 Manual

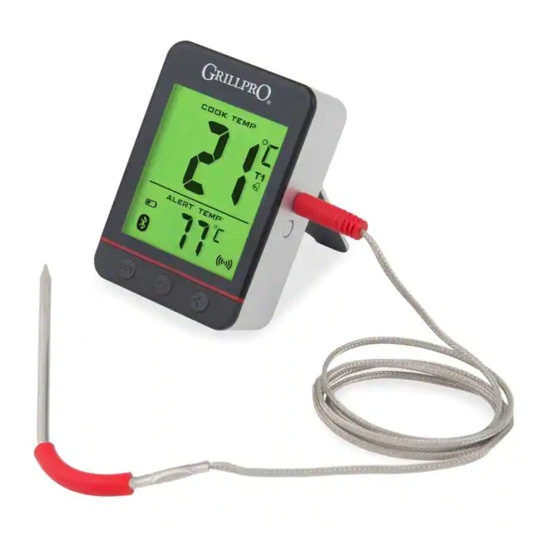

GrillPro® Bluetooth® Thermometer - 13975
OVERVIEW
Display Unit – Front View
*Hardware Requirements: iPhone® 4s (or above) or Bluetooth® v4.0 enabled smart device
*Software Requirements iOS 7 (or above) or Android™ 4.3 (or above)
4
1
5
2
3
6
a
b c
1. Cook temperature
2. Alert temperature
3. Bluetooth® indicator
4. °C/°F: temperature measurement unit
5. Alerts
6. Pairing indicator
a. SET : enter mode set-up; confirm setting; press and hold for 3 sec to power OFF
b. — : Decrease value of the setting; °C/°F temperature measurement unit
c. + : Increase value of the setting
d. Metal Probe Connector Wire
e. Silicone sleeve
f. Metal probe
DISPLAY UNIT-REAR VIEW
1
2
3
4
BATTERY INSTALLATION
1. Remove the battery door.
2. Replace the battery with AAA x 2.
3. Ensure the battery is in place, matching the polarities (+/-) and replace
the battery door.
4. Press RESET after each battery change.
AAA battery x2
Carefully plug the meat probe into the bottom socket
Auto Shut-Off:
The thermometer will automatically turn off if there is no probe installed.
f
d
e
1. Magnet
2. Reset button
3. Pay feet
4. Battery compartment
Download the APP
Connect the APP Store and search 'GrillPro' on the following devices:
iPhone®(4S and later)
iPad®(3rd generation and later)
iPad mini™ (all generations)
Download the APP
https://play.google.com/store/apps/details?id=com.bbq.project
Support Android 4.3 and later
BUTTON OPERATION SET BUTTON
Press SET key to wake up.
Press 3 sec the SET key to enter the sleep mode.
Quickly press SET key to enter alarm temperature setting mode.
Quickly press SET key to exit setup.
+ BUTTON
Quickly press + button, the alarm temperature increases.
Press and hold + button, alarm temperature increases rapidly.
— BUTTON
Quickly press — button, alarm temperature decreases.
Press and hold — button, the alarm temperature decreases rapidly.
Short press key — switching temperature mode.
LED BACKLIGHT
LED display 3 colors are green, blue, red.
Screen will illuminate for 10 seconds after pressing any button.
TEMPERATURE MEASUREMENT RANGE
Device measures temperatures from-25°C to 300oC (-13°F to 572°F)
When the temperature is lower than the minimum temperature, "LLL" will display.
When the temperature is higher than the maximum temperature, "HHH" will display.
"----" will display for 3 sec after it is not plugged in.
APP FUNCTION
Automatic or manual searches for Bluetooth® devices. Open APP to enter the pairing screen
beneath the display [search] or [lift] button. Click [search], the APP will automatically find the
surrounding Bluetooth® devices, automatically connect and enter the temperature display
interface. When Bluetooth® connection fails the main interface [pairing] flashes un-pairing the
device to connect to other devices.
APP MAIN INTERFACE
Display device temperature
Set temperature (profile mode and temperature mode)
Set countdown time (countdown mode)
Menu setting key
Pairing key
Task start (stop) key
SELECT THE MEASUREMENT UNITS
Tap to view the Profile options of food
Tap on your food type
Tap to select cooking degree and temperature, it can be
adjusted up and down 2 degrees
Tap to go back to the previous screen to save.
