Summary of Contents for AmazonBasics B07Y2CND3Q

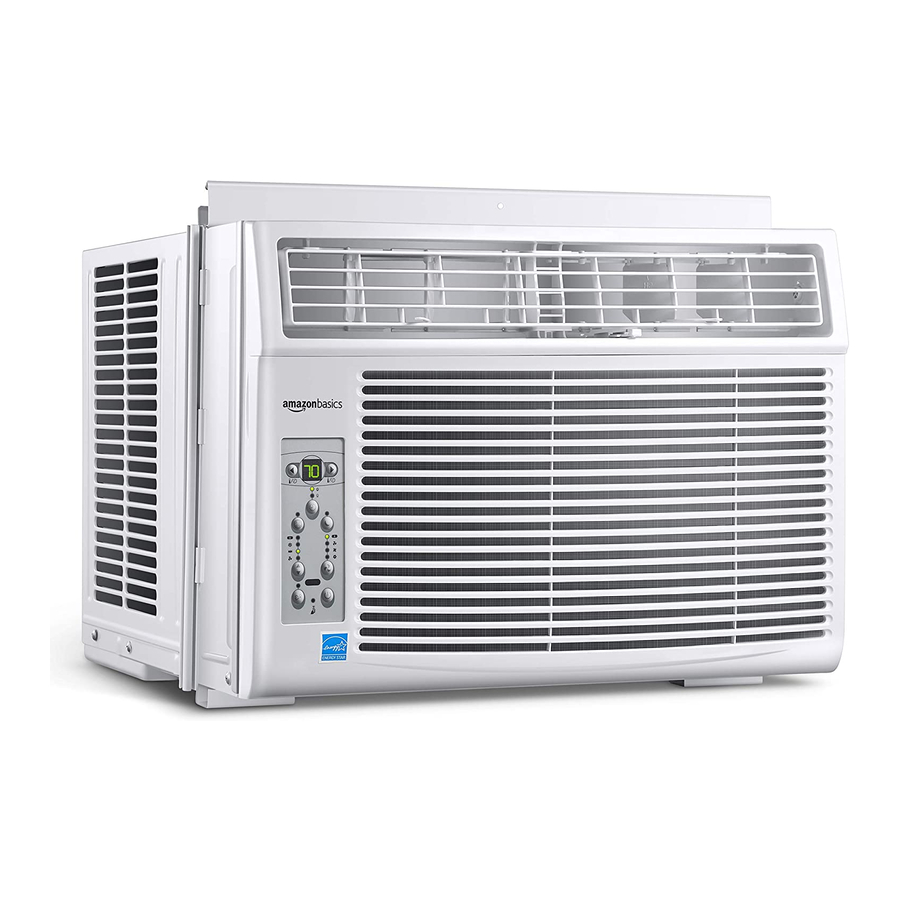

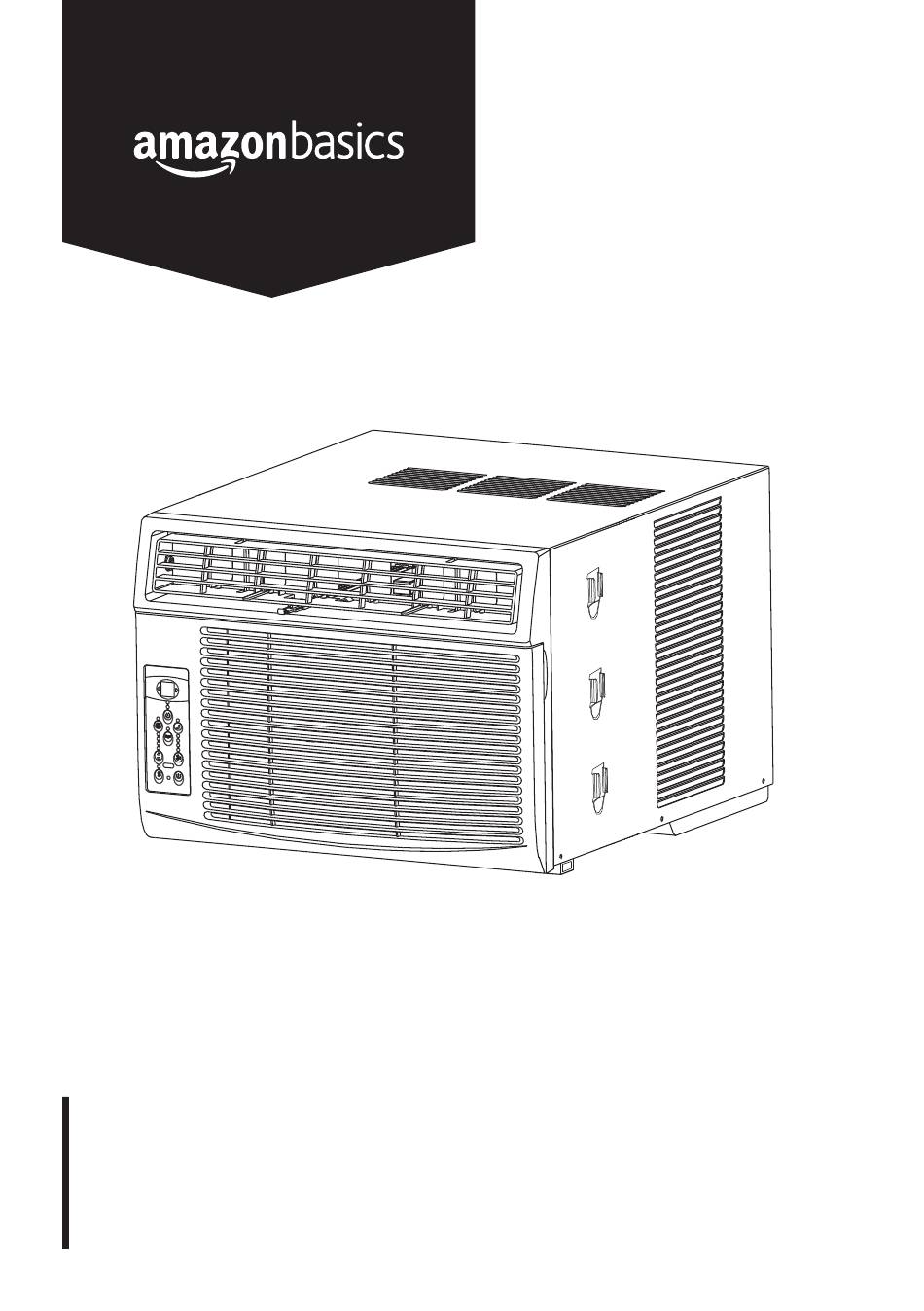

- Page 1 Window-Mounted Air Conditioner with Remote, Energystar Sistema de Aire Acondicionado para Instalación en Ventanas, con Control Remoto, Energystar Climatiseur De Type Fenêtre avec Télécommande, Certifié Energystar B07Y2CND3Q, B07Y2C57KD, B07Y2B3ZXV, B07N6LPL7V...
- Page 2 English 4 Españo 37 Français 69...
- Page 3 3.2 mm Ø 1/8" A (x 1) B (x 1) C (x 1) D (x 1) E (x 1) F (x 1) G (x 2) H (x 2) I (x 1) J (x 1) K (x 4) L (x 7) M (x 2) N (x 2)
- Page 4 IMPORTANT SAFEGUARDS Read these instructions carefully and retain them for future use. If this product is passed to a third party, then these instructions must be included. When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons including the following: DANGER Risk of fire or explosion! Flammable refrigerant used.
- Page 5 • Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock, fire or damage the product. • Disconnect the plug from the wall outlet when not using the product for a long time.
- Page 6 Grounding pin SAVE THESE INSTRUCTIONS Intended Use • This product is intended to regulate temperature and humidity indoors. • This product is intended for a fixed installation in a window only. The power cord must be connected to indoor power supply only. This product is not intended for use in bathrooms, laundry areas and similar indoor locations.
- Page 7 Before First Use • Check the product for transport damages. • Remove all the packing materials. • Before connecting the product to the power supply, check that the power supply voltage and current rating corresponds with the power supply details shown on the product rating label. DANGER Risk of suffocation! Keep any packaging materials away from children –...
- Page 8 Controls Remote control Control panel Main unit display Timer button Decrease button Increase button Timer on indicator Relay signal indicator Timer off indicator Sleep indicator Clean filter button Reset button Mode indicator Follow me button Mode button Lock button Energy Saver button LED button Follow me indicator Clock button...
- Page 9 Window Requirements Wooden window offset inner window sill Vinyl-clad window offset inner window sill Installation • The product should be installed by 2 skilled persons. • To avoid vibration and noise, make sure the product is installed securely and firmly. •...
- Page 10 • The rear part of the product must be installed outdoors, not inside a building, garage or another room. • There should be no obstacles, such as a fence or wall, within 20" (50 cm) from the back of the product and the side louvers. Obstacles might limit the heat radiation, which greatly reduces the cooling efficiency of the product.
- Page 11 Step 2 NOTICE The accordion shutters are marked LEFT (D) and RIGHT (E) for easy identification. • Slide the rail of the right accordion shutter (E) out of the frame. • Slide the rail into the shutter locks (T) of the main unit. •...
- Page 12 Step 4 Wooden window Vinyl-clad window • Place the product on the window sill. The bottom rail (S) needs to be placed against the window sill’s offset. NOTICE Ensure the product is tilted 3° to 4° (A = 0.75 - 1" / 1.9 - 2.
- Page 13 Vinyl-clad window Wooden window NOTICE Ensure the product is tilted 3° to 4° (A = 0.75 - 1” / 1.9 - 2. cm) downwards with reference to the window sill. • Wooden windows: Secure the accordion shutters (E) and (D) with the brackets (G) and the screws (L).
- Page 14 Step 8 NOTICE Before securing the lower window sash, mark and drill 2 pilot holes to prevent it from splitting. • Secure the position of the lower window sash using the bracket (I) and 2 screws (L). Step 9 • Measure the width of the window sash.
- Page 15 Step 10 • Place the sash seal (B) between the lower and upper window sash. Step 11 • Measure the widths between the isolation board intakes of the accordion shutters (E) and (D). • Cut the isolation boards (N) according to the measured widths.
- Page 16 Step 12 • Slide the isolation boards (N) into the ledge of the accordion shutters (E) and (D). Operation Performance test DANGER Risk of electric shock! The power plug of this product provides LCDI protection (Leakage Current Detection and Interruption). If the LCDI is de-activated this indicates an arcing fault.
- Page 17 • Press the RESET button (P) again. The indicator on the power plug (O) lights up again and the product is ready for use. NOTICE If the indicator on the power plug (O) does not light up, consult a specialist before using the product. Installing/replacing the batteries NOTICE The batteries are not provided.
- Page 18 Icon Icon Description control panel remote control Auto: Depending on the selected mode, the set temperature and the room temperature, the product automatically sets the fan speed. Low airflow Medium airflow High airflow Temperature control NOTICE The temperature control does not work in fan mode. Set the target temperature with the decrease (2) and increase (16)
- Page 19 – Alternatively, you can set the concerned timer to 0.0 h. Sleep function NOTICE The sleep function works only when the product is set to cooling or auto mode. – The sleep function increases the target temperature by 2 °F (1 °C) 30 minutes after activation.
- Page 20 – While activated, the product uses the temperature sensor of the remote control to measure the room temperature. – The remote control transmits the measured temperature in 3-minute intervals to the main unit. – This allows to set the target temperature for a specific location in the room.
- Page 21 LEDs on/off • Press the LED button (22) to switch off/on the lights of the control panel (P). NOTICE The LEDs light up for a short time when a setting is changed. Reset NOTICE The reset function is only available for the remote control. •...
- Page 22 Fresh air vent control (only for B07Y2C57KD and B07Y2B3ZXV) • Change the position of the fresh air vent control (V) to choose one of the below air circulation mode. Position Description Vent Exhaust Vent closed: The air Closed Closed circulates inside the room. Half opened: The fresh air is drawn into the room from Open...
- Page 23 Cleaning and Maintenance WARNING Risk of electric shock! To prevent electric shock, unplug the product before cleaning. WARNING Risk of electric shock! During cleaning do not immerse the product in water or other liquids. Never hold the product under running water. Cleaning the removable air filter NOTICE Clean the removable air filter at least every 2 weeks.
- Page 24 Storage • Store the product in its original packaging in a dry area. Keep away from children and pets. Maintenance • Any other servicing than mentioned in this manual should be performed by a professional repair centre. Troubleshooting Problem Solution •...
- Page 25 Problem Solution • Outside temperature is extremely hot. Set fan speed to a higher The product turns on and off setting. rapidly. • Clean the removable air filter. Water drips inside when the • Incorrect installation. Refer to product is on. installation instructions.
- Page 26 FCC – Supplier’s Declaration of Conformity B07Y2CND3Q Window-Mounted Air Conditioner with Remote - Cools 250 Square Feet, 6000 BTU, Energystar B07Y2C57KD Window-Mounted Air Conditioner with Remote - Cools 450 Square Feet, 10000 BTU, Energystar Unique Identifier B07Y2B3ZXV Window-Mounted Air Conditioner with Remote - Cools 550 Square...
- Page 27 • Consult the dealer or an experienced radio / TV technician for help. Canada IC Notice This Class B digital apparatus complies with Canadian CAN ICES-3(B) / NMB-3(B) standard. Specifications B07Y2CND3Q B07Y2C57KD Model number: 22020310002997 22020310003018 Voltage/frequency: 115 V~, 60 Hz...
- Page 28 approx. 41.9 lbs approx. 57.3 lbs Net weight: (19 kg) (26 kg) Refrigerant type + R32, 7.8 oz (220 g) R32, 12.35 oz (350 g) quantity: Remote control 26 ft (8 m) 26 ft (8 m) range: 2 x 1.5 V, type AAA/ 2 x 1.5 V, type AAA/ Battery type: LR03...
- Page 29 Feedback and Help Love it? Hate it? Let us know with a customer review. AmazonBasics is committed to delivering customer-driven products that live up to your high standards. We encourage you to write a review sharing your experiences with the product.
- Page 30 Checks to the area Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system.
- Page 31 Ventilated area Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out.
- Page 32 Repairs to sealed components 1. During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation.
- Page 33 Leak detection methods The following leak detection methods are deemed acceptable for systems containing flammable refrigerants. Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity may not be adequate, or may need re-calibration (detection equipment shall be calibrated in a refrigerant-free area). Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used.
- Page 34 Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum. This process shall be repeated until no refrigerant is within the system. When the final OFN charge is used, the system shall be vented down to atmospheric pressure to enable work to take place.
- Page 35 • All personal protective equipment is available and being used correctly; • The recovery process is supervised at all times by a competent person; • Recovery equipment and cylinders conform to the appropriate standards. 4. Pump down refrigerant system, if possible. 5.
- Page 36 The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of flammable refrigerants. In addition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall be complete with leak-free disconnect couplings and in good condition.
- Page 37 MADE IN CHINA FABRIQUÉ EN CHINE HECHO EN CHINA V05-11/19...
