Summary of Contents for wagner solar CIRCOtransfer 30 E
Page 1

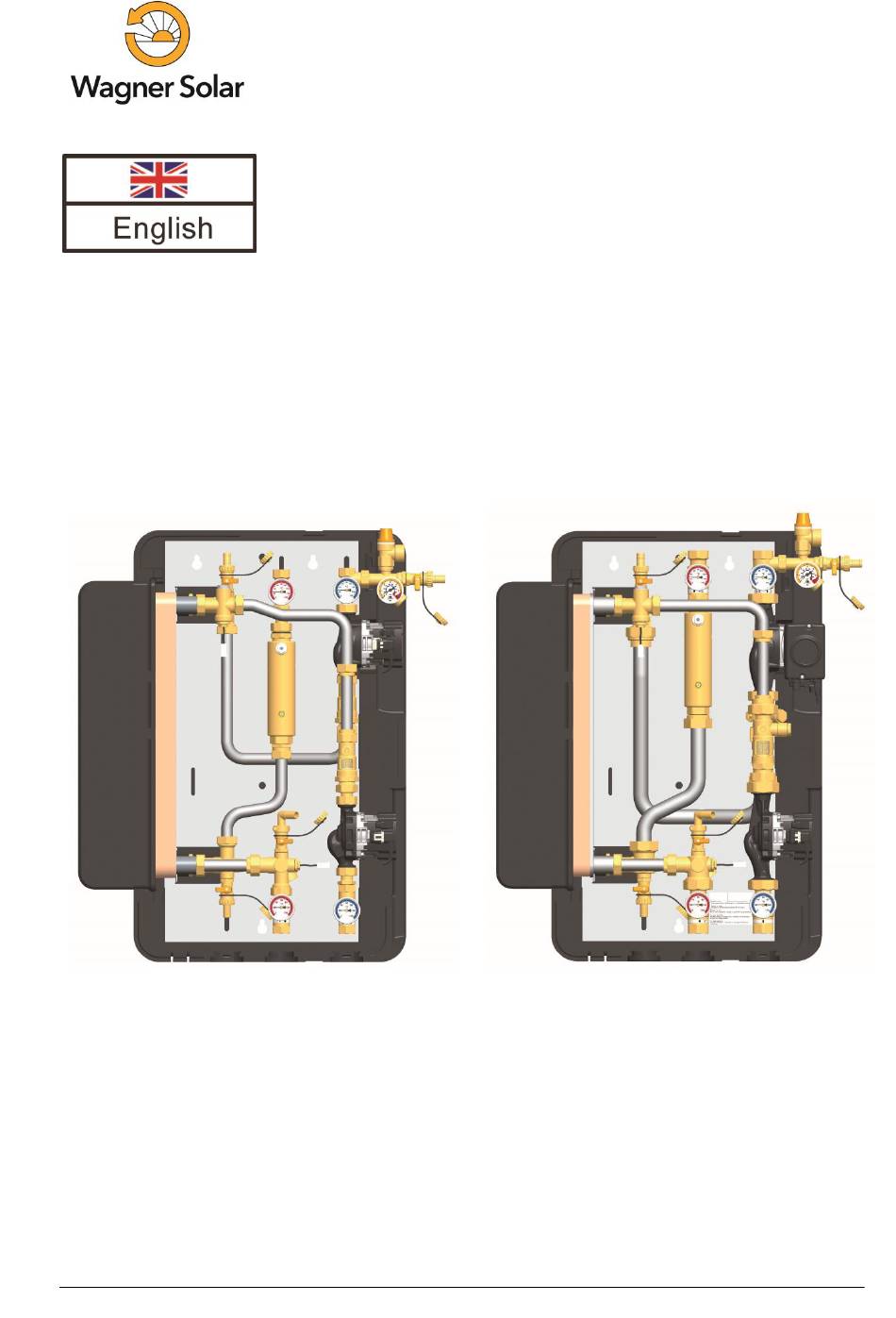

Installation and Operation Instructions Transfer stations: CIRCOtransfer 30 E CIRCOtransfer 50 E [Hydraulics] CIRCOtransfer 30 E CIRCOtransfer 50 E 2015/03 EN-XXX_CIRCOtransfer-30E-50E_TI-MA-BA-150401-3PAW0501 - 99609x7WAG0x-mub-en - V06...
Page 2
Item no. 99609x7WAG0x-mub-en – Version V06 – Issued 2015/03 Translation of the original instructions Wagner Solar GmbH We reserve the right to make technical changes without notice! Industriestraße 10 Printed in Germany – Copyright by Wagner Solar GmbH D-35091 Cölbe, Germany EN-XXX_CIRCOtransfer-30E-50E_TI-MA-BA-150401-3PAW0501 - 99609x7WAG0x-mub-en - V06 2015/03...
Draining the solar installation ..................20 Deinstallation......................20 5 Spare parts [specialist] ..................... 21 Spare parts primary circuit CIRCOtransfer 30 E (15020220) ........21 Spare parts secondary circuit CIRCOtransfer 30 E (15020220) ......... 22 Spare parts primary circuit CIRCOtransfer 50 E (15020221) ........23 Spare parts secondary circuit CIRCOtransfer 50 E (15020221) .........
About these instructions These instructions describe the function, installation, commissioning and operation of the transfer stations CIRCOtransfer 30 E and CIRCOtransfer 50 E. The chapters called [specialist] are intended for specialists only. For other components of the installation, such as pumps, controllers or the distribution manifold, see the manufacturers' instructions.
1 General information About this product The station is a premounted group of fittings checked for leakage and used to transfer the heat from the primary or solar circuit to the secondary or storage tank circuit. It contains important fittings and safety devices for the operation of the installation: Ball valves with integrated thermometers in the storage tank circuit ...
Only use original accessories with the transfer station. Improper usage excludes any liability claims. Schematic structure CIRCOtransfer 30 E/50 E Scope of delivery When the sun shines, the collectors can become very hot. The solar fluid in the circuit can heat up to more than 100 °C.
2 Safety instructions 2 Safety instructions The installation and commissioning as well as the connection of electrical components require technical knowledge commensurate with a recognised vocational qualification as a fitter for plumbing, heating and air conditioning technology, or a profession requiring a comparable level of knowledge [specialist].
Page 8
2 Safety instructions CAUTION Personal injury and damage to property due to overpressure! By closing the two ball valves in the primary circuit you isolate the pressure relief valve from the heat exchanger. A rise in temperature in the storage tank will cause high pressures and could result in personal injury or damage to property! ...
3 Assembly and installation [specialist] 3 Assembly and installation [specialist] The location of installation must be dry, load-carrying, frost-proof and protected against ultraviolet radiation. Furthermore, the access to the control and safety equipment must be guaranteed at all time during operation! The discharge line of the safety equipment should be guided into a heat-resistant container with corresponding size.
Page 10
Flow to the buffer tank ④ Return from the buffer tank All screw connections of the CIRCOtransfer 30 E have ¾" internal threads, all screw connections of the CIRCOtransfer 50 E have 1" internal threads. 8. Mount the safety group, consisting of the pressure relief valve [c], the fill valve [d] and the pressure gauge [e], to the connection of the return ball valve [b].
3 Assembly and installation [specialist] Controller connection Connect the optional controller to the mains. You can find a detailed description for the operation of the controller in the separate controller manual. WARNING Risk to life and limb due to electric shock! ...
4 Commissioning [specialist] 4 Commissioning [specialist] Observe the following safety instructions regarding the commissioning of the station: WARNING Risk of burning and scalding! The fittings can heat up to more than 100 °C. Therefore, do not clean or fill the system with the collectors heated (intense sunshine).
4 Commissioning [specialist] Preparations before flushing and filling CAUTION Note regarding the expansion tank To prevent that the dirt particles in the solar thermal system are flushed into the expansion tank, some manufacturers recommend to disconnect the expansion tank from the solar circuit before flushing and filling.
4 Commissioning [specialist] Flushing and filling the solar circuit The fill and drain valves required to flush and fill are integrated in the transfer station. Make sure not to wash dirt particles that may be present in the system into the heat exchanger and the expansion tank.
Page 15
4 Commissioning [specialist] Airstop The Airstop (air-scoop with plug for manual venting) serves to bleed the solar installation. To ensure perfect deaeration of the solar circuit, the flow velocity must be at least 0.3 m/s in the flow line. Pipe diameter [mm] Flow rate at 0.3 m/s ∅...
Page 16
4 Commissioning [specialist] 1. Disconnect the expansion tank from the solar installation. This avoids the access of dirt particles present in the pipes to the expansion tank. Observe the separate instructions regarding the expansion tank! 2. The return ball valve [b] must be closed (90°...
Page 17
4 Commissioning [specialist] 10. Reduce the pressure at the drain valve [h] to the operating pressure, if necessary. 11. Connect the expansion tank to the solar circuit and set the operating pressure of the solar thermal system by means of the flush and fill station (for the required operating pressure, see the instructions of the expansion tank).
Page 18
4 Commissioning [specialist] 17. Remove the hoses of the flush and fill station and screw the sealing caps onto the fill and drain valves. The sealing caps only serve to protect the valves against dirt. They are not designed to take up high system pressures.
Make sure that the solar fluid is collected in a heat- resistant container. 2. Change the faulty part against the new part. 3. Fill the solar circuit as described in 4.3 Flushing and filling the solar circuit (see page 14). Example: CIRCOtransfer 30 E 2015/03 EN-XXX_CIRCOtransfer-30E-50E_TI-MA-BA-150401-3PAW0501 - 99609x7WAG0x-mub-en - V06...
4 Commissioning [specialist] Draining the solar installation 1. Switch off the controller and make sure that a restart is not possible. 2. Open the check valves in the flow and return ball valve [a|b], by turning them to a 45° position (see page 14).
The serial number is placed in the lower right corner of the support sheet of the station. In case of a complaint, please send us the completely filled commissioning report on page 31. Spare parts primary circuit CIRCOtransfer 30 E (15020220) 2015/03 EN-XXX_CIRCOtransfer-30E-50E_TI-MA-BA-150401-3PAW0501 - 99609x7WAG0x-mub-en - V06...
6 Technical data 6 Technical data Dimensions CIRCOtransfer 30 E CIRCOtransfer 50 E Height (total) 795 mm 829 mm Width (total) 674 mm 676 mm Depth (total) 298 mm 298 mm Centre distance flow - return: 120 mm 120 mm Pipe connections ¾"...
7 Function of the check valves [specialist] 7 Function of the check valves [specialist] Within their application range, the check valves in this station prevent unwanted gravity circulation. The efficiency of the check valves depends on: the installation height the temperature difference between the storage tank and the collector ...
Page 30
7 Function of the check valves [specialist] Do you need to know it exactly? The density of the solar fluid decreases with rising temperature. In high installations with large temperature differences, the difference in density will cause gravity circulation. Calculation example: Δp = Δρ * g * h Collector temperature: 5 °C ...
