Showdown Displays EuroFit Cascade Shelf Merchandiser Assembly Instructions

EuroFit Cascade Shelf
Merchandiser

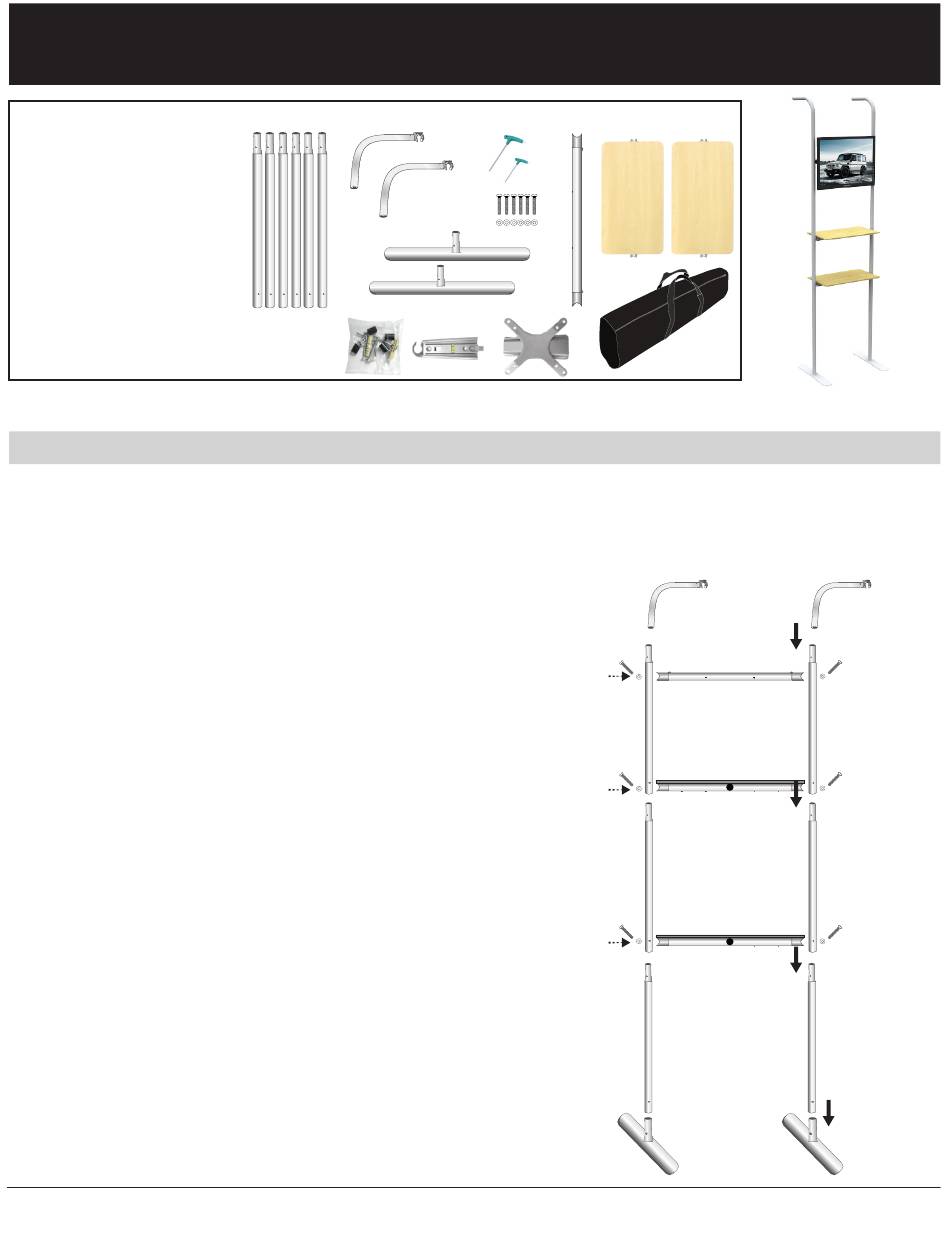

Product Parts

1 - Side Poles (x6)
2 - Top Curved Corners (x2)
3 - Feet (x2)
4 - Hex Bolts (x6)
5 - Washers (x6)
6 - #4 Hex Wrench for TV Mount
7 - #5 Hex Wrench for Frame Bolts
8 - Top Horizontal Pole
9 - Shelf + (x2)
10 - Miscellaneous Mounting Hardware*
11 - Mounting Bracket
12 - Case
*Use only the machine screws to secure monitor to Mounting Bracket.
+ Shelf recommended for max 5lbs.

Display Set-Up

Step 1
Assemble hardware laying it on a flat clean surface. Do
not attempt to stand or attach the hardware vertically
until fully assembled. All parts are numbered for easy
assembly.
Step 3
Using the Hex Bolts (4) and Washers (5) attach the bottom
Shelf + (9) to the frame. Hand tighten only.
Step 4
Using the Hex Bolts (4) and Washers (5) attach the top
Shelf + (9) to the frame. Hand tighten only.
Step 5
Using the Hex Bolts (4) and Washers (5) attach the Top
Horizontal Pole (8) to the frame, making sure the bolts are
facing towards the front. Hand tighten only.
Step 6
Using supplied #5 Hex Wrench (7) tighten all Hex Bolts
(4).
1
2
3
10
8
7
6
4
5
11
Step 2
Fully assemble the left Side Poles (1), Feet (3), and
Top Curved Corners (2). Match numbers marked on
hardware. Repeat for the right side.
9
12
1/18
