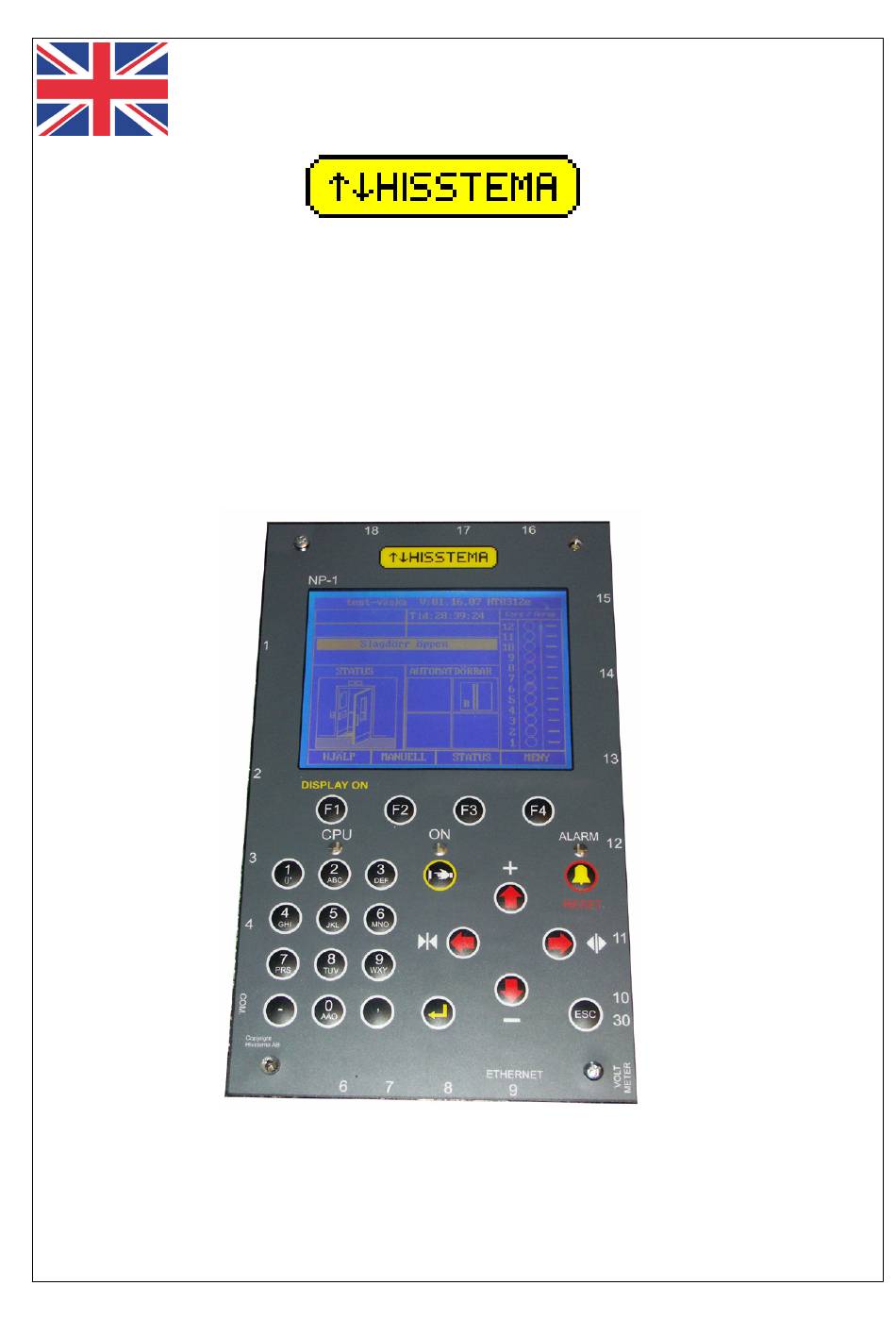

System NP-1

Version 1.66.09 2020-05-04

Table of Contents

Need help?

Do you have a question about the NP-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hisstema NP-1

Page 3 Holmberg and has been practically carried out by Nils Bj örkman. Hisstema AB hopes that you will appreciate your new control system NP-1. If you need support, simply call Hisstema AB +46 (0)8 554 230 70 during office hours. For contact at other times see the chapter "Support".
Page 4 Hisstema AB cannot be held liable for any damage that has occurred directly or indirectly through this manual.
Page 5: Table Of Contents
1 Limit test ........................... 35 2 Brake test ........................... 35 3 EN81-A3 ........................... 35 4 Overload scale ........................... 36 5 Run time limiter test ........................... 36 6 Movement supervision ........................... 37 Chapter IX Support and spare parts © 2020 ... Hisstema AB...
Page 6 ........................... 91 18 Floor Display INFO-Link ........................... 92 19 PLC ........................... 93 20 Statistics ........................... 94 21 Communication Frequency ........................... 94 22 CAN-bus ........................... 95 23 Analogue inputs ........................... 96 24 Com Ports ........................... 97 © 2020 ... Hisstema AB...
Page 7 Troubleshooting 1 Event memory ........................... 100 2 Service memory ........................... 101 3 Incident number ........................... 103 4 Error number ........................... 106 5 View of safety chain ........................... 116 6 Waiting for respons ........................... 117 Index © 2020 ... Hisstema AB...
Page 8 Chapter...
Page 9: Chapter I General
General General This manual is intended to simplify the handling of your NP-1 system from Hisstema AB. This manual is based on program 1.66.09. Congratulations on your new control from Hisstema AB © 2020 ... Hisstema AB...
Page 10 Chapter...
Page 11: Chapter Ii Warranties
Warranties Warranties Warranty Hisstema AB normally offers a 2-year warranty against manufacturing defects unless otherwise agreed upon writing. The warranty covers replacement parts for all supplied materials, but not freight, assembly, any fines for being out of order, etc. Storage The warranty is valid only when a component from Hisstema AB is stored properly.
Page 12 Chapter...
Page 13: Getting Started

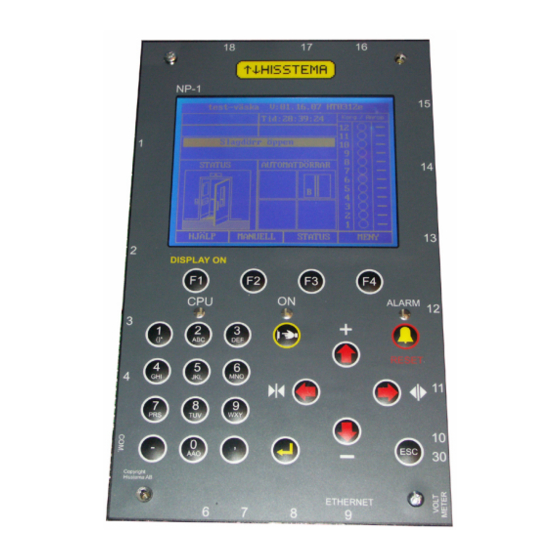

Getting started Display and Keyboard The NP-1 system has a high definition (320x240 pixels) 1/4 VGA STN blue negative screen with white backlight. Press F1 (or any button) to turn on the back light. The display turns off automatically (screen saver) after a few minutes.
Page 14: Pin-Code
Everything as level 0-2. All parameters that normally may need to be changed during installation and commissioning of the lift can be changed PIN-4 "OEM level" Intended for other suppliers you buy system in bulk. Permits some configuration, disconnection of safety functions etc. PIN-5 "Hisstema level" © 2020 ... Hisstema AB...
Page 15: Main Page
Left box Same information as row 4 but in graphic form. Thumbs up means EVERYTHING is OK. Right box The 4 automatic doors' status is shown. Right edge : Lift shaft showing the destinations that have been entered. © 2020 ... Hisstema AB...
Page 16 Compressive E dge Door A Broken Door Button Door A Not Active Radar Status Symbols Most of the alarms have a symbol describing what the lift is waiting for Fire alarm 1 Overload Full load © 2020 ... Hisstema AB...
Page 17 Shaft door A Automatic door A Blocking Free Safety 1 Wrong direction Frequency inverter fault Combined hydraulics Limit, SG or Machine room Pit safety Delay Contactor supervision Fire figheter mode Lift car safety Lift car safety © 2020 ... Hisstema AB...
Page 18 Prioroty 1 Reference error Emerggency power Run Emergency power block Call buttons off Swing door Warning Out of Order Waiting for acknowledgment Voltage error Time Controlled NOTE! Make a note of the number! Inspection Run © 2020 ... Hisstema AB...
Page 19: Status
Roof box node shows connector 1, 2 and 9. Each position indicates the connector's status. A "1" indicates activated, a "0" indicates not activated and a "-" indicates that the system does not have contact with the board. If you press F2, who change to Shaft Bus Status. © 2020 ... Hisstema AB...
Page 20: Menus
2. Calculator: Here you have a completely normal, standard calculator 3. DCP4 Frequency: 1. If you have a frequency inverter connected by DCP protocol you can see a copy of its display and use simulated buttons to control it. 4. Troubleshooting: © 2020 ... Hisstema AB...
Page 21 7. Floor positions: Definition of each floor and reference position in mm over the bottommost floor. NOTE! NOT floor setting! 8. Speed curve: Here you determine how a frequency-controlled lift will behave during acceleration, braking, etc © 2020 ... Hisstema AB...
Page 22 "Start error". The next attempt to start should run as normal. In the Service Memory, there should be a note on "Start error". 8. Hydraul valve test: Testing of DLV (A3) valves on some hydraulics. 8. Commissioning © 2020 ... Hisstema AB...
Page 23: Data Input
If you go back to the main page by pressing ESC, the new values will be used, but will disappear when power is lost. · If you then want to save them permanently, just press F4 twice. This can be practical, if you want to test settings, but also have the chance to undo your changes. © 2020 ... Hisstema AB...
Page 24 Chapter...
Page 25: System Overview
System overview System overview Description of the system's functions A description of the NP-1 system follows below CONNECTORS Connector 1 Safety detectors. Pin 1 Neutral (What the safety circuit refers to) Pin 2 Pin 3 230V AC Safety detection 1...
Page 26 CAN- Lift Car / Shaft Bus (A blue termination jumper is inside the connector) Pin 8 Screen Pin 9 Analog input (0-30V) Pin 10 Voltmeter input (0-400V) Connector 10 Selector Pin 1 CAN- bus to selector Pin 2 CAN+ bus to selector © 2020 ... Hisstema AB...
Page 27 Pin 2 Digital NPN IN Pin 3 Digital NPN IN Pin 4 Digital NPN IN Pin 5 Digital NPN IN Pin 6 Digital NPN IN Pin 7 Digital NPN IN Pin 8 Digital NPN IN © 2020 ... Hisstema AB...
Page 28 Inside connector 6 Activates acknowledgement (LED) connector 6 pin 8 remove this jumper if the pin is used for the door zone board Inside connector 9 Termination of CAN bus for Lift Car and Shaft © 2020 ... Hisstema AB...
Page 29 If you press it, the system restarts in the same way as when the power is turned on. It may be practical to use this button instead of turning off the power if you want to restart the system. © 2020 ... Hisstema AB...
Page 31 Chapter...
Page 32: Chapter V Installation
For areas with high humidity, a dehumidifier must be installed. If it is impossible to fulfil these conditions, contact Hisstema AB to discuss special arrangements, such as extra enclosure, forced cooling and similar measures.
Page 33 Chapter...
Page 34: Chapter Vi Wiring
Remember that even if you place the low-voltage in one flat cable (cable car) and extra-low-voltage in the next, the cables are still very close and long. This can easily create cross-induction. Consult Hisstema AB about appropriate distribution of functions for the different lift car cables.
Page 35 Chapter...
Page 36: Chapter Vii Start Up
For an Hydraulic lift, you start with a deceleration distance that is approx. 800-1000 mm depending on the lift's speed. Go further with Frequency inverter in accordance with the next chapter, if applicable. Frequency control See separate instructions for your inverter. © 2020 ... Hisstema AB...
Page 37: Manual Operation
If you wish to INCREASE speed, release the button pointing in the wrong direction. o If you wish to DECREASE speed, release the button pointing in the direction of travel o You may at any time press the other button and again LOCK the speed. © 2020 ... Hisstema AB...
Page 38: Shaft Equipment
Manually run the lift to near lowest floor. It does not matter if it is over or under. When done, press ENTER Now manually run the lift to near top floor. When done, press ENTER © 2020 ... Hisstema AB...
Page 39: Floor Setting
(see next section) or adjust the frequency control. (If you know the inter floor distances it is possible to enter each floor position EXCEPT BOTTOM FLOOR in menu F4, 6,7, Enter.) © 2020 ... Hisstema AB...
Page 40: Test Runs From The System
For a 2-speed or hydraulic lift you adjust parameters 1 and 2 for ascent and descent, respectively. If the lift stops before the floor, reduce the value and if it stops after the floor, increase it. © 2020 ... Hisstema AB...
Page 41 Chapter VIII...
Page 42: Chapter Viii Overview
EN81-A3 For a Hisstema lift that has a machine with certified brake on outgoing axle, our certificate is fulfilled if it passes the following test.
Page 43: Overload Scale
Overview Overload scale This function is only available if the lift is equipped with Hisstema overload device or HDD hydraulics.. This overload device has the following features: · It has automatic zero adjustment. If the lift is in standstill more than one hour and the load is not zero, but below 40 kg.
Page 44: Movement Supervision
On the first start, it will not move because the motor and brake contactors "happen" to trip directly after start. Since NP-1 does not detect any motion for 3 seconds, the lift is stopped and a new attempt made. Should it fail 3 times in a row, "Waiting for activation 2" appears along with blocking and the lift must be reset from NP-1.
Page 45 Chapter...
Page 46: Chapter Ix Support And Spare Parts
Hisstema System NP-1 Support and spare parts Contact Hisstema Contact: If you need support with Hisstema's equipment you can always reach us at: Telephone: +46 (0)8 554 230 70 From 07.00am to 16.00pm CET Weekdays. Post: Hisstema AB Hantverksvägen 13 151 65 Södertälje...
Page 47 Chapter...
Page 48: Chapter X Maintenance
To avoid changing the system's and component cabinet's EMC characteristics, and thus risking disruption of other equipment, no components may be exchanged for anything other than original parts from Hisstema AB All components have been carefully selected and tested to meet our high standards of reliability, availability and functionality.
Page 49 Chapter...
Page 50: Chapter Xi Functions
The system provides a function to graphically view set points and current value curves. The lower curve shows the set point (The speed wanted for the trip) The upper curve shows the current value. (The real speed during the trip) © 2020 ... Hisstema AB...
Page 51 Up Arrow Zoom in one step Down Arrow Zoom out one step Right Arrow Move one step right on a zoomed-in picture Left Arrow Move one step left on a zoomed-in picture Short cut: F3, 4 © 2020 ... Hisstema AB...
Page 52 Chapter...
Page 53: Chapter Xii In / Out / Button
Side hung door B Safety detection for side hung door B This detection is used if a lift car door is installed. . Automatic door A Safety detection for Automatic door A (Both the lift car and the shaft door in series) © 2020 ... Hisstema AB...
Page 54 Open limit for automatic door D Open button A Open button for automatic door A Opens the door and resets normal opening time Open button B Open button for automatic door B Opens the door and resets normal opening time © 2020 ... Hisstema AB...
Page 55 5 seconds and lift car destination cancels the time. Loading C Loading (Extended door time) Changes normal door time to extended door time. Door button, close button, repeated pressing on this after at least 5 seconds and lift car destination © 2020 ... Hisstema AB...
Page 56 Res .Top/well Reset of low top / well function. If the ESL function is activated, the well or the top must be reset respectively with the call button and © 2020 ... Hisstema AB...
Page 57 If the Inspection run timer input is activated, timer inspection run is permitted, the one in parameter Control No: 41. Set the parameter to 0 to disable this function. Ställ parametern på 0 för att avaktivera funktionen. © 2020 ... Hisstema AB...
Page 58 This is reset, for example, with extended boom. Reset Top Buzzer In this case, Warning Buzzer for lift top (door opened on floor higher than 2000 mm and low top activated) sounds. This is reset, for example, with extended boom. © 2020 ... Hisstema AB...
Page 59: Outputs
When this is active the lift is prevented from entering the lowest floor. 12.2 Outputs Short cut: F4, 6, 6, Enter Select the connector wanted with F2 and F3 Select the pin wanted with UpArrow and DownArrow © 2020 ... Hisstema AB...
Page 60 Close order Automatic door A Is always on when the door should be closed unless the parameter Doors no 45 is activated (Open and close limit). In that case, the signal is released when the close limit is broken. © 2020 ... Hisstema AB...
Page 61 Up Arrow Collective arrow Ascent Down Arrow Collective arrow Descent Here light The lift is HERE Busy light The lift is busy. Door open, out of order, movement, call off © 2020 ... Hisstema AB...
Page 62 Binary floor display (value 8) Binary 4 Binary floor display (value 16) Binary 5 Binary floor display highest bit (value 32) Cabinet fan Controlled cabinet fan. Active when the cabinet temperature gets too high.(Temperature exceeding System parameter 4). © 2020 ... Hisstema AB...
Page 63 On Fire Floor 3 The lift has reached fire alarm floor 3 On Fire Floor The lift has reached fire alarm floor 4 Fan p2t Fan controlled based on Emergency lighting Switch on emergency lighting. Detection on © 2020 ... Hisstema AB...
Page 64 Since the lift will go on shoulder or piston stop descent. HDD Valve Hisstema HDD hydraulic main valve HDD A3 Valve Hisstema HDD hydraulic A3 valve FÖS Alarm Block FÖS (SL property surveillance) alarm blocking lamp to place on the cabinet.
Page 65: Buttons
If a "Whole side" is set to YES, even the call buttons on the side and trunk are blocked. This function has been specifically developed to work © 2020 ... Hisstema AB...
Page 66: Roof Box Connectors
(See chapter Buttons Inputs Outputs 3. Connection: Choose NO or NC. NO means that the function is active when the input is earthed down, NC means the function is active when the input is left un-activated © 2020 ... Hisstema AB...
Page 67: Shaft Board
(See chapter Buttons Inputs Outputs 3. Connection: Choose NO or NC. NO means that the function is active when the input is earthed down, NC means the function is active when the input is left un-activated. © 2020 ... Hisstema AB...
Page 68 Chapter XIII...
Page 69: Chapter Xiii Parameters
Parameters Parameters Below is a list of parameters sorted numerically. This number is used for all communication with the NP-1 system. If you want to come to a certain list, click on the list name. List number Name Description Door parameters Activate doors, set door times, door zones etc.
Page 70: Door Parameters
1-255 Sec Photocell time B How long Door B is kept open after photocell has been passed 3 Sec 1-255 Sec Radar time B How long door B is kept open after radar has been 2 © 2020 ... Hisstema AB...
Page 71 1-255 Sec Opening time D The time it takes to open door D 30 Sec 1-255 Sec Max Closed time Maximum time from when closing began until the safety circuit is complete. If time is exceeded the door is © 2020 ... Hisstema AB...
Page 72 The door will open automatically upon arrival at a floor. Normally YES for automatic doors and lift car doors, NO for door openers Yes/No Use retiring cam Yes means that door opener waits until the lock is broken before it opens © 2020 ... Hisstema AB...
Page 73 This is not necessary for the function but can be useful when inputting floor settings, etc. Yes/No Readjustment For this to work, two outputs for short circuiting of with doors open door © 2020 ... Hisstema AB...
Page 74 0-64 End Block Door A See number 62. 0- 64 Start Block Door When the input Block B door is activated, it is possible using this and the next parameter to select the range of © 2020 ... Hisstema AB...
Page 75: Selector
3 St 0 - 10 St Repeated presses On repeated pressing on the same button occurs, another lift in the group may be called. 0 means change that the function is deactivated © 2020 ... Hisstema AB...
Page 76: Brake Parameters
Mechanical Up Distance from where the brakes / valve are released until the lift stands still. Does not apply for frequency controlled lifts with Yaskawa. For ZetaDyn, this should be set to 17 mm as standard. © 2020 ... Hisstema AB...
Page 77: Code Lock
VIP code 2 This code applies for all floors 0 - 9999 VIP code 3 This code applies for all floors 8-71 1111 0 - 9999 Code floor 1-64 Separate code per floor. Code for floor 1-64 © 2020 ... Hisstema AB...
Page 78: Speed Curve
Retardation in m/s2. 0.4 is normal, 0.2 is very soft 1.5 is very fast 0 - 100% S-curve Ret "Softness" in transition from deceleration to stop. means an abrupt transition and 100% means a very © 2020 ... Hisstema AB...
Page 79: Controls
If both start time and end time are 0:00:00, function is deactivated. Astra Operation Astra Lift Height 1- 64 Cleaning Floor When input (Cleaning) is activated, the lift runs to this floor and is then blocked © 2020 ... Hisstema AB...
Page 80 Maximum number of attempts at starting errors before the lift is blocked 10 Min 1 - 60 Min Time error on floor Duration the safety circuits may be broken the floor before the lift is taken out of service and © 2020 ... Hisstema AB...
Page 81 0 min 0 - 240 min Inspection run timer If the input Inspection run timer is activated, inspection run is permitted the set time. Set the parameter to 0 to disable this function. © 2020 ... Hisstema AB...
Page 82 Maximum value the position regulator can affect the speed setpoint Yes / No Auto reset The emergency signal is reset Emergency automatically Signal once the lift has completed a normal trip Yes / No Quick start active Quick start function. © 2020 ... Hisstema AB...
Page 83 See number 62 0-999 Snapshot Incident See number 62 Yes / No HDD Valve Active Hisstema HDD hydraulic system active Yes / No HDD Zero Select YES to start automatic zeroing. The lift will be run a bit. 9999999 HDD Cell Pump...
Page 84: Times
Used for coding, for example buttons, to function during a certain time of the day. 00.00.00 00.00.00 - Start time Start of time zone. 23.59.59 zone 2 Used for coding, for example buttons, to function during © 2020 ... Hisstema AB...
Page 85: Run Parameters
Used for coding, for example buttons, to function during a certain time of the day. * The level is the safety level required to edit the parameter. 13.8 Run parameters Run parameters List: Short cut: F4,6,22,Enter © 2020 ... Hisstema AB...
Page 86 Only key press from the machine room will release block.. 50 Sec 1 - 300 Sec Max Run Maximum run time in seconds at Crawl speed. If Time the time Crawl © 2020 ... Hisstema AB...
Page 87: Info-Link Parameters
No/Yes Gong EN81-70 Activate arrival signal according to EN81-70. Different signals up/down etc No/Yes Arrows off for NO: Arrows on the floor are lit as long as the lift closed remains at that floor door © 2020 ... Hisstema AB...
Page 88: Priority / Fire
Volume wanted daytime for the volume signal Arrival Yes/No Never return Turn of retun signal complete. signal * The level is the safety level required to edit the parameter. 13.10 Priority / Fire Prioritet / Brand List: Short cut: F4,6,10,Enter © 2020 ... Hisstema AB...
Page 89 30 Sec 5 - 65000 Transport The lift is kept blocked with open doors at the Holding requested floor for this length of time. Only lift car destination releases this block. Reserverad Reserverad © 2020 ... Hisstema AB...
Page 90 Enable speech at using code lock in COP lock No/Yes Speech at Enablee speech when pressing a car button Pressure No/Yes Speech gate Enable speech for car gate reminder reminder * Nivå är den säkerhetsnivå som krävs för att kunna redigera parametern. © 2020 ... Hisstema AB...
Page 91: System Parameters
0 - 5 St Warranty time in Number of years the warranty is valid. Years This is entered by Hisstema AB 0 - 40 Beep time buttons Duration for the beep noise when you push the system's buttons.
Page 92 If this is set for YES, all parameters will be replaced by the settings that applied on DELIVERY from Hisstema. Requires RESTART No / Yes Update PLC After restart all standard PLC-programs are written back to FLASH Requires RESTART © 2020 ... Hisstema AB...
Page 93 This is to detect if anyone has stepped into the lift. Skip number in well Set it to the number of floors counting downwards that are not to be monitored. 1 means that all floors except the bottom one are © 2020 ... Hisstema AB...
Page 94 Tilt sensor max angle before tripping in 0-45 deg Tilt Max Y Tilt sensor max angle before tripping in 15 sec Tilt Max Tillslag Time delay entering tilt blocking 30 sec Tilt Max Frånslag Time delay exititn lift blocking © 2020 ... Hisstema AB...
Page 95: Floor / References
Parameters Number Standard Min/Max Parameter Description Level* System D adapter NP-1 with D-system Adapter 1-10V Höjdmätning Special mode to indicate lift position in shaft in 1-10V dc. 1V = floor 1 10V = top floor. No/Yes Fri ut = Hemlig...
Page 96: Safety Circuit
List: Short cut: F4,6,16,Enter In order for the right text to be shown in NP-1's character window it is important that these are in the order that they are connected in reality. It is of no importance if there are safeties in the table that are not connected in reality. These will be automatically skipped It is OK to fill unused ones with 0, if you want to.
Page 97: Object
Free safety 3 Free safety 4 Free safety 5 Free safety 6 Free safety 7 Free safety 8 * The level is the safety level required to edit the parameter. 13.15 Object Object List: Short cut: F4,6,20,Enter © 2020 ... Hisstema AB...
Page 98: Ethernet
Shall Ethernet connect to a SCADA system with Scada Modbus-TCP, such as, for example, TUB-NET or similar Yes / No HT1311- GSM Shall the Hisstema HT1311 GSM module be Module activated. This is used for communication with Hisstema's Server Not used...
Page 99: Floor Display Info-Link
0 - 7 Type Here you select the kind of floor display you installed. 1 - NOR 1.00 Standard Norway 2 - H17 Hisstema Standard 3 - HU5 4 - HS75 5 - HS12 6 - HT12 7 - HV5...
Page 100: Plc
13.19 PLC List: Short cut: F4, 6, 19, Enter Number Standard Min/Max Parameter Description Level* 0 - 4 Start program Choose appropriate program for the start sequence 1 - Frequency controlled with 0-10 V set point © 2020 ... Hisstema AB...
Page 101: Statistics
Description Level* 2 - GMV 3010 or Hydronic 2/300 Hydraulic 3 - Beringer/Bucher/iValve 4 - Frequency VACON Hisstema Lift appl. 5 - Bucher hydraulic 6 - GMV NGV-A3 hydraulic 7 - GMV NGV-A3 with Yaskawa Frequency. 8 - iValve Test...
Page 102: Can-Bus
The amount of time a lift may be quiet before it removed from the selector's table of available lifts No / Yes Overload lift car If the Lift car control bus is connected and board overload is connected on the car card. © 2020 ... Hisstema AB...
Page 103: Analogue Inputs
Switch to input mode. Then do as described in point 3 63,1200 0,0000 - Battery Scaling Scaling factor for input mode. 900,0000 factor See point 3 for an example of calibration. You now © 2020 ... Hisstema AB...
Page 104: Com Ports
7 = 460800 baud Baud rate Setting for transmission speed via Ethernet Ethernet 1 = 9600 baud 2 = 19200 baud 3 = 38400 baud 4 = 57600 baud 5 = 115200 baud 6 = 230400 baud © 2020 ... Hisstema AB...
Page 105 Setting for transmission speed via USB Device USB-Device 1 = 9600 baud 2 = 19200 baud 3 = 38400 baud 4 = 57600 baud 5 = 115200 baud 6 = 230400 baud 7 = 460800 baud 8 - Not activated © 2020 ... Hisstema AB...
Page 106 Chapter...
Page 107: Chapter Xiv Troubleshooting
16-12 The lift went on lift car destination to floor 1 and stopped 1 mm below the floor 11-7 The lift tried to close door B but could not complete the safety circuit. Error (7) Door closing errors are registered in the error memory. © 2020 ... Hisstema AB...
Page 108: Service Memory
3. 2 x 15 - Side hung door on floor This shall be interpreted as meaning: A total of 13 errors are stored. The locking circuit broke 10 times while moving A brake test was performed 1 time © 2020 ... Hisstema AB...
Page 109 Lock error while moving), should be examined to find why it happened so many times. A complete description of all error codes can be found in the next section You can browse pages back and forwards with the buttons F2 and F3. © 2020 ... Hisstema AB...
Page 110: Incident Number
Lift car button pressed on side D has been detected to floor 1037 Photocell A broken Photocell door A Breaks 1038 Photocell B broken Photocell door B Breaks 1039 Photocell C broken Photocell door C Breaks © 2020 ... Hisstema AB...
Page 111 (NP-1 Photocell input broken). All current lift car destinations are turned off. Check that NP-1 really does detect the photocell, to make sure it does not just input into the door control or is bridged. If this is the case, the function must be switched off. (Parameter, Control)
Page 112 50 kg) load, it is then automatically set to 0 kg. If it should show - (Negative) weight for more that a short while, the scale is zeroed 1077 Low top/well reset Low top/well has been reset using the rest button © 2020 ... Hisstema AB...
Page 113: Error Number
Safety detection for SIDE HUNG DOOR B has been broken more than floor SERVICE TIME with the lift standing still on floor Lift car safety on floor Safety detection for SIDE HUNG DOOR C has been broken more than SERVICE © 2020 ... Hisstema AB...
Page 114 Lift car door A during Safety sensor function for CABIN DOOR side A broken with lift car in movement Lift car door B during Safety sensor function for CABIN DOOR side B broken with lift car in movement © 2020 ... Hisstema AB...
Page 115 Door A has reopened due to compressive edge more than the permitted Edge A number of times. Reopening Compressive Door B has reopened due to compressive edge more than the permitted Edge B number of times. © 2020 ... Hisstema AB...
Page 116 The lift has stopped more that the permitted (normally 3) number of times without Side hung door A opening or the automatic door B Photocell being broken. When this occurs all the remaining lift car destinations are turned off © 2020 ... Hisstema AB...
Page 117 Sabotage switch trippedSabotage switch in the lift car panel has detected an attempt to tamper. The lift is blocked and can not be restarted without pressing a button in the © 2020 ... Hisstema AB...
Page 118 Check that the set time is enough to travel the entire shaft. Max run time Low Max run time low speed exceeded Speed Max run time Crawl Max run time crawl speed exceeded No 128 Reserved © 2020 ... Hisstema AB...
Page 119 This is NOT an error! Maintenance This is only an indication that defragmenting and similar maintenance is being performed on the FLASH file system. If this occurs OFTEN, you should contact Hisstema AB No:144 Reserved CPU Watchdog reset Internal system error Contact Hisstema AB Software Reset Indication that the system has been restarted by the software.
Page 120 All lift car destinations are turned off. In this case, check that NP-1 is detecting when someone passes the photocell. Retardation monitoring The lift has difficulty following deceleration ramp. Check that it isn't too abrupt (high value) retardation is set and that the...
Page 121 Released when ANY button is pressed. (See the next chapter) Waiting for activation 2 Blocking caused by, for example, run time error or similar. Only released from NP-1. (See the next chapter) Waiting for activation 3 Blocking after inspection run on lift car roof.
Page 122 HDD Overpressure Hisstema Hydraulic HDD warn for overpressure HDD Negative pressure Hisstema Hydraulic HDD warn for negative pressure HDD Error Pump Sensor Hisstema Hydraulic HDD warns for error on pressure sensor on the pump side HDD Error Cylinder Hisstema Hydraulic HDD warns for error on pressure sensor on the...
Page 123: View Of Safety Chain
If you do not know which function is on a certain pin press F1. You then obtain a list of which functions correspond to which pin. Short cut: F3, 2 In the image above, the safety on pin 14/3 is broken. For help, press F1 © 2020 ... Hisstema AB...
Page 124: Waiting For Respons
Too many reopenings door button Door closing error Lock error Shoulder / HR monitoring Excess speed rope lift Test of monitored photocell failed. Brake monitoring Emergency stop HDD HR Brake faulty HR Pin monitoring faulty © 2020 ... Hisstema AB...
Page 125 The lift has involuntarily left floor. o The lift, during test off EN81-A3, has moved more than 1000 mm from floor. · Reset with: o Button on the control system. Low WELL ESL · Possible causes © 2020 ... Hisstema AB...
Page 126 Reset with: o Open the door (Any door that is preferably higher than 2000 mm up the shaft), press and hold in the call button, close the door, keep the button pressed in a few seconds. © 2020 ... Hisstema AB...
Page 127: Index
Binary 1 Additional time available Binary 2 Additional time standing Binary 3 ALARM Binary 4 Altid KvittOFF Binary 5 Always arrival signal Block between Up and Down Button Always lock on Block the lift Analog © 2020 ... Hisstema AB...
Page 128 Car Door Lock Counts of breakpoints Change Crawling distance Charge I offset Crawling speed Charge I scale current operation Choice of installation location Chosen menu language - D - Circuit Cleaning 41, 46 Cleaning Doors Data input © 2020 ... Hisstema AB...
Page 129 End time zone 4 Door C Without Lock End time zone 5 Door closed Res.kr End time zone 6 Door D Active End time zone 7 Door D close Energy saving 52, 72 Door D open © 2020 ... Hisstema AB...
Page 130 Free safety 5 text HDD Temp Offset Free safety 6 text HDD Tryck Faktor Free safety 7 text HDD Tryck Offset Frequency 12, 13 HDD Valve Frequency control. HDD Valve Active Frequency Down HDD Zero © 2020 ... Hisstema AB...
Page 131 Load open door. Installation level Loading A Inte Ret. Tabell Loading A-D interval Loading B Interval Server Loading C IO functions Loading D iValve A3 Loading in progress A iValve Safe Loading in progress B © 2020 ... Hisstema AB...
Page 132 Number of low top well monitoring Max Run Time Crawl Number reopening with photocell Max Run Time Low - O - MB30-AKPS Mechanical Down Mechanical Up Object 13, 62, 90 Medium speed 52, 78 Object name MegaDot OEM level © 2020 ... Hisstema AB...
Page 133 Radar time B Photocell D Radar time C Photocell Test 46, 52 Radar time D Photocell time A Rated load Photocell time B Rated speed Photocell time C Readj. speed Photocell time D Readjst. UP © 2020 ... Hisstema AB...
Page 134 Run from limit down Set the clock Run lift to the bottom Settings Run lift to the top SG Block disconn Run OK HT1609 SG Solenoid Run parameters SG-Block (Brake)) Run time limiter test Shaft Run time test © 2020 ... Hisstema AB...
Page 135 Start error speed Time high/low: Y/D Start error test Time interval Start error time Time lock Start program Time penalty trunk 1-15 Start time zone 1 timeout Start time zone 2 timer Start time zone 3 © 2020 ... Hisstema AB...
Page 136 Zoom in Use retiring cam Zoom out Use the open limit User - V - Vacon Stop NOT OK - W - Waiting for respons Warn open gate Warranty Warranty end Warranty time in Years © 2020 ... Hisstema AB...
