SRT D85W - INSTRUCTIONS
1. Stand Mounting
1.1. Terrace Mounting

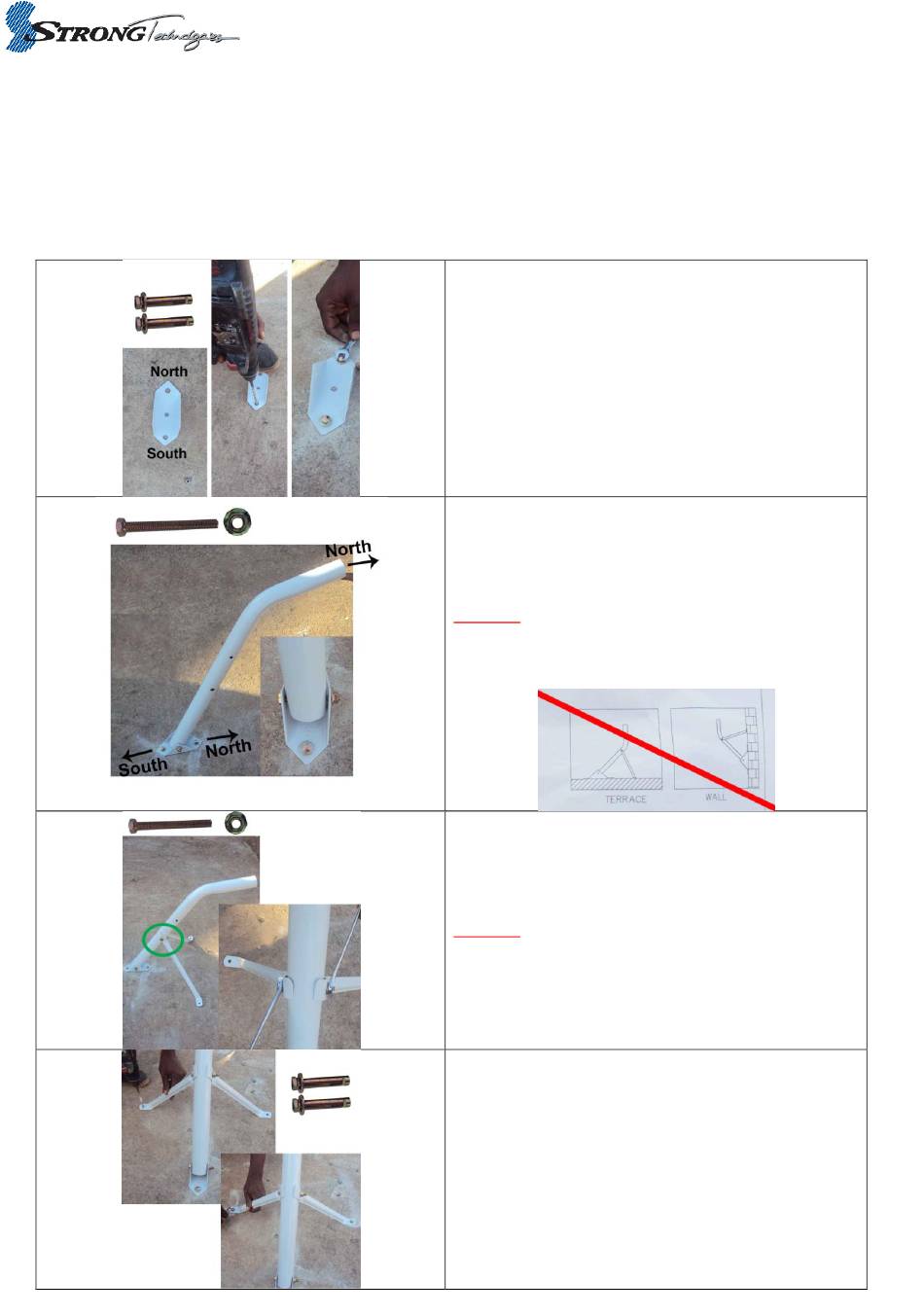

Place the Pipe Mount Fixer on the ground pointing to the
North & South,
Place two 1/4 "*1-2/2" Anchor Bolts into the Pipe
Mount Fixer and screw them.
Place and screw the 45° Pipe into the Pipe Mount Fixer
using one M8*65 hex-head cap screw and a M8 nut,
The top of the 45° Pipe has to point to the North.
Warning:
Do not follow the instruction provided on the below
guide regarding the position of the pipe:
Place and screw the two Side Supporting Rods (R) & (L)
on the 45° Pipe using a M8*65 hex-head cap screw & a
M8 nut.
Warning:
You have to use the first hole, the hole circled in green
on the picture.
Place and screw two 1/4 "*1-2/2" Anchor Bolts into the
two Side Supporting Rods (R) & (L).
