Fastcabling 5721-23 Quick Start Manual

Before You Start

Before your installation, it is recommended to check your network environment. If there is IEEE 802.3bt PoE injector or
switch which can output 95W, the 5721-23 95W PoE splitter can receive 95W high power and convert to 72W (DC12V 6A)
providing to Ethernet device conveniently and easily. If you connect 5721-23 95W PoE splitter to IEEE802.3at PoE switch,
the PoE splitter only will have 25.5W maximum output.
All the twisted-pair cable (pair 1/2 [-], 3/6 [+] and pair 4/5 [+], 7/8 [-]) are employed to transmit the power and data while
IEEE802.3bt is deployed.

LED Indicators:

LED
Power
Vout1

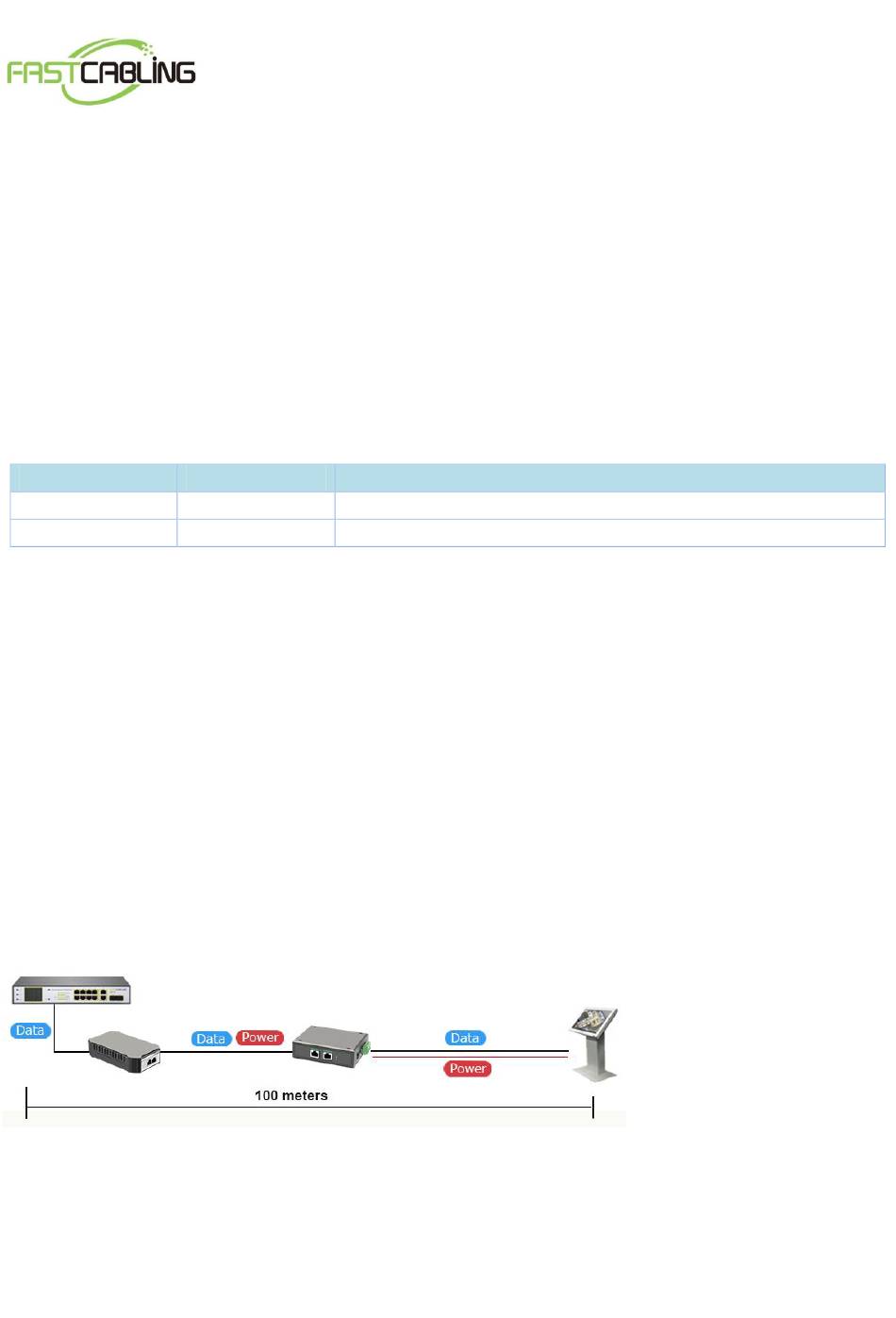

5720-74 95W PoE Injector and 5721-23 PoE Splitter

1. Connect DC plug from "DC" out of 5721-23 PoE splitter to a remote device.
2. Connect the AC power cord to the "AC slot" of the 5720-74 95W PoE Injector, the "PWR" LED will steadily on.
3. Connect a standard Ethernet cable from an Ethernet switch or PC workstation to the "Data in" port of the 5720-74 95W
PoE Injector.
4. Connect a standard Ethernet cable from "PoE out" port of the 5720-74 95W PoE Injector to the "PoE" port of the
5721-23 PoE splitter. The "Power" and "Vout1" LED of the PoE splitter and the "4-pair" LED of the PoE-95 will light up
continuously.
5. Connect a standard Ethernet cable from the "LAN" Port of the PoE splitter to the remote Ethernet Device.
6. The remote device will be turned on and connected.
NOTE: Please ensure the PoE splitter output voltage is correct before applying power to the remote device.
Color
Green Lights to indicate the 802.3 PoE splitter has power.
Green Lights to indicate the device is providing power.
Quick Start Guide
Function
