Fastcabling 5720-44 Quick Start Manual

30w outdoor poe injector
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

Before You Start

Before your installation, it is recommended to check your network environment. If there is any IEEE 802.3at device that
needs to be powered on and works normally, the 5720-44 30W PoE Injector provides you with a way out to supply power
to this Ethernet device conveniently and easily.
It is equipped with power regulator which accepts power input ranging from DC24V to DC56V input and injects DC 54V
power into the pin of the twisted-pair cable (pair 1/2 [-], 3/6 [+]).
Power Input Port
Data Input Port and 802.3at PoE+ Output Port
PoE+ Out
LED Indicators:
LED
PWR
PoE Usage
Data Input
Color
Green
Lights to indicate PoE injector has power.
Lights to indicate the device is providing PoE power inline.
Green
Blinks to indicate that the system is abnormal.
Quick Start Guide
Function

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5720-44 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fastcabling 5720-44

  • Page 1 Before your installation, it is recommended to check your network environment. If there is any IEEE 802.3at device that needs to be powered on and works normally, the 5720-44 30W PoE Injector provides you with a way out to supply power to this Ethernet device conveniently and easily.

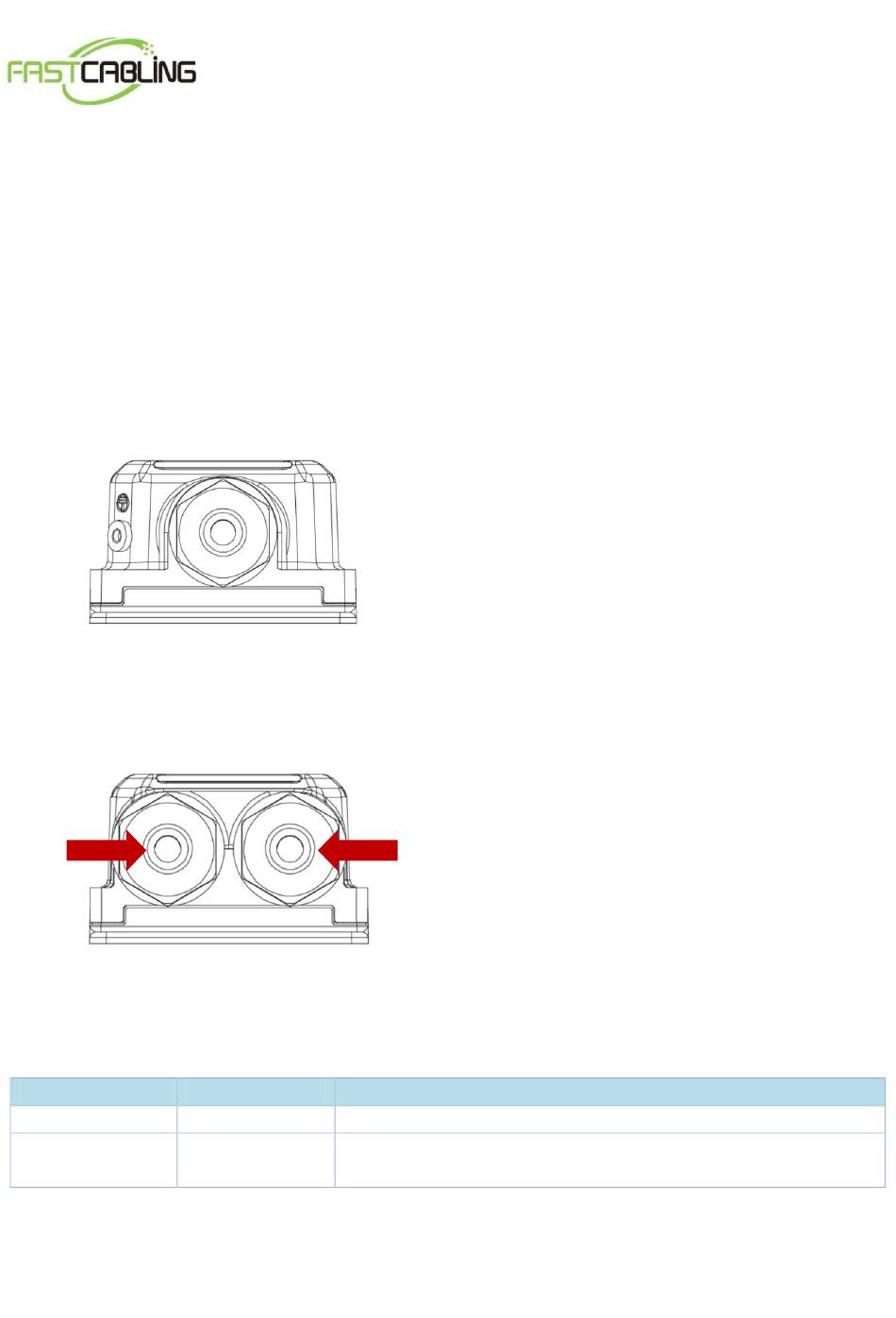

  • Page 2 Hardware Installation 1. Firstly Disassemble the cable gland as shown below: 2. Next, Turn clockwise to tighten the gland body (with washer) connected to the outdoor PoE Injector Important: Make sure the clamping nut is tightly attached to the cable gland body and the sealing insert is squeezed tightly.
  • Page 3 PTZ (Pan, Tilt & Zoom) network camera, color touch screen, Voice over IP (VoIP) telephones and multi-channel wireless LAN access points which support IEEE 802.3 at/af In-Line Power over Ethernet port. Once 5720-44 detects the existence of an IEEE 802.3at/af device, the PoE-in-Use LED indicator will be steadily on to show it providing power.
  • Page 4 Visit our help site fastcabling.com/support/ Declaration of Conformity We. Fastcabling LTD., hereby declare that the products: Fastcabling 30W Outdoor PoE Injector is in conformity with all the essential requirements of EMC Directive 2014/30/EU Assessment of compliance of the product with the requirements relating to the following specifications:...
