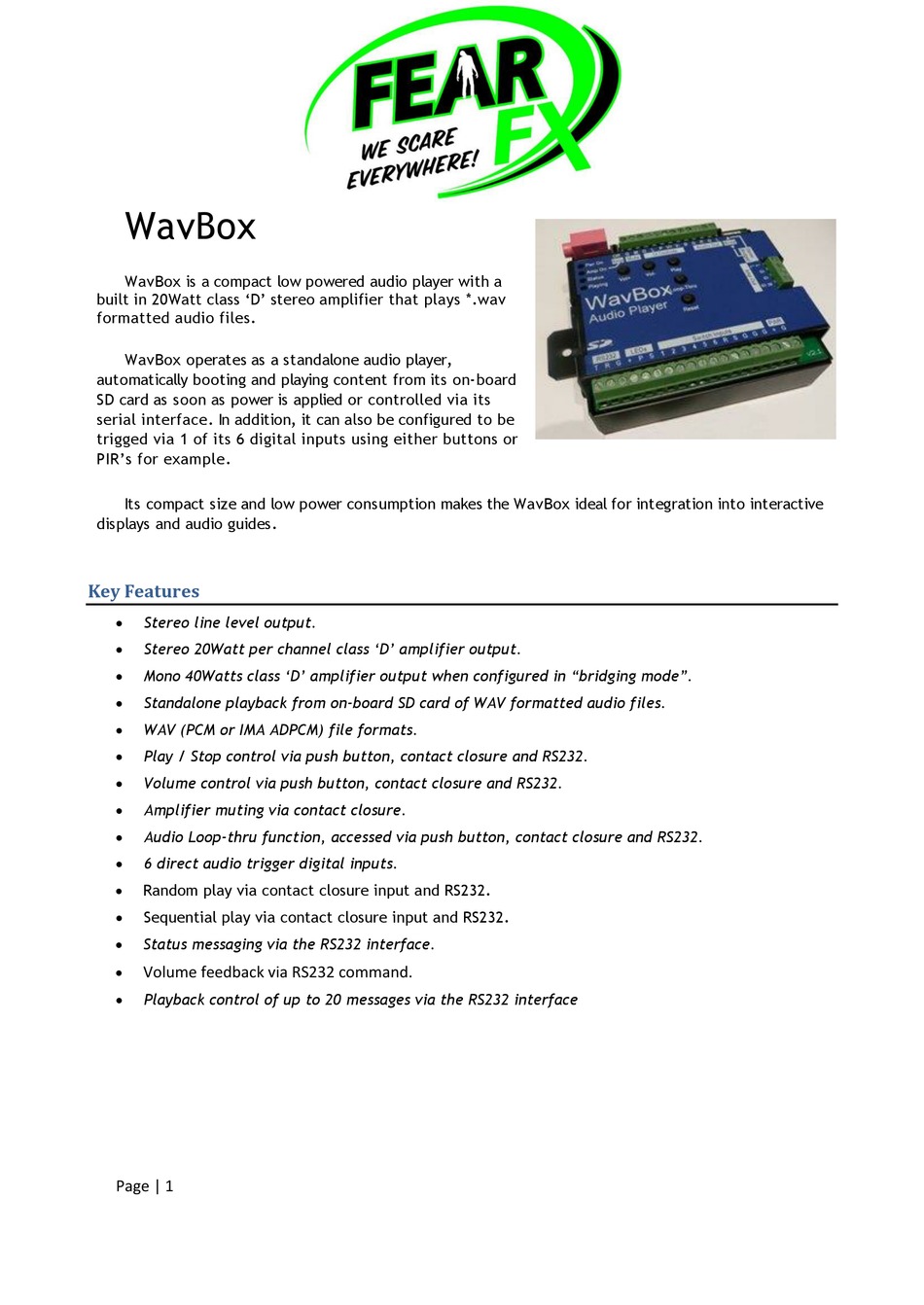

FEAR FX WavBox Manual

WavBox
WavBox is a compact low powered audio player with a
built in 20Watt class 'D' stereo amplifier that plays *.wav
formatted audio files.
WavBox operates as a standalone audio player,
automatically booting and playing content from its on-board
SD card as soon as power is applied or controlled via its
serial interface. In addition, it can also be configured to be
trigged via 1 of its 6 digital inputs using either buttons or
PIR's for example.
Its compact size and low power consumption makes the WavBox ideal for integration into interactive
displays and audio guides.

Key Features


Stereo line level output.

Stereo 20Watt per channel class 'D' amplifier output.

Mono 40Watts class 'D' amplifier output when configured in "bridging mode".

Standalone playback from on-board SD card of WAV formatted audio files.

WAV (PCM or IMA ADPCM) file formats.

Play / Stop control via push button, contact closure and RS232.

Volume control via push button, contact closure and RS232.

Amplifier muting via contact closure.

Audio Loop-thru function, accessed via push button, contact closure and RS232.

6 direct audio trigger digital inputs.

Random play via contact closure input and RS232.

Sequential play via contact closure input and RS232.

Status messaging via the RS232 interface.

Volume feedback via RS232 command.

Playback control of up to 20 messages via the RS232 interface
