Summary of Contents for Telegärtner FSP 100

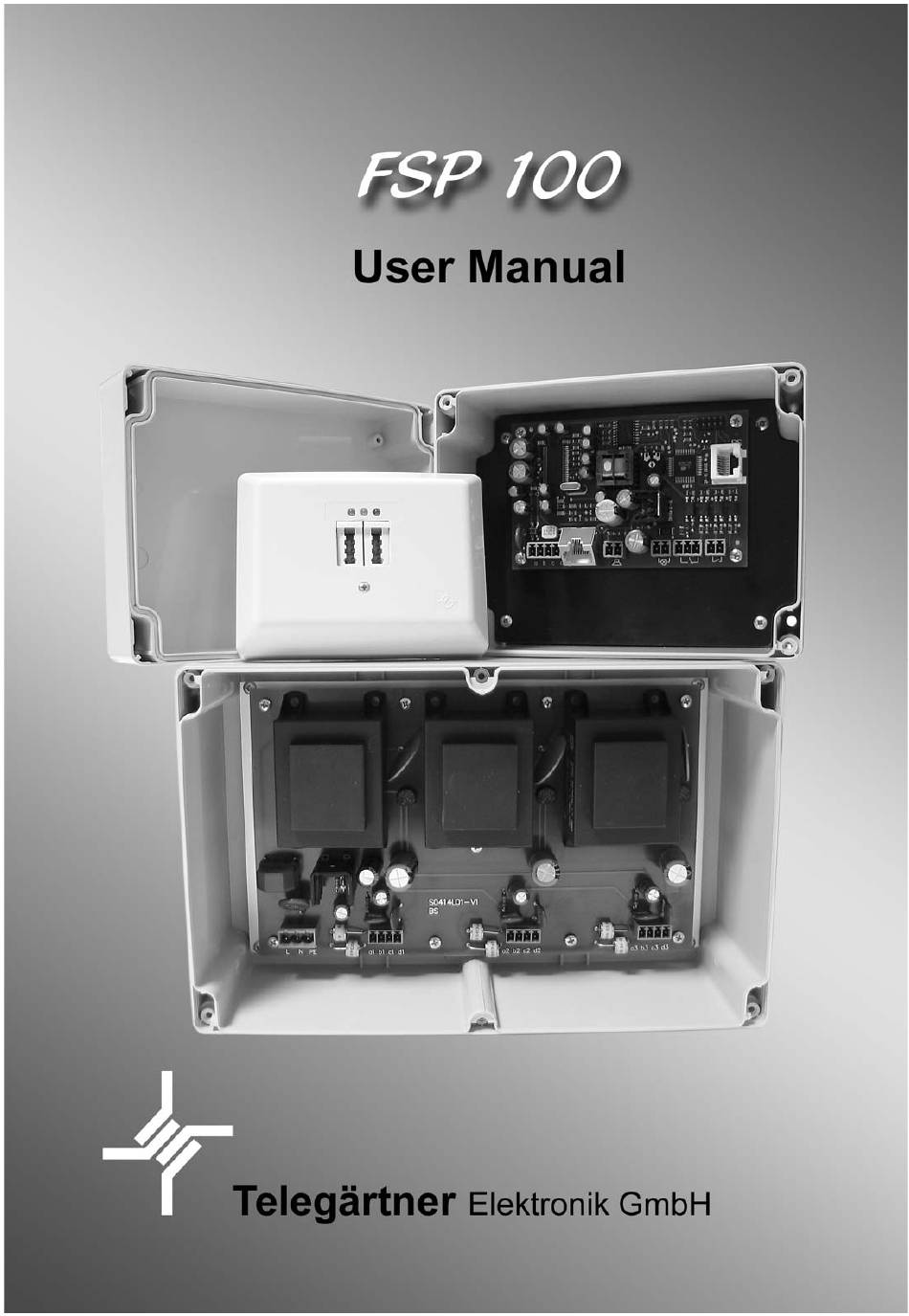

- Page 1 User’s Guide FSP 100 User’s Guide FSP 100...
- Page 2 SAVE THESE INSTRUCTIONS. This manual contains important instructions that you should follow during installation and maintenance of the lift phone and batter- ies. Please read all instructions before operating the equipment and save the manual for future reference. User’s Guide FSP 100...
-
Page 3: Table Of Contents
Inhaltsverzeichnis General Information ..................3 Technical Data FSP 100 ..................5 Main Unit ......................5 Handsfree Unit ....................5 Telephone-Adapter................... 5 Installation Instructions..................6 Main Unit ......................6 Telephone Adapter................... 7 Handsfree Unit ....................8 First Start ......................9 First Start ......................10 Configuration Hints.................. - Page 4 User’s Guide FSP 100...
-
Page 5: General Information
In addition, there is the possibility to configure other handsfree-units by a remote option, using DTMF tones for a simple data transfer. But keep in mind that this option is not recommended if you use the units in duplex mode. User’s Guide FSP 100... - Page 6 • special input provides selection of different communication modes (simplex, duplex, mixed) • lamp or LED output for operation indication • multiple configuration possibilities available by PRG100 terminal adapter • different languages selectable for configuration menu User’s Guide FSP 100...
-
Page 7: Technical Data Fsp 100
Technical Data FSP 100 Main Unit Supply Voltage 230V AC, 50 Hz, 48 VA Case: Protection IP65 Dimensions (160 x 250 x 90) mm Weight 2,20 Kg Handsfree Unit a/b Terminals: Voltage approx. 11 V Current 25 mA const. c/d Terminals: Voltage approx. -
Page 8: Installation Instructions
Otherwise there is no function! IMPORTANT Because the system is realized as one behind the other (in series) all connections has to be done very carefully. If one connection fails, the whole system will be failed! User’s Guide FSP 100... -
Page 9: Telephone Adapter
Two LEDs indicates the operation state of this adapter: yellow = Ampifier Voltage c/d exist, green = line a/b busy not in use, so connection from don’t connect! main unit Status-LEDs a b c d a’b’c’d‘ Connector for Analog Telephone User’s Guide FSP 100... -
Page 10: Handsfree Unit
1 - 2, 2 - 3 speak while in simplex-mode, because speak mode input has higher priority if both connections done open duplex-mode (handsfree-talking) basic loudness PRG100 1 2 3 a b c d main unit User’s Guide FSP 100... - Page 11 System Overview: Main Unit Main Supply 230V/50Hz Handsfree- Unit Engine- Room Handsfree- Unit Lift Handsfree- Unit Entry User’s Guide FSP 100...
-
Page 12: First Start
If an acoustic feedback happens, reduce either microphone or loud- speaker setting. For best results microphone and loudspeaker should on maximum dis- tance. NOTE Microphone settings are only valid in duplex communication mode. In simplex communication the microphone will always used with maximum sensitivity. User’s Guide FSP 100... -
Page 13: Configuration Hints
From main menu you can select either configuration or format submenu: * FSP100 V1.00 * * TELEGAERTNER * Configuration? Configure this unit? Format? Configure Cabine Unit? Configure Main Entry Unit? Remote Access: do not use before all units has an unique identification Configure Main Entry Unit? User’s Guide FSP 100... -
Page 14: Configuration: Identification
Configuration: Microphone The microphone’s sensitivity may changed in 4 steps between 25 and 100 percent. Microphone: 75.0% We recommend not to exceed a maximum value of 75% in duplex communication because every small noise may cause trouble. User’s Guide FSP 100... -
Page 15: Configuration: Line Adjustment
While adjustment is in progress you hear a tone signal fed into the line. The adjustment duration is about 20 seconds. The values are stored automatically. Configuration: Language (Sprache) The menu language is selectable by this menu. At this time German (Deutsch) and English are available. Language: English User’s Guide FSP 100... -
Page 16: Configuration: Hands-Free (Freisprechen)
If you changed too many parameters and nothing works, you may restore all settings to the delivery state. Format All? In order to prevent an unintentional formatting, a safety inquiry is inserted. Format All? Are you sure? User’s Guide FSP 100... -
Page 17: Usage Restrictions
Constant interferences (e.g. positive pressure ventilation) can be partly com- pensated. However, if normal people-to-people communication is locally hardly possible by loud noise, our system cannot do this as well. Remedy: Acoustic insulation or use of simplex or mixed communication mode. User’s Guide FSP 100... -
Page 18: Communication Modes
But this may cause also trouble, e.g. if engine noise, alarm signals or other sources are too loud. In this case you either reduce microphone‘s sensitivity or use simplex or mixed communication. User’s Guide FSP 100... - Page 19 By wiring X4 as shown below you may use a combination of both modes if necessary, e.g. use duplex mode, but force system to speak in simplex mode if communication is not possible because of noisy environment. Handsfree-Unit Push talk User’s Guide FSP 100...
-
Page 20: Legal Information
Such work should only be carried out by an experienced specialist. • Our product comply with all relevant technical directives and telecommunica- tion regulations valid in Germany and the EU. Electromagnetic Combatibility Low Voltage Directive User’s Guide FSP 100... - Page 21 User’s Guide FSP 100...
- Page 22 Date: Telegärtner Elektronik GmbH 06. April 2005 74564 Crailsheim Internet: e-mail: www.telegaertner-elektronik.de info@telegaertner-elektronik.de User’s Guide FSP 100...
