Summary of Contents for Pluto CIRCLE 0

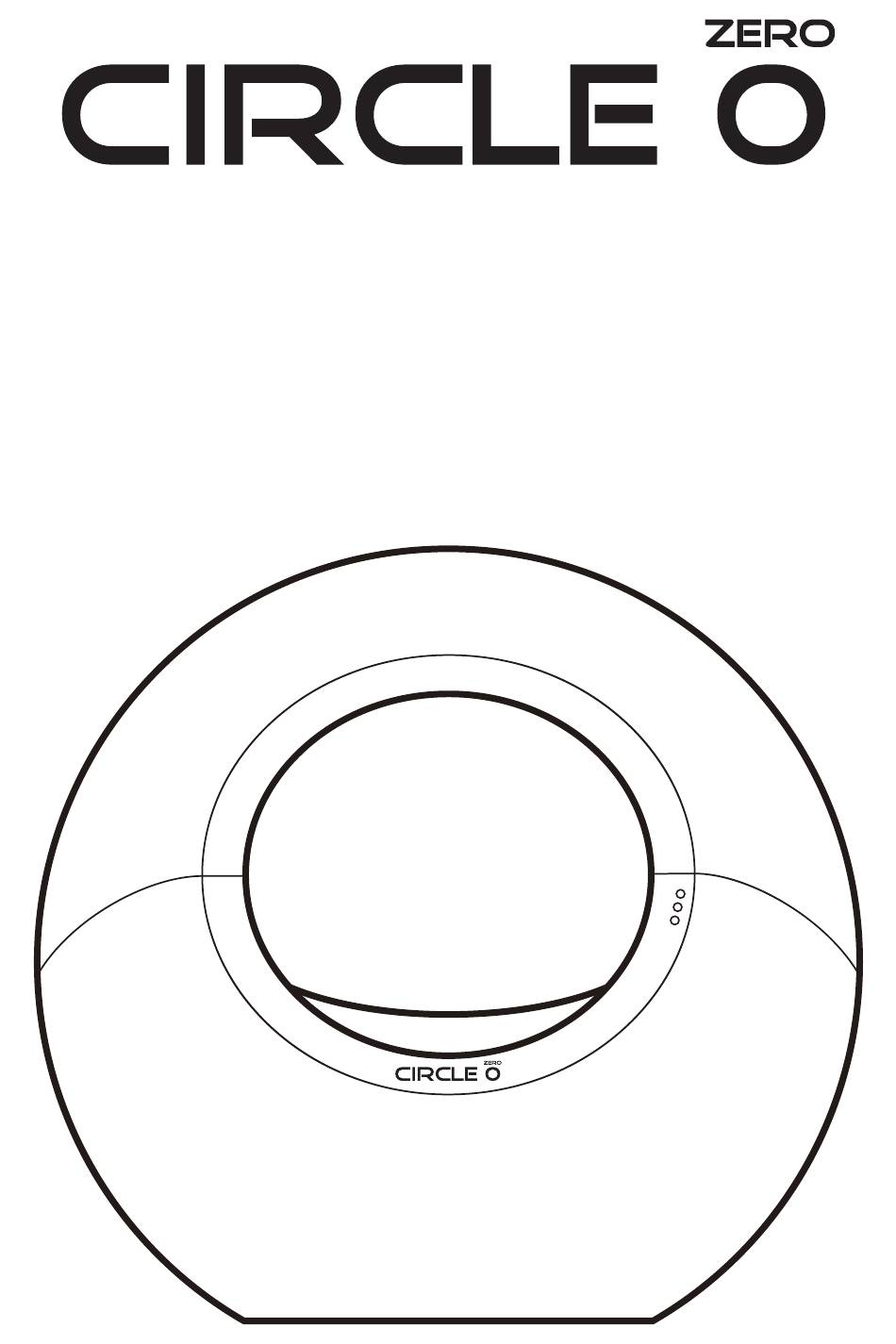

- Page 1 AUTOMATIC CAT LITTER BOX Instruction Manual...
- Page 2 12p : Questions and Part name of product Words of thanks Thank you for your purchase of Pluto Electronics Circle O (Zero). Before use, be sure to read the contents of this document to check everything to prevent accidents. Warning The unit has parts that use electronic components such as motors and substrates.
- Page 3 For Packaging and Repair Exchange Please check the part and contact us if there are any defective or insufficient parts. Packaging We will provide the parts. ※ Each part is assembled and packaged. Main body Main body Main body Main body Outer shell Cover : 1 Outer shell Base : 1 Litter box : 1...
- Page 4 Litter Types Recommended for Usage The Circle O (Zero) requires CLUMPING TYPE LITTER to work properly. Two types of scoops are available: Bentonite and Tofu cat litter. Important: Usable litter type differs by the scoop types. We recommend using litter types listed in the table below. DO NOT use non-clumping or other types of litters not on the list as they might not get filtered well.
- Page 5 Setting Up Your Circle O(Zero) Check 1 Please check that the shipment is fully assembled and may not be assembled during shipment. Motor cover(Top) Please open the cover of the product to make Check that there are no gaps in the litter box and product entrance before using it. sure that the motor cover (top) is fully insta- If there is a gap, refit the litter box and make sure that the motor cover(top) is installed lled.
- Page 6 Basic Methods of Use Description of basic usage. The rotating scoop is moving with very strong force. Never touch an active scoop or put your hand in the litter box. Motion Sensors This product does not have a power button. At power-on, one LED lamp on the front of When the cat voids excrement, Circle O (Zero) Simply plug-in and power on.
-
Page 7: Principle Of Operation
Principles of Sensor and Operation Principle of Operation Slide door Scoop After 7 minutes of sensor recognition, Clumped up litters filtered by the scoop Scoop turns clockwise again to leave no the scoop turns clockwise. are thrown into the waste bin. small clumps in the litter box. - Page 8 Waste bin and Sensor Cat excrements are collected into the gutter(Waste bin) located in rear main body. When waste bin is full, waste sensor activates putting cleaning process on hold (when sensor button is turned on). Clean the litter box frequently to prevent failures and to use it hygienicly. The litter box can be washed.
- Page 9 Cleaning and Method Clean regularly to prevent hygiene problems and product failures. In particular, keeping the waste bin, motor covers and their motor surroundings clean will prevent from product failure. Be sure to remove the power cord before cleaning. Parts other than the motor cover(bottom) and the outer shell base(bottom) can be cleaned. Never clean the motor cover (bottom) as it is equipped with a number of parts that use electricity, such as motors.
-
Page 10: Assembly Method
Assembly method Be sure to remove the power cord after you have checked the product has completely stopped working. Be careful when stopping components in the wrong position, as it may not function correctly or cause failure. Assembly ※ A look from above Position sensor Motor shaft connection The word "UP"... -
Page 11: Frequently Asked Questions
Assembly method Set inside properly leaving no gap A gaping condition Waste bin Assemble the motor cover (top) Bumper on the motor cover(bottom) is hidden so that the motor cover in the motor cover (top). (bottom) protrusion is visible. Install the motor cover(top). Make sure that the motor cover is properly fitted Press the waste bin correctly. -
Page 12: Check Point
This is not a malfunction These are some of the most frequently asked questions. Please read them if you are experiencing troubles. Check point The scoop is still and stops moving. Is it broken? If the sensor responds during operation, it stops working, but starts moving again after 7 minutes. In addition to the cat's bowel activity, the sensor often detects the head and tail, which can delay cleaning. -
Page 13: Names Of Each Part
Major material : [Exterior] ABS resin the bottom of the National Radio Research Agency [Litter box]Nylon website for more information. [SPO] Composite poly propylene Country of origin : Republic of Korea Registration date: 20190124 Manufacturer: Pluto Electronics Co., Ltd. Model name: PCZD160BMW...
