Summary of Contents for Vaisala TacMet MAWS201M

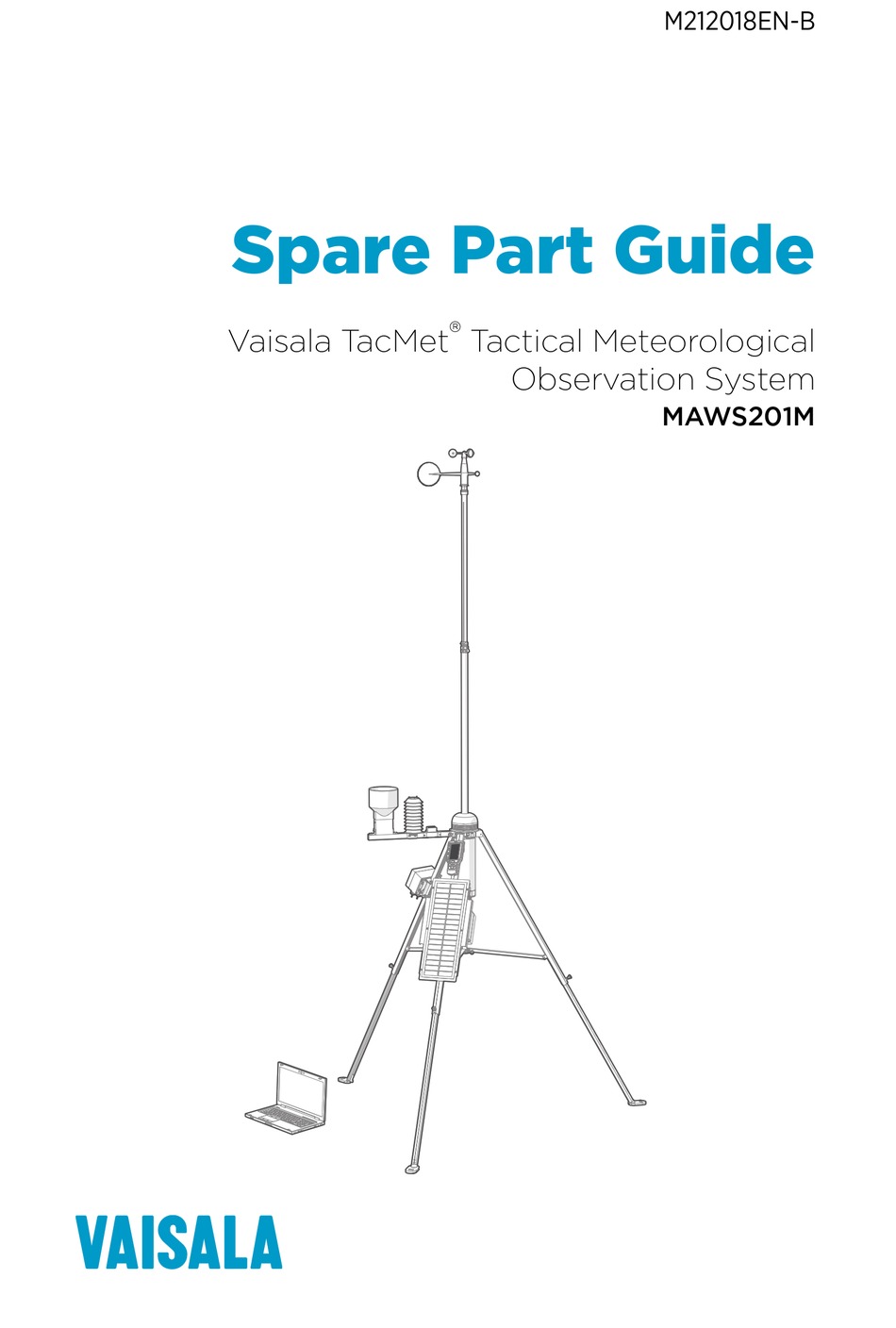

- Page 1 M212018EN-B Spare Part Guide â Vaisala TacMet Tactical Meteorological Observation System MAWS201M...
- Page 2 This product contains software developed by party without prior written permission of the Vaisala or third parties. Use of the software is copyright holder. Translated documents and governed by license terms and conditions...
-
Page 3: Table Of Contents
Table of contents Table of contents About this document..................5 Version information.....................5 Related manuals....................5 Documentation conventions................6 Trademarks......................6 Overview....................... 7 Scope........................7 MAWS201M layout and cable codes..............8 MAWS201M Basic System...................9 MAWS201M Enhancement 2................11 MAWS201M radio modem options..............13 Combined Wind Sensor WMS302M............15 WMS302M spare parts.................. - Page 4 MAWS201M Spare Part Guide M212018EN-B Radio modem set SAT400PC..............42 17.1 SAT400PC spare parts..................42 Spare part sets....................44 18.1 Spare part set 260073 for transit cases............44 18.2 Spare part set 260075 for transit cases............45 18.3 Spare part set 260076 for transit cases............46 18.4 Spare part set ASM212813 for tripod leg hinge..........
- Page 5 List of figures List of figures Figure MAWS201M layout and cable codes.............. 8 Figure 2 MAWS201M with Basic System equipment, main components..... 9 Figure 3 MAWS201M with Enhancement 2, main components......11 Figure 4 MAWS201M radio modem options..............13 Figure 5 WMS302M main parts..................
- Page 6 MAWS201M Spare Part Guide M212018EN-B List of tables Table Document version (English)................5 Table 2 Related manuals....................5 Table 3 MAWS201M maintenance levels................ 7 Table 4 Main components of MAWS201M Basic System...........9 Table 5 Main components of MAWS201M Enhancement 2........11 Table 6 MAWS201M radio modem options..............14 Table 7...
-
Page 7: About This Document
Chapter 1 – About this document 1. About this document 1.1 Version information This document provides information on the spare parts available for Vaisala TacMetâ Tactical Meteorological Observation System MAWS201M. Table 1 Document version (English) Document code Date Description M212018EN-B July 2020 Several NSN codes have been added. -
Page 8: Documentation Conventions
Lists tools needed to perform the task. Indicates that you need to take some notes during the task. 1.4 Trademarks Vaisalaâ, AviMetâ, BAROCAPâ, HUMICAPâ, and TacMetâ are registered trademarks of Vaisala Oyj. All other product or company names that may be mentioned in this publication are trade... -
Page 9: Overview
MAWS201M. The information on the available spare parts is listed separately for each of the main components. The spare parts lists contain the following information: • Vaisala product code: refer to this code when ordering parts from Vaisala • Common name of the spare part • NSN: NATO Stock Number •... -
Page 10: Maws201M Layout And Cable Codes
MAWS201M Spare Part Guide M212018EN-B 2.2 MAWS201M layout and cable codes The following figure shows the layout and cabling of MAWS201M equipped (in addition to basic system equipment) with the present weather detector PWD22M, ceilometer CL31M, and TACLAP‑PCR. WMS302M TACLAP-PCR AviMet AWW105 software QM30154-MEKA ZZ45113 QMD102M... -
Page 11: Maws201M Basic System
Chapter 2 – Overview 2.3 MAWS201M Basic System Figure 2 MAWS201M with Basic System equipment, main components Table 4 Main components of MAWS201M Basic System Number Code Component name and link NSN code in figure – – MAWS201M Basic System 6660‑22‑309‑2921 WMS302M Combined Wind Sensor, see WMS302M spare parts 6660-99-378-7075 (page... - Page 12 MAWS201M Spare Part Guide M212018EN-B Number Code Component name and link NSN code in figure QM30154- Telescopic mast assembly, see QM30154-MEKASP spare 5985-58-000-6687 MEKASP parts (page 17). QMA102M Sensor arm assembly, see QMA102M spare parts 6660-99-147-5309 (page 19). QMR101M Rain Gauge, see QMA102M spare parts (page 19).
-
Page 13: Maws201M Enhancement 2
Chapter 2 – Overview 2.4 MAWS201M Enhancement 2 Figure 3 MAWS201M with Enhancement 2, main components Table 5 Main components of MAWS201M Enhancement 2 Number Code Component name and link NSN code in figure – ENCH1 MAWS201M Enhancement 2 6625‑58‑001‑3723 PWD22M Present Weather Detector, see 6660‑17‑118‑6142 1 PWD22M spare parts (page 33). - Page 14 MAWS201M Spare Part Guide M212018EN-B Number Code Component name and link NSN code in figure CL31M-C Portable Ceilometer, see CL31M spare 6660‑22‑309‑2925 parts (page 37). QTR104 / QTR104SP Transit case for portable ceilometer 6660‑01‑504‑5577 QTR105 / QTR105SP Transit case for PWD22M and QMP202 6660‑01‑504‑5578...
-
Page 15: Maws201M Radio Modem Options
Chapter 2 – Overview 2.5 MAWS201M radio modem options Figure 4 MAWS201M radio modem options... -
Page 16: Table 6 Maws201M Radio Modem Options
MAWS201M Spare Part Guide M212018EN-B Table 6 MAWS201M radio modem options Numbe Code Component name and link r in figure SAT400AWS Radio modem set, see SAT400AWS spare parts (page 40). SAT400ASET UHF antenna assembly 23503 SATELLINE-EASy UHF radio modem SAT400PC Radio modem set, see SAT400PC spare parts (page 42). -
Page 17: Combined Wind Sensor Wms302M
Chapter 3 – Combined Wind Sensor WMS302M 3. Combined Wind Sensor WMS302M 3.1 WMS302M spare parts Figure 5 WMS302M main parts... -
Page 18: Table 7 Available Wms302M Spare Parts
MAWS201M Spare Part Guide M212018EN-B Table 7 Available WMS302M spare parts Number in Order code Common name NSN code Maint. Pcs in figure level system – WMS302M Combined Wind Sensor, 6660-99-378-7075 MAWS201M WA45233SP Cup wheel assembly – WA45232SP Anemometer bearings 3110-15-157-5101 assembly WA35370 Vane assembly... -
Page 19: Telescopic Mast Assembly Qm30154-Mekasp
Chapter 4 – Telescopic mast assembly QM30154-MEKASP 4. Telescopic mast assembly QM30154-MEKASP 4.1 QM30154-MEKASP spare parts Figure 6 QM30154-MEKASP main parts... -
Page 20: Table 8 Available Qm30154-Mekasp Spare Parts
MAWS201M Spare Part Guide M212018EN-B Table 8 Available QM30154-MEKASP spare parts Number in Order code Common name NSN code Maint. Pcs in figure level system – QM30154- Telescopic mast assembly 5985-58-000-6687 MEKASP QM40155 Protecting cover – ZZ45113 Wind cable 6150-01-564-3398... -
Page 21: Sensor Arm Assembly Qma102M And Humicap Humidity And Temperature Probe Hmp155
Chapter 5 – Sensor arm assembly QMA102M and HUMICAP Humidity and Temperature Probe HMP155 5. Sensor arm assembly QMA102M and HUMICAP Humidity and Temperature Probe HMP155 5.1 QMA102M spare parts Figure 7 QMA102M sensor arm assembly... -
Page 22: Table 9 Available Qma102M Spare Parts
MAWS201M Spare Part Guide M212018EN-B Table 9 Available QMA102M spare parts Number in Order code Common name NSN code Maint. Pcs in figure level system QMA102M Sensor arm assembly 6660-99-147-5309 QMR101M Rain gauge 6660-01-507-5716 DTR502 Radiation shield (contains – HUMICAP Humidity and Temperature Probe HMP155;... -
Page 23: Hmp155 Spare Parts
Chapter 5 – Sensor arm assembly QMA102M and HUMICAP Humidity and Temperature Probe HMP155 5.2 HMP155 spare parts Figure 8 HMP155 probe with DTR502 Table 10 Available HMP155 spare parts Number in Order code Common name NSN code Maint. Pcs in figure level system HMP155D2AB11 HUMICAP Humidity and... -
Page 24: Power Distribution Unit Qpd101
MAWS201M Spare Part Guide M212018EN-B 6. Power Distribution Unit QPD101 6.1 QPD101 spare parts Figure 9 QPD101 main parts and cable options Table 11 Available QPD101 spare parts Number in Order code Common name NSN code Maint. Pcs in figure level system – QPD101SP Power Distribution Unit 6150-01-504-7741 QPD101... - Page 25 Chapter 6 – Power Distribution Unit QPD101 Number in Order code Common name NSN code Maint. Pcs in figure level system CBL210103-5M AC (mains) cable with US plug, 6150-58-000-7251 Amphenol, 5 m (16 ft 5 in) CBL210584 AC (mains) cable with AUS –...
-
Page 26: Tripod Assembly Qmassy201M
MAWS201M Spare Part Guide M212018EN-B 7. Tripod assembly QMASSY201M 7.1 QMASSY201M spare parts 1 3 3 Figure 10 QMASSY201M main parts... -
Page 27: Table 12 Available Qmassy201M Spare Parts
Chapter 7 – Tripod assembly QMASSY201M Table 12 Available QMASSY201M spare parts Number in Order code Common name NSN code Maint. Pcs in figure level system – QMASSY201M Tripod assembly with – QME101M, QTR102, and QMP201. Includes: • QM30206SP • QME101M-MEKA •... -
Page 28: Qmassy201M Fasteners
MAWS201M Spare Part Guide M212018EN-B Number in Order code Common name NSN code Maint. Pcs in figure level system – ASM212813 Fixing screw set. Includes: – – • Special screws • Flat washers 7.2 QMASSY201M fasteners Figure 11 Fasteners used in attaching tripod leg to logger enclosure Fixing screw set, see Spare part set ASM212813 for tripod leg hinge (page 47) Hex screw M5×16 DIN912 A4 (3 pcs) and flat washer A5,3 DIN125 A4 (3 pcs) -
Page 29: Figure 12 Fasteners Used In Attaching Tripod Leg To Tripod Foot
Chapter 7 – Tripod assembly QMASSY201M Figure 12 Fasteners used in attaching tripod leg to tripod foot Crosshead screw M4×10 DIN965 PZ A4 (6 pcs) Finger screw and U‑spring for tripod leg type 2 (part of 238485SP, see Spare part set 238485SP for tripod (page 47)) -
Page 30: Figure 13 Fasteners Used In Attaching Tripod Center To Leg
MAWS201M Spare Part Guide M212018EN-B Figure 13 Fasteners used in attaching tripod center to leg Hex screw M4×16 DIN912 A4 (3 pcs) Hex screw M4×16 DIN912 A4 (3 pcs) Hex screw M4×16 DIN912 A4 (3 pcs) -
Page 31: Handheld Terminal Qmd102M
Chapter 8 – Handheld Terminal QMD102M 8. Handheld Terminal QMD102M 8.1 QMD102M spare parts QMD102M has no field-serviceable parts. In case of device failure, replace the entire unit. Figure 14 Handheld Terminal QMD102M Table 13 Available QMD102M spare parts Order code Common name NSN code Maint. -
Page 32: Tacmet Laptop Taclap-Pcr
MAWS201M Spare Part Guide M212018EN-B 9. TacMet laptop TACLAP-PCR 9.1 TACLAP‑PCR spare parts The MAWS201M weather station can be connected to a dedicated laptop (TACLAP‑PCR) that runs the Vaisala AviMet software. Figure 15 TacMet laptop TACLAP-PCR Table 14 Available TACLAP‑PCR spare parts Order code Common name NSN code Maint. -
Page 33: Suunto Global Compass Mc-2/360G
Chapter 10 – Suunto Global Compass MC-2/360G 10. Suunto Global Compass MC-2/360G 10.1 MC‑2/360G spare parts The MC‑2/360G compass is used to orient the MAWS201M station. Figure 16 Global Compass MC‑2/360G S U U N T O SUUNTO 0.5km 150000 0.75 0.25km 125000 MADE IN FINLAND SUUNTO MC-2G Table 15 Available MC‑2/360G spare parts... -
Page 34: Ground And Foot Peg Set Qmy103Msp
MAWS201M Spare Part Guide M212018EN-B 11. Ground and foot peg set QMY103MSP 11.1 QMY103MSP spare parts The QMY103MSP ground and foot peg set contains a hammer and 3 rods for anchoring MAWS201M to the ground. Figure 17 QMY103MSP main parts Table 16 Available QMY103MSP spare parts Number in Order code Common name... -
Page 35: Present Weather Detector Pwd22M
Chapter 12 – Present Weather Detector PWD22M 12. Present Weather Detector PWD22M 12.1 PWD22M spare parts Figure 18 PWD22M main parts Table 17 Available PWD22M spare parts Number in Order code Common name NSN code Maint. level Pcs in figure system PWD22M Present Weather 6660‑17‑118‑6142 Detector Not shown... -
Page 36: Lightning Detector Sa20M-Mt
MAWS201M Spare Part Guide M212018EN-B 13. Lightning Detector SA20M‑MT 13.1 SA20M-MT spare parts Figure 19 Lightning Detector SA20M‑MT Table 18 Available SA20M-MT spare parts Number in Order code Common name NSN code Maint. Pcs in figure level system – SA20M‑MT Lightning Detector (portable) 6660‑01‑553‑0602 QM40287 Grounding net. - Page 37 Chapter 13 – Lightning Detector SA20M‑MT Number in Order code Common name NSN code Maint. Pcs in figure level system – QM40142 Peg for MAWS201M 4030‑99‑833‑0421 SA20M Lightning Sensor 6660‑01‑505‑1043 ZZ45215 Connection cable for SA20M 6150‑01‑504‑7739 to QMP202 SAT111 SA20M tripod 5985‑01‑504‑6673...
-
Page 38: Power Supply Module Qmp202Sp
MAWS201M Spare Part Guide M212018EN-B 14. Power Supply Module QMP202SP 14.1 QMP202SP spare parts Figure 20 QMP202SP main parts Table 19 Available QMP202SP spare parts Number in Order code Common name NSN code Maint. Pcs in figure level system QMP202SP Power Supply Module 6130-22-309-2926 QMP202BAT Lead battery, 12 V 26 Ah 6140-99-232-3553... -
Page 39: Ceilometer Cl31M
Side cover (removed in the figure on the right side) Top cover (removed in the figure on the right side) For more information and instructions on opening the CL31M enclosure and replacing external parts, see Vaisala Ceilometer CL31M User's Guide. -
Page 40: Figure 22 Cl31M Replaceable Parts Inside The Enclosure
MAWS201M Spare Part Guide M212018EN-B Figure 22 CL31M replaceable parts inside the enclosure Table 20 Available CL31M spare parts Number in Order code Common name NSN code Maint. Pcs in figure level system – CL31M‑C Portable ceilometer 6660-22-309-2925 N1A1A1B... - Page 41 Camouflage canvas – – 231899SP Ground rod set, including bag – and 4 rods (QM40142) – QM40142 Rod for MAWS201M 4030-99-833-0421 – M211355EN Vaisala Ceilometer CL31M – User's Guide – QTR104 Transit case for portable 6660-01-504-5577 ceilometer and lightning detector...
-
Page 42: Radio Modem Set Sat400Aws
MAWS201M Spare Part Guide M212018EN-B 16. Radio modem set SAT400AWS 16.1 SAT400AWS spare parts Figure 23 SAT400AWS main parts Table 21 Available SAT400AWS spare parts Number in Order code Common name NSN code Maint. Pcs in figure level system – SAT400AWS Radio modem set 5895-66-164-3926... - Page 43 Chapter 16 – Radio modem set SAT400AWS Number in Order code Common name NSN code Maint. Pcs in figure level system SAT400ASET Antenna set. Includes: – • Antenna (403 ... 430 MHz) • Antenna (430 ... 450 MHz) • Antenna (450 ... 470 MHz) •...
-
Page 44: Radio Modem Set Sat400Pc
MAWS201M Spare Part Guide M212018EN-B 17. Radio modem set SAT400PC 17.1 SAT400PC spare parts Figure 24 SAT400PC main parts... -
Page 45: Table 22 Available Sat400Pc Spare Parts
Chapter 17 – Radio modem set SAT400PC Table 22 Available SAT400PC spare parts Number in Order code Common name NSN code Maint. Pcs in figure level system – SAT400PC Radio modem set 5895-66-164-3927 SAT400ASET Antenna set. Includes: – • Antenna (403 ... 430 MHz) •... -
Page 46: Spare Part Sets
MAWS201M Spare Part Guide M212018EN-B 18. Spare part sets 18.1 Spare part set 260073 for transit cases Figure 25 260073 parts Table 23 Spare part set 260073 for transit cases Number in Order Common name NSN code Maint. Pcs in figure code level system –... -
Page 47: Spare Part Set 260075 For Transit Cases
Chapter 18 – Spare part sets 18.2 Spare part set 260075 for transit cases Figure 26 260075 parts Table 24 Spare part set 260075 for transit cases Number in Order Common name NSN code Maint. Pcs in figure code level system – 260075 Wheel accessories set without wheels –... -
Page 48: Spare Part Set 260076 For Transit Cases
MAWS201M Spare Part Guide M212018EN-B 18.3 Spare part set 260076 for transit cases Figure 27 260076 parts Table 25 Spare part set 260076 for transit cases Number in Order Common name NSN code Maint. Pcs in figure code level system – 260076 Lock accessories set –... -
Page 49: Spare Part Set Asm212813 For Tripod Leg Hinge
Chapter 18 – Spare part sets 18.4 Spare part set ASM212813 for tripod leg hinge Figure 28 ASM212813 parts Table 26 Fixing screw set ASM212813 for tripog leg hinge Number in figure Common name Pcs in system Special screw M5×52 DIN912 A4 Flat washer A5.3, DIN125 A4 18.5 Spare part set 238485SP for tripod Figure 29 238485SP parts Table 27 Spare part set 238485SP for tripod... -
Page 50: Figure 30 Fastener Options For Tripod Leg Types 1 And 2 (Included In 238485Sp)
MAWS201M Spare Part Guide M212018EN-B Number in figure Common name Pcs in system Protective cover for telescopic mast assembly O‑ring ∅ 109.5 mm (1 pcs). For new logger enclosure models. Washer ∅ 8 mm for tripod legs (type 1) Thumb screw M5×15 for tripod legs U‑spring for tripod legs (type 2) U‑spring for tripod legs (type 1) Leg type 1... -
Page 51: O-Ring Set 240575Sp For Alden Cable Connectors
Chapter 18 – Spare part sets 18.6 O‑ring set 240575SP for Alden cable connectors Figure 31 240575SP parts Table 28 O‑ring set 240575SP for Alden cable connectors Number in figure Common name Pcs in system O‑ring set for Alden cable connectors, 9.0 × 1.0 mm 18.7 Spare part set QMY105M Table 29 Spare part set QMY105M Order code... - Page 52 MAWS201M Spare Part Guide M212018EN-B Order code Common name NSN code 19558SP Cable tie, hook-loop, 300 mm, 10 pcs – 26222 International adapter kit (AC‑plugs WA‑7, WA‑9, WA‑10, – WA‑10L, WA‑16) 4017 Rechargeable battery, 12 V 7 Ah 6140-01-515-4694...
-
Page 53: Maintenance Parts List
Chapter 19 – Maintenance parts list 19. Maintenance parts list Table 30 Available spare parts for maintenance tasks Order code Common name NSN code CL31MTERMHOODSP Optical termination hood for CL31M – QMZ101SP Maintenance cable for MAWS201M – CL31USBCABLESP USB cable for CL31M –... -
Page 55: Warranty
Conditions of Sale for details of the warranty for each product. Technical support Contact Vaisala technical support at helpdesk@vaisala.com. Provide at least the following supporting information as applicable: • Product name, model, and serial number •... - Page 58 www.vaisala.com...
