Lucci Fresco Southampton Installation Instructions

Installation Instructions

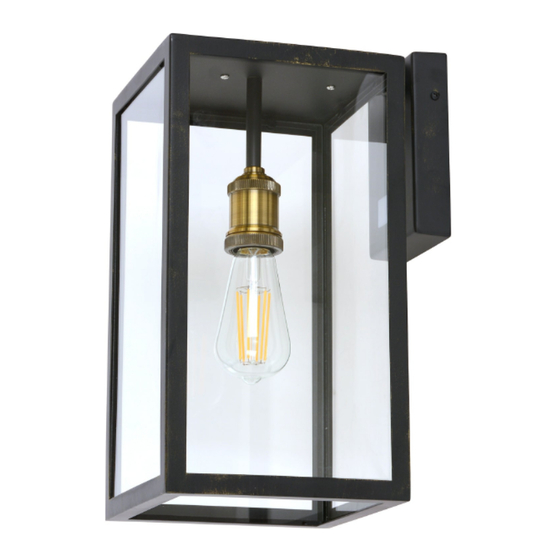

SOUTHAMPTON EXTERIOR WALL BRACKET WITH MICROWAVE SENSOR
Thank you for purchasing this quality Lucci product. To ensure correct function and safety, please read and follow all
instructions carefully before assembly, installation and use of this product. Please keep instructions for future reference.

Warranty

• This luminaire is covered by a 12 month warranty. The warranty is from date of purchase, not the date of installation.
• If the luminaire is not installed by a licensed electrician the warranty will be void.
• Please retain proof of purchase and evidence of installation by a licensed electrician for any warranty claims.
• Warranty will be void if there is any damage due to improper usage or modification to the luminaire.
• Failure to comply with the instructions in this manual may increase the risk of damage or injury and will void the warranty .

Installation Requirements

• Must be installed by a licensed electrician.
• All wiring and installation of the luminaire must adhere to latest local and national wiring rules.
eg. AS/NZS 3000 Electrical installations.
• This luminaire is a Class I product and must be earthed.
• This luminaire is rated IP23, this must be maintained during wiring and installation.
• Do not exceed the maximum wattage rating.
• Select a suitable location for installation:
−
The mounting point must be able to support 2 times the weight of the luminaire.
−
This luminaire is protected against water penetration to IP23 standards, which is splashing water at the angle
up to 60° on either side of the vertical.
• Take care not to pull any electrical wires during unpacking as this may damage the connection.
• Lay out all the components on a smooth surface and make sure there are no components missing before
assembling. If parts are missing, return the complete product to the place of purchase for inspection or replacement.
• Check whether the luminaire has been damaged during transport. Do not operate/install any product which
appears damaged in any way. Return the complete product to the place of purchase for inspection, repair or
replacement.
• Ensure power to the circuit you are working on has been switched OFF before commencing any electrical work.

Installation Directions

1. Remove all packaging material from the product and be careful not to throw away accessories that may be hidden
within the packaging material.
2. Use the mounting bracket (B) as a template to mark the screw positions on the wall. Drill holes into the wall.
NOTE: In order to achieve the best performance of the microwave sensor, the ideal mounting height of the
luminaire is between 2M - 3.5M above the detection area.
3. Install the mounting bracket (B) on the wall by using appropriately sized mounting screws (C) and anchors (A).
Ensure the screws and anchors used are suitable for the mounting surface and surrounding environment.
4. Remove the terminal box cover (D) to access the terminal block and connect the mains supply wires.
Mains Supply Wire
Earth – Yellow/Green
Neutral – Blue or Black
Live – Brown or Red
Ensure the wires are secure and no bare wires are exposed. Install the cover (D) back onto the terminal box.
Place the terminal box in the cavity (F) at the rear of the frame assembly.
NOTE: A non-corrosive bead of silicone MUST be applied before installation onto the wall ensuring that
no water can run down into the cabling.
1 | P a g e
SKU# 239380, 239381, 239382, 239383
Rated Voltage 220-240V~ 50Hz
Luminaire Wires
Yellow/Green or
Blue or N
Brown or L
v 1 . 0 ( 0 5 / 2 0 1 9 )
