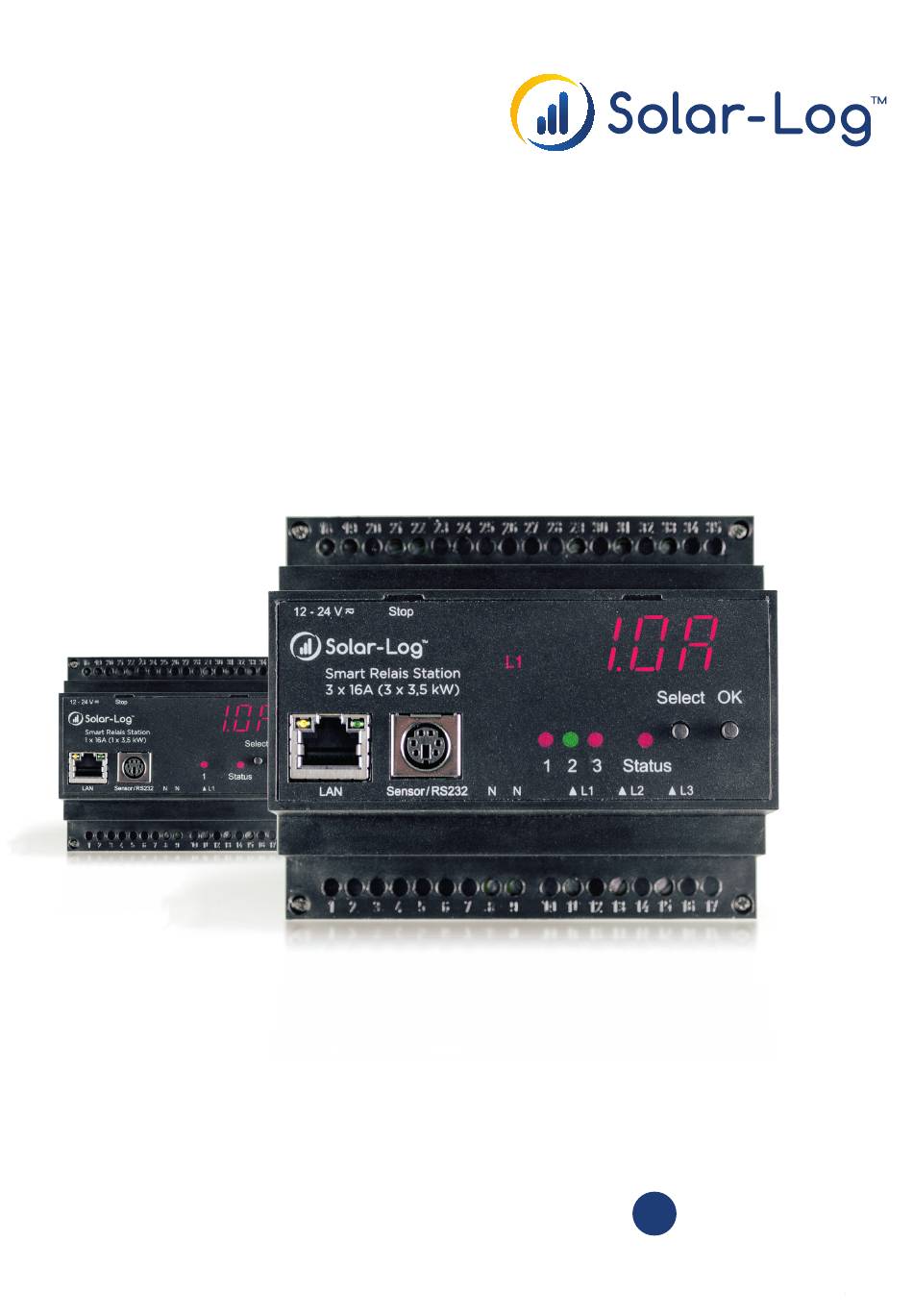

- Page 1 Instructions Solar-Log™ Smart Relais Station...
- Page 2 Publisher Solare Datensysteme GmbH Fuhrmannstr. 9 72351 Geislingen-Binsdorf Germany International support Tel.: +49 (0)7428/4089-300 e-mail: info@solar-log.com Italy Technical support: +39 0471 631032 e-mail: italy-support@solar-log.com France Technical support: +33 97 7909708 e-mail: france-support@solar-log.com Switzerland Technical support: +41 565 355346 e-mail: switzerland-fl-support@solar-log.com...
-
Page 3: Table Of Contents
Start-up the device ............................. 7 Block Diagram .............................. 7 Status LED ................................ 8 Configuration ������������������������������������������������������������������������������������������������������ 9 Network design .............................. 9 Configuration - IP Address of Solar-Log™ Smart Relay Station .............. 10 TCP/IP configuration by DHCP ........................ 15 Operating ����������������������������������������������������������������������������������������������������������16 Operating the device directly ......................... 16 Firmware-Update ���������������������������������������������������������������������������������������������17 Bootloader Mode ............................. 17... -
Page 4: Device Description
1 Device Description 1�1 Description The Solar-Log™ Smart Relais Station 3 x 16A / 1 x 16A is a multipurpose device that is suitable for switching and monitoring of voltages. It has the following features: • Suitable for top hat rail mounting. -
Page 5: Security Advice
1�3 Content of Delivery The package includes: • Solar-Log™ Smart Relais Station 3 x 16A / 1 x 16A • Din rail power supply Input 110-240 V 0,88 A Output 12V 1,25 A •... -
Page 6: Installation
Description Power supply (12V-24V AC oder DC). Stop input for shutdown of all relays. Solar-Log™ Smart Relais Station 1 x 16A: 1 relay output. Solar-Log™ Smart Relais Station 3 x 16A: 3 relay outputs. L1 - L3 indicator LED display. -
Page 7: Start-Up The Device
1 x 16A (1 x 3,5 kW) Sensor / RS232 3 4 5 6 7 12 13 14 15 16 17 Neutral line has to be connected for metering electro- nics. Solar-Log™ Smart Relais Station 1 x 16A Block diagram for the... -
Page 8: Status Led
16 17 Neutral line has to be connected for metering electro- nics. Block diagram for the Solar-Log™ Smart Relais Station 3 x 16A 2�3 Status LED The Status LED shows different states of the device: • Red: Device is not connected to the Ethernet. -
Page 9: Configuration
Configuration 3 Configuration 3�1 Network design The Solar-Log™ Smart Relay Station must be in the same local area network as the Solar-Log™. View of network topology... -
Page 10: Configuration - Ip Address Of Solar-Log™ Smart Relay Station
Configuration 3�2 Configuration - IP Address of Solar-Log™ Smart Relay Station The Solar-Log™ Smart Relay Station is equipped with a standard Ethernet RJ45 network socket that can be connec- ted with any commercially available network cable. Procedure • The commissioning steps must be completed. • Download and install the Gude System Tool (GBL_Conf.exe). - Page 11 Die Netzwerkeisntellungen der Solar-Log™ Smart Relais Station wurden angepasst. • Exit the Boot Loader mode. Hold both buttons of the Solar-Log™ Smart Relay Station down for 3 seconds. „bld“ disappears from the display. In the GBL_Conf system tool select the item All Devices in the Search menu. The set IP address and netmask (sub- net mask) are displayed under Network Configuration.
- Page 12 The browser is opened by means of a double click on the blue colored line and the Start-screen of the So- lar-Log™ Smart Relay Station is displayed. Start-screen of the Solar-Log™ Smart Relay Station • The IP configuration of the Solar-Log™ Smart Relay Station has been successfully concluded. • Go to the web menu of the Solar-Log™. •...
- Page 13 Select the Relay Station with the plus symbol. The following settings are required here (see the figure further below): Device class: • Switch Manufacturer: • Solar-Log Type: • Smart Relay Station 3x 3.5kW (or 1x 3.5kW) Interface: • Ethernet Number of devices: •...
- Page 14 Configuration • The last step is configuring the Smart Energy Logics. Refer to the Solar-Log ™ Smart Energy Manual for more information. It is available from our website (https://www.solar-log.com/manuals/manuals/en_GB/SolarLog_ Manual_Smart_Energy_EN.pdf).
-
Page 15: Tcp/Ip Configuration By Dhcp
Configuration 3�3 TCP/IP configuration by DHCP After switching on the device is scanning on the Ethernet for a DHCP server and requests an unused IP address. Check the IP address that has been assigned and adjust if necessary, that the same IP address is used at each restart. -
Page 16: Operating
Operating 4 Operating 4�1 Operating the device directly The current status of the output is indicated by the color of the LED. Red indicates that the output is off, green shows that the output is on. On the device are the buttons „select“ and „ok“. If you press „select“, the LED will blink for the first output, ie the output is selected. -
Page 17: Firmware-Update
Firmware-Update 5 Firmware-Update To perform a firmware update, the program GBL_Conf.exe and the latest firmware is needed. • Enable the bootloader mode (see Chapter Bootloader Mode). • Start GBL_Conf.exe. • Select the device for which a firmware update is to be performed. •... -
Page 18: Abandonment Of The Bootloader Mode
Firmware-Update Whether the device is in bootloader mode, is indicated by the flashing of the status LED, or it is shown in GBL_ Conf.exe, after a renewed device search, with the appendix „BOOT-LDR“ after the device name. In bootloader mode the program GBL_Conf.exe can disable the password and the IP ACL, perform a firmware update, and resto- re the factory settings. -
Page 19: Technical Specifications
Interfaces 1 x Ethernet port (RJ45) Solar-Log™ Smart Relais Station 1 x 16A: 2 x screw terminal with 1 x relay make contact (230V AC 16A) Solar-Log™ Smart Relais Station 3 x 16A: 6 x screw terminal with 3 x relay... -
Page 20: Optional Sensor
Technical Specifications 6�1 Optional Sensor An external sensor can be connected to the Solar-Log™ Smart Relais Station 1 x 16A / 3 x 16A . The following sensors are currently available. Temperature-Sensor 7001 Cable length ~ 2m Connector Mini-DIN Measurement range -20°C to +80°C at ±2°C (maximum) and ±1°C (typical) - Page 21 Germany using electronic systems without the written consent of Tel.: +49 (0)7428/4089-300 Solare Datensysteme GmbH. info@solar-log.com Subject to change without notice! www.solar-log.com Solare Datensysteme GmbH cannot guarantee the ac- www.solarlog-web.com curacy or completeness of the information provided and expressly refuses to accept liability for any errors or omis- sions in such information.
