Operator's Manual

Model No. PE401

FOR YOUR SAFETY

Keep this manual for future reference.

WET/DRY VAC

PUMP ACCESSORY

www.vacmaster.com

Cleva North America

601 Regent Park Court

Greenville, SC 29607

Table of Contents

Need help?

Do you have a question about the PE401 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vacmaster PE401

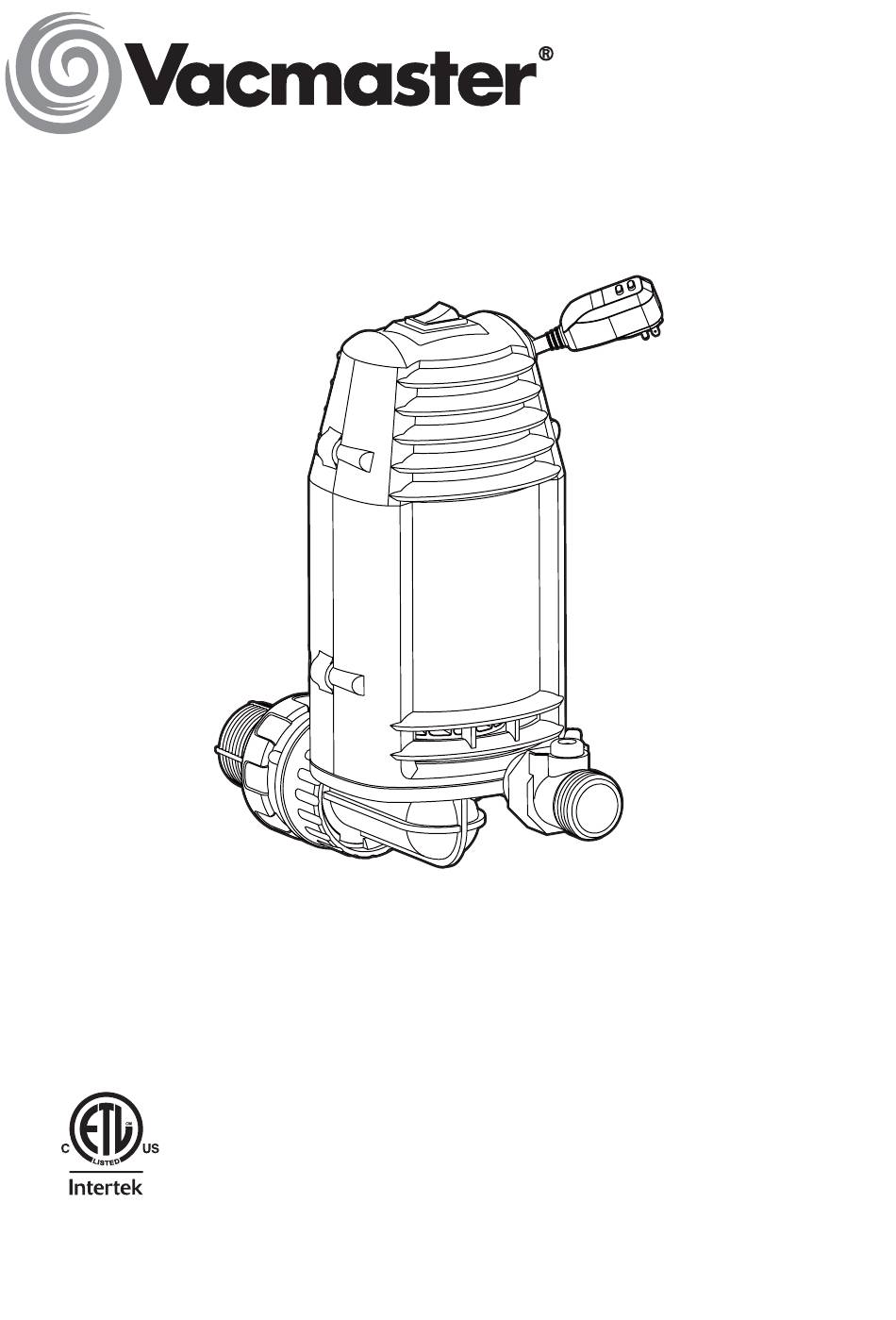

Page 1 WET/DRY VAC PUMP ACCESSORY Operator’s Manual Model No. PE401 FOR YOUR SAFETY Read and understand this manual before use. Keep this manual for future reference. 3084514 www.vacmaster.com Conforms to UL Cleva North America Standard 1017 601 Regent Park Court Certified to CSA STD Greenville, SC 29607 C22.2 No.243-10...
Page 2: Table Of Contents
FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS. WARRANTY We take pride in producing a high quality, durable product. This Vacmaster® product carries a limited one (1) year warranty against defects in workmanship and materials from date of purchase under normal household use. If product is to be used for commercial, industrial, or rental use, a 90 day limited warranty will apply.
Page 3: Important Safety Instructions
SAFETY INSTRUCTIONS & WARNINGS IMPORTANT SAFETY INSTRUCTIONS Safety is a combination of using combustible liquids, gases, or common sense, staying alert, and explosive dusts, such as gasoline or knowing how your Pump Accessory other fuels, lighter ﬂ uid, cleaners, works. oil-based paints, natural gas, hydrogen, coal dust, magnesium dust, SAFETY SIGNAL WORDS...
Page 4 SAFETY INSTRUCTIONS & WARNINGS • This pump is supplied with a • Do not leave Pump Accessory when grounding conductor and plugged in. Unplug from outlet when grounding-type attachment plug. not in use and before servicing. To reduce the risk of electric shock, Turn off Pump Accessory before unplugging.
Page 5: Grounding Instructions
INTRODUCTION Grounding Instructions This appliance must be grounded. If This pump is for use on a nominal 120- it should malfunction or breakdown, volt circuit, and has a grounded plug as grounding provides a path of least illustrated in the sketch. A temporary resistance for electric current to reduce adapter with a grounding lug may be the risk of electric shock.
Page 6: Unpacking And Checking
(866) 384-8432 features and read the entire owner’s for replacement. manual for speciﬁ c usage of your new (www.vacmaster.com) Pump Accessory. IMPORTANT NOTE Please Read This Manual Carefully Carton Contents List Description ......Qty.
Page 7: Pump Accessory Assembly
ASSEMBLY Pump Accessory Assembly Pump Your Pump Accessory will work on most Accessory Wet/Dry Vacuums that have a drain at the bottom of the drum. When attaching the pump to the drain of your vacuum, Strainer you will use most of the parts included Large Inlet in this kit.
Page 8: Operation
OPERATION WARNING: To reduce the risk of fire or explosion, do not operate this vac in areas with flammable gases, vapors, or explosive dust in the air. Flammable gases or vapors include but are not limited to; lighter fluid, solvent type cleaners, oil-base paints, gasoline, alcohol, or aerosol sprays.
Page 9: Using Your Pump Accessory
Using Your Pump Accessory contents. Open the shut-off valve located between the outlet of the Turn on the unit by pushing the switch Pump Accessory and the garden from position “O” to position “l”. The hose. symbols used on the switch actuator are international “On &...
Page 10: Maintenance
Independent Service Centers, always using To keep your pump looking its best, clean Vacmaster replacement parts. the outside with a cloth dampened with warm water and mild soap. Remove any excess water or debris with a dry cloth.
Page 11: Troubleshooting
TROUBLESHOOTING Problem Remedy 1) Check strainer for clog. No Flow/Restricted Flow 2) Make sure water is in vac tank. 3) Check shut-off valve. 4) Check for kink in hose. 5) Make sure hose outlet does not exceed 50 feet. 1) Check GFCI-see page 8. Unit Does Not Turn On 2) Make sure Pump Accessory is plugged in.
Page 12: Repair Parts
REPAIR PARTS PE401 Wet/Dry Vac Pump Accessory Always order by part number, not by key number. Always mention the model number when ordering parts. The model number is found on the serial plate located on the pump. To order parts, call 1-866-384-8432.
