AIS9000 Manual Thank you for choosing our Saiyang electronics AIS9000 Class B Automatic Identification System (AIS). Please read the manual carefully before installation and using our products to ensure correctly use and make the best use of its advantageous functions. Please keep the manual properly in order to refer when troubleshooting and maintenance. -
Page 5: Product Description

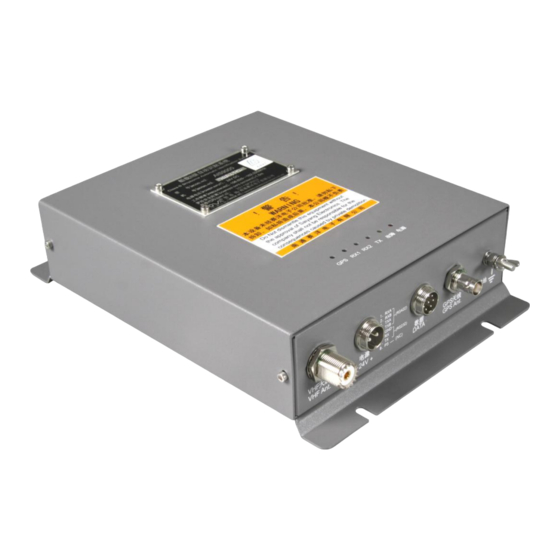

1. Product Description AIS9000 is made up of a TDMA transmitter, two TDMA/DSC receivers, a AIS processor, a CPU, a internal GPS receiver, power module and interface circuits, etc. AIS9000 can work independently on two channels, set zero by receiving message 22 and work by transferring to other water channels. -
Page 6: Internal Gps Receiver
AIS9000 Manual The device has an internal GPS receiver, providing location, time, Course over Ground (COG) and Speed over Ground (SOG) data. Positioning accuracy is about 10m. When the device receives the message 17 from AIS base station, position data will convert to high precision Differential Global Positioning System (DGPS) position. -
Page 7: Indicator Light Instruction
AIS9000 Manual Notes: 1. Base station can remotely change the dynamic data emission intervals ( 5 seconds to 10 minutes) by message 23 or set silence period according to different areas or vessel type. 2. Factory set the default vessel type to be yacht. -
Page 8: External Data Interface
AIS9000 Manual The device data interface is RS422, RS232 interface complied with IEC61162-1 Standard. 2. Technical Data Frequency Range: 156.025-162.025MHz Default Channel: CH2087,CH2088 Bandwidth: 25KHz Output Power: Communication Mode: CSTDMA Receive Sensitivity: Better than -107dBm ... -
Page 9: Installation
AIS9000 Manual +70℃） Waterproof:IP44（GPS Antenna:IP56） Physical Dimension: 260mm x190mm x55mm Weight: 3. Installation When choosing the GPS antenna installation location, please pay attention to the following points: Selected location should keep away from radar radiating wave, which will destroy or affect the GPS satellite signal reception. -
Page 10: Vhf Antenna Installation
AIS9000 Manual 3.2.1 Installation location Please consider the AIS VHF antenna installation location carefully. Compared to analog communication, digital communication is more sensitive to reflection interference from the obstructions of iron tower, mast, etc. -
Page 11: Notes To Reduce The Interference
AIS9000 Manual 3.2.2 Notes to reduce the interference AIS VHF antenna should be installed in the vertical location that is away from conductive objects horizontally as far as possible. The level distance between VHF antenna and conductive objects should be above 0.5 meter. VHF antenna should not keep close to big vertical objects and be 360°... -
Page 12: Connection
AIS9000 Manual Please pay attention to the following notes when installation. The installation location should be of good ventilation; Enough space to connect power; Reduce vibration as far as possible; Be far away from the devices(such as motor, dynamo, etc) that can generate electromagnetic;... -
Page 13: Initial Setting
AIS9000 Manual Connector Output Signal Description RX-（RS422） RX+（RS422） TX-（RS422） TX+（RS422） GND（RS232） RX（RS232） TX（RS232） One to four pin of 8 pin aviation socket are RS422, five to seven pin are RS232.The output signal format is standard NMEA0183 signal. The cable length should not exceed 20m. -
Page 14: Maintenance
AIS9000 Manual 4. Maintenance Inspection Item Inspection Points Check the connectors on the back of the main unit to see Connector whether it is firmly plugged. Unused connectors should be covered by protective caps. Check the cable to see whether it is damaged. Replace the Cable damaged one. -
Page 15: Troubleshooting
AIS9000 Manual The following provides the common problems and solutions. If it can’t recover normal work, please do not check the device’s inner parts by yourself. Any repair, please ask the professionals for help. Troubleshooting Solutions Phenomenon 1. Check the power connector to see whether it is firmly connected. - Page 16 AIS9000 Manual Figure 1:...
- Page 17 AIS9000 Manual AIS9000 Installation Dimension Figure Figure 2: System Connection Diagram...
- Page 18 AIS9000 Manual Figure 3: GPS Antenna Installation Diagram...
