Summary of Contents for Dematech Dema-Craft 60l.

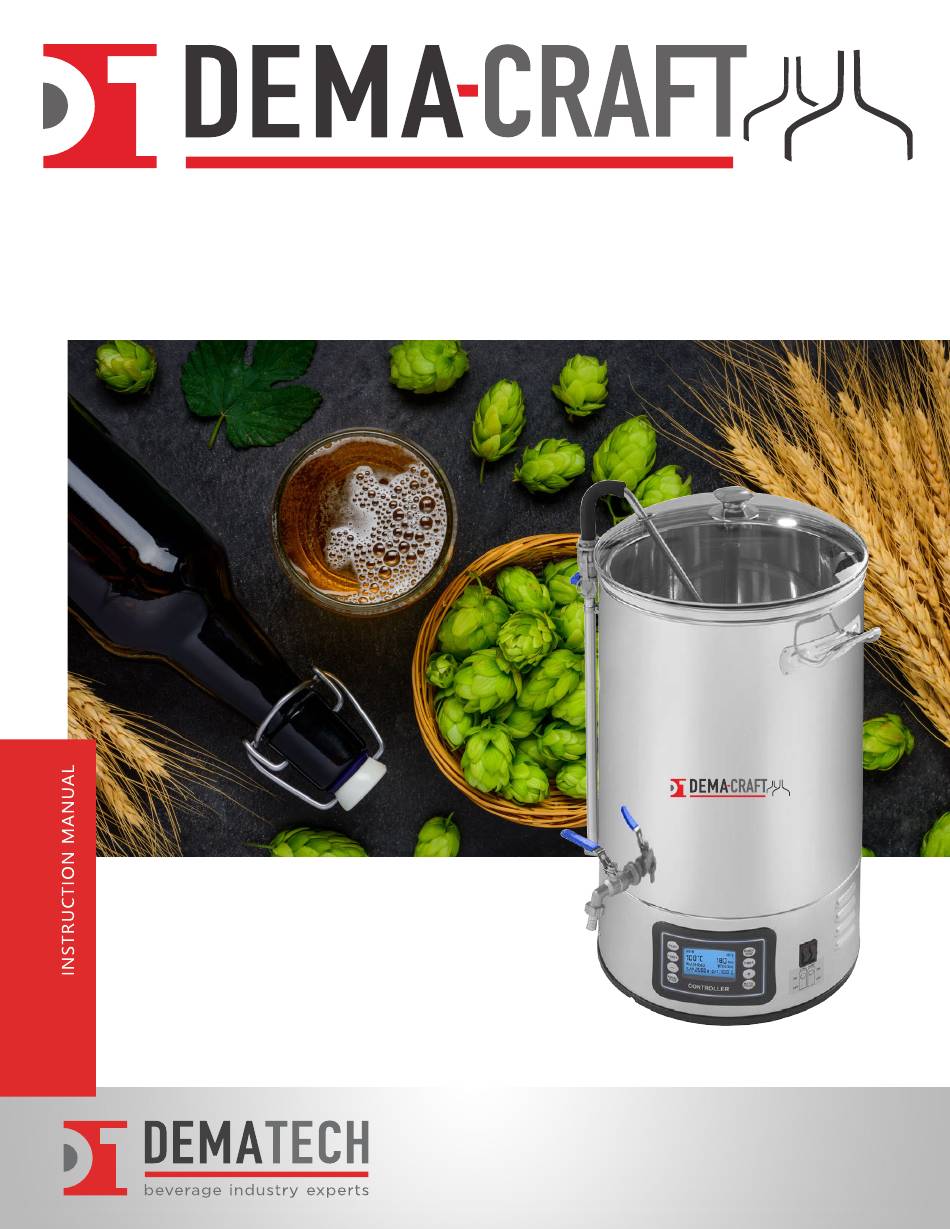

- Page 1 DEMA-CRAFT 60l BREWING SYSTEM Dematech (Pty) Ltd 13 Michigan Street, Airport Industria, Cape Town 7490, South Africa +27 21 385 0483 | +27 86 719 2632 | info@dematechsa.com www.dematechsa.com...
-
Page 2: Safety Instructions
& Welcome. Thank you for purchasing Dematech's Dema-Craft 60l. Please follow the instructions and safety precautions carefully in this manual to get the best use from our brewing system. We highly suggest that you use this process for your first few batches before adjusting your brewing style. -
Page 3: What's In The Box
What’s in the box? Circulation Tube Cam-lock connector Circulation Valve Faucet Switches (PCB & Pump) Built-in pump Digital Controller PARTS Top sparge plate for grain basket Glass lid cover with hole for circulation Bottom sparge plate for grain basket Filter tube White screw cap cover Telescopic overflow tube for half batches Grain basket... - Page 4 Operating Instructions Switch Operation: The switch “PCB” is the ON/OFF switch for the power to the digital controller that controls the heating elements. The switch “PUMP” is the ON/OFF switch for the pump. The red light is visible when switched on. SWITCH ON SWITCH OFF Tap Operation:...
-
Page 5: Valve Operation
Grain basket overflow assembly: Secure the overflow pipe into the bottom sparge plate by inserting the larger, threaded end of the overflow pipe through the hole in the bottom plate and securing the nut from the bottom. Make sure that the nut is only finger tight. -
Page 6: How To Use The Controller
Bazooka mesh filter assembly on tap Bottom little tube assembly Note: Please insert this tube into the pump before using the machine to prevent the malt from clogging the pump inlet. How to use the controller? Control Panel and Key Functions Temp button Press to set target temperature for each step Power button... -
Page 7: Manual Mode Settings
Manual mode settings Switch on the PCB switch, then press the Press the TEMP button. The temperature set-point (S/T: XX.X°C) MANUAL/PAUSE button to enter manual mode. at the bottom right of the screen will flash and you can use the – and + buttons to set your temperature. - Page 9 The default boiling temperature is 100 °C. The timer will not be triggered if temperature does not indicate 100°C . If the machine starts to boil, but shows a lower temp on the display (i.e. if you are brewing at a higher altitude than sea level), make the following adjustment to set the temp at 100 °C and trigger the timer.
- Page 10 After you have set the parameters for S1, press Repeat this process for S1 through S9. AUTO/PAUSE button again. S2 (Stage 2) will be displayed in the top left corner of the screen. Set the When you have programmed all of the mashing steps for your TEMP, POWER and TIMER parameters as above.
- Page 11 Saving brewing recipes After setting your brewing recipe in auto mode, press STOP button until you are back at the main page (only the temperature is dis- played). Press MANUAL/PAUSE button to enter the manual mode edit page To save the settings that you have just set in auto mode, long press the MANUAL/PAUSE button for 5 seconds then release it. The ma- chine will chime to confirm that the settings have been saved.
-
Page 12: Let 'S Get Brewing
LET ’S GET BREWING! Make sure that the brewing vessel is positioned on a stable and secure surface before brewing as a full vessel contains boiling hot liquids and can weigh up to 70kg eel free to contact one of our experienced brewmasters for advice &... - Page 13 Follow this maintenance guide: • Place 10-20L of water into the machine and heat to 60C. Dissolve a brewing cleaner such as DemaClean into the warm water and recirculate it through the pump for 15 minutes while you clean the inside of your Demacraft with a soft cloth. •...
-
Page 14: Troubleshooting Tips
Troubleshooting tips Flush the pump by connecting a hose to the outlet of the pump. Ingredients stuck in the pump If that fails, dismantle the pump to remove the ingredients Put the lid on to see if it comes to a boil. If that fails, do a tem- Failing to reach 100 perature correction as described below Press “-”... - Page 15 What temperature should you boil at? Check your location elevation here: www.whatismyelevation.com Next, check the below list to see which temperature you should boil at.: Altitude in meters Altitude in feet Temperature in deg C Temperature in deg. Fahrenheit 0 m. 0 ft.
- Page 16 DEMATECH IS A TURN-KEY SOLUTION PROVIDER TO THE CRAFT BEER AND SOFT DRINK INDUSTRY OFFERING EVERYTHING FROM BREWING EQUIPMENT TO BOTTLING LINES AND PROCUREMENT SERVICES CRAFT BREWING HOME & PUB BREWING SOFT DRINK PLANT BEVERAGE RAW MATERIALS & TECHNICAL SERVICES DEVELOPMENT &...
