Summary of Contents for Herolab UVT Series

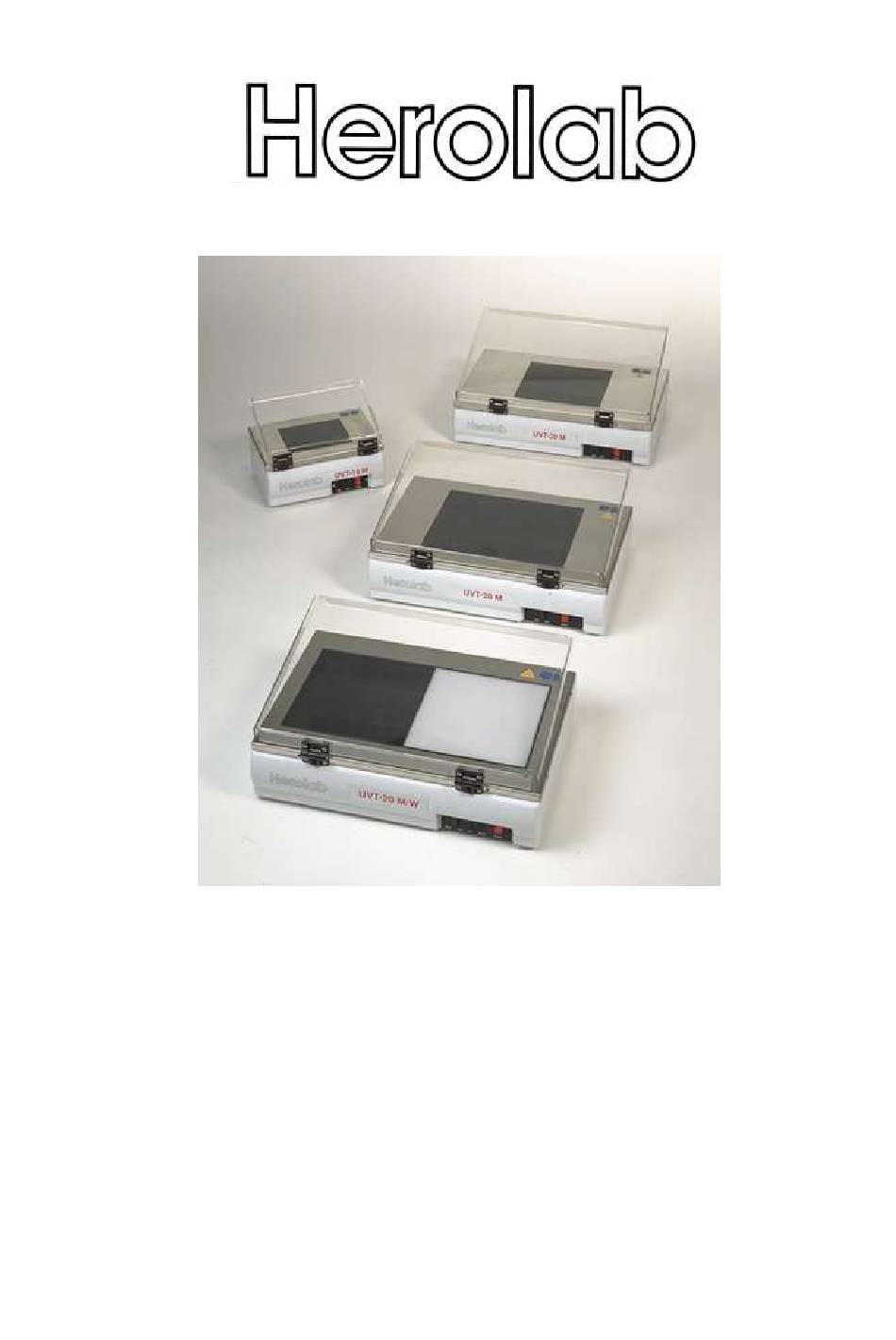

- Page 1 Instruction Manual UV Transilluminators White Light LED Transilluminators Blue Light LED Transilluminators UVT Series...
- Page 2 Copyright This manual is copyright © Herolab 2015. All rights reserved. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express permission of Herolab.
-
Page 3: Table Of Contents
Safety Advice UV radiation is harmful to eyes and skin! All Herolab UVT transilluminators exception of the economy models are equipped with an UV impermeable cover. All the same, safety glasses or goggles protecting the eyes from UV radiation should be worn at all times, since accidental unprotected exposure of the eyes can lead to irreversible damage. -
Page 4: Operation
Operation Installation Unpack the transilluminator and its power cord and check if anything is damaged. Do not use damaged appliances! For transport damage, notify the forwarder, for other damage, notify the manufacturer or distributor. The transilluminator should be placed on a level work surface, so that the air can circulate free. The voltage supplied must be the same as indicated on the name plate. -
Page 5: Operation - Uv
If one of Herolab's Darkroom Hood is used, or the transilluminator is part of a MiniDoc system, the protective cover is not necessary, because the hood is impermeable to UV and the transilluminator is switched on from outside. -
Page 6: Operation - Blue Light
Always disconnect the appliance from the mains before working on the unit! Adjusting the cover hinges Most of Herolab 's UVT transilluminators are equipped with special hinges to keep the cover open at any desired angle. They have to be readjusted from time to time. -
Page 7: Exchanging The Cover
Always disconnect the appliance from the mains before working on the unit! Exchanging the filter plate Herolab LongLife filters are sturdy and long-lived, however, they can be damaged, e.g. by using them as a cutting surface. With short wave UV radiation (254 nm), a diminution of the UV transmission (called solarization) is observed after several thousand hours of operation. -
Page 8: Uv Transilluminators
UV Light With ¼ turn, free the tubes from the contacts and take them out upwards. Set in the new tubes from above and with ¼ turn, fit them securely in the contacts (some resistance must be overcome). After exchanging all tubes, put the rear panel back into place and fix it with the snap locks, which have to snap audibly. -
Page 9: Led Transilluminators
Spare parts Tubes Description Cat. No. UVT-40 6 pieces / 15 watt 254 nm (short wave) 29 84 000 312 nm (mid-range) 29 84 100 365 nm (long wave) 29 84 200 UVT-28 8 pieces / 8 watt 254 nm (short wave) 29 84 300 312 nm (mid-range) 29 84 400... -
Page 10: Replacement Filters With Stainless Steel Frame
White Light 20 x 40 cm 29 80 400 Please ask for other spare parts or accessories! If you have any questions regarding maintenance or operation, please call us. Herolab GmbH Laborgeräte Ludwig-Wagner-Str. 12 D-69168 Wiesloch / Germany Phone: ..49 (0) 6222 5802-0 Fax: ..49 (0) 6222 5802-34...
