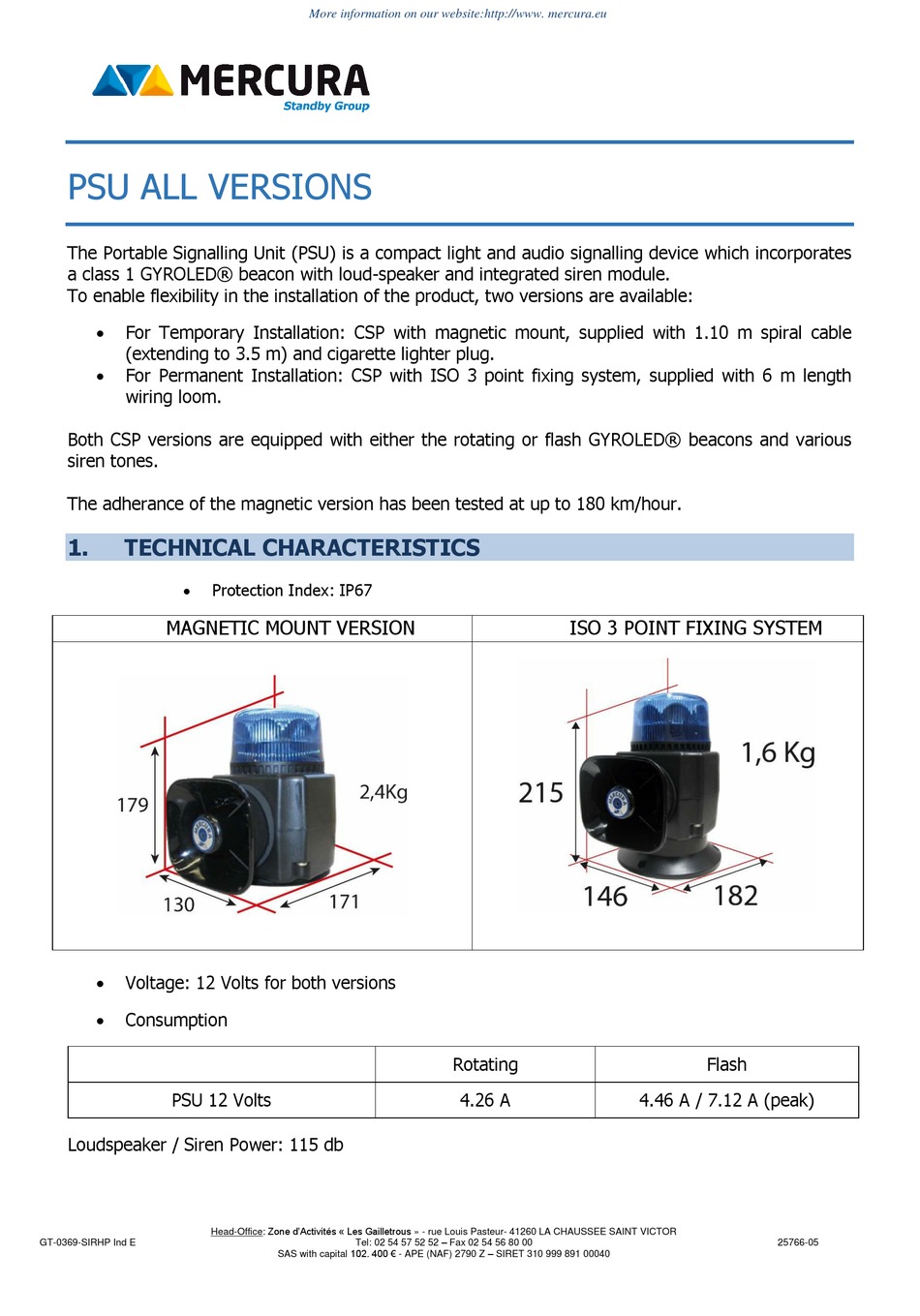

Standby Mercura PSU Manual

PSU ALL VERSIONS
The Portable Signalling Unit (PSU) is a compact light and audio signalling device which incorporates
a class 1 GYROLED® beacon with loud-speaker and integrated siren module.
To enable flexibility in the installation of the product, two versions are available:
 For Temporary Installation: CSP with magnetic mount, supplied with 1.10 m spiral cable
(extending to 3.5 m) and cigarette lighter plug.
 For Permanent Installation: CSP with ISO 3 point fixing system, supplied with 6 m length
wiring loom.
Both CSP versions are equipped with either the rotating or flash GYROLED® beacons and various
siren tones.
The adherance of the magnetic version has been tested at up to 180 km/hour.
1. TECHNICAL CHARACTERISTICS
 Protection Index: IP67
MAGNETIC MOUNT VERSION
 Voltage: 12 Volts for both versions
 Consumption
PSU 12 Volts
Loudspeaker / Siren Power: 115 db
Head-Office: Zone d'Activités « Les Gailletrous » - rue Louis Pasteur- 41260 LA CHAUSSEE SAINT VICTOR
GT-0369-SIRHP Ind E
More information on our website:http://www. mercura.eu
Tel: 02 54 57 52 52 – Fax 02 54 56 80 00
SAS with capital 102. 400 € - APE (NAF) 2790 Z – SIRET 310 999 891 00040
ISO 3 POINT FIXING SYSTEM
Rotating
4.26 A
Flash
4.46 A / 7.12 A (peak)
25766-05
