SpinTouch RapidScreen Assembly Instructions

Temperature scan/face recognition kiosk

Hide thumbs Also See for RapidScreen:

Download this manual

ASSEMBLY

INSTRUCTIONS

Temp erature Scan/Face Recognition Kiosk

Need help?

Do you have a question about the RapidScreen and is the answer not in the manual?

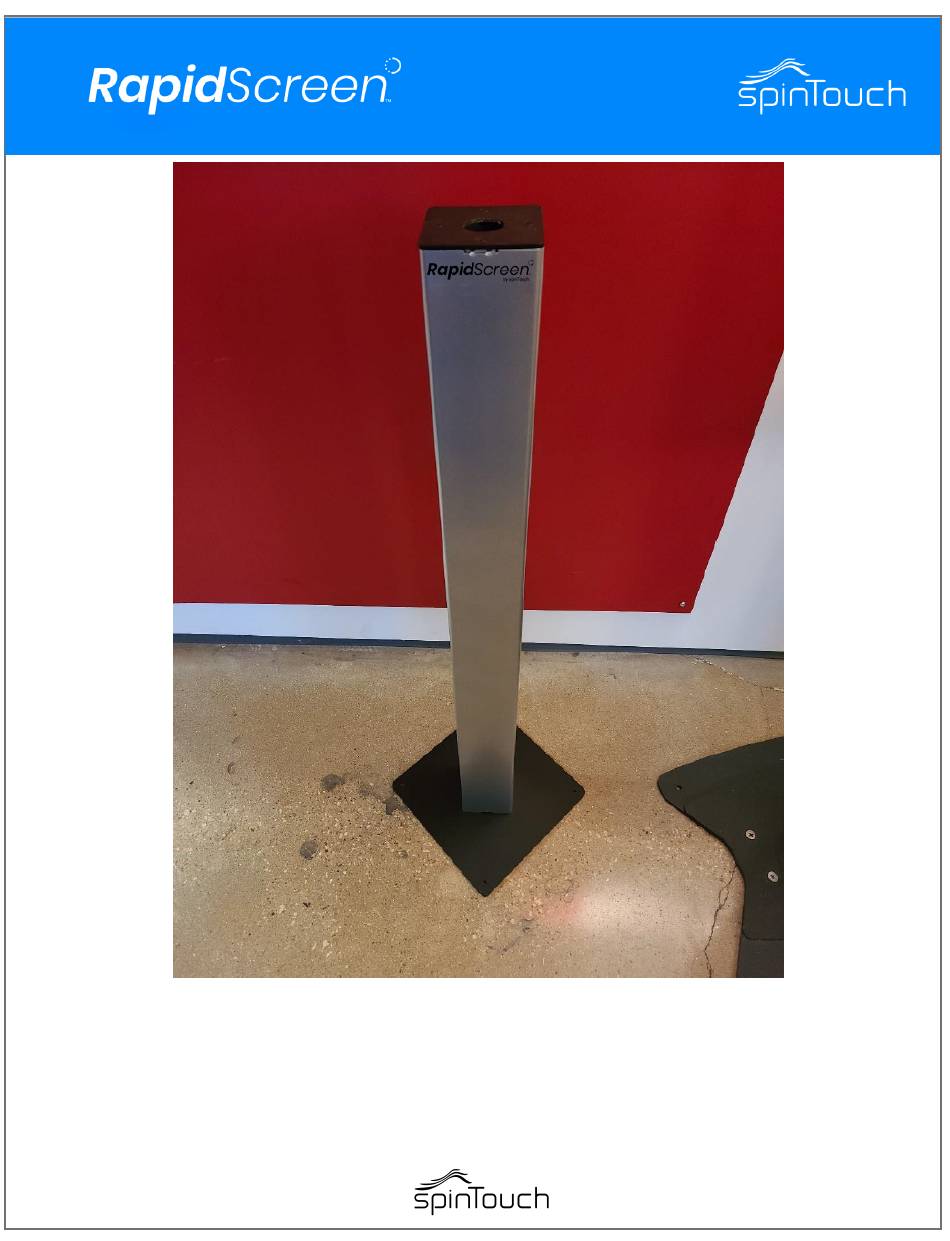

Page 1 ASSEMBLY INSTRUCTIONS Temp erature Scan/Face Recognition Kiosk...
Page 2 STEP 1 Connect the screen (head unit) to the top p late of the kiosk stand. To do so, first, you will need to remove the plate from the kiosk stand by unscrewing the 4 Philips-head screws. Next, unscrew and remove the metal ring from the bottom of the head unit.
Page 3 STEP 2 - Connect your extension cord for the power to the port labeled “DC 12V” on your head unit. Using a zip tie, secure the extension cord to the port cable as shown in the pic above to prevent them from disconnecting inside the kiosk stand.
Page 4 Pic #1 Pic #2 STEP 3 - Connect your USB extension cord to the yellow USB port labeled “USB OTG” on your head unit. Using a zip tie, secure the extension cord to the port cable as shown above in Pic #1 to prevent them from disconnecting inside the kiosk stand.
Page 5 STEP 4 - Feed the extension cords through the inside of the kiosk stand & out the hole on the back of the bottom of the stand. Plug in your power as shown in the pic above.
