Summary of Contents for TMT Automation ChowHUB

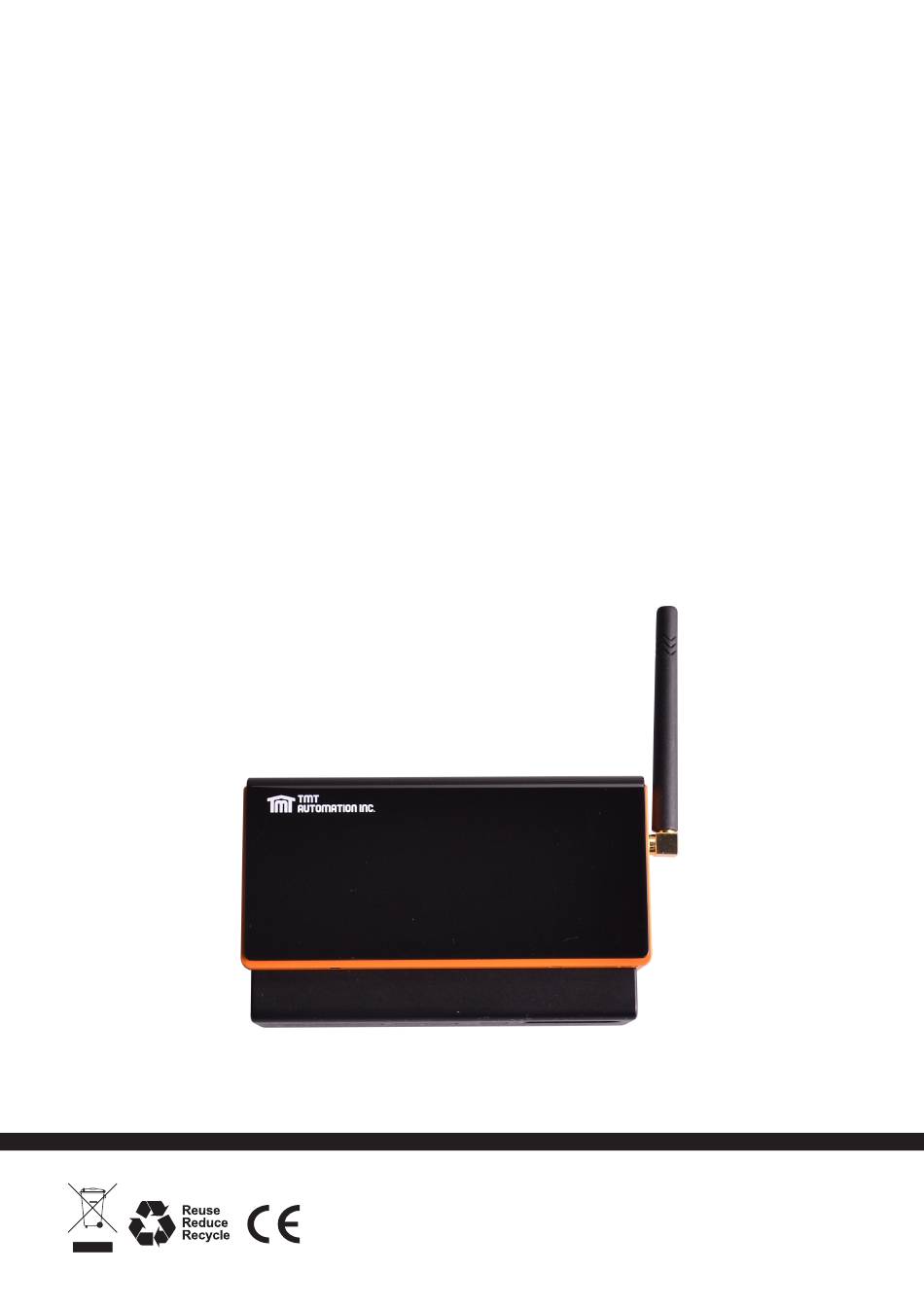

- Page 1 ChowHUB Smart phone controlled device for gate automation User Manual...
- Page 2 Index A. Safety Instructions B. Product Description B1. ChowHUB Smartphone controlled device for gate automation B2. Kit Contents C. Installation Guide C1. General Installation C2. Wire Connection Step by Step C3. Wire Connection Open/Stop/Close C4. Connecting to Chow!APP C5. Setting of Chow!APP Step by step C6.
- Page 3 B1. ChowHUB Smartphone controlled device for gate automation ChowHUB is a device which can connect to an existing garage door, sliding gate and swing gate opener. ChowHUB can be controlled remotely via smartphones. ChowHUB allows multiple users to do operation, e.g. open and close the gate (or door) through Chow!APP. Installing a ChowCAM(Camera) is recommended to have a real-time image on the gate or garage door while operating the ChowHUB with Chow!APP.
- Page 4 3. The (1) ChowHUB will magnetically be attached to the (2) Holder. 4. Attach the (6) Power plug to the ChowHUB. The Blue LED will blink right after it’ s plug in, and the ChowHUB will be ready for pairing.
- Page 5 OUTPUT INPUT GND C2 GND C3 12V/24V Please refer to the manual of your automation to find the Open/Stop/Close terminal OPEN STOP CLOSE Wired door status sensor (Optional) ChowHUB User Manual...
- Page 6 INPUT 12V/24V Output 12V / 1A 12V /24V from the Motor Before connecting to the ChowHUB, please return to the factory setting. Before starting pairing 1. Press the (P) button for 5 seconds and release it. 2. Plug out and reconnect the wire to restart the Wi-Fi box.
- Page 7 7. Tap on the ChowHUB icon on the (Find) device page Set a PIN code for safety use. Once the PIN code is confirmed, the ChowHUB will appear on the main page for further operation. ** The PIN code is required for other users to access to the ChowHUB.
- Page 8 5. Click start to finish setting 6. Click DC mode C7. Operation page 1. Operation button 2. Switching bar for different device 3. Setting page 1) Device Information 2) Edit or Add devices 3) Available Accessories 4) Parameter Settings ChowHUB User Manual...
- Page 9 Connect the Door sensor to Chow! APP 1. Tap the ChowHUB icon on the main page -> Entering the Setting page -> Tap the (Edit or Add devices) -> Tap the (Pairing) 2. Align the trigger and the sensor till the LED on the Door sensor is ON.
- Page 10 3. The LED of the receiver will be ON when two parts are aligned. The sensor will send a signal to the ChowHUB. 4. A notification will be sent from the ChowHUB to your smartphone when the gate or garage door is closed.
- Page 11 ChowHUB User Manual...
- Page 12 ChowHUB User Manual...
