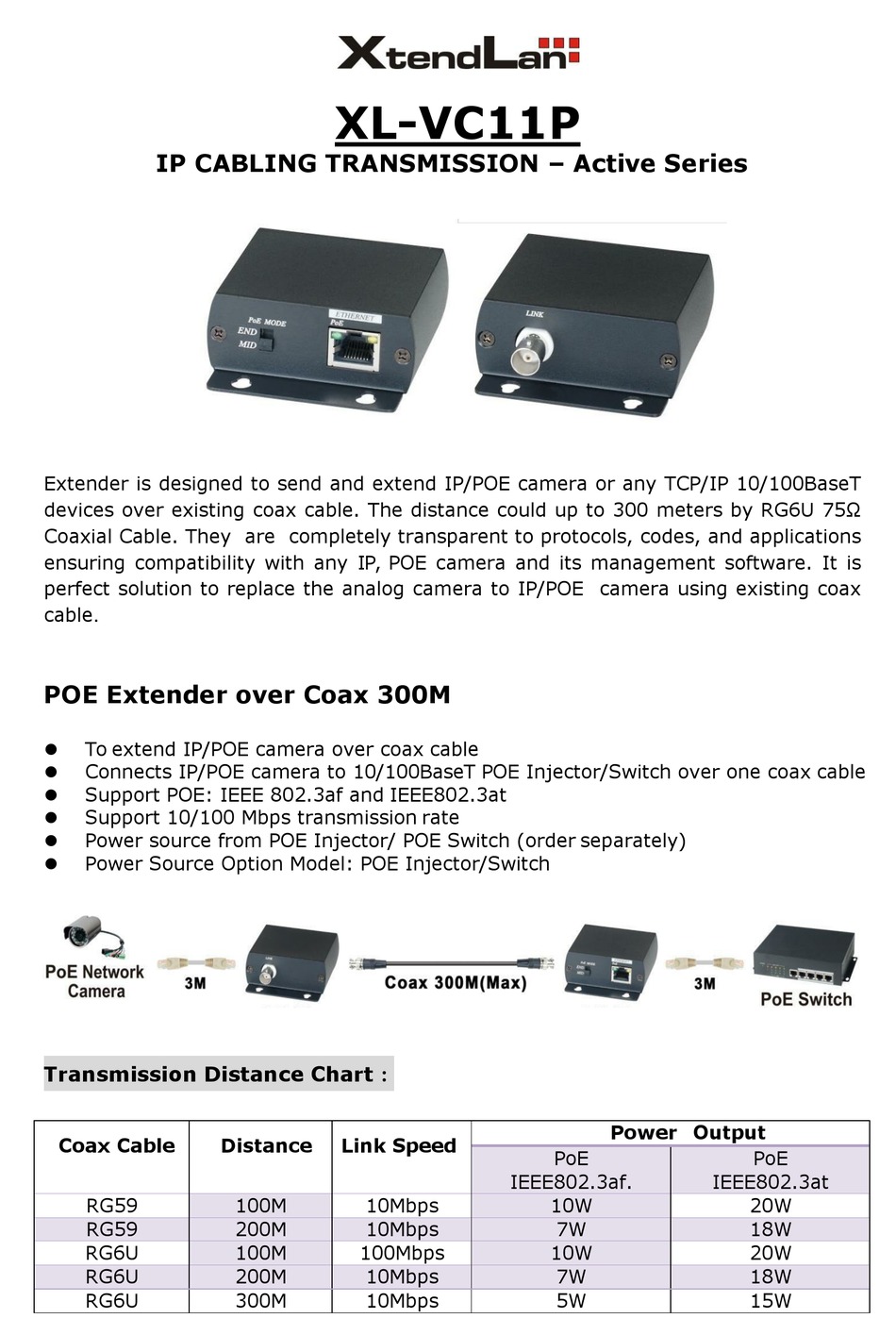

XtendLan XL-VC11P Manual

IP CABLING TRANSMISSION – Active Series
Extender is designed to send and extend IP/POE camera or any TCP/IP 10/100BaseT
devices over existing coax cable. The distance could up to 300 meters by RG6U 75Ω
Coaxial Cable. They are completely transparent to protocols, codes, and applications
ensuring compatibility with any IP, POE camera and its management software. It is
perfect solution to replace the analog camera to IP/POE camera using existing coax
Cable
.

POE Extender over Coax 300M

To extend IP/POE camera over coax cable

Connects IP/POE camera to 10/100BaseT POE Injector/Switch over one coax cable

Support POE: IEEE 802.3af and IEEE802.3at

Support 10/100 Mbps transmission rate

Power source from POE Injector/ POE Switch (order separately)

Power Source Option Model: POE Injector/Switch

Transmission Distance Chart：
Coax Cable
RG59
RG59
RG6U
RG6U
RG6U
XL-VC11P
Distance Link Speed
100M 10Mbps
200M 10Mbps
100M 100Mbps
200M 10Mbps
300M 10Mbps
Power Output
PoE
IEEE802.3af.
10W
7W
10W
7W
5W
PoE
IEEE802.3at
20W
18W
20W
18W
15W
