TP382 Master Equipment Superior Stainless Tub
Assembly Instructions

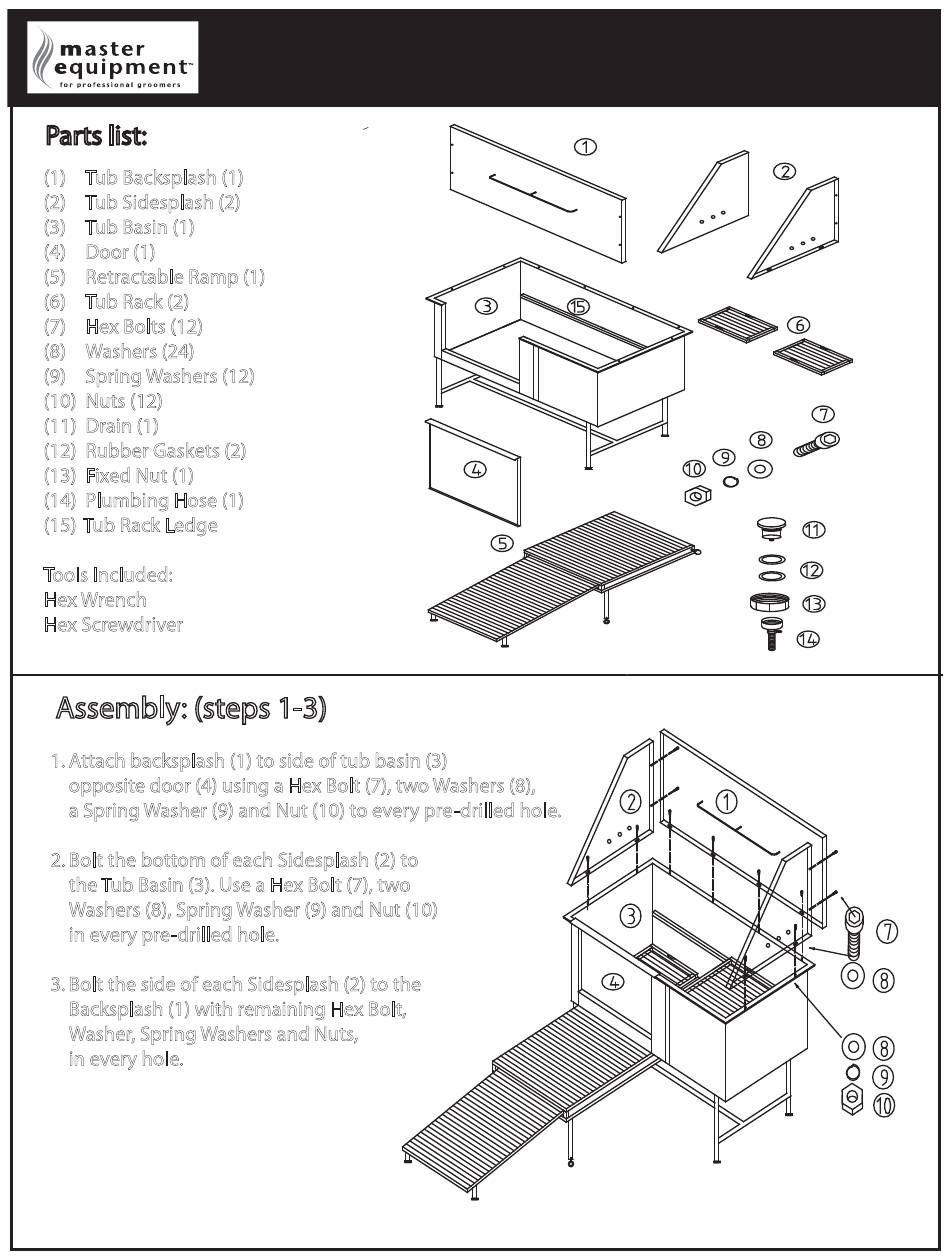

Parts list:

(1) Tub Backsplash (1)
(2) Tub Sidesplash (2)
(3) Tub Basin (1)
(4) Door (1)
(5) Retractable Ramp (1)
(6) Tub Rack (2)
(7) Hex Bolts (12)
(8) Washers (24)
(9) Spring Washers (12)
(10) Nuts (12)
(11) Drain (1)
(12) Rubber Gaskets (2)
(13) Fixed Nut (1)
(14) Plumbing Hose (1)
(15) Tub Rack Ledge

Tools Included:

Hex Wrench
Hex Screwdriver
Assembly: (steps 1-3)
1. Attach backsplash (1) to side of tub basin (3)
opposite door (4) using a Hex Bolt (7), two Washers (8),
a Spring Washer (9) and Nut (10) to every pre-drilled hole.
2. Bolt the bottom of each Sidesplash (2) to
the Tub Basin (3). Use a Hex Bolt (7), two
Washers (8), Spring Washer (9) and Nut (10)
in every pre-drilled hole.
3. Bolt the side of each Sidesplash (2) to the
Backsplash (1) with remaining Hex Bolt,
Washer, Spring Washers and Nuts,
in every hole.
