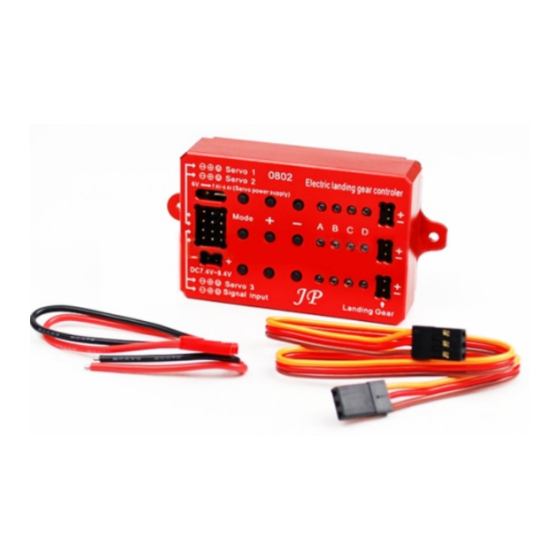

New Multifunctional JP-Electric Retract controller V1 and V2
For JP Hobby Alloy Electric Retracts Landing Gear ER-005 / ER-010 / ER-120 / ER-150 / ER-200
A- Multi-function landing gear controller features:
1. Automatic identification current
2. Set the voltage of the door servo
3. Set the CW and CCW direction and stroke of the door servo
4. Set the door retraction sequence
Long press the mode button to enter the setting mode:
1. When the A or B light is flashing, press the + / - button to set the servo CW and CCW direction
function.
2. When A+B flashes alternately or C+D flashes alternately, press + / - button to set the stroke of the
servo.
3. When the C lamp is flashing, it is V1 mode.
4. When the D lamp flashes, it is V2 mode.
JP HOBBY is distributed in Europe by WEB EFFECT / TURBINES RC
Instruction Manual
Advertisement
Table of Contents
Related Manuals for JP Hobby ER-120 V1
Summary of Contents for JP Hobby ER-120 V1
- Page 1 New Multifunctional JP-Electric Retract controller V1 and V2 Instruction Manual For JP Hobby Alloy Electric Retracts Landing Gear ER-005 / ER-010 / ER-120 / ER-150 / ER-200 A- Multi-function landing gear controller features: 1. Automatic identification current 2. Set the voltage of the door servo 3.
- Page 2 New Multifunctional JP-Electric Retract controller V1 and V2 JP HOBBY is distributed in Europe by WEB EFFECT / TURBINES RC...
- Page 3 The best quality of electric retracts. You will notice the advantage of not having to compress air before each flight, and you will forget the leaks. JP HOBBY is distributed in Europe by WEB EFFECT / TURBINES RC...
- Page 4 Three units retract Check the retract cable is correct Reverse running horse cables properly not work in connected to the controll the same direction JP HOBBY is distributed in Europe by WEB EFFECT / TURBINES RC...
