Summary of Contents for FPVModel ZMR180 Series

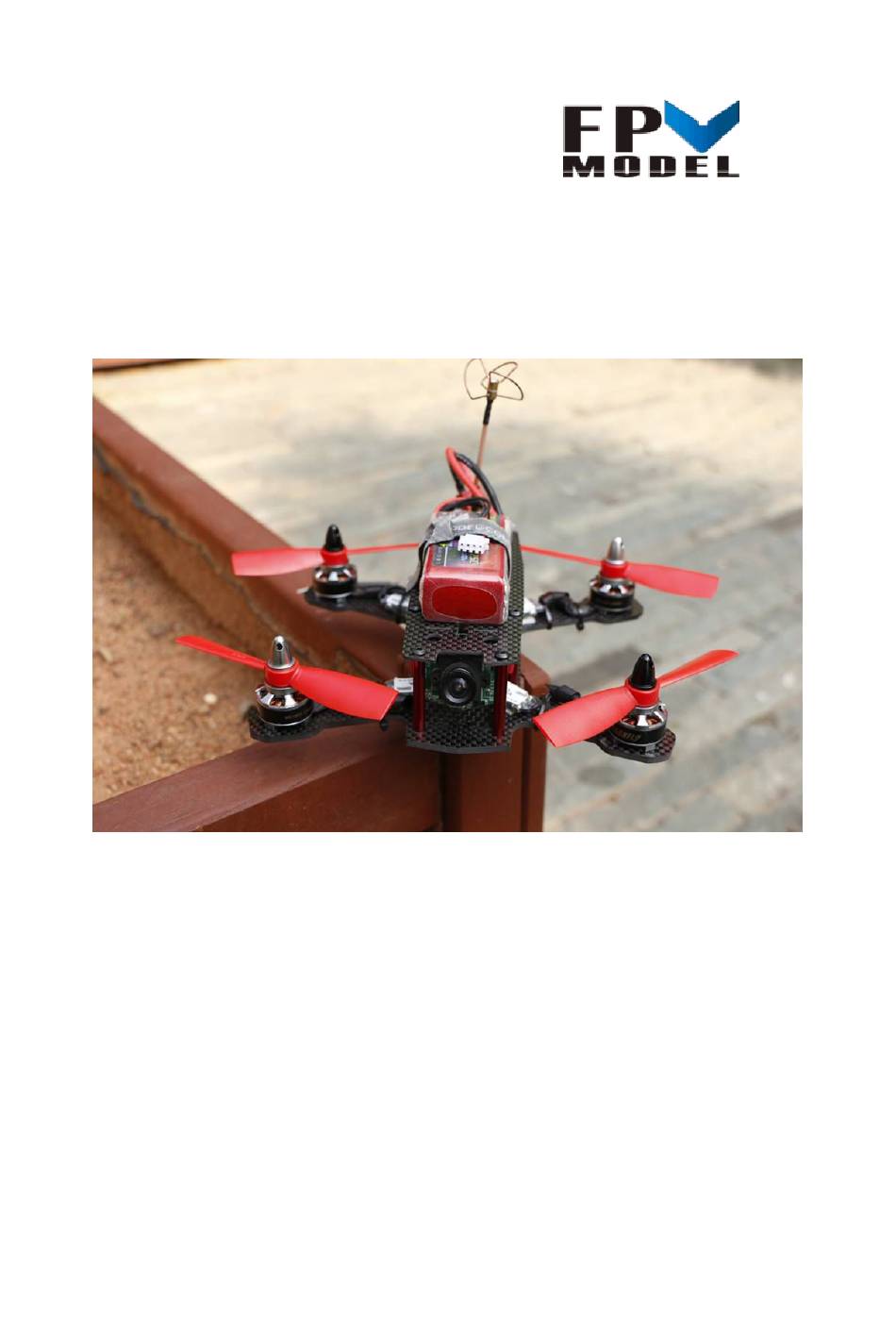

- Page 1 ZMR180 BRIEF BUILD MANUAL V1.0 FPV Model www.fpvmodel.com...
- Page 2 NOT the run of the mill cheap eBay Carbon Fiber that most others sell. This CF is backed with FPVMODEL’s name so you can trust that it is top of the line. The ZMR180 is an awesome time to be had and you will find the smaller size can zoom through gaps that were previously not even considered with a 250 sized quad.
- Page 3 First, cut the ESCs’ power cord to an appropriate length, and solder them onto PDB. Cut the transmitter’s power cord to an appropriate length. FPV Model www.fpvmodel.com...
- Page 4 And draw out the inner metal wire. Cut the wires (red, black and yellow) on camera to appropriate lengths. FPV Model www.fpvmodel.com...
- Page 5 Solder both positive and negative poles of the transmitter’s power cord onto PDB, so does the positive and negative poles of camera. Cut the signal wire of transmitter to an appropriate length. FPV Model www.fpvmodel.com...
- Page 6 Keep the yellow wire only and draw others out. Draw out the inner metal wires as well. FPV Model www.fpvmodel.com...
- Page 7 Solder the yellow wire of transmitter and the yellow wire of camera. Make a power cord with SR wire and XT60, then solder them onto PDB. FPV Model www.fpvmodel.com...
- Page 8 Install the PDB on the frame (see above), and then install the motors, cut the wires to appropriate lengths so as to solder the ESCs easier. Solder the ESCs and motors. FPV Model www.fpvmodel.com...
- Page 9 Test the motors to make sure they rotate correctly, and then seal off the heat-shrink tubes. Carefully cut off the unnecessary outer part of camera. FPV Model www.fpvmodel.com...
- Page 10 Install camera and camera mount. Secure the camera and camera board with M2X10 screws, nuts and nylon nuts. FPV Model www.fpvmodel.com...
- Page 11 Cut the flight controller wires to appropriate lengths. Solder them onto the flight controller. FPV Model www.fpvmodel.com...
- Page 12 Then solder the ESCs onto flight controller. Note: Please solder them in order according to the indicators on the flight controller. The BEC is without built-in BEC. Here we use a Dupont line to connect the BEC (5v) that on PDB and flight controller. FPV Model www.fpvmodel.com...
- Page 13 Add washers. Install the transmitter and antenna with “L” shape connector. FPV Model www.fpvmodel.com...
- Page 14 Put all the parts in the right places. Now, the installation of ZMR180 is nearly completed. Power on, and you can enjoy the FPV racing!!! Way to go!!! FPV Model www.fpvmodel.com...
