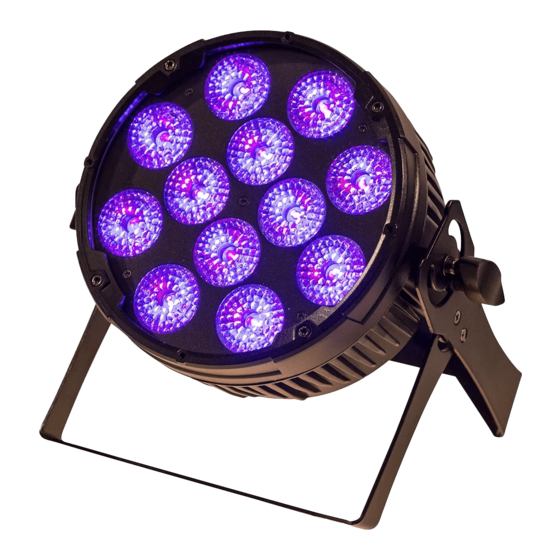

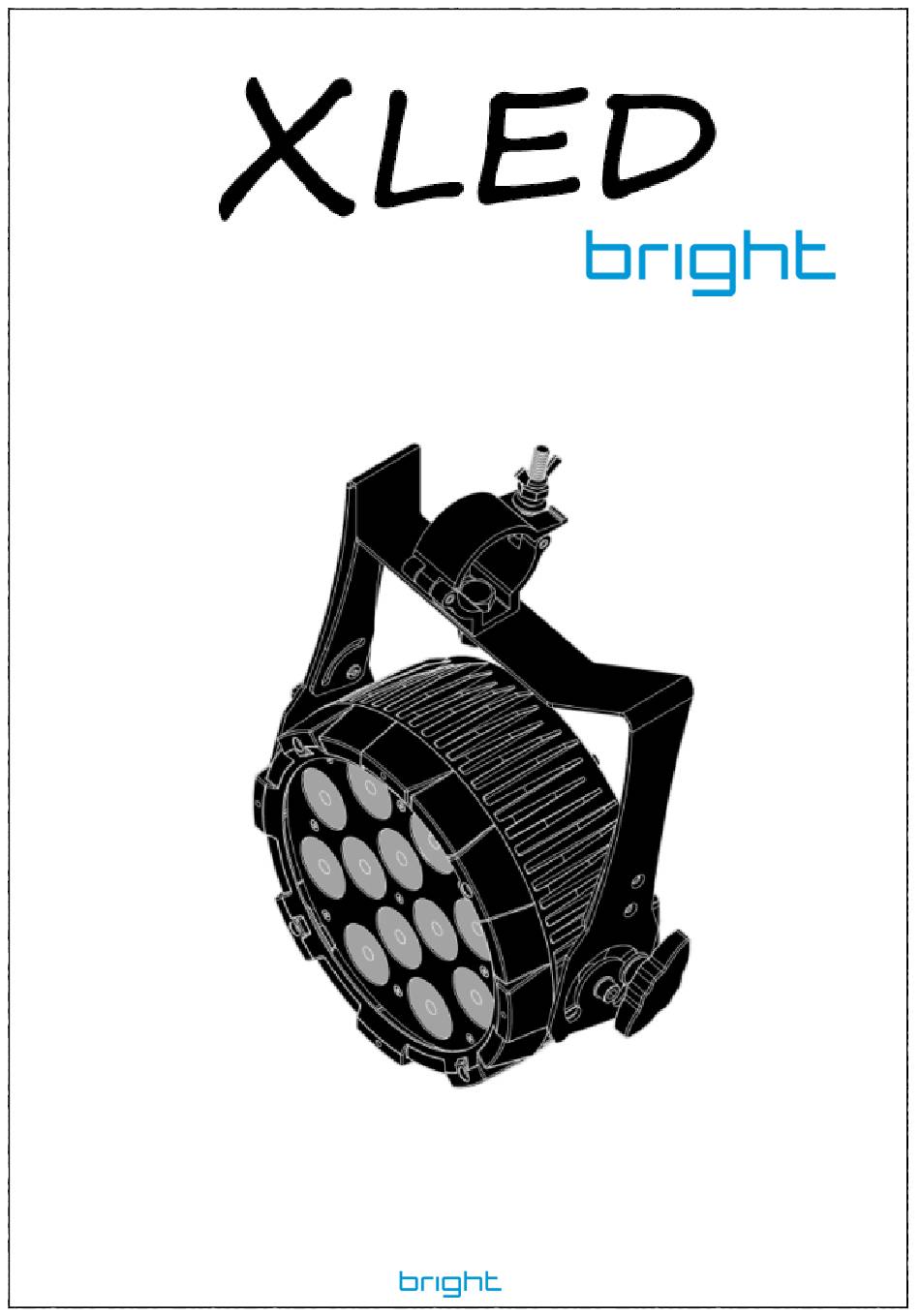

- Page 1 Software version 1.4...
- Page 2 Ø200 Width: XLED basic: XLED Tourpack: 1 x Bright XLED 1 x Flightcase 1 x Hook clamp 10 x Bright XLED 1 x Schuko – PowerCon 10 x Hook clamp Art.no: 437613 10 x Schuko – PowerCon 10 x Safety-wire...
-
Page 3: Safety Instructions
Safety Instructions: Do not open this device - there are no user-serviceable parts inside. Do not look directly at the light source when the device is on. Caution, this unit's housing may be hot when lights are operating. Do not leave any flammable material within 50 cm of this unit while operating or connected to power. -
Page 4: Display Navigation
Display Navigation When XLED is already in DMX-mode, the DMX start address is displayed on the left side (Axxx), while the DMX channel count is displayed on the right side (Cxx). Use the Up/Down buttons to alter the DMX start address, and press Enter/Confirm to set the address permanently. -
Page 5: Automatic Programs
Static Color Use Up/Down to step thru any solid combination of R, G, B and W, then press Enter/Confirm to set Static Color permanently. O Setting a static color will activate “Color Set” Mode Manual Color Use Up/Down and Confirm/Enter to sequentially adjust values for RGBW, (000→255), overall Intensity (000→100) and Strobe speed (S000→S100), then press Enter/confirm to set Manual Color permanently. -
Page 6: Master/Slave Operation
Master/Slave Operation Use Up/Down to choose Master or Slave mode (M/S), and press Enter/Confirm. When using any of the standalone operating modes: auto, sound, static or manual color with Master enabled, the Master fixture will transmit and remote control any fixtures set to Slave Mode. -
Page 7: Dmx Channels
Functions in details DMX channels: The XLED may be set to use 3, 4, 6 or 9 DMX channels. The channel order is the same for all modes: (Please refer to the DMX Charts for detailed description) Strobe Color Auto Speed Inbuilt Automatic Programs: Pr01:... - Page 8 Photometrics Center Lux RGBW 3957 3900 4690 6000 15740 1092 1200 1700 4310 1911 Beam 1056 Angle 22º Field Angle: 35º...
- Page 10 DMX Chart – 3, 4, 6 & 9 Channels mode CHANNEL VALUE FUNCTION 000-255 Red dimmer: 0% → 100% 000-255 Green dimmer: 0% → 100% 000-255 Blue dimmer: 0% → 100% 000-255 White dimmer: 0% → 100% 000-255 Master dimmer 0% → 100% 000-009 No function 010-255 Strobe Slow →...
-
Page 11: Technical Specification
Technical Specification: Construction Housing Black Die-cast Aluminum Body, Iron Yoke Cooling System Passive fanless, Temperature protection Power Input/Output Neutrik Powercon DMX Input/Output 5-pin XLR Display Blue/white Backlit LCD, auto-dimmed when idle. Dimension (LxWxH) 102 x 263 x 287 mm Weight 3.4kg (clamp included) Electric Power supply... - Page 12 Bright Norway AS • Brenneriveien 11 • N-0182 Oslo • Norway • brightgroup.no...
